2 Channel Relay Module 12V Relay Module High and Low Level Trigger Relay Module Dual Channel Optocoupler Isolated Relay Module For Automation - RS6703

2 Channel Relay Module 12V Relay Module High and Low Level Trigger Relay Module Dual Channel Optocoupler Isolated Relay Module For Automation - RS6703

RS6703

Low stock: 2 left

Rs. 199.00
Rs. 199.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

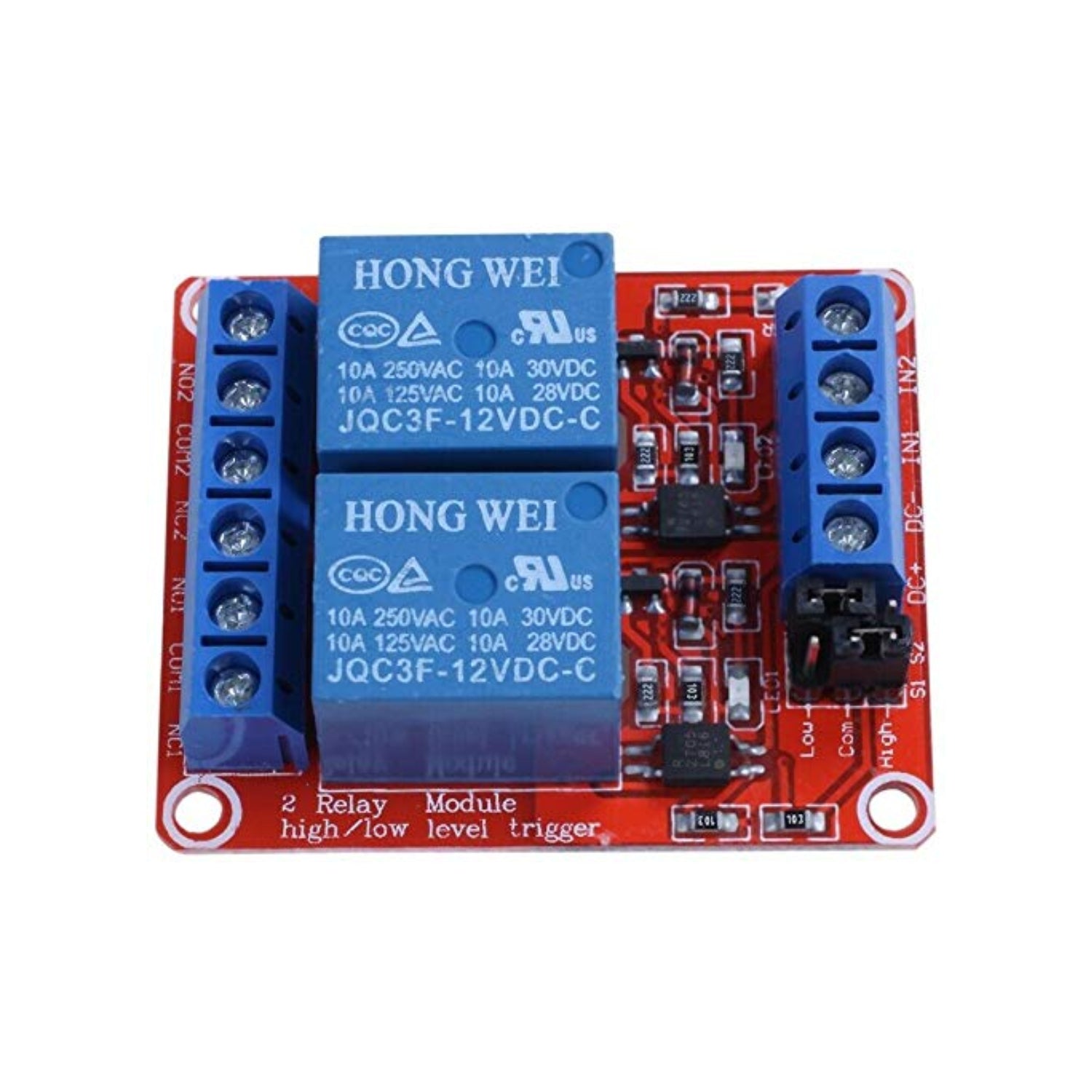

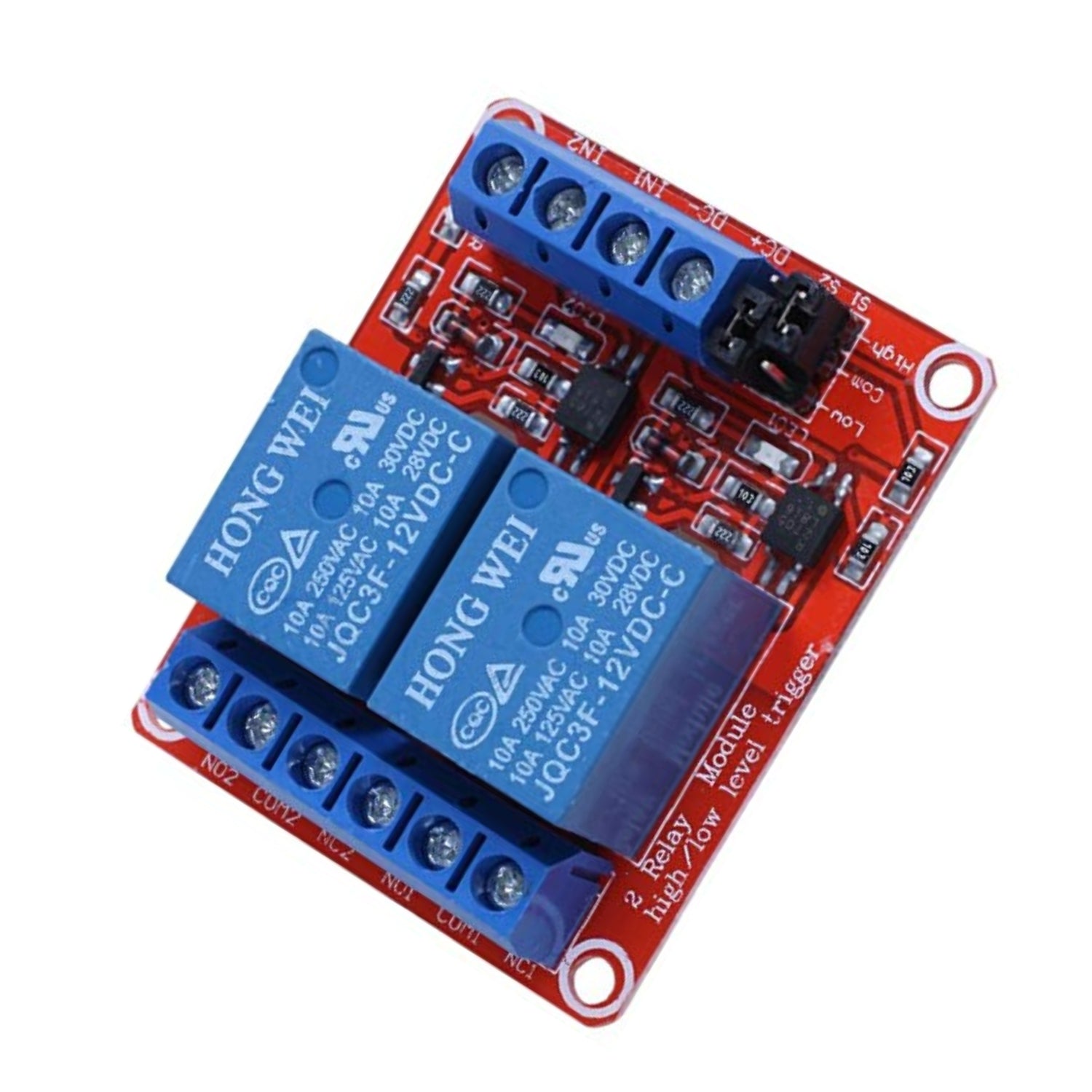

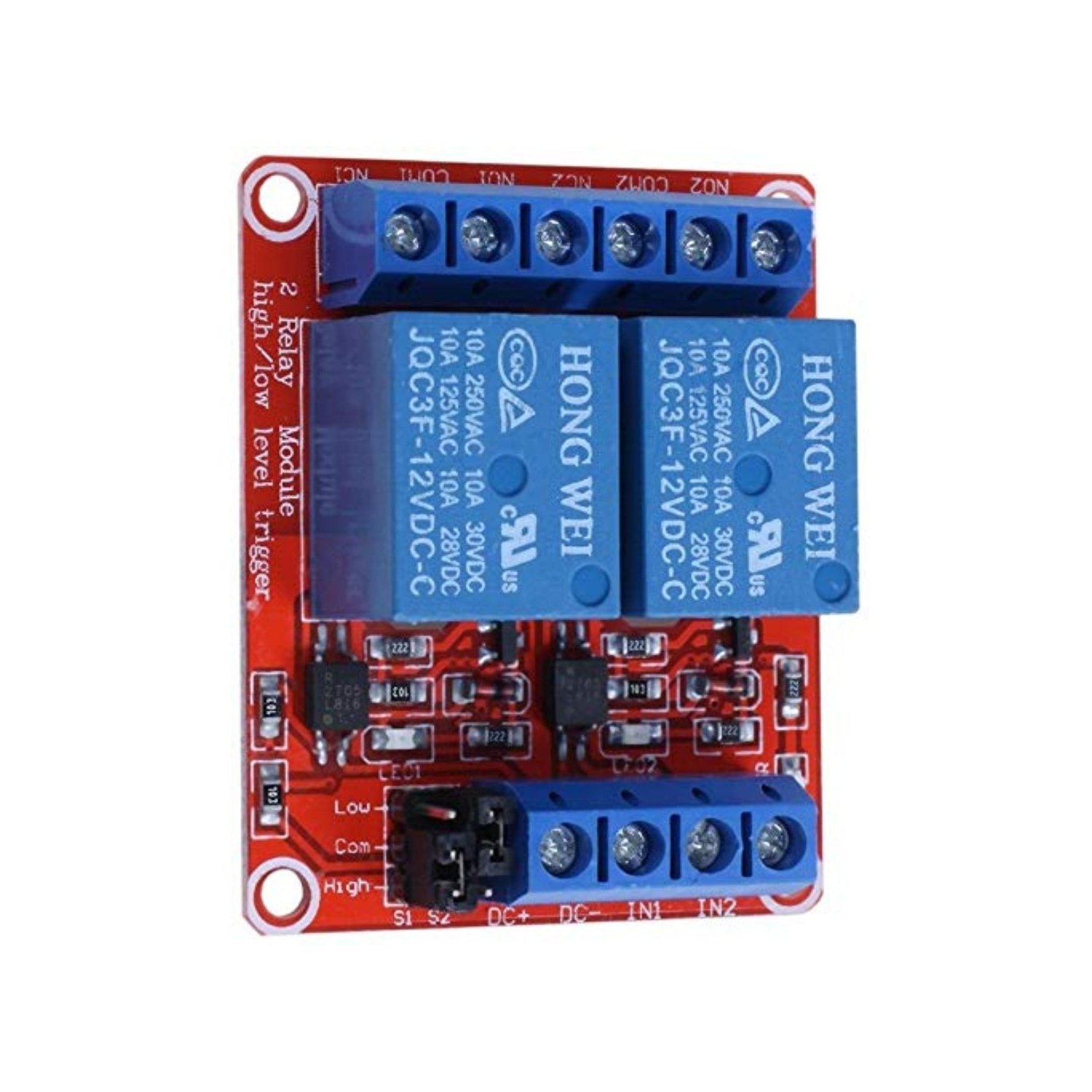

The 2 Channel Relay Module uses a genuine high-quality DC12V relay and SMD optoisolator supporting high/low-level trigger, widely applied to control various AC/DC appliances, and other devices with large currents.

The module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is broken, the relay will not move. The interface design is user-friendly, all interfaces can be directly connected through the terminal block, very convenient.

Specifications:

  • No. of Channel: 2
  • Quiescent Current: 5mA
  • Maximum Current: 80mA
  • Trigger Current: 3 - 5mA
  • Trigger Voltage(LOW): 0 - 4V
  • Trigger Voltage(HIGH): 4.5 - 12V
  • Mounting Type: Screw Mounting
  • Operation Mode: Automatic
  • NO Maximum Load: AC 250V, 10A or DC 30V, 10A

Features:

  • 2 LEDs to indicate when relays are ON
  • Works with logic-level signals
  • Option to make it a high-level or low-level trigger
  • Opto-isolation circuitry
  • Module with diode current protection and short response time

Package Included:

1 x 2 Channel Relay Module 12V Relay Module High and Low-Level Trigger Relay Module Dual Channel Optocoupler Isolated Relay Module For Automation
