2-Channel PWM Signal Generator 1Hz-150kHz Adjustable Square Rectangle Wave Generator Module PWM Frequency Generator Dual Channel Pulse Generator - RS7208

2-Channel PWM Signal Generator 1Hz-150kHz Adjustable Square Rectangle Wave Generator Module PWM Frequency Generator Dual Channel Pulse Generator - RS7208

SKU:RS7208

In stock

Regular price Rs. 100.00
Sale price Rs. 100.00 Regular price
Sold out
Exclusive of GST
Shipping calculated at checkout.
REES52 REWARDS
Earn an estimated 1 points on this order
Found a better price?

Send the competitor link and price to our team. No automatic price match.

This website form routes enquiries to our support team. Your email app will not open.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

Cash on Delivery is currently unavailable for new orders

Existing COD Orders Only

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

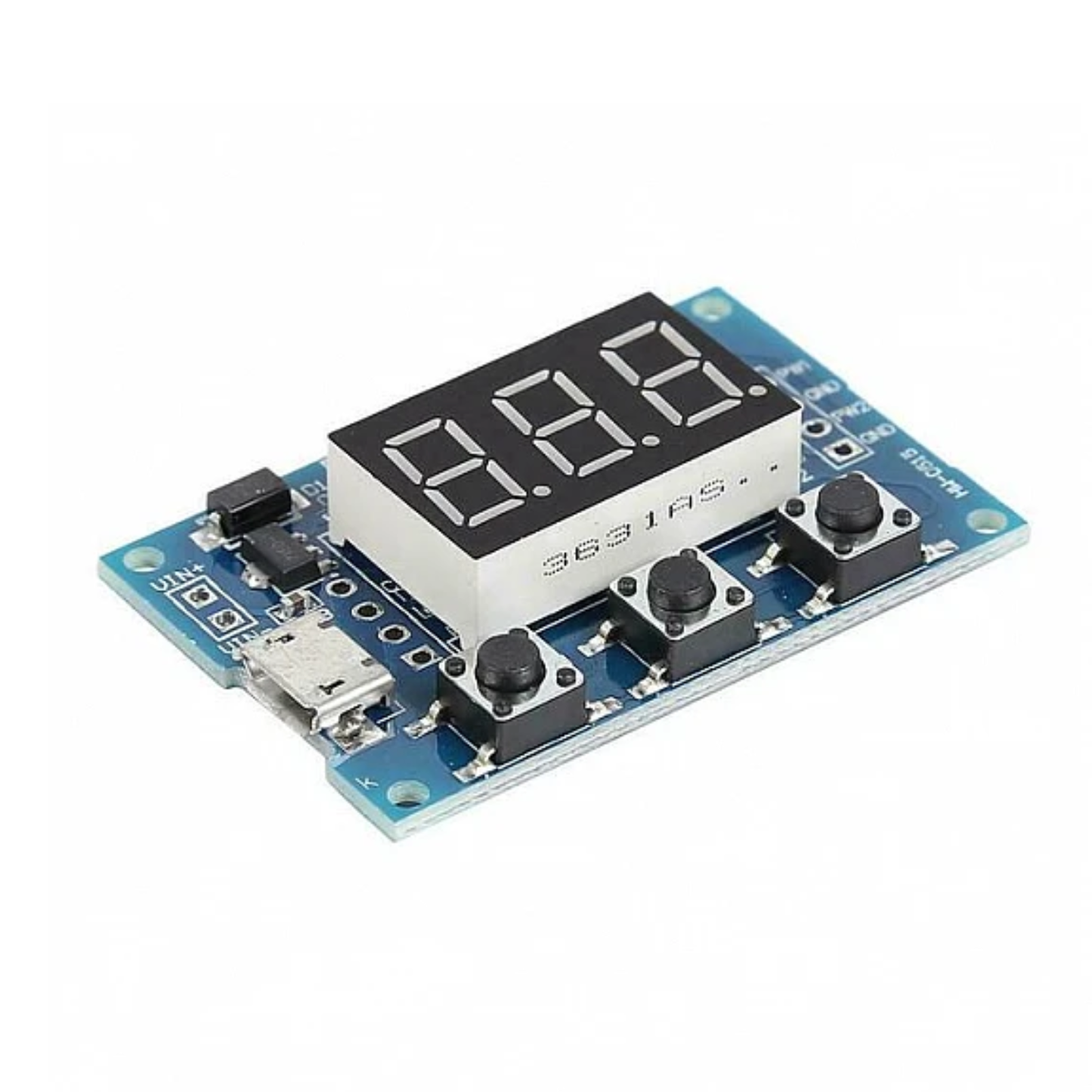

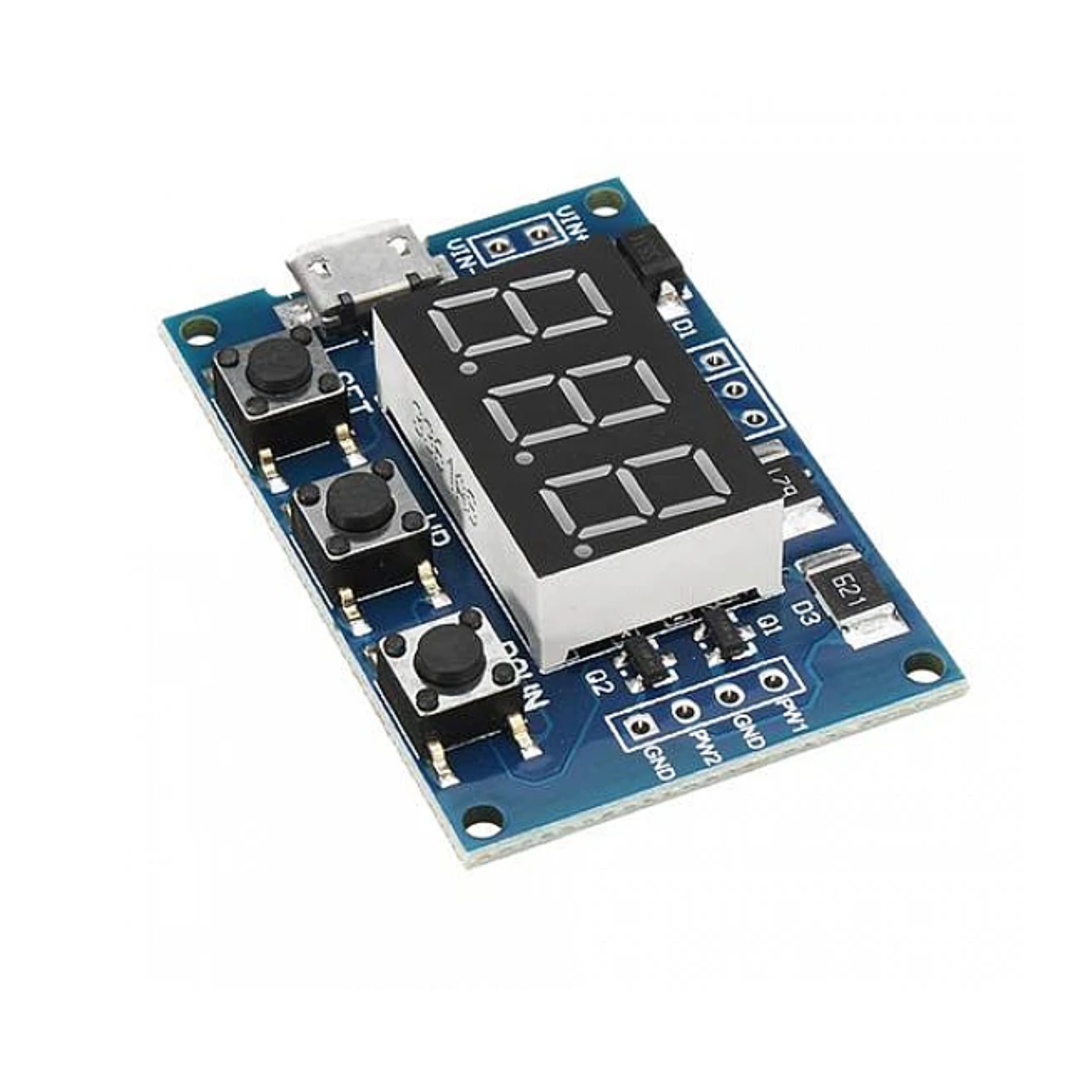

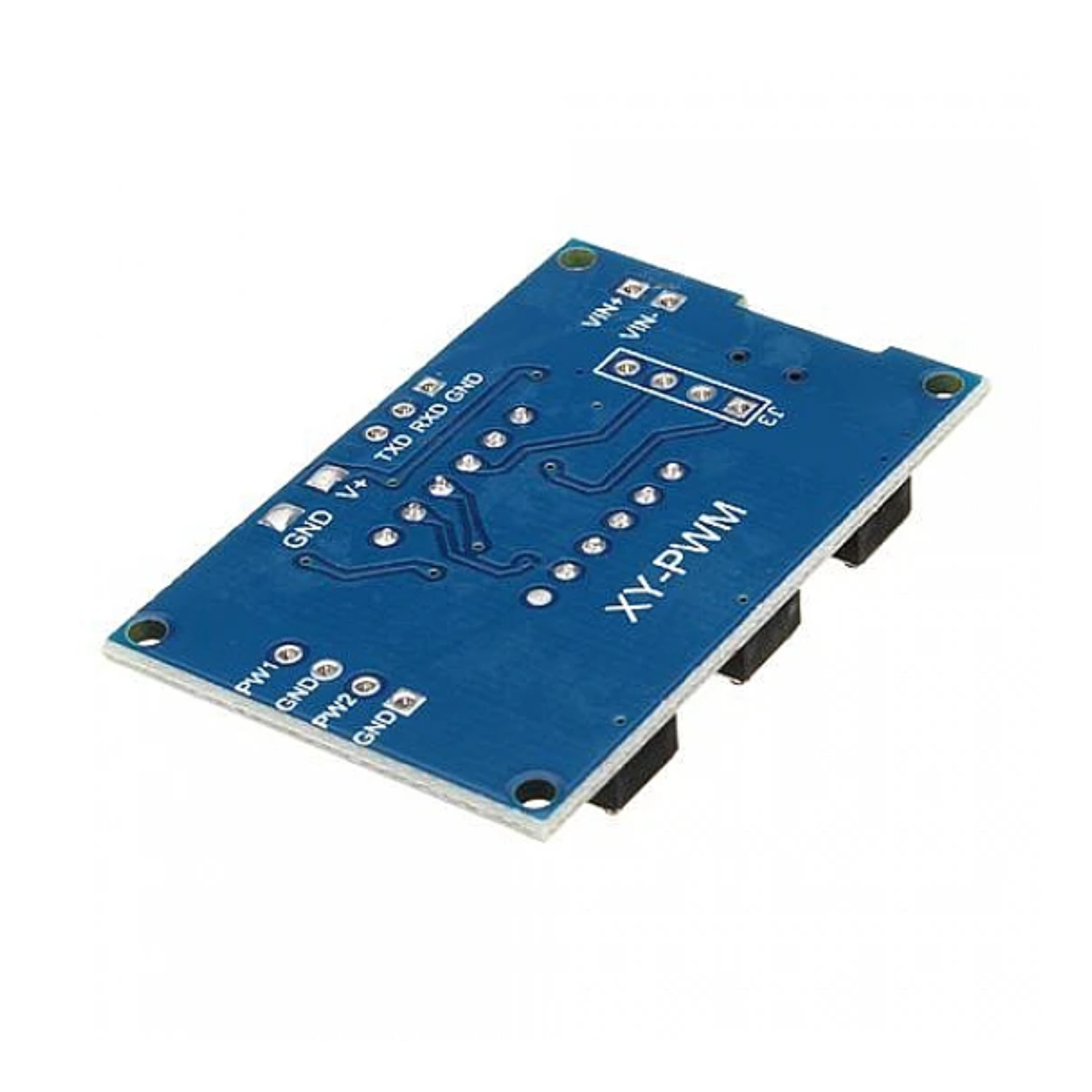

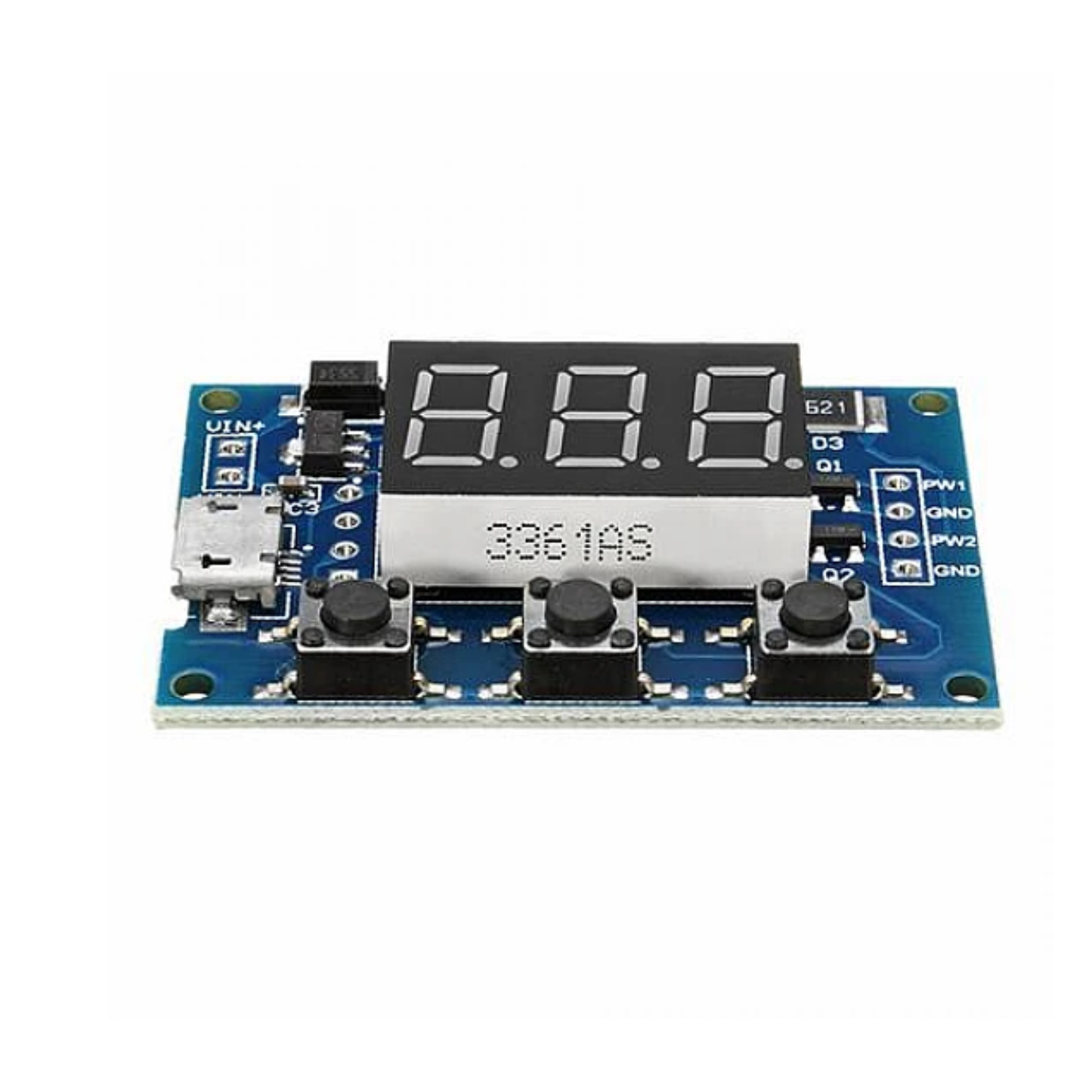

2-Channel PWM Signal Generator PWM Pulse Frequency and Duty Cycle Adjustable 2-channel Signal Generator Module for Square and Rectangular Wave is a 2-channel PWM/Pulse generator with variable Frequency: 1hz to 150 kHz and Duty cycle 1% to 100% alterations. The frequency and duty cycle can be controlled using switches provided on board. It can also be controlled using a serial communication protocol. This module provides an easy solution for driving stepper motors using variable frequency pulse input and DC motors with variable PWM duty cycles.

Specifications:

  • Item Type: Signal Generator
  • Frequency: 1Hz to 150KHz
  • Frequency Precision: 2%
  • Operating Voltage (VDC): 5 to 30

Features:

  • Two independent PWM cycles with variable Frequency and Duty cycles.
  • Parameters configurable via Serial protocol

Serial Port Control:

  • Communication Standard:9600 bps
  • Data Bit:8
  • Stop Bit:1
  • Verify Bit: none
  • Flow Control: none

Setting PWM Frequency:

  • "S1FXXXT": set PWM1 frequency as XXX HZ (001~999)
  • "S1FXX.XT": set PWM1 frequency as XX.X KHZ (00.1~99.9)
  • "S1F: X.X.X.T": set PWM1 frequency as XXX KHZ (0.0.1.~1.5.0.)
  • "S1": PWM1
  • "S2": PWM2
  • "F": frequency
  • "D": duty cycle
  • "T": stop sign bit

Setting PWM Duty Cycle:

  • “S1DXXXT”:set PWM1 duty cycle as XXX;(001~100)
  • “S2DXXXT”:set PWM2 duty cycle as XXX;(001~100)

Parameter Setting:

  • The module has a 3-channel key: Set, Up, Down
  • By short pressing the SET key, can shift displays 4 parameter values (FR1:PWM1 frequency;dU1:PWM1 duty cycle; FR2:PWM2 frequency;dU2:PWM2 duty cycle); before shifting, there will be corresponding parameter name flashing
  • Directly press the UP, and DOWN keys to modify the current parameter value
  • 2-channel PWM is set 3 kinds of frequency values, in the frequency display interface, by long press SET to shift,3 kinds of frequency’s duty cycle is the same (XXX:1Hz~999Hz; XX.X:0.1Khz~99.9Khz; X.X.X.:1Khz~150Khz).

Package Included:

1 x 2-Channel PWM Signal Generator
