Waveshare

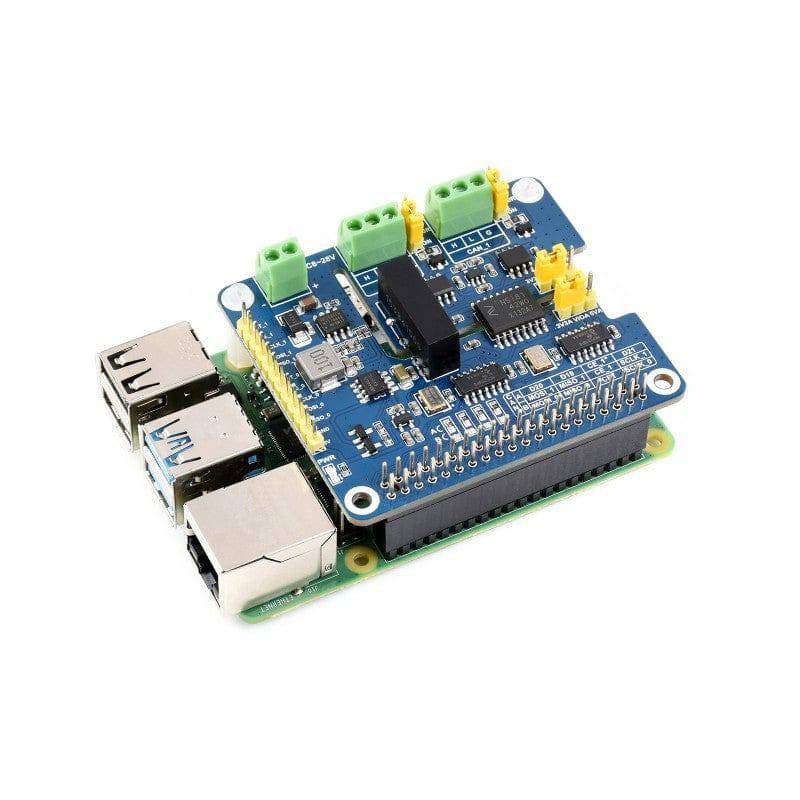

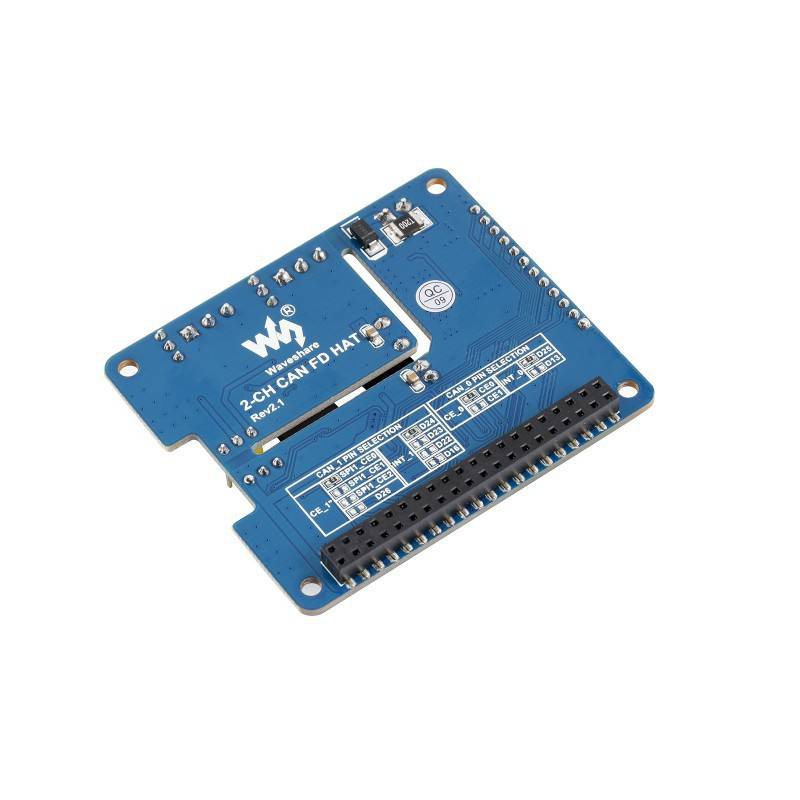

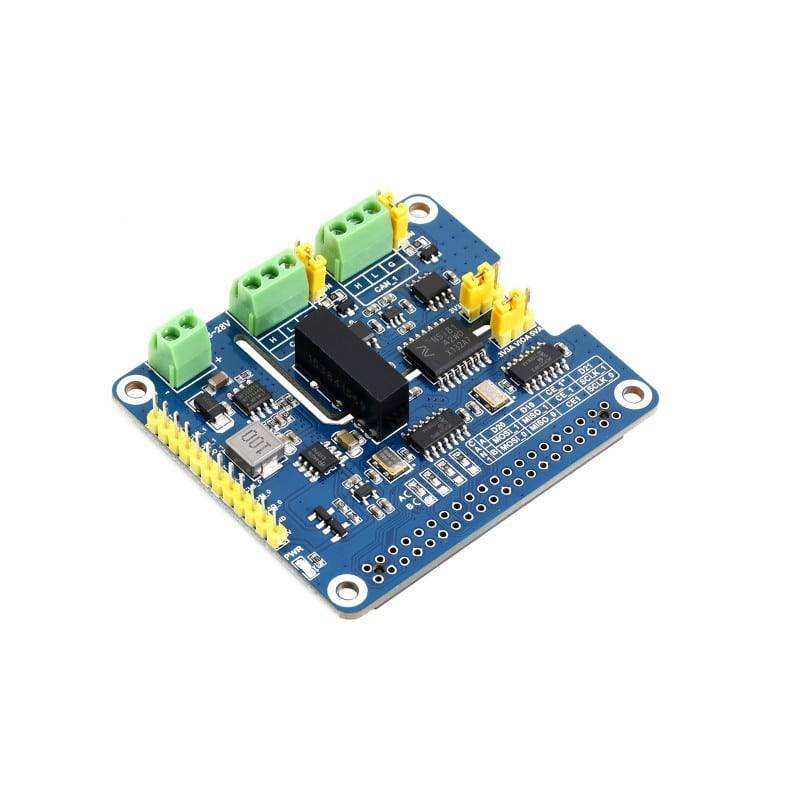

2-Channel Isolated CAN FD Expansion HAT for Raspberry Pi, Multi Protections - RS2129

2-Channel Isolated CAN FD Expansion HAT for Raspberry Pi, Multi Protections - RS2129

RS2129

32 in stock

Rs. 4,499.00
Rs. 4,499.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Power input terminal voltage: DC 8~28V
  • Operating voltage: 5V
  • Logic level: 3.3V/5V
  • CAN controller: MCP2518FD
  • Dimensions: 65.0 x 56.5 mm
  • Fixed hole through diameter: 3.0mm


Product description

This is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate), the speed is higher than the traditional 1Mbps of CAN2.0, features multi onboard protection circuits, high anti-interference capability, and stable operation. It suits for fields such as automotive devices or industrial automation.

Features

  • Based on Raspberry Pi design, suitable for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B.
  • Support external wide voltage of 8~28V to supply power to Raspberry Pi and 2-CH CAN FD HAT at the same time or directly supply power to 2-CH CAN FD HAT from Raspberry Pi.
  • Support CAN FD, the data baud rate breaks through the 1Mbps limit of traditional CAN2.0.
  • Reserved control interface for easy control by other controllers whose logic voltage is 3.3V/5V.
  • CAN bus adopts electrical isolation, the isolation voltage can reach 5 kV.
  • Multiple protection devices onboard, with short-circuit protection, electrostatic protection, effective suppression of lightning and ESD, each channel provides 500W lightning surge protection.
  • The interface has a 120Ω terminal resistance, which can be switched by jumper caps.

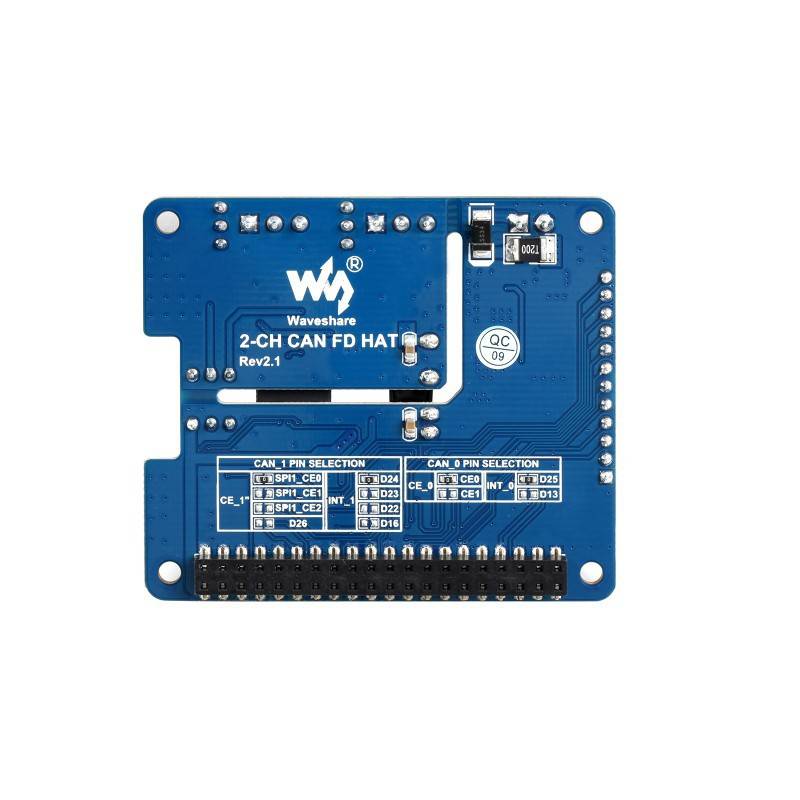

  • The working mode of dual-channel CAN can be configured, that is, two channels share a set of SPI or two channels use two independent SPIs respectively.
  • Provide complete supporting information manuals and demos.

Specification

  • Power input terminal voltage: DC 8~28V
  • Operating voltage: 5V
  • Logic level: 3.3V/5V
  • CAN controller: MCP2518FD
  • Dimensions: 65.0 x 56.5 mm
  • Fixed hole through diameter: 3.0mm

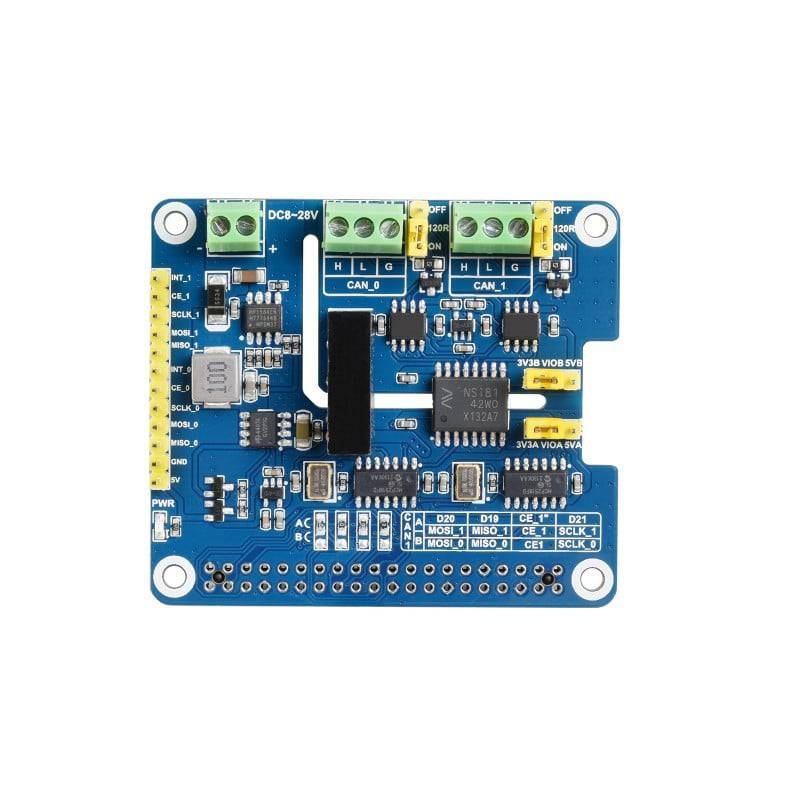

Interfaces

CAN interface

  • PIN Raspberry Pi (BCM2835) Raspberry Pi (WPI) Description
  • 5V 5V 5V 5V Power input
  • GND GND GND Ground
  • MISO_0 9 (MISO) 13 (MISO) SPI_0 Data output
  • MOSI_0 10 (MOSI) 12(MOSI) SPI_0 Data input
  • SCK_0 11 (SCK) 14 (SCK) SPI_0 Clock input
  • CS_0 8 (CE0) 10 (CE0) CAN_0 Chip select
  • INT_0 25 6 CAN_0 Interrupt Pin
  • MISO_1 9/19 (MISO) 13/24 (MISO) SPI_1 Data output
  • MOSI_1 10/20 (MOSI) 12/28 (MOSI) SPI_1 Data input
  • SCK_1 11/21(SCLK) 14/29 (SCLK) SPI_1 Clock input
  • CS_1 7(CE1)/26 11(CE1)/25 CAN_1 Chip select
  • INT_1 16 27 CAN_1 Interrupt Pin

Package Included :

  • 2-CH CAN FD HAT x1
  • 2×20PIN female header x1
  • Standoffs pack (2pcs) x1
