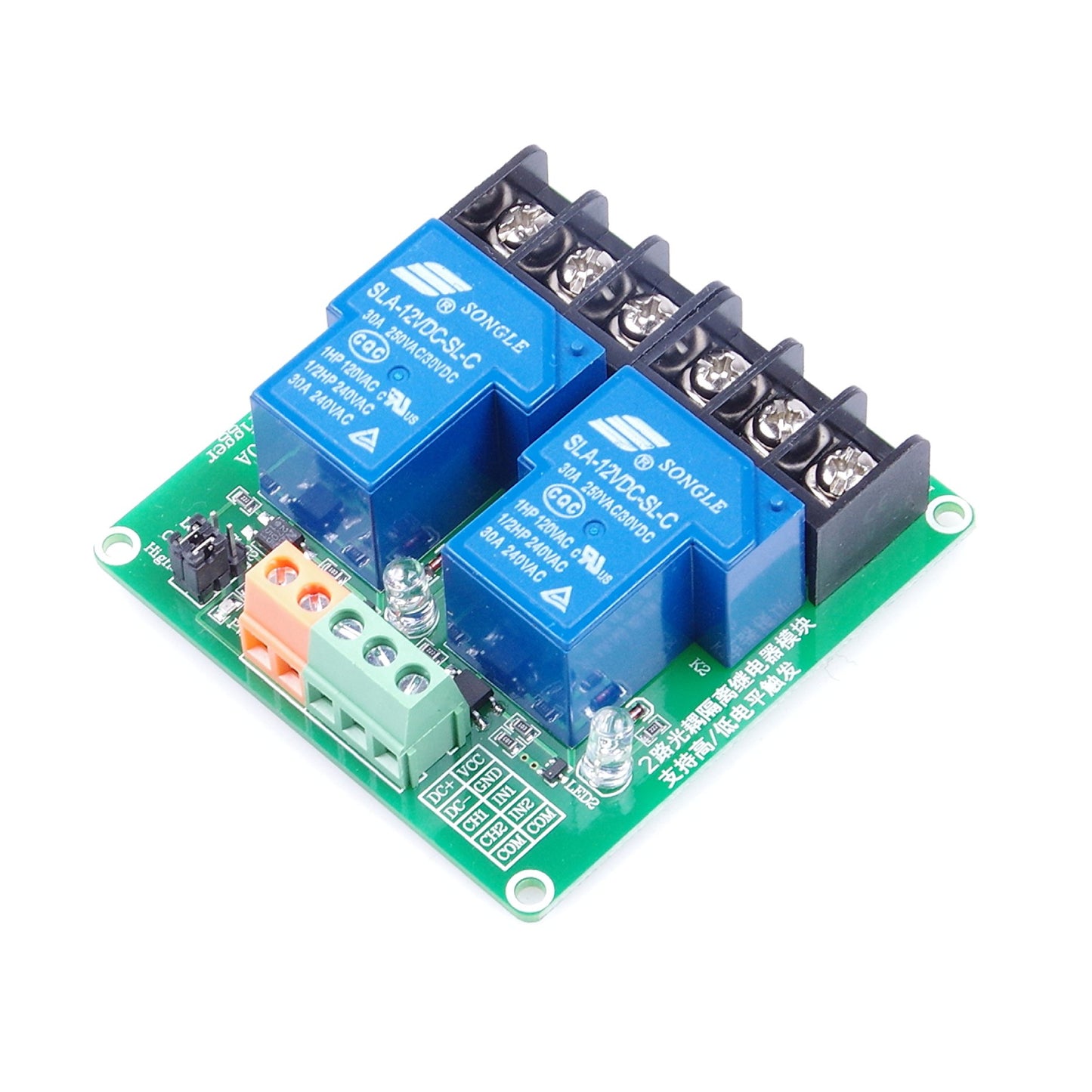

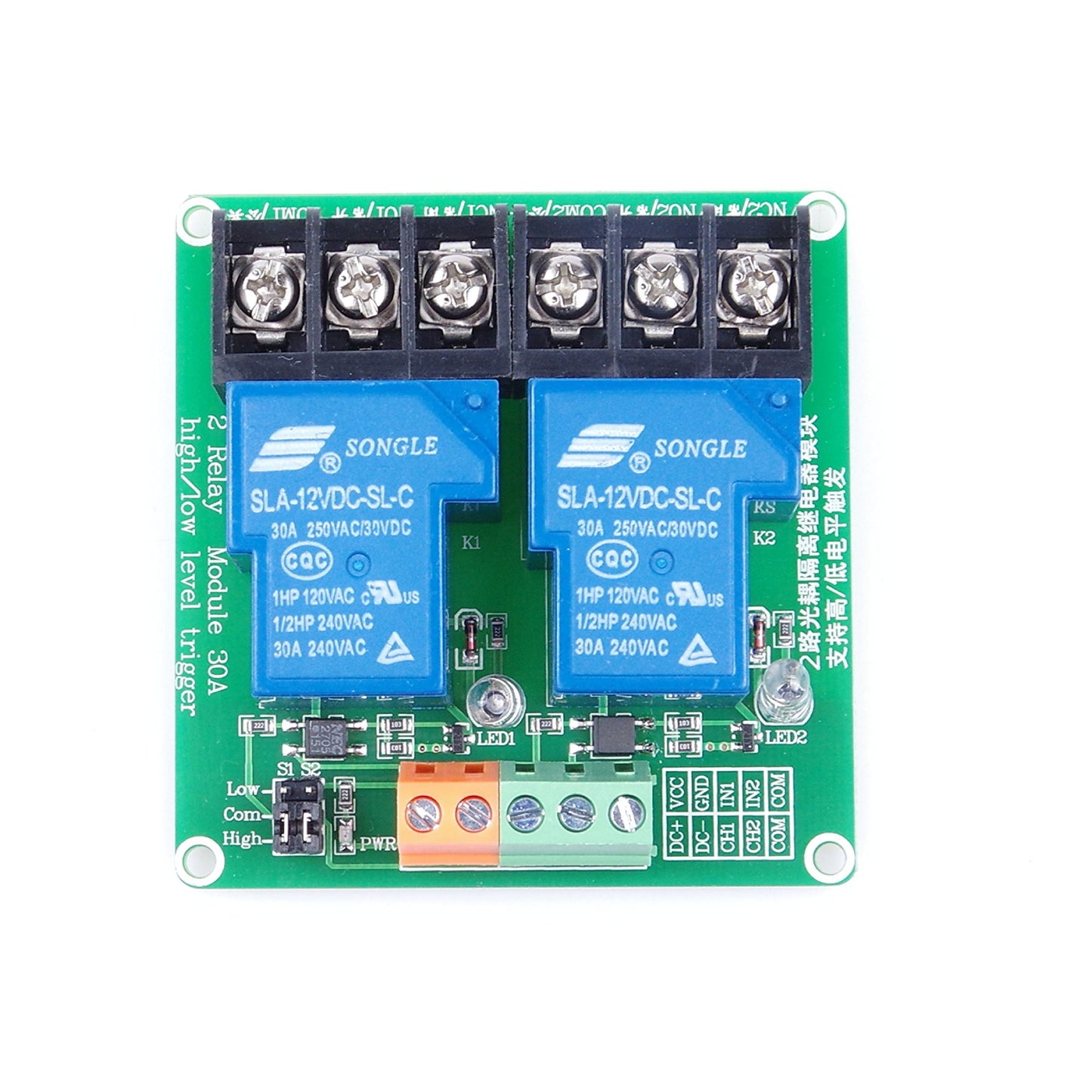

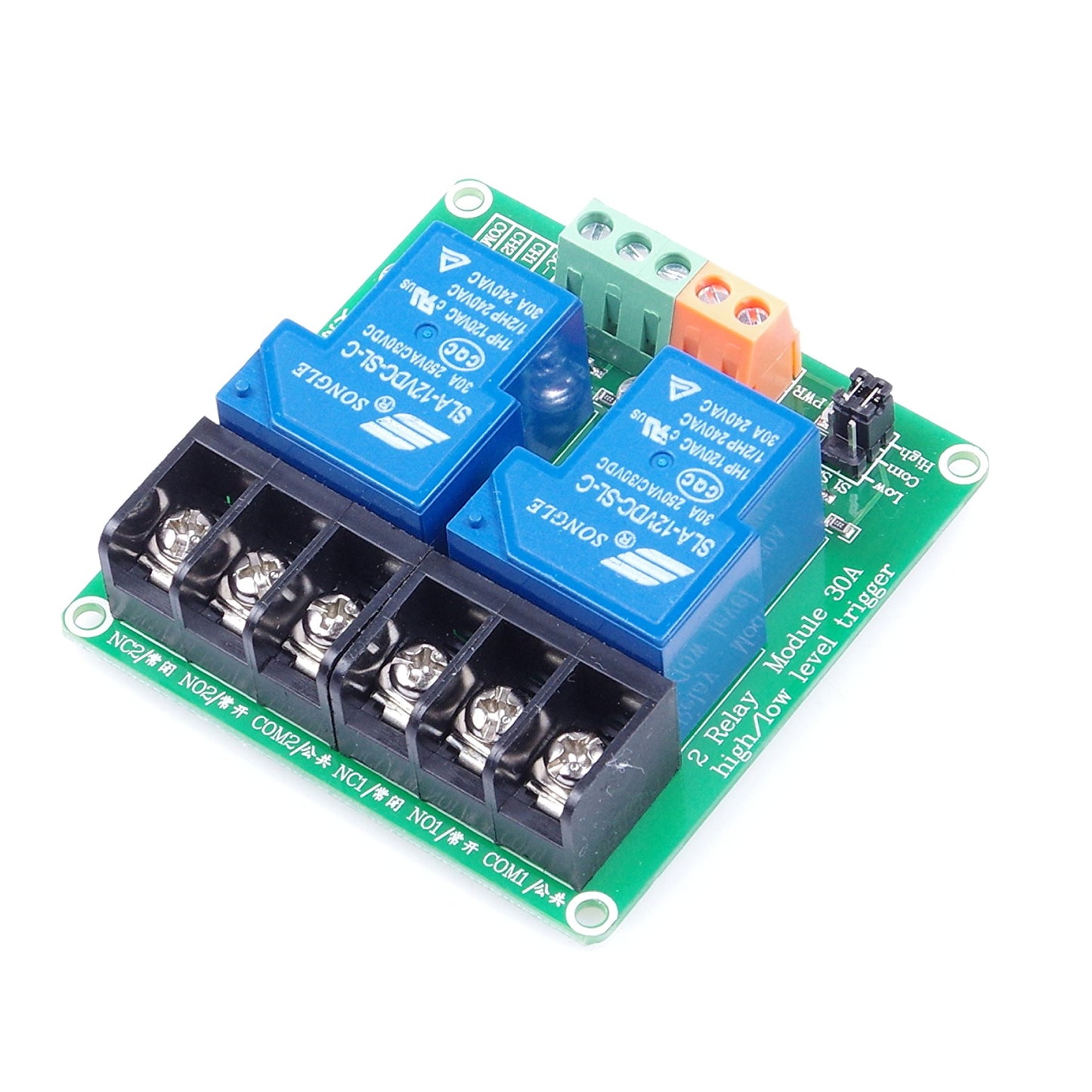

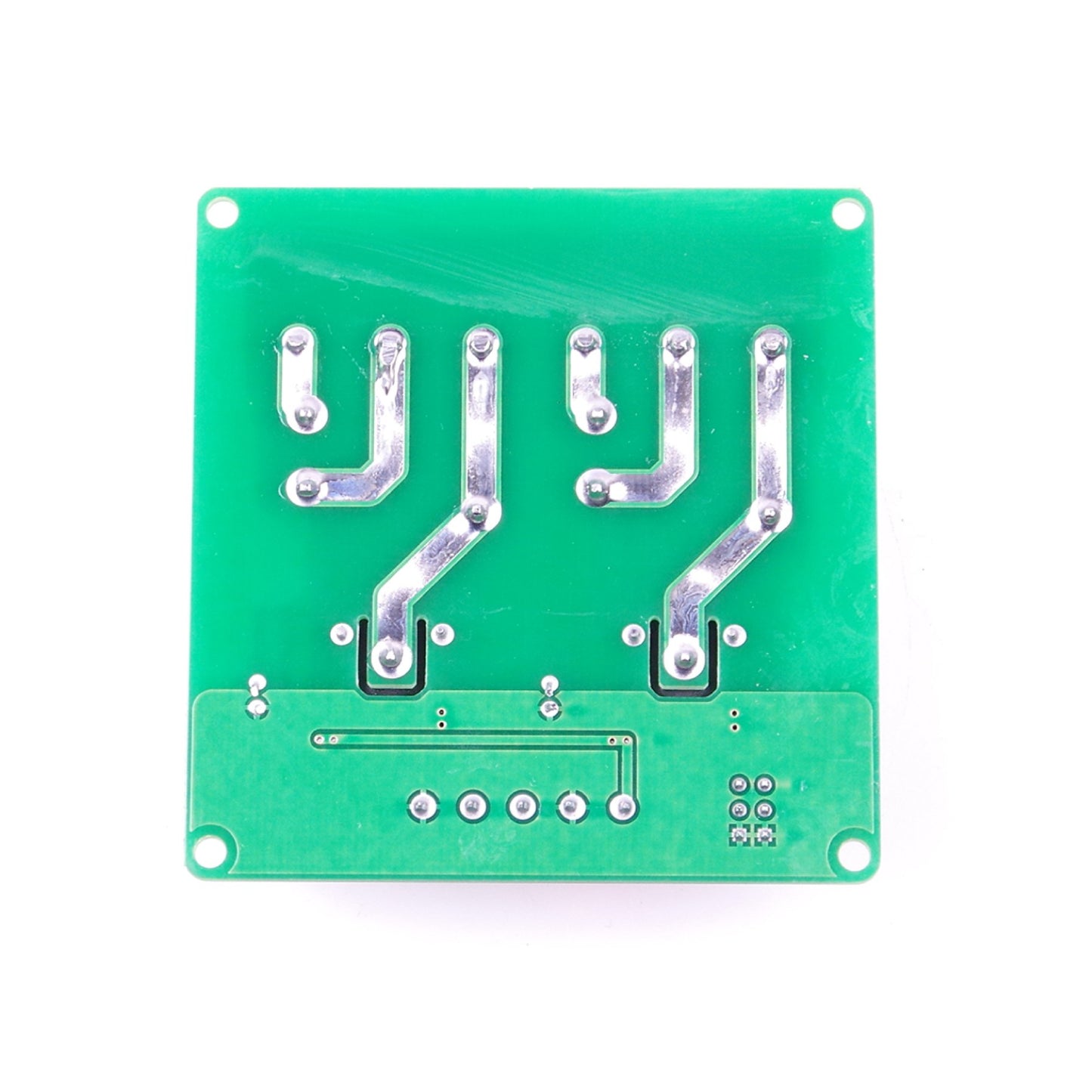

2-Channel 30A 12V Relay Module 30A 12V Dual Channel Relay Module Industrial Grade 2-Channel Relay Module With High/Low Trigger Optocoupler Isolation For Industrial Automation - RS4355

Description:

This 2-channel relay module utilizes high-power relays with a maximum control load of 30A at 12V DC or 250V AC. Designed with safety in mind, it features optocoupler isolation between the control and load circuits, effectively isolating them for enhanced noise immunity. The module supports both high and low-level trigger signals, making it suitable for a wide range of PLC automation applications.

Specifications:

• Supply voltage(V): DC 12V
• Quiescent Current: 5mA
• Maximum Operating Current: 190mA
• Trigger Mode: High and low-level trigger
• Load Voltage: DC 30V / AC 250
• Load Current: 30A
• Relay Life: more than 100,000 times

Features:

• With each optocoupler isolation, anti-interference ability.
• Each channel has a relay on the LED indication.
• Using high-power relay, the maximum control load DC 12V 30A / AC 250V 30A;
• In line with international safety standards, the control area and the load area with isolation slots.
• Product Applications: PLC automation equipment control, industrial system control, logistics network control, home intelligent product control, electronic enthusiasts to develop experiments, and all kinds of circuit modification.
