2.9 Inch E-Ink Screen Display e-Paper Module SPI Interface Partial Refresh For Arduino Raspberry Pi - RS2404
2.9 Inch E-Ink Screen Display e-Paper Module SPI Interface Partial Refresh For Arduino Raspberry Pi - RS2404
SKU:RS2404
Low stock: 9 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Operating Voltage: 3.3V/5V DC
- Display Size: 2.9 inch
- Outline Dimension: 89.5mm × 38mm
- Dot Pitch: 0.138 × 0.138
Description:

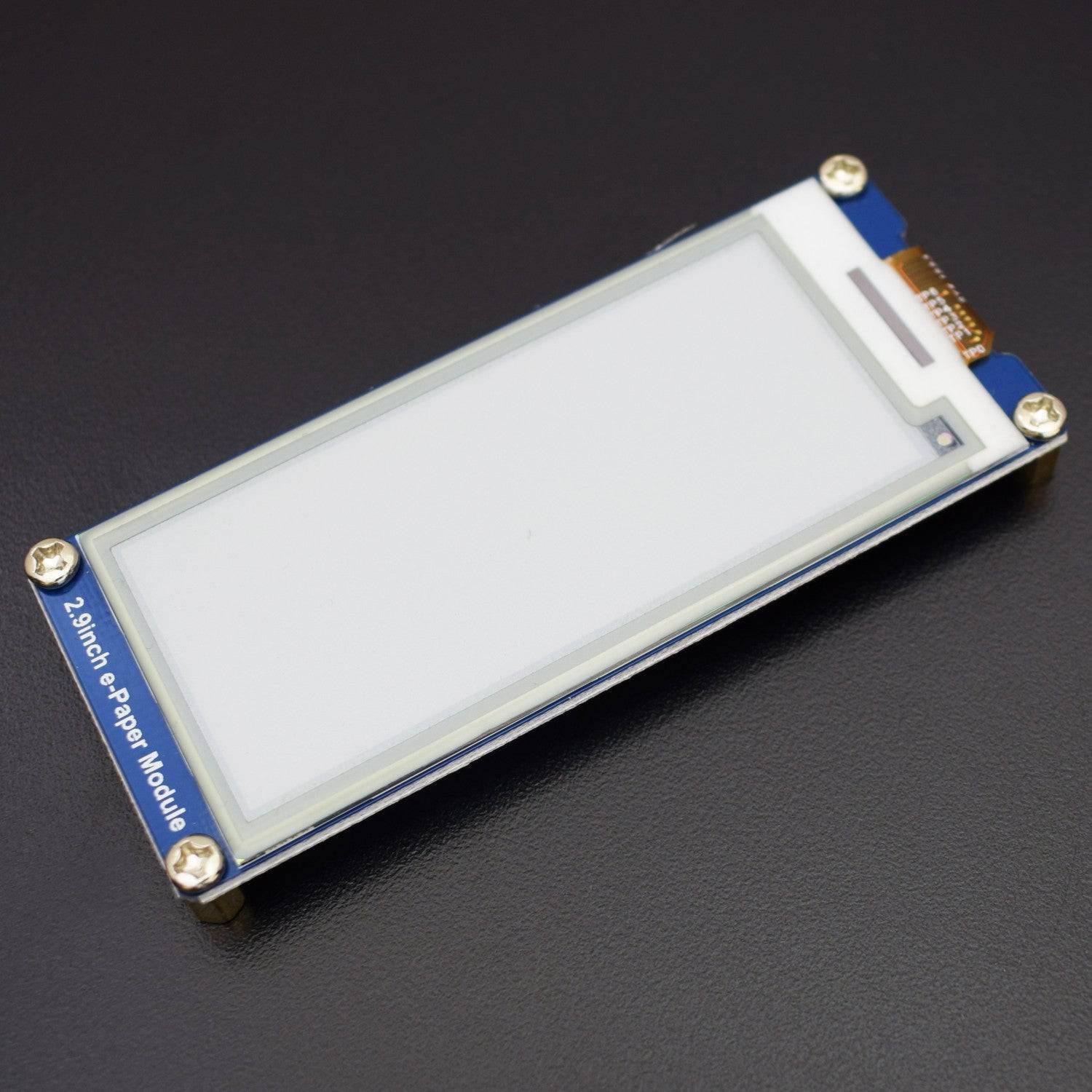

2.9-inch e-Ink Paper Display Module with SPI Interface is an E-Ink display module, 2.9inch, 296×128 resolution, with an embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra-low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. There is no backlight so it can keep displaying last content for a long time even when the power is down. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, Basically power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc. SPI interface can be used.
Specification:
| Operating Voltage | 3.3V/5V DC |
| Display Size | 2.9 inch |
| Outline Dimension | 89.5mm × 38mm |
| Dot Pitch | 0.138 × 0.138 |
| Grey level | 2 |
| Display Color | Black and White |
| Display Resolution | 296×128 |
| Viewing Angle | >170° |
| Interface | 3-wire SPI, 4-wire SPI |
| Partial Refresh Time | 0.3s |
| Full Refresh Time | 2s |
| Refresh Power | 26.4mW(typ.) |
| Standby Power | <0.017mW |
Features:
- No backlight keeps displaying last content for a long time even when a power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
- On-board voltage translator, compatible with 3.3V/5V MCUs

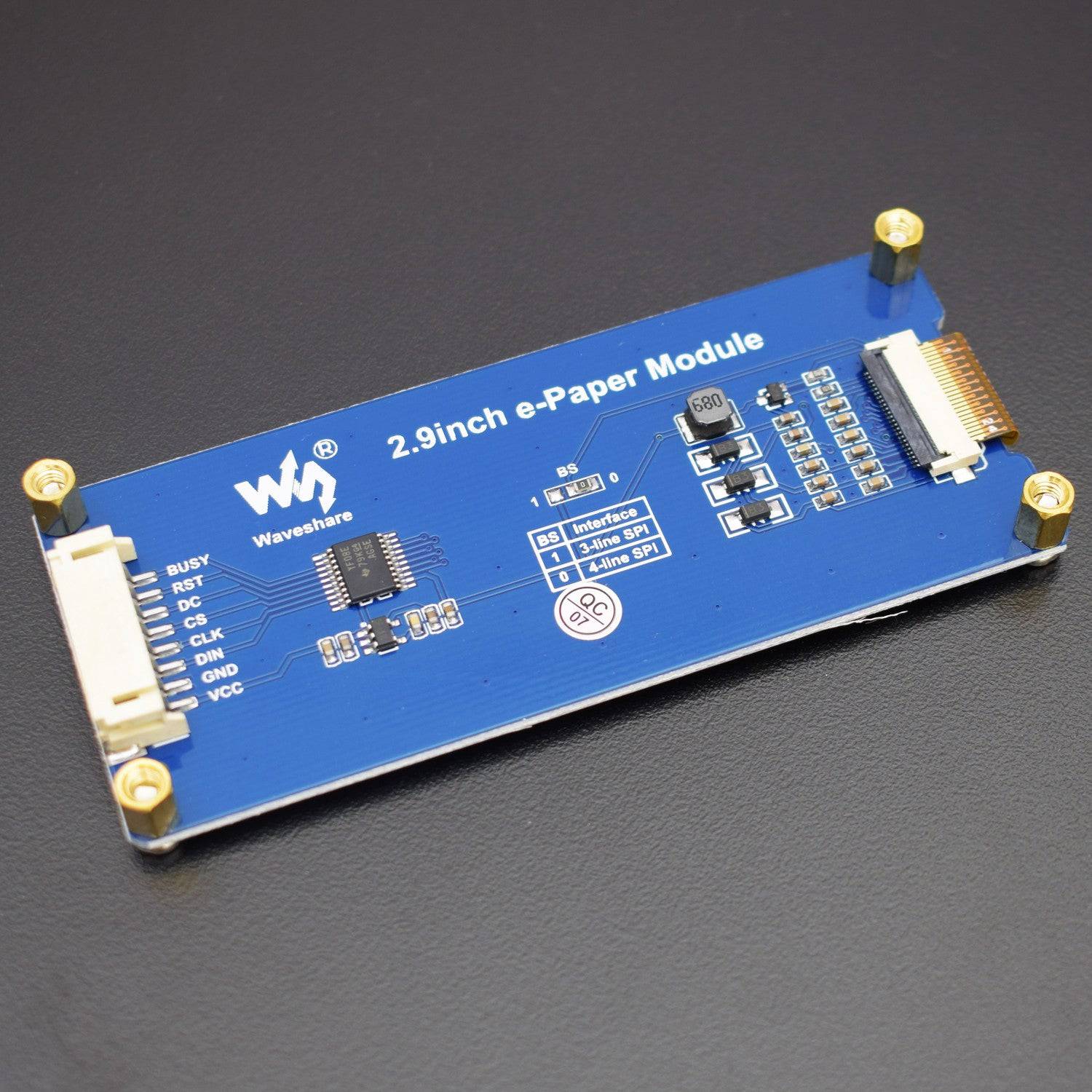

Interface:
- VCC:3.3V/5V
- GND:Ground
- DIN:SPI MOSI pin
- CLK:SPI SCK pin
- CS:SPI chip selection, low active
- DC:Data/Command selection (high for data, low for command)
- RST:External reset, low active
- BUSY:Busy status output, high active

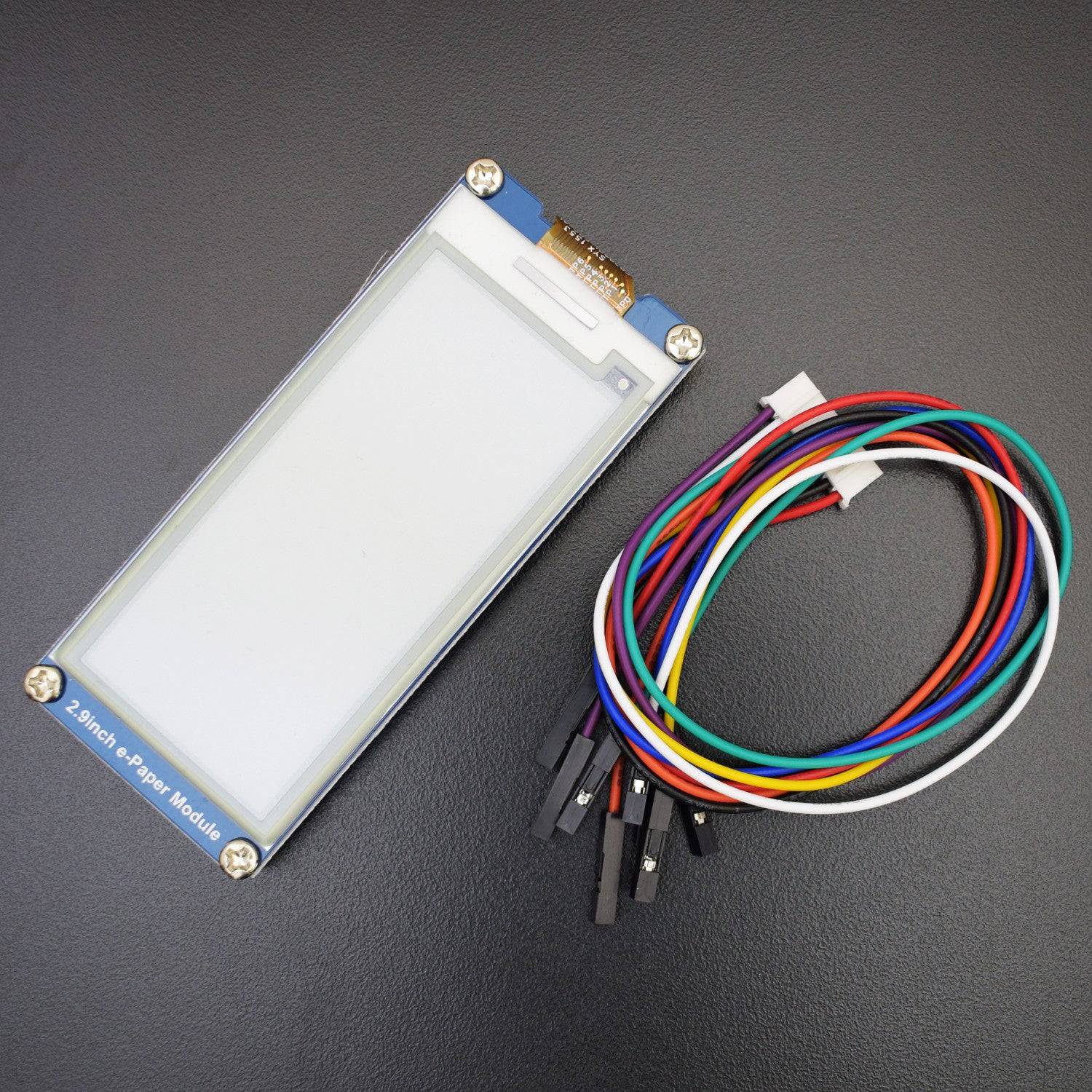

Package Included:
- 1 x 2.9-inch e-Ink Paper Display Module with SPI Interface

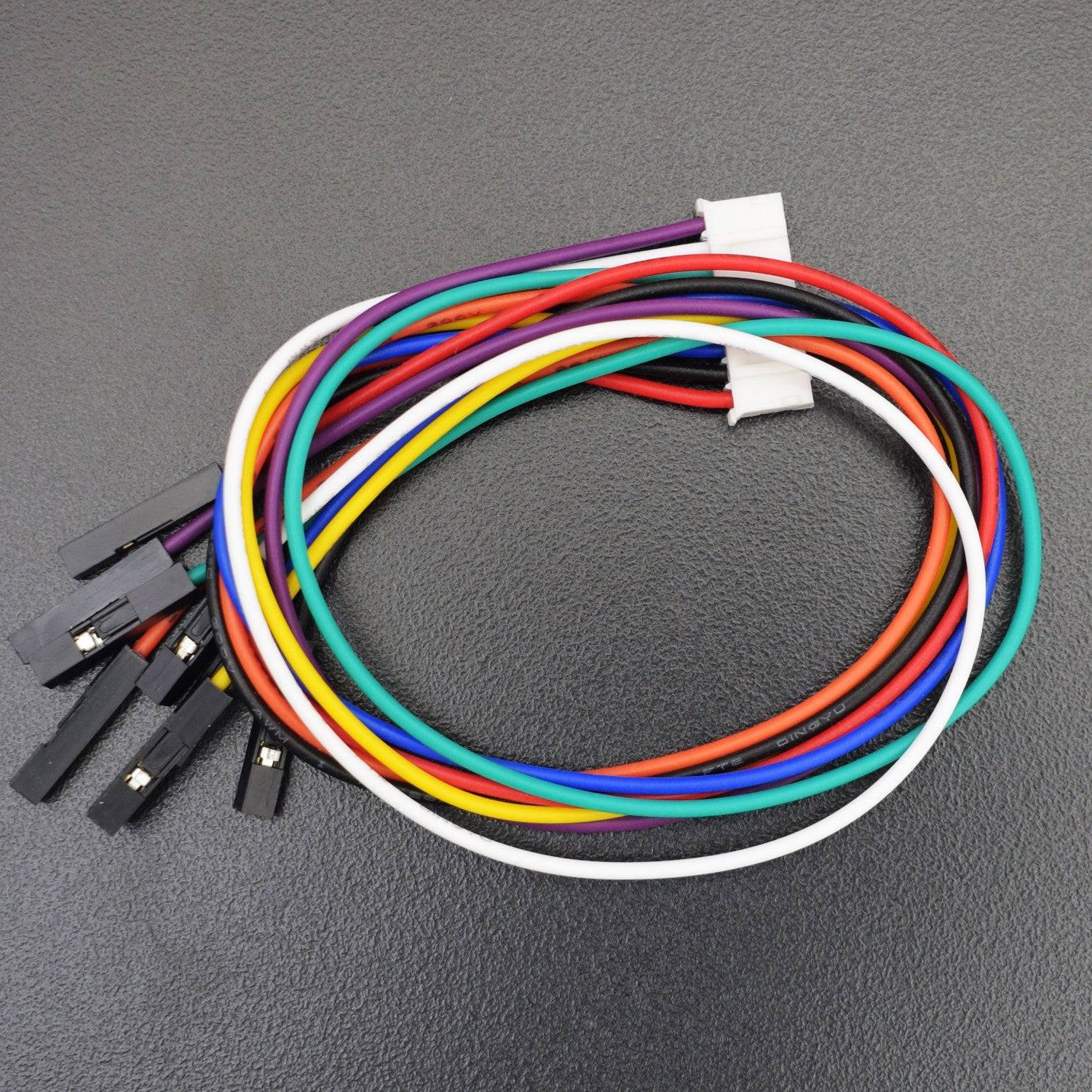

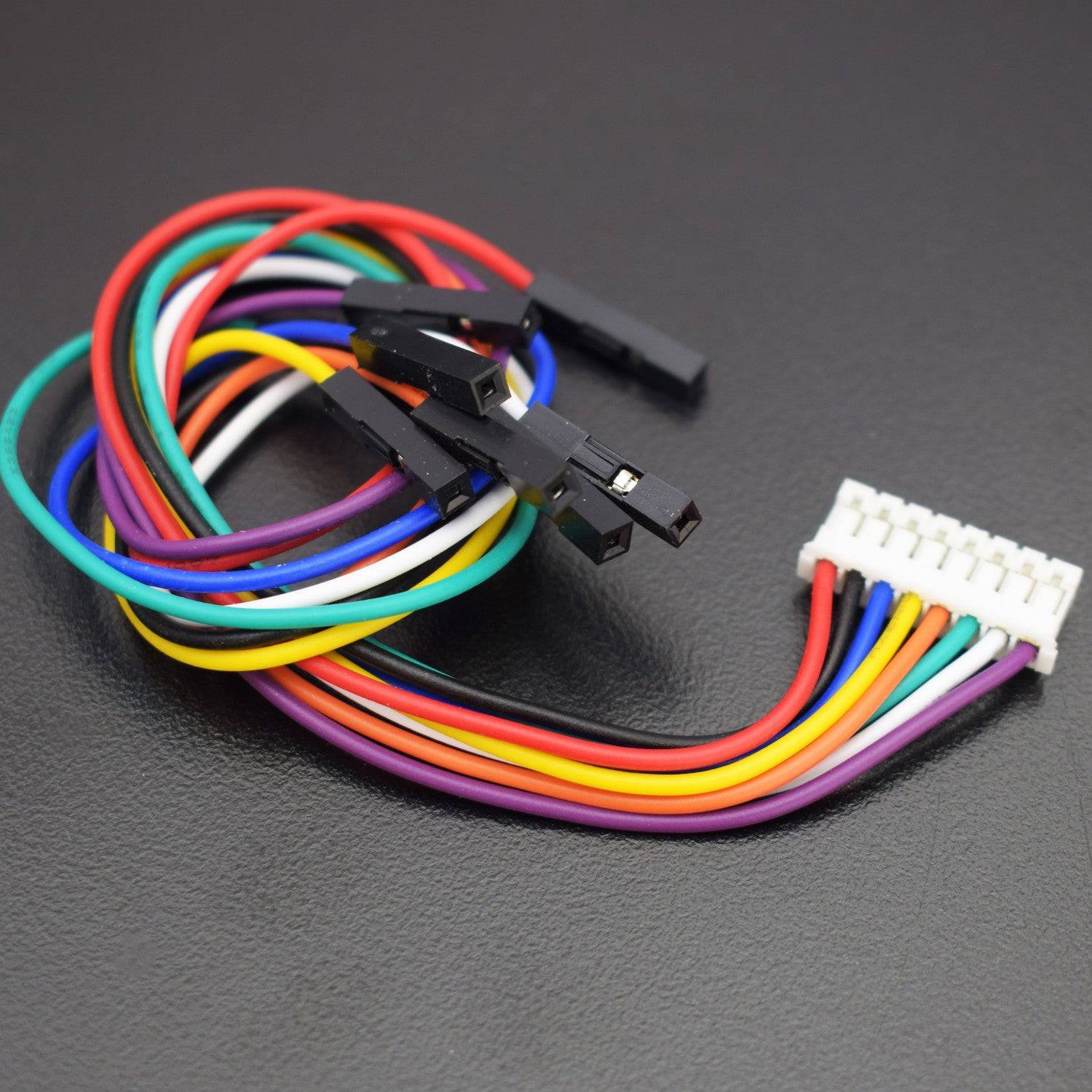

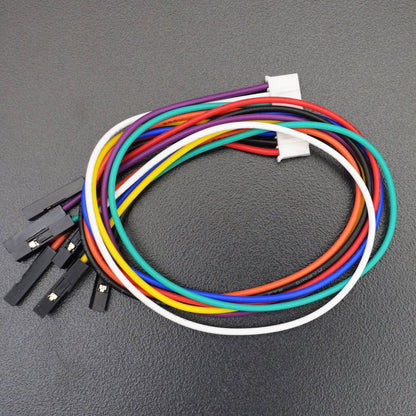

- 1 x Interfacing Cable
