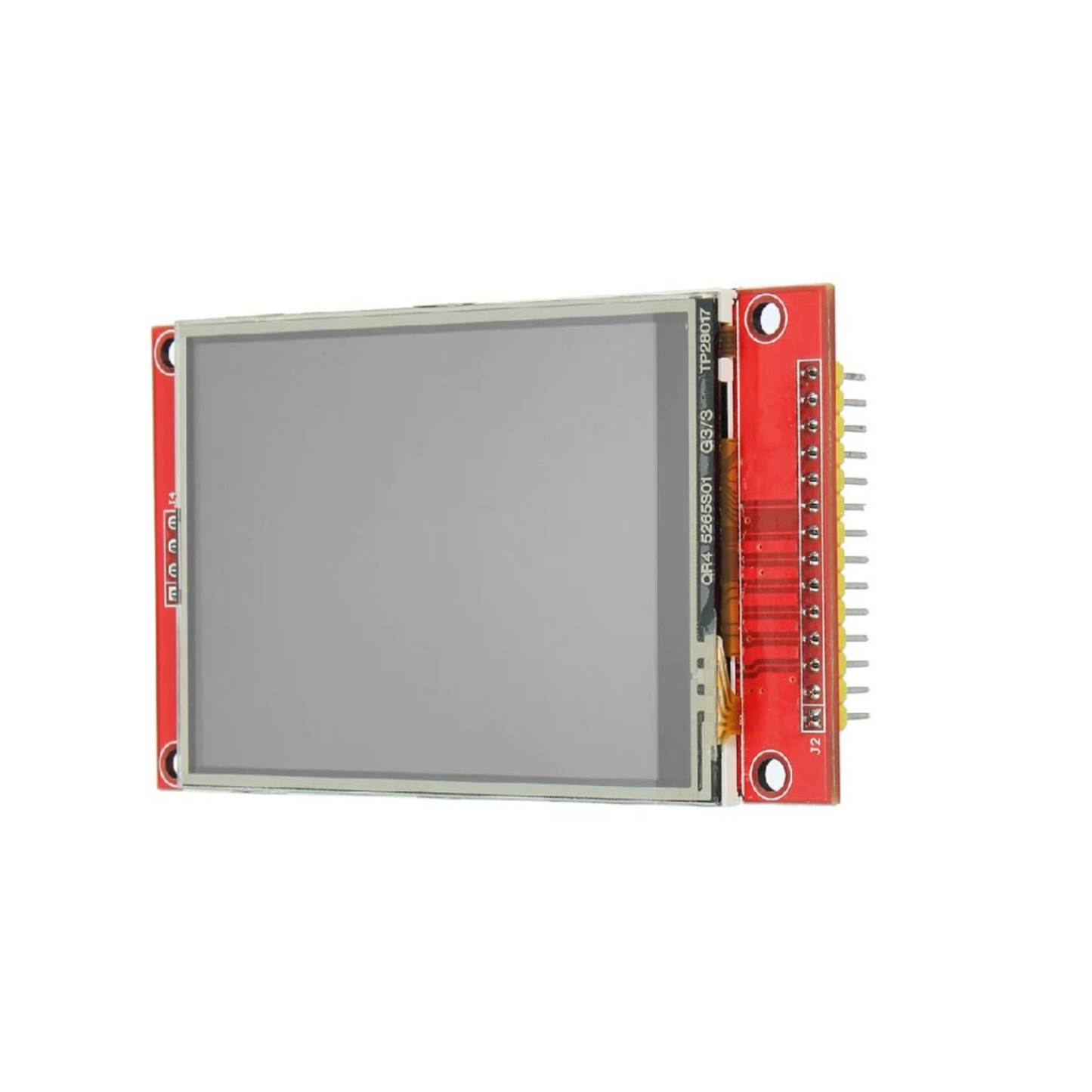

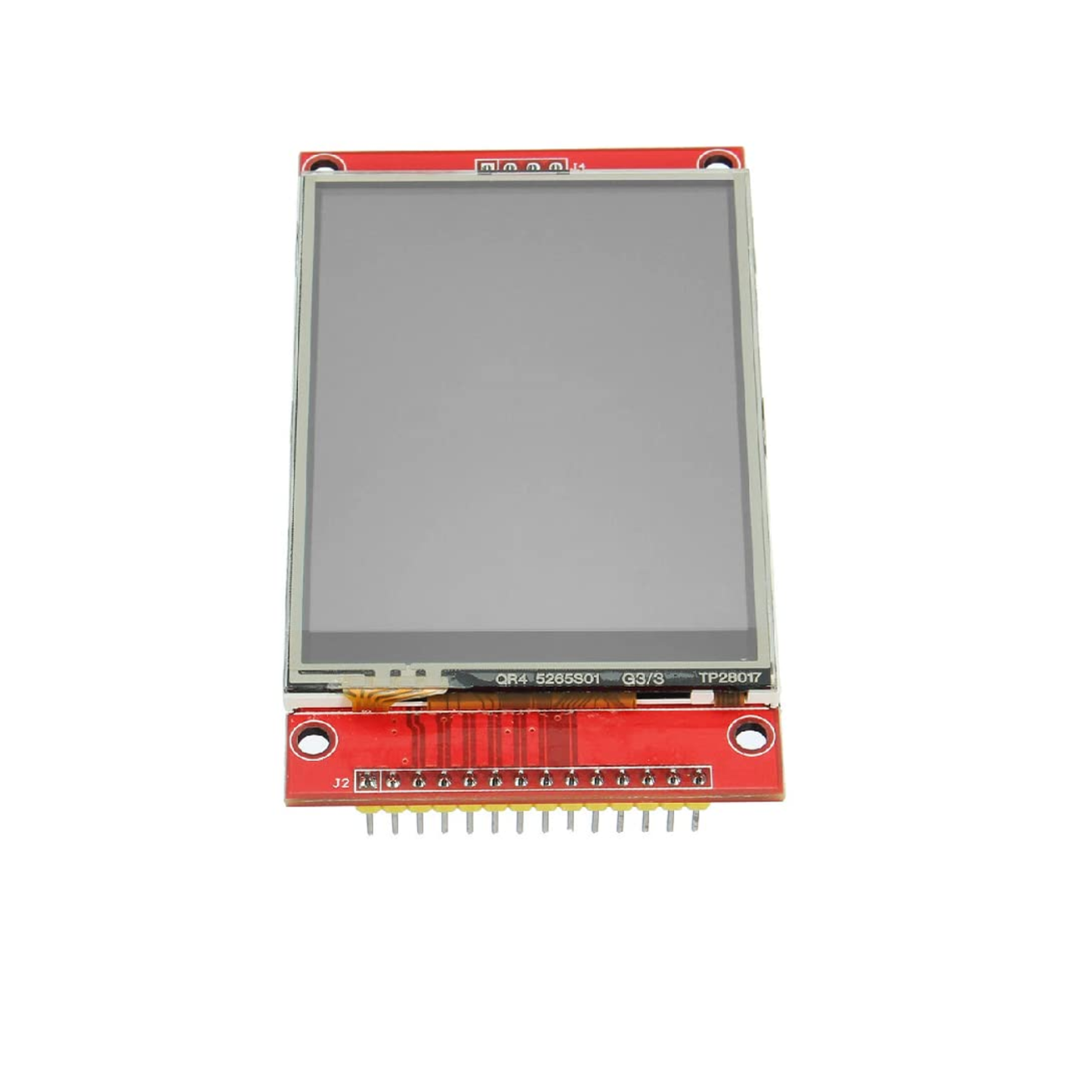

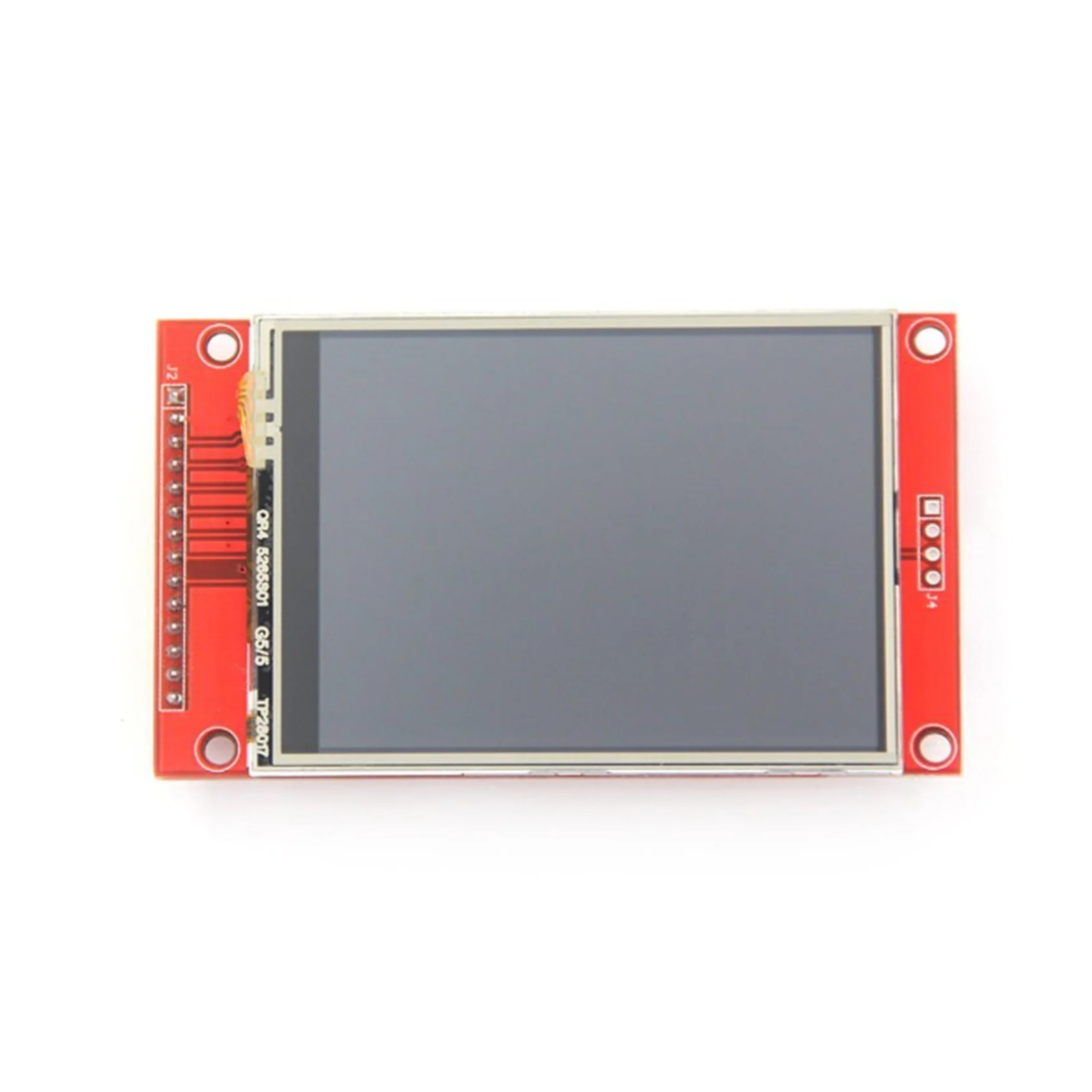

2.8 Inch SPI TFT LCD Display Touch Panel 240x320 ILI9341 with PCB 5V/3.3V STM32 - RS5516

2.8 Inch SPI TFT LCD Display Touch Panel 240x320 ILI9341 with PCB 5V/3.3V STM32 - RS5516

SKU:RS5516

20 in stock

Regular price Rs. 699.00
Regular price Sale price Rs. 699.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

2.8-inch SPI Touch Screen Module TFT Interface 240x320 display is big (2.8″ diagonal) bright and colourful! 240×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display.

As a bonus, this display has a resistive touchscreen attached to it already so that you can detect finger presses anywhere on the screen. This display has a controller built into it with RAM buffering so that the microcontroller does almost no work.

The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you’ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than the 8-bit mode. In addition, 4 pins are required for the touchscreen (2 digital, 2 analog).

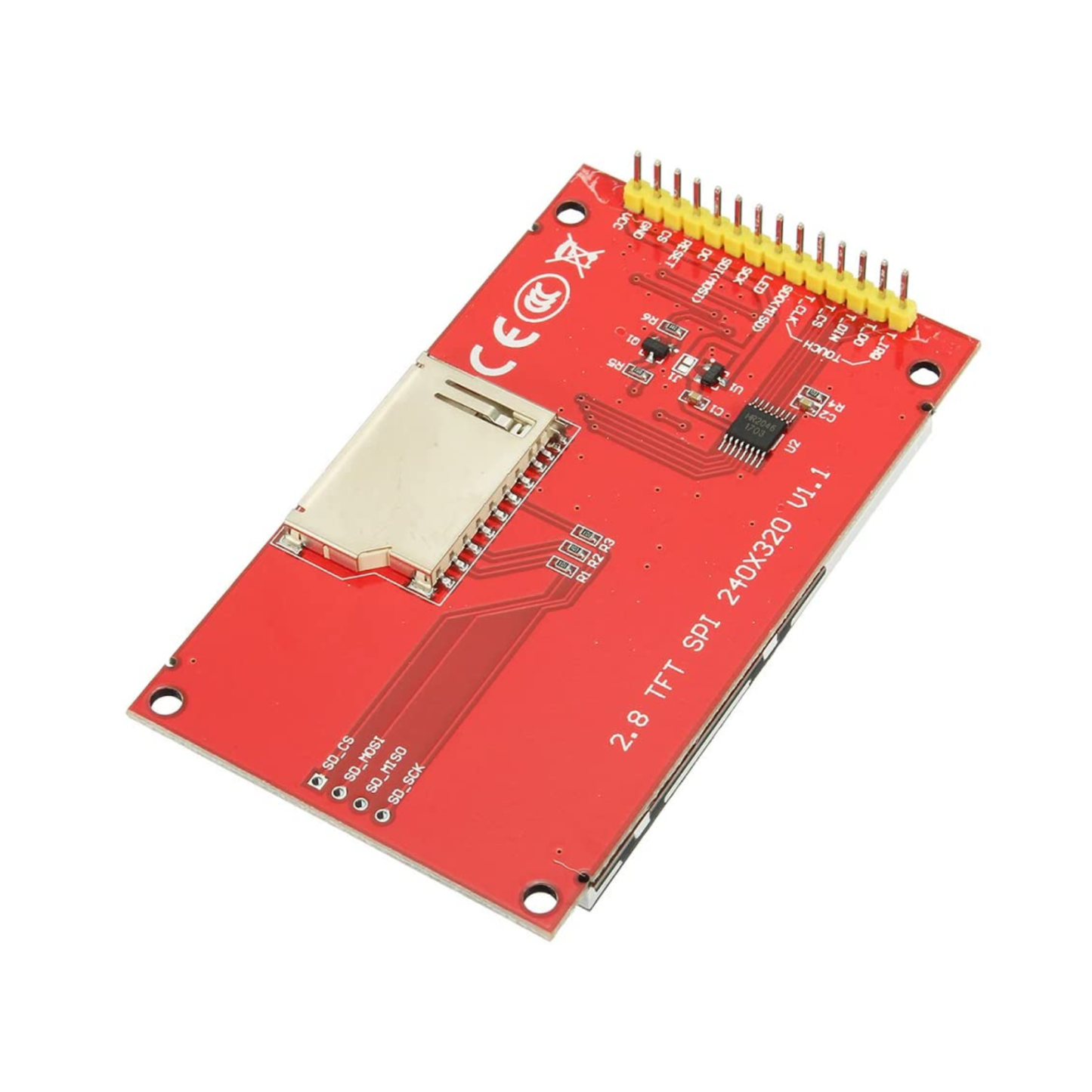

This 2.8-inch SPI Touch Screen Module is wrapped into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use them with any microcontroller. If you’re going with SPI mode, you can also take advantage of the onboard MicroSD card socket to display images.

Specifications:

  • Touch: Resistive
  • Display Size: 2.8
  • Size: 8.5 x 4.8cm
  • Input Voltage (V): 3.3 to 5
  • Display Driver IC: ILI9341
  • Touch Driver IC: XPT2046
  • Color Depth: 262K/65K
  • Resolution (dots): 240 x 32

Features:

  • The display has a wide viewing angle
  • Big display with good resolution
  • It shows a colour depth of 262K/65K
  • Need at least 4 IOs from your MCU

Package Included:

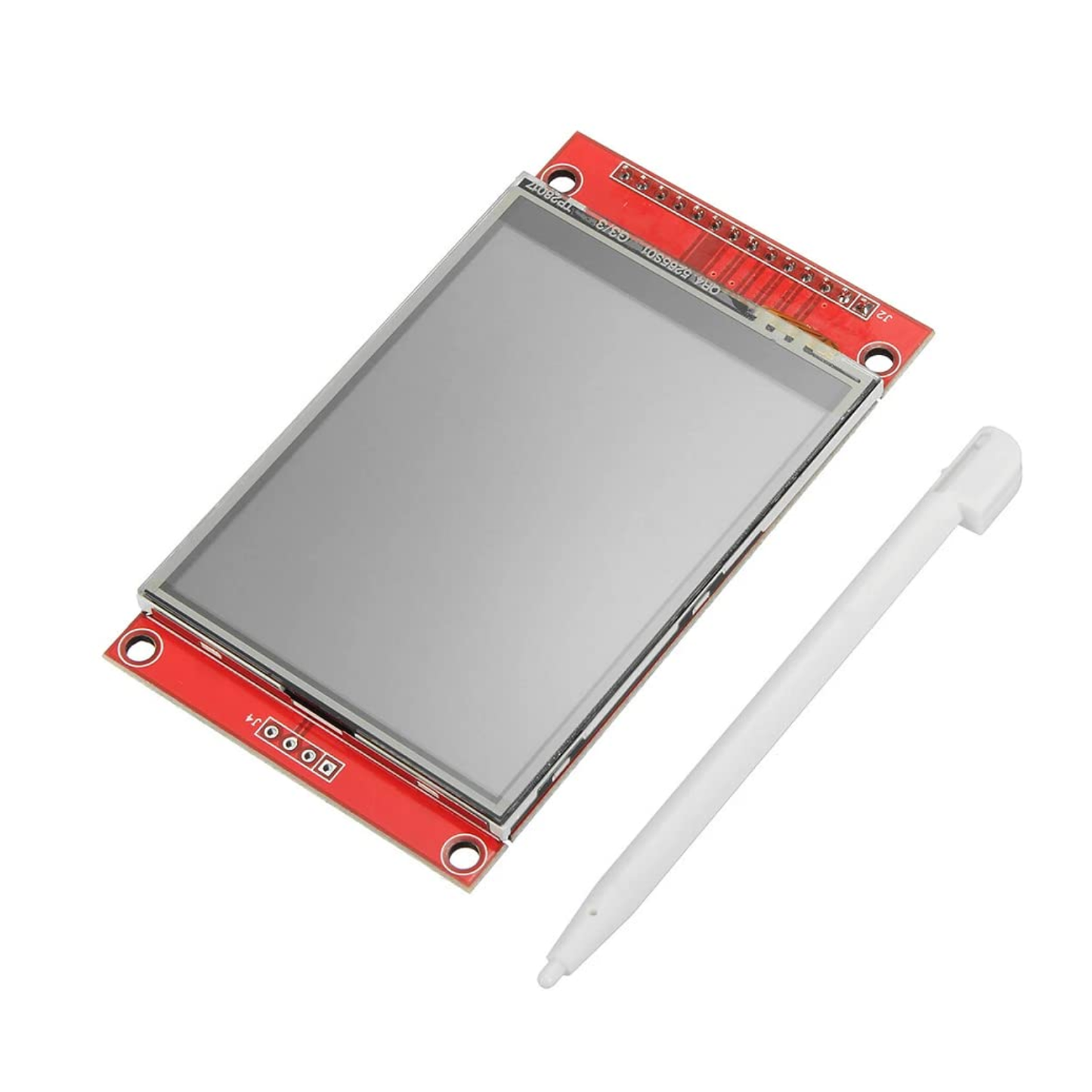

  • 1 x 2.8 Inch SPI TFT LCD Display
  • 1 x Stylus Pen
