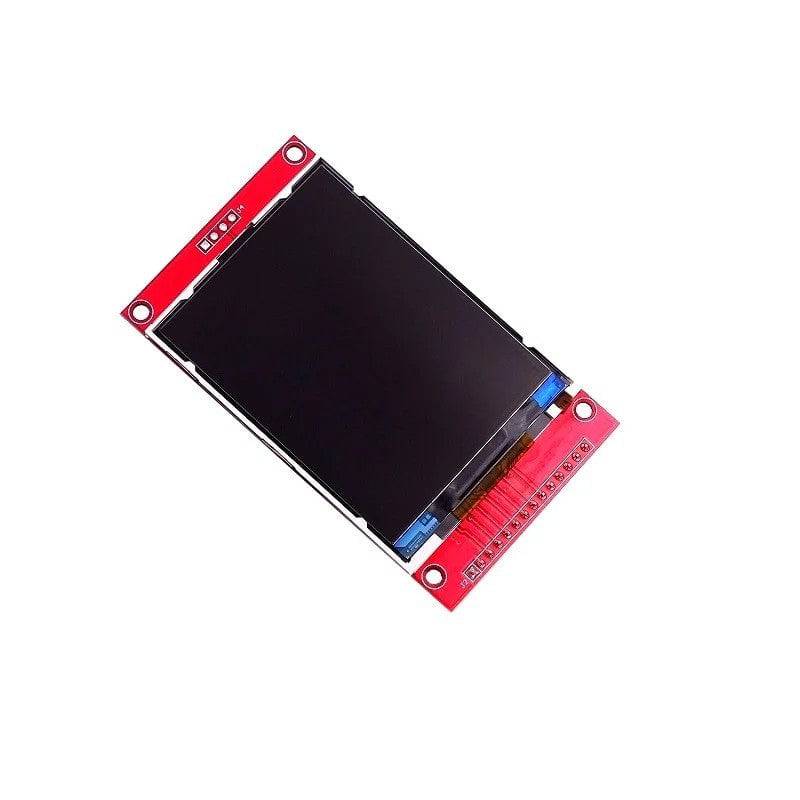

2.8 inch SPI Screen Module TFT Interface 240 x 320 without Touch - RS3131

2.8 inch SPI Screen Module TFT Interface 240 x 320 without Touch - RS3131

SKU:RS3131

Low stock: 9 left

Regular price Rs. 1,155.00
Regular price Sale price Rs. 1,155.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Touch Screen: NO
  • Input Voltage: 3.3 to 5V
  • Pixel Resolution: 240 x 320
  • Display Size: 2.8"

Description:

This TFT display is big (2.8″ diagonal) bright and colorful! 240×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display.

The display can be used in two modes: 8-bit and SPI. For the 8-bit mode, you’ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than the 8-bit mode. In addition, 4 pins are required for the Non-Touchscreen (2 digital, 2 analogues).

This 2.8-inch SPI Non-Touch Screen Module is wrapped up into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use them with any microcontroller. If you’re going with SPI mode, you can also take advantage of the onboard Micro SD card socket to display images.

Specification:

  • Touch Screen: NO
  • Input Voltage: 3.3 to 5V
  • Pixel Resolution: 240 x 320
  • Display Size: 2.8"

Features:

  • It shows a colour depth of 262K/65K.
  • Need at least 4 IOs from your MCU
  • The display has a wide viewing angle.
  • Big display with good resolution.

Package Included:

1 x 2.8-inch SPI Screen Module TFT Interface 240 x 320 without Touch
