- Max input voltage: 30V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6P Molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector
Description:

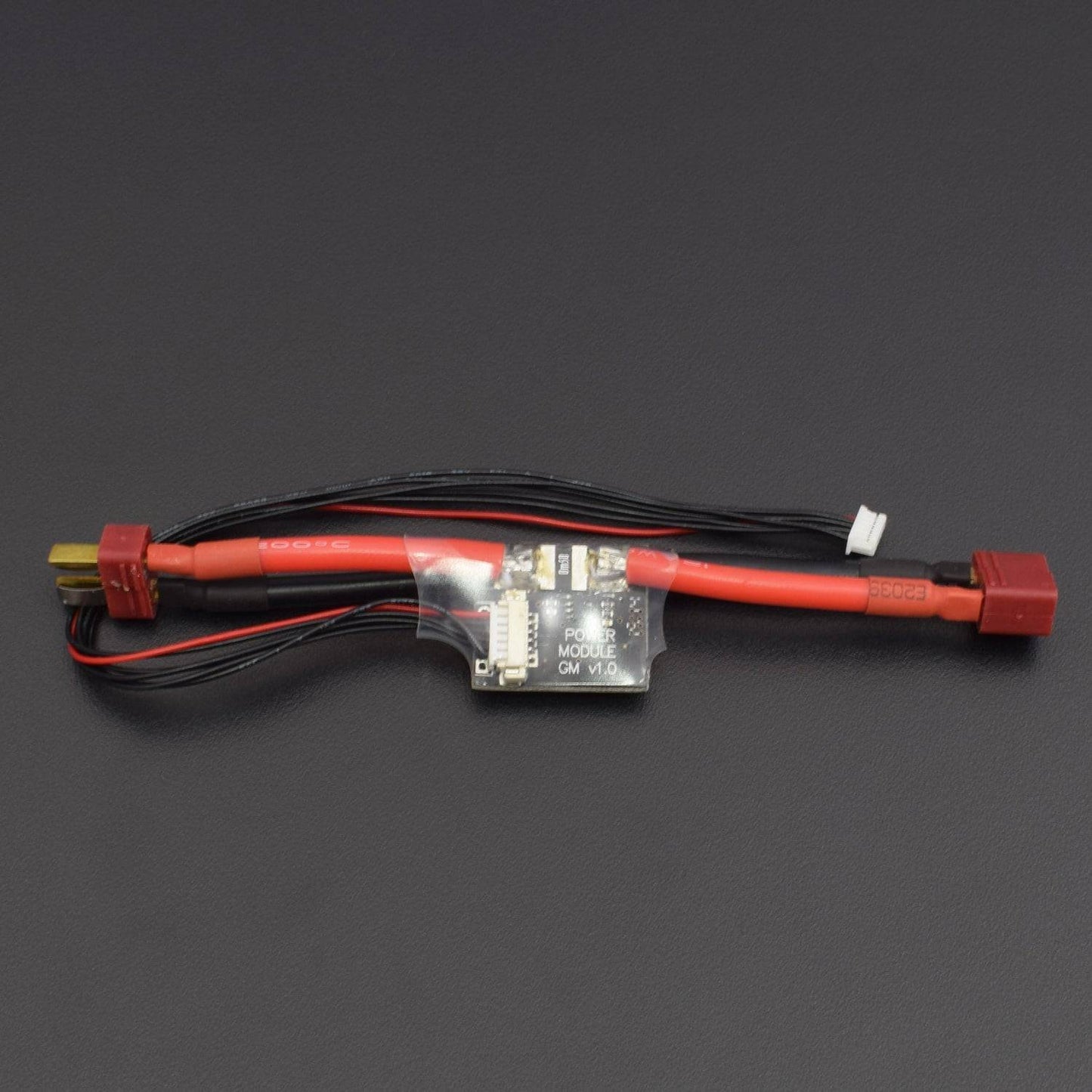

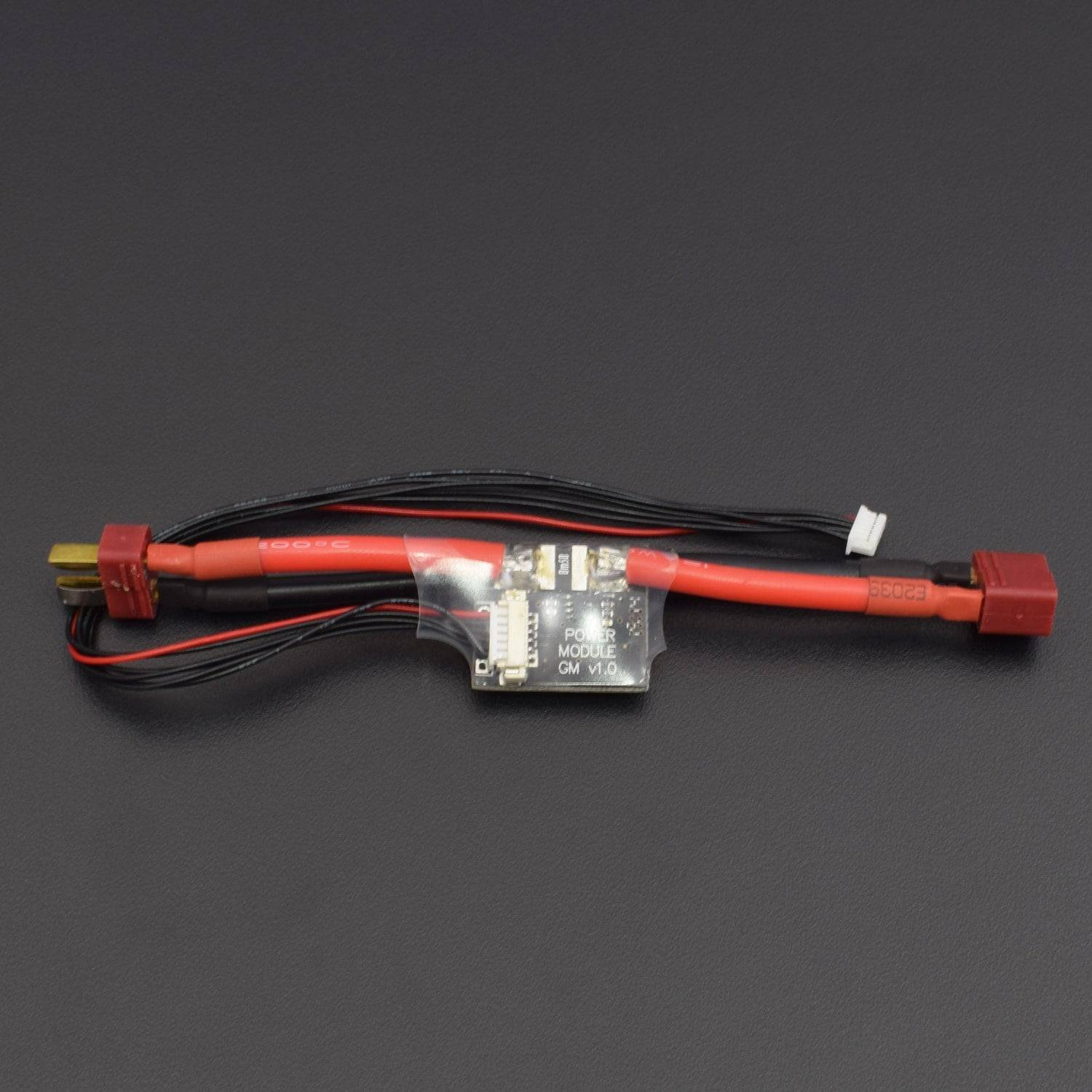

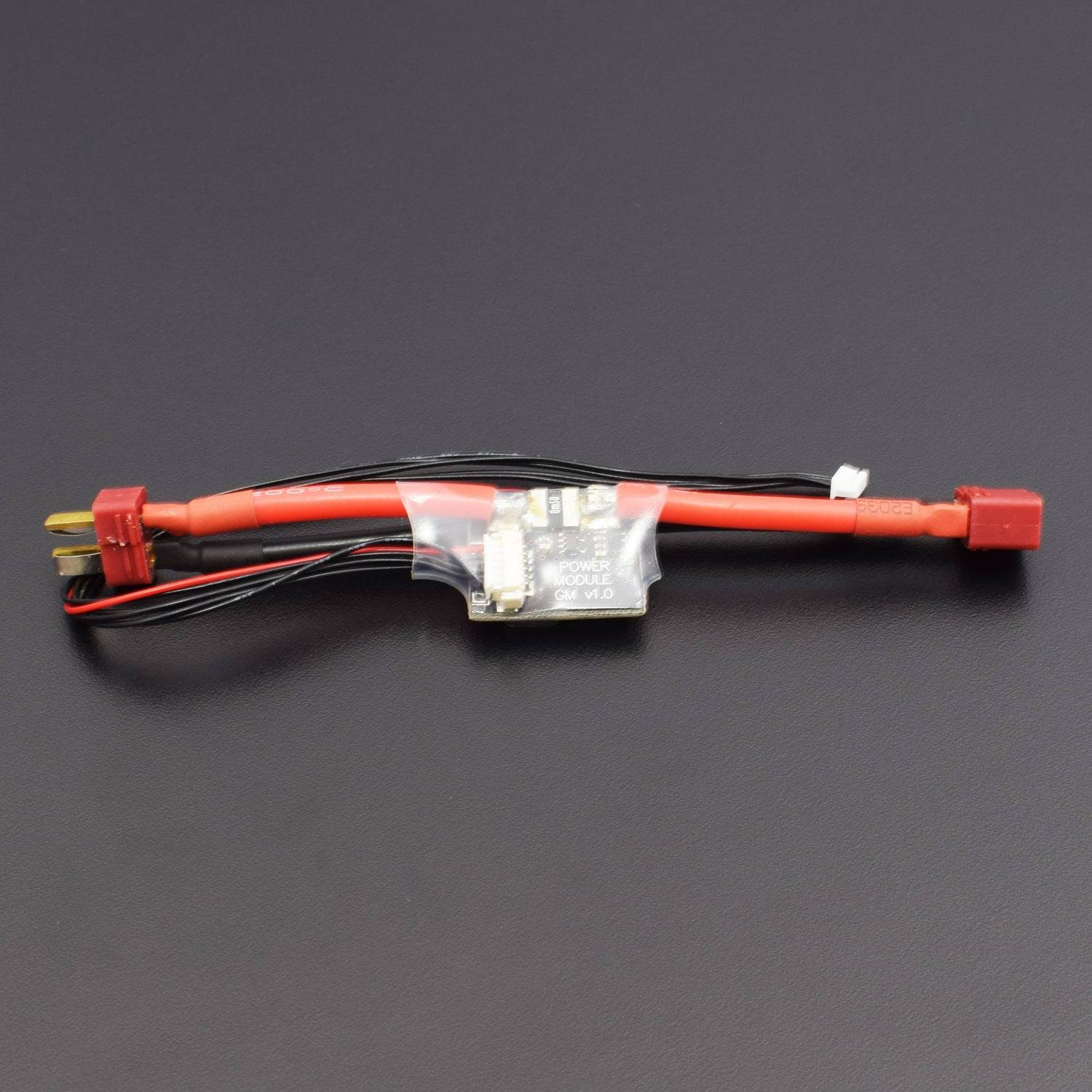

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The onboard switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Used to detect the battery voltage and the battery current, the flight control board receives two signals, calculate the remaining battery power, estimate the remaining flight time. In addition, the module also comes with a BEC function, you can output 5.3 DC, 3A maximum continuous current for the flight control board to provide a stable power supply. Another signal cable connector is used in Japan original fittings, non-domestic joint, so APM flight control board and reliable connection between the power supply module.
Specification:
- Max input voltage: 30V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6P Molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector
- Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
- Color: black& red
- Size:137mm
- Cable length: 192mm
- Net Weight: 27g
Package Included:
1 x 2.8 APM Flight Controller Power Module V1.0 Output BEC 3A Deans T Plug
