2-700MHz 3W RF Power Amplifier HF VHF UHF FM Transmitter Broadband Transmitter Short Wave Amp - RS2771
2-700MHz 3W RF Power Amplifier HF VHF UHF FM Transmitter Broadband Transmitter Short Wave Amp - RS2771
SKU:RS2771
In stock
Regular price
Rs. 1,119.00
Regular price
Sale price
Rs. 1,119.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

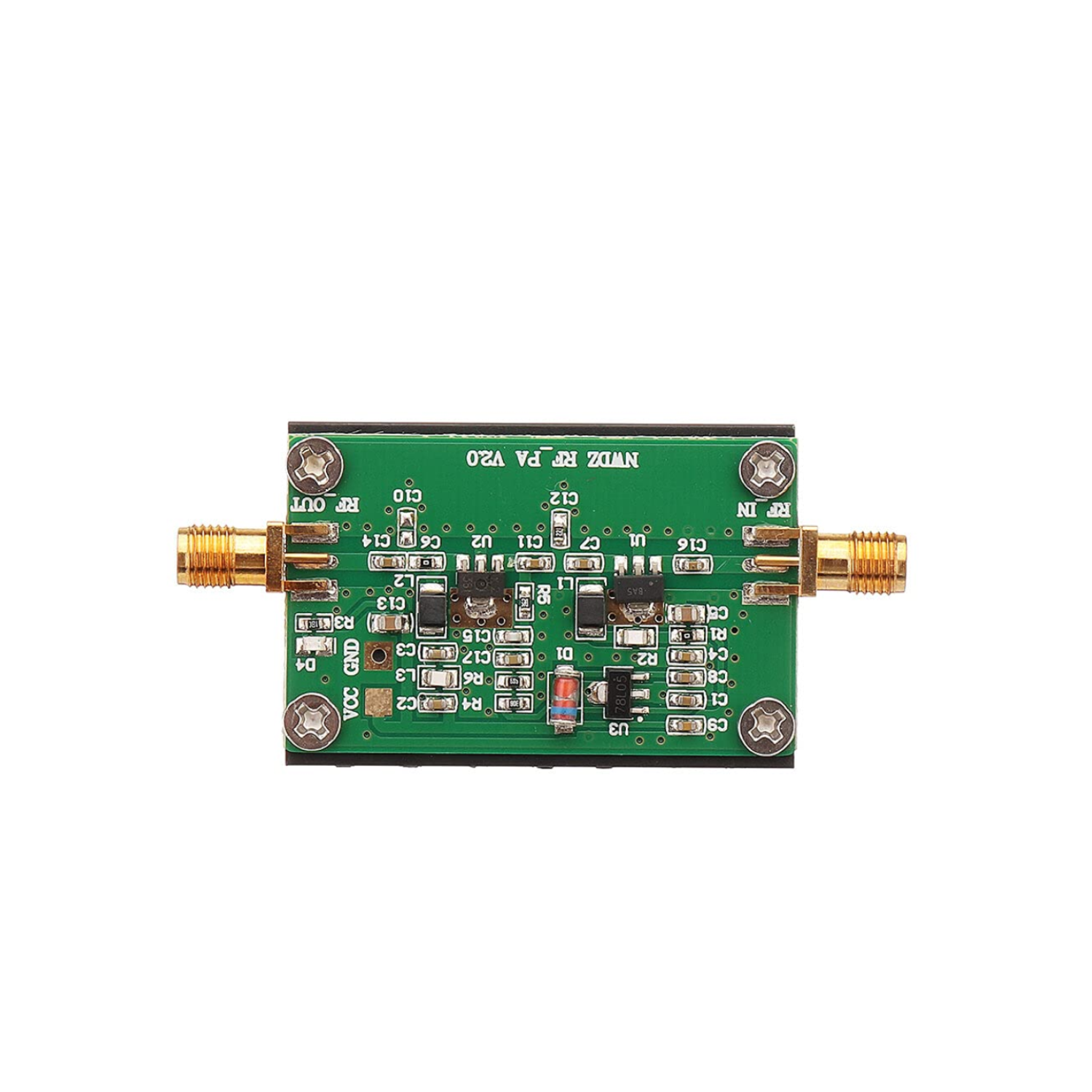

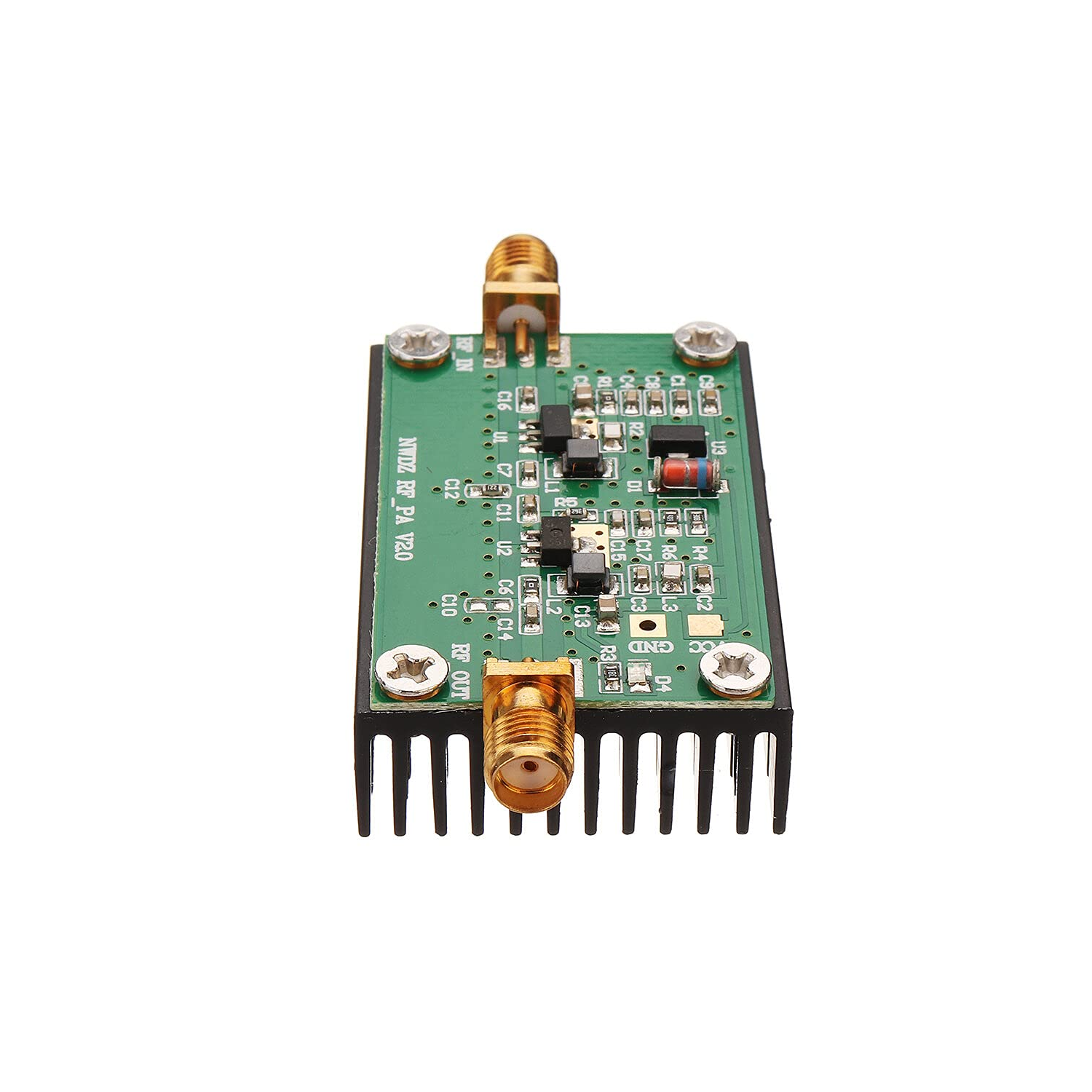

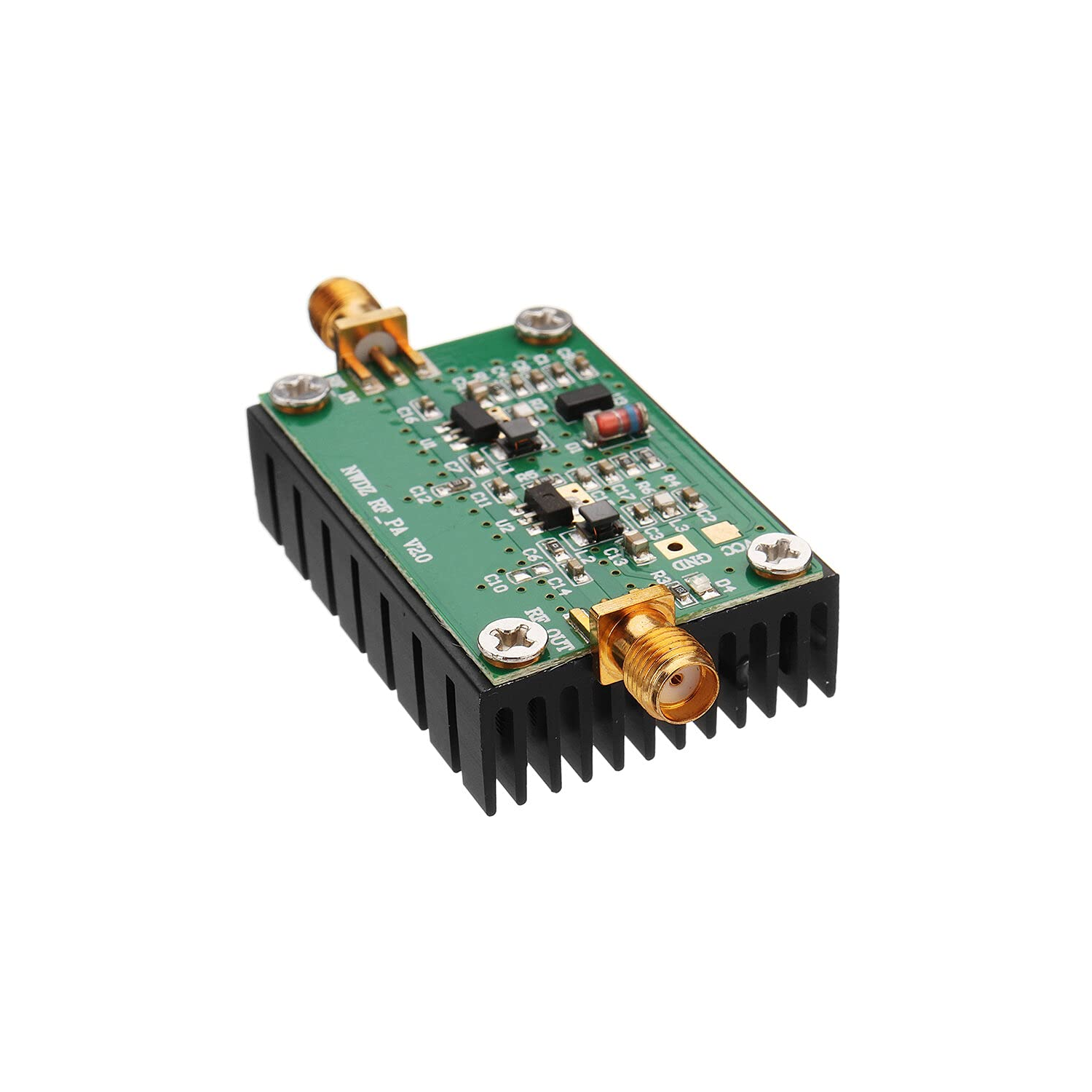

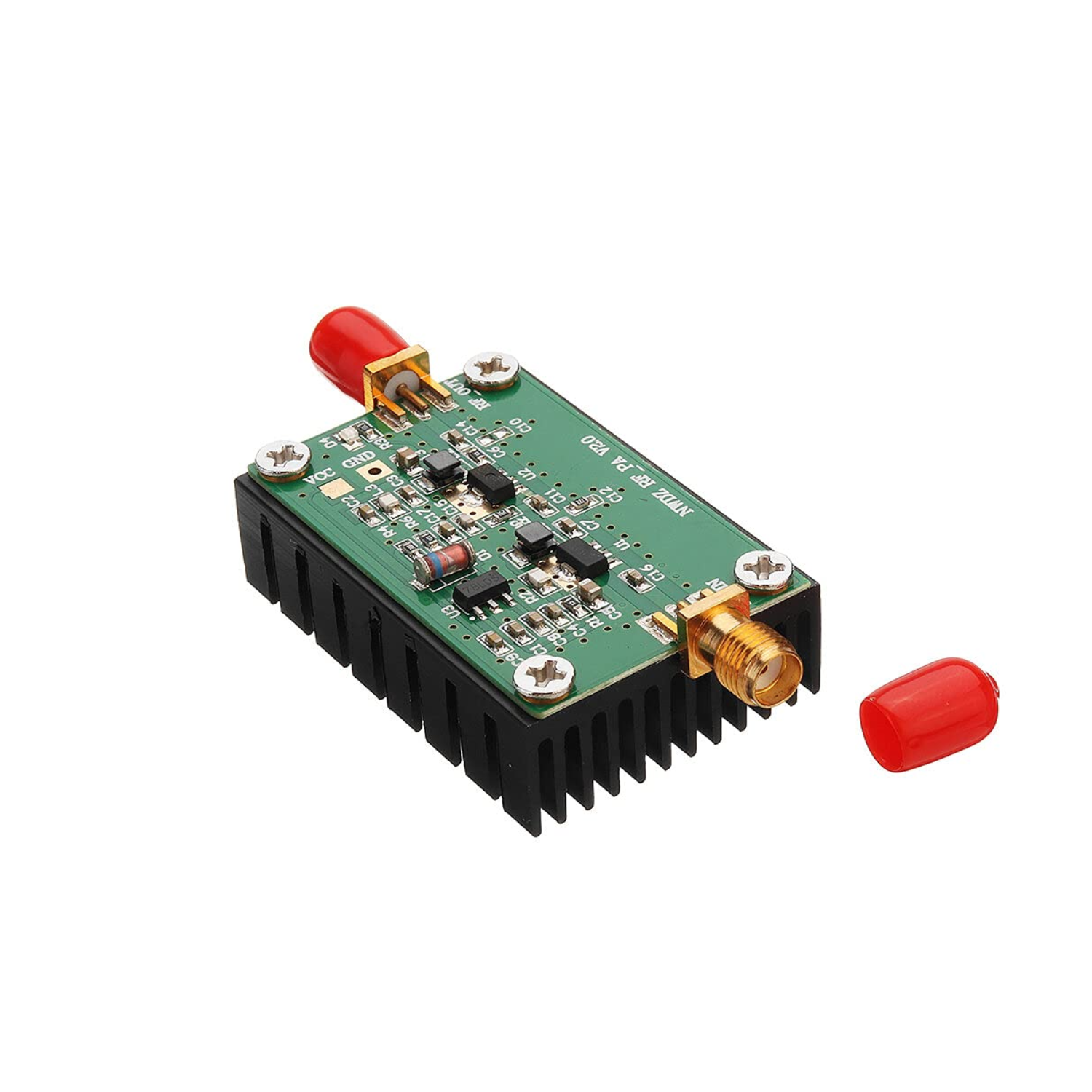

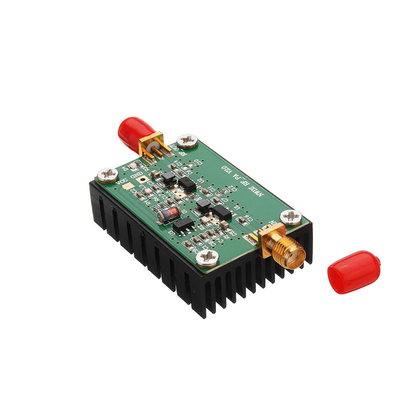

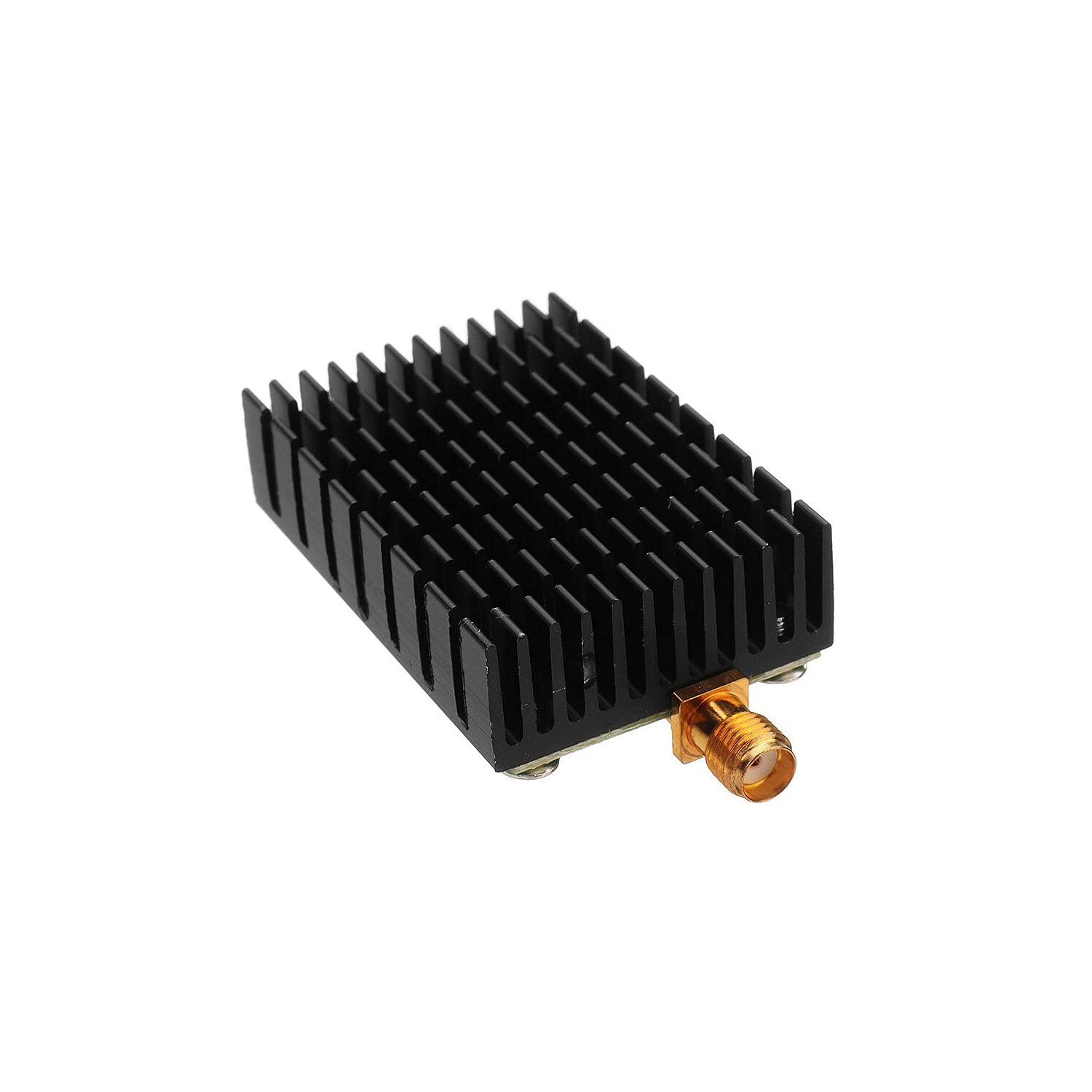

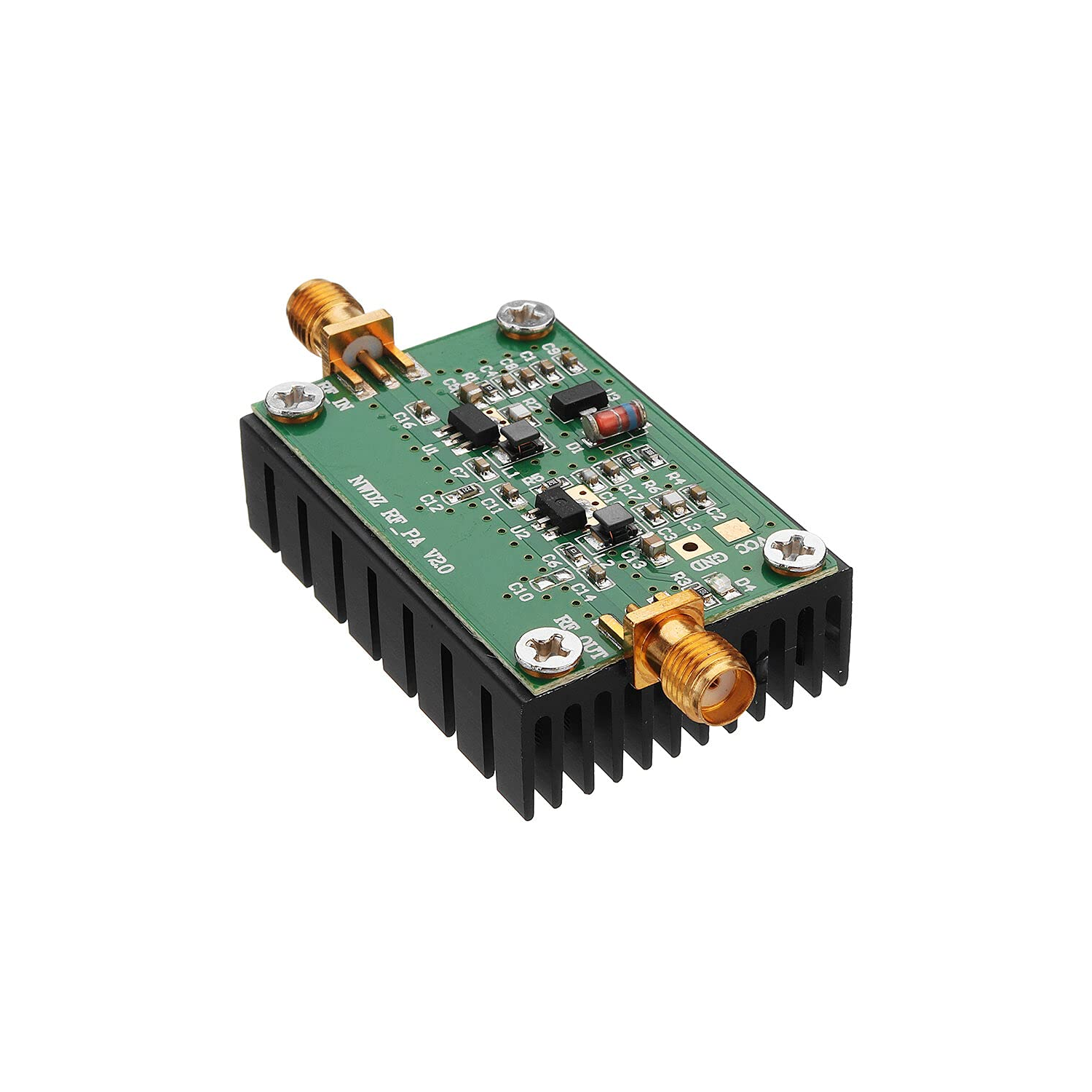

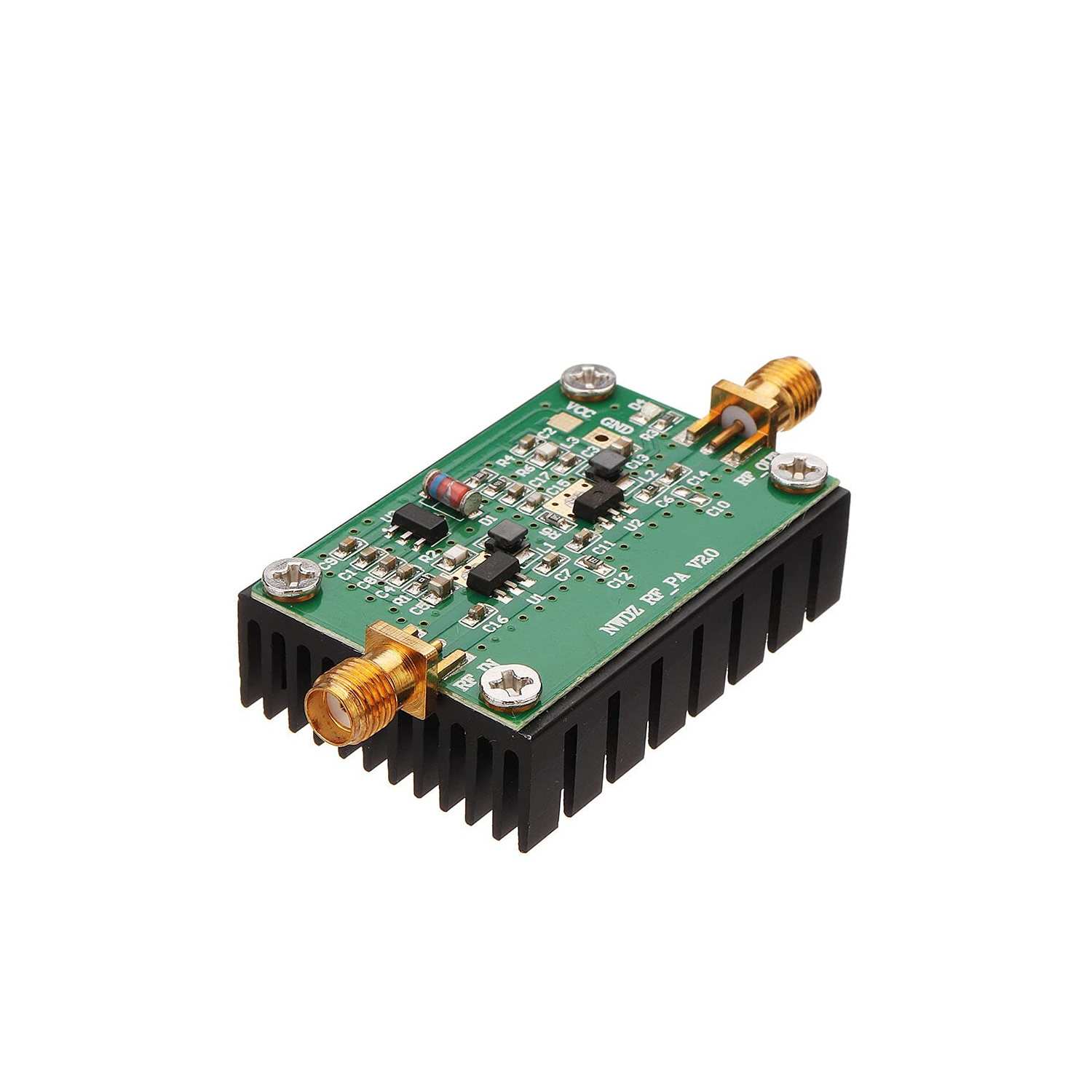

This 2-700MHz 3W RF Power Amplifier is a kind of quality RF power amplifier, 34.8dbm(3W) max output, a 15V power supply, and supporting 2MHz to 700MHz broadband work. This RF Power Amplifier's typical power gain is 35 dB. Suitable for various types of HF, FM, VHF, UHF wireless applications, FM shortwave radios, remote control toys, digital radio, etc.
Specifications:
- Name: RF Power Amplifier
- Material: PCB board+plastics+metal
- Supply voltage: DC12-15V (typical 15V 0.3-0.5A)
- Working frequency: 2MHz-700MHz
- Input and output impedance: 50 ohms
- Maximum output power: 34.8 dBm (3W)
- Maximum input power: +10 dBm
- Typical power gains: 35 dB ( 300M gains slightly decreased)
Features:
- Perfect layout design, making everything easy to operate
- Broadband power amplifier for various types of HF, FM, VHF, UHF wireless applications, FM shortwave radios, remote control toys, digital radio, etc.
- 34.8dbm(3W) max output, 15V power supply, support 2MHz to 700MHz broadband work
- This RF Power Amplifier's typical power gain is 35 dB
Applications:
- Broadband RF power amplification, suitable for HF FM VHF UHF FM transmission of various radio applications, short-wave FM remote control toys, radio walkie-talkies, digital radio stations, etc., can output up to 3 watts, 15V voltage supply, 2MHz to 700MHz can work frequency range.
Package Included:
1x 2-700M 3W RF Power Amplifier
