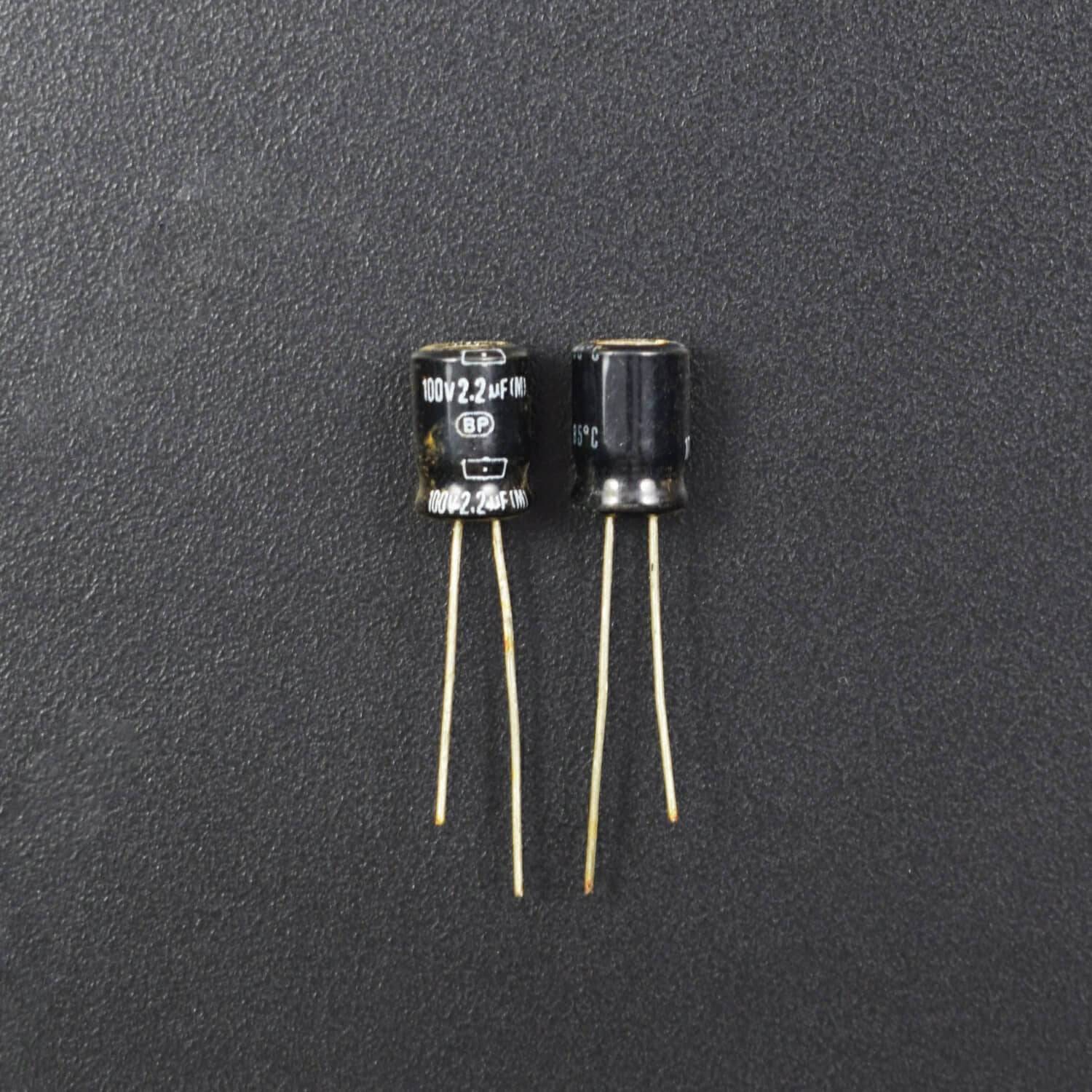

- Product Name : Aluminum Electrolytic Capacitor
- Type: Radial Lead
- Feature: High Ripple Current,Low Impedance
- Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)
- Rated Voltage: 100V
- Capacitance: 2.2uF
- Capacitance Tolerance: ±20%(120Hz,+20 Celsius)
Description:
Electrolytic capacitors are used in huge quantities, They are able to provide a larger capacitance per volume than other types of capacitor. This gives them very many uses in circuits where high currents or low frequencies are involved. Electrolytic capacitors are typically used most in applications such as audio amplifiers of all types (hi-fi to mobile phones) and in power supply circuits.Like any other capacitor, it is necessary to understand the advantages and limitations of these capacitors to enable them to be used most effectively.
Specification:
- Product Name : Aluminum Electrolytic Capacitor
- Type: Radial Lead
- Feature: High Ripple Current,Low Impedance.
- Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)
- Rated Voltage: 100V
- Capacitance: 2.2uF
- Capacitance Tolerance: ±20%(120Hz,+20 Celsius)
- Standard Load Life: 3000hr
- Body Size: 5 x 11mm/0.2" x 0.43"(D*L)
- Lead Length: 24mm/0.94", 20mm/0.79"
- Lead Pitch : 2mm/0.08"
- Lead Diameter :05mm
Features:
- High Ripple Current.
- Low Impedance.
- Radial lead, aluminum electrolytic capacitor.
- The longer lead is positive electrode and the shorter one is negative electrode.
Package Included:

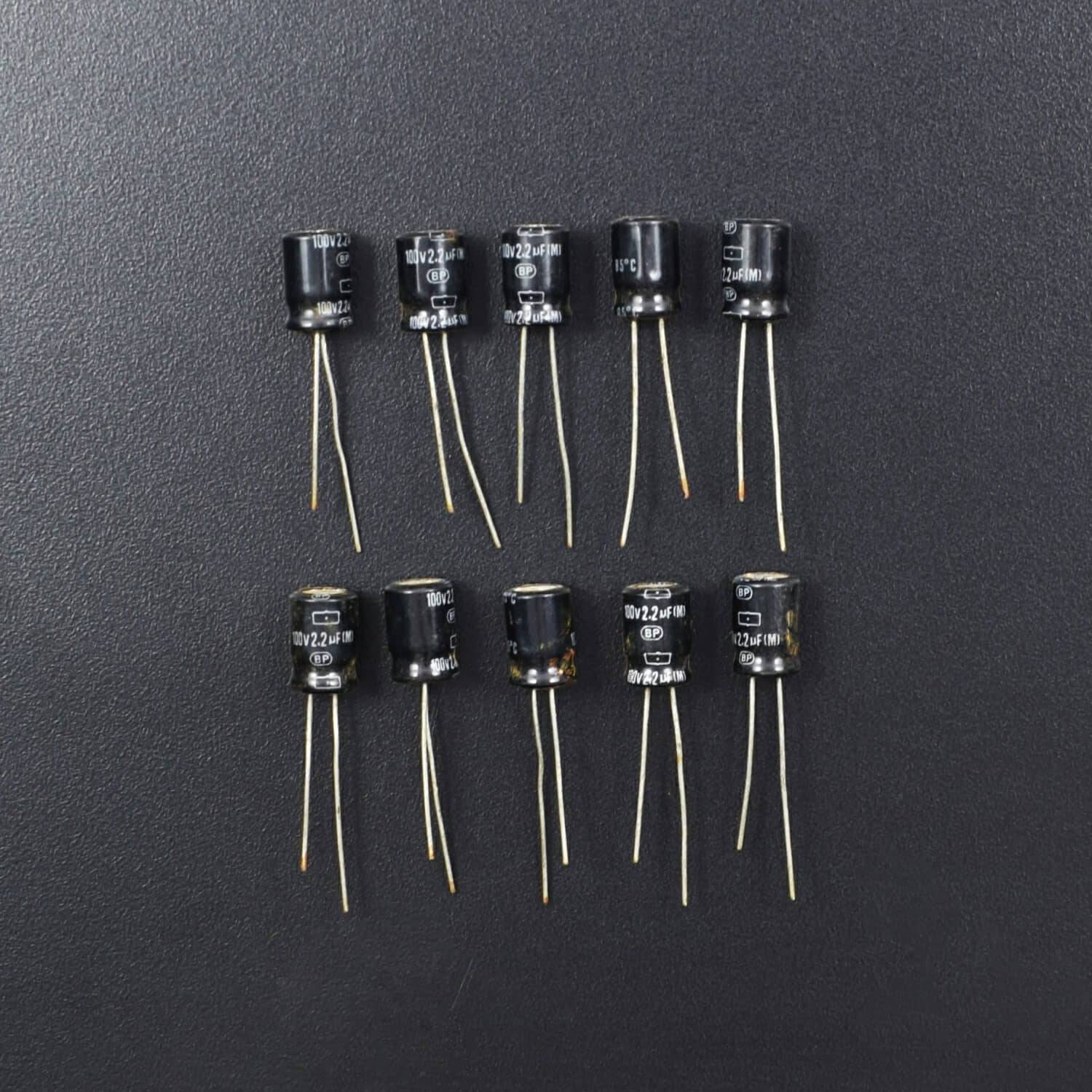

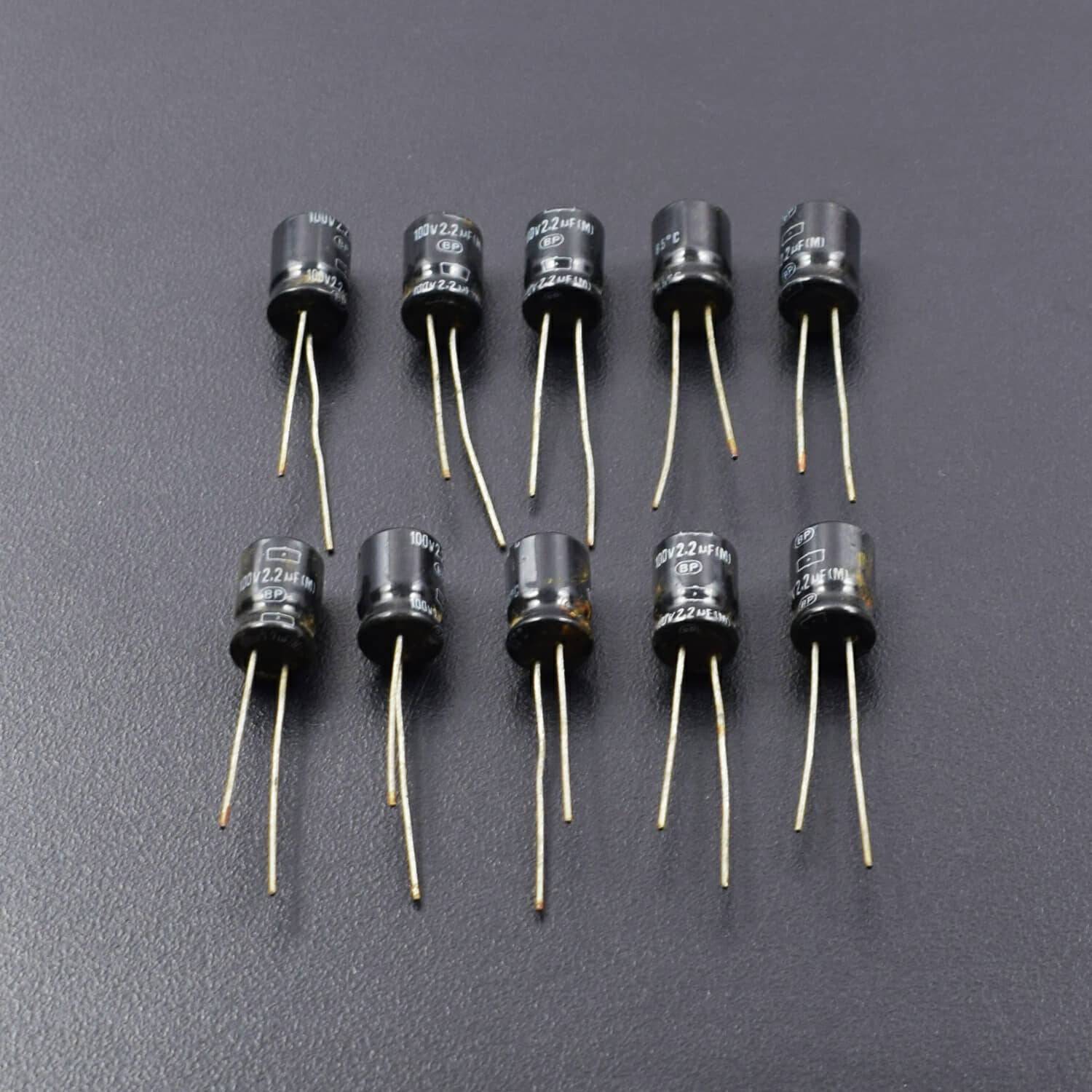

5 x 2.2uF 100V Aluminum Radial Electrolytic Capacitor
