Description:

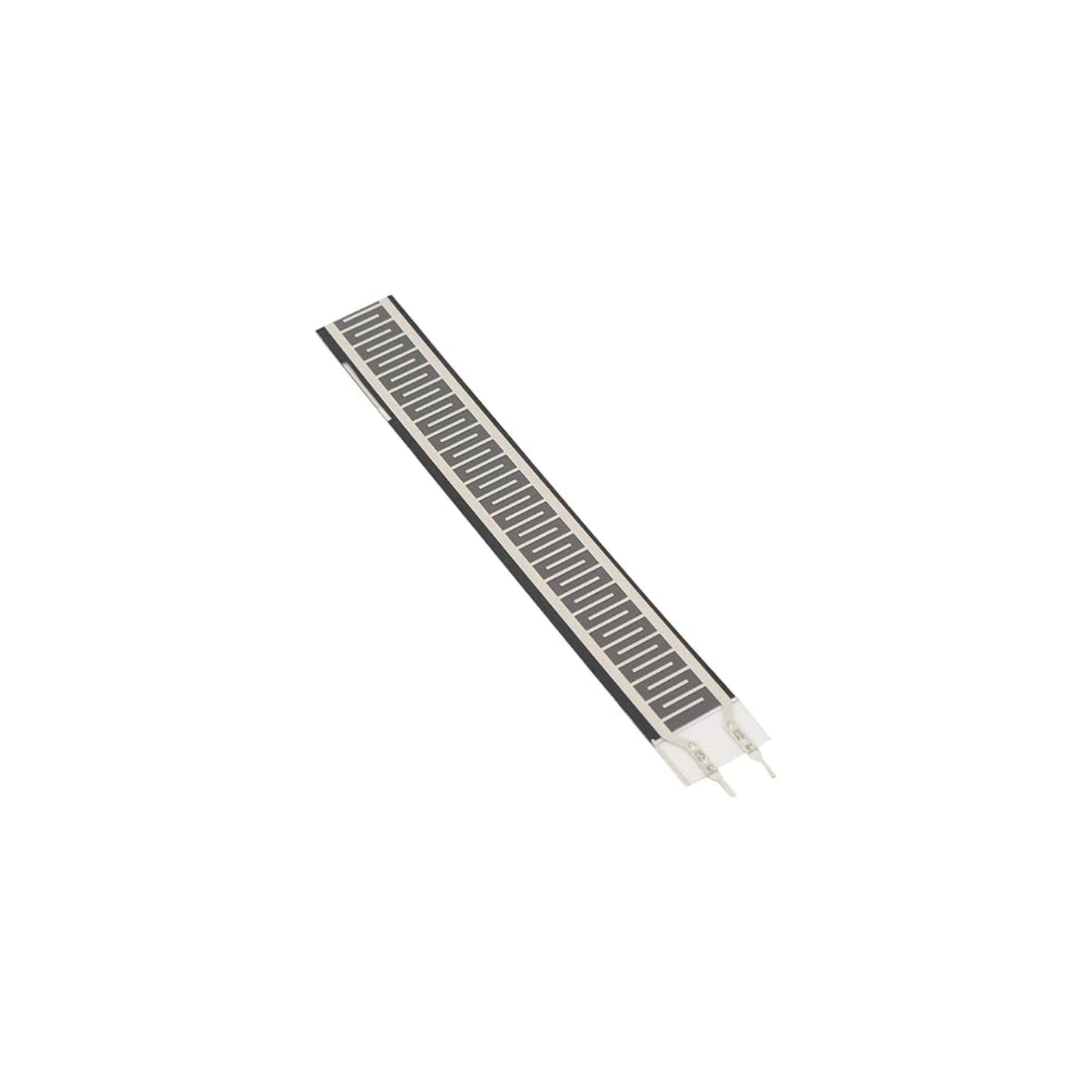

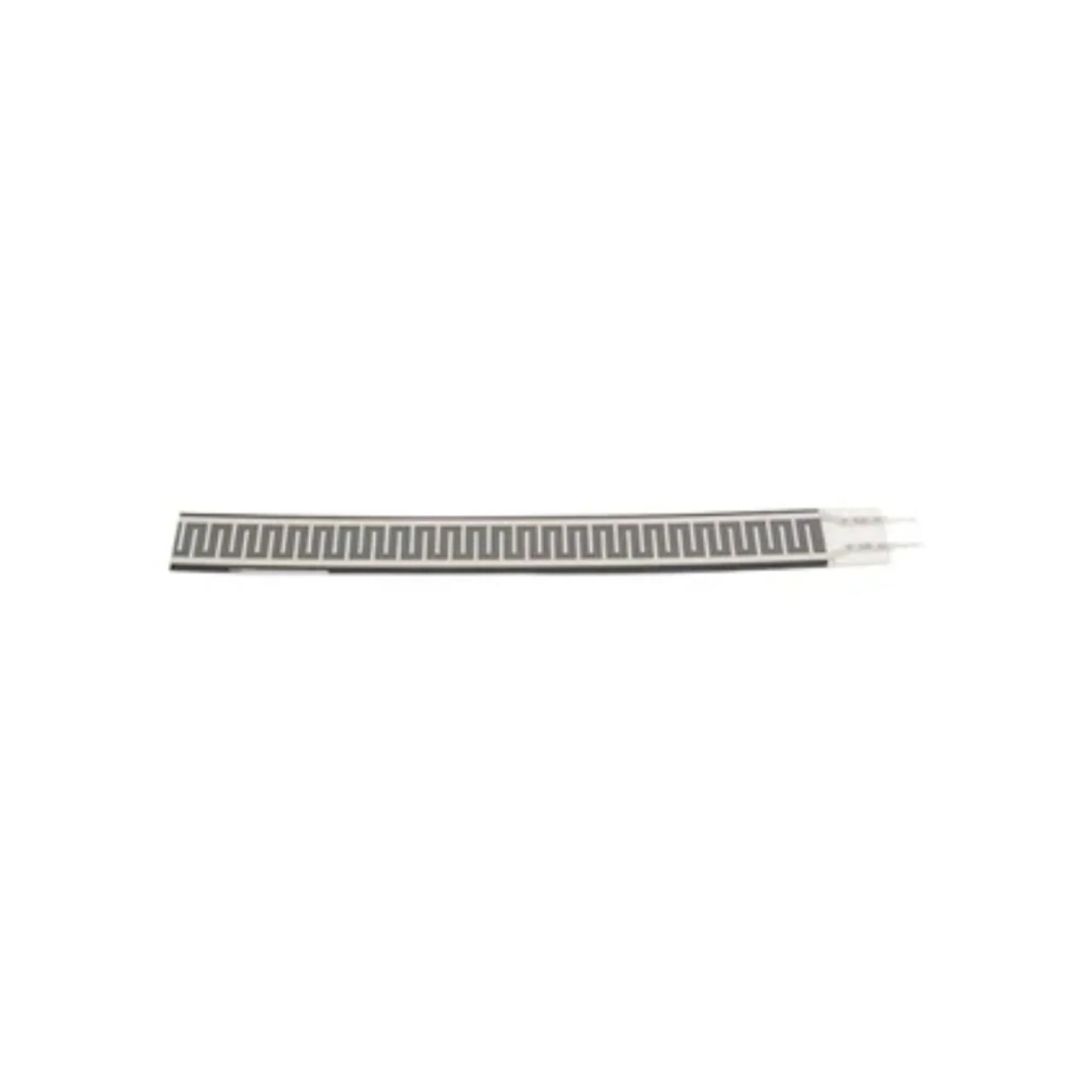

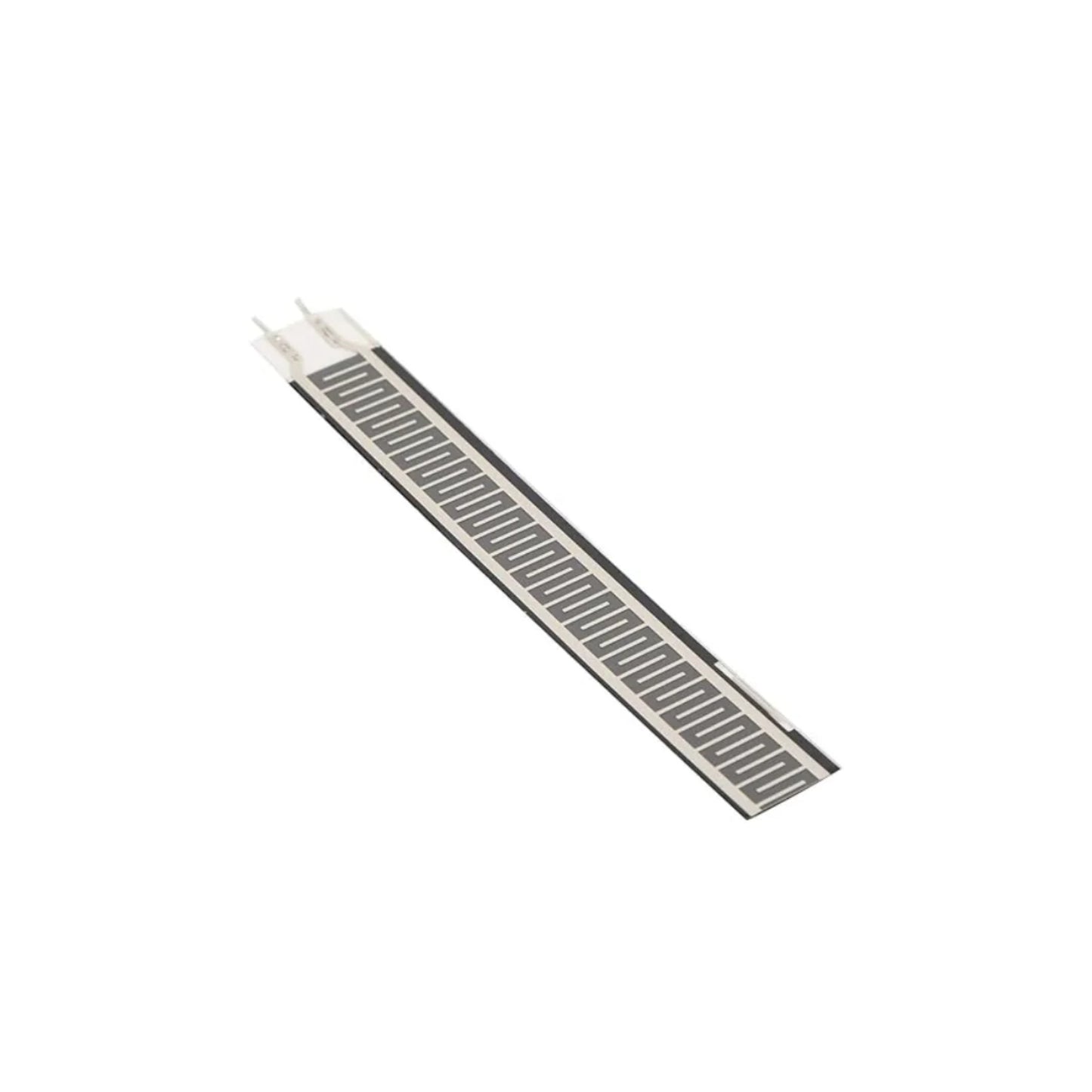

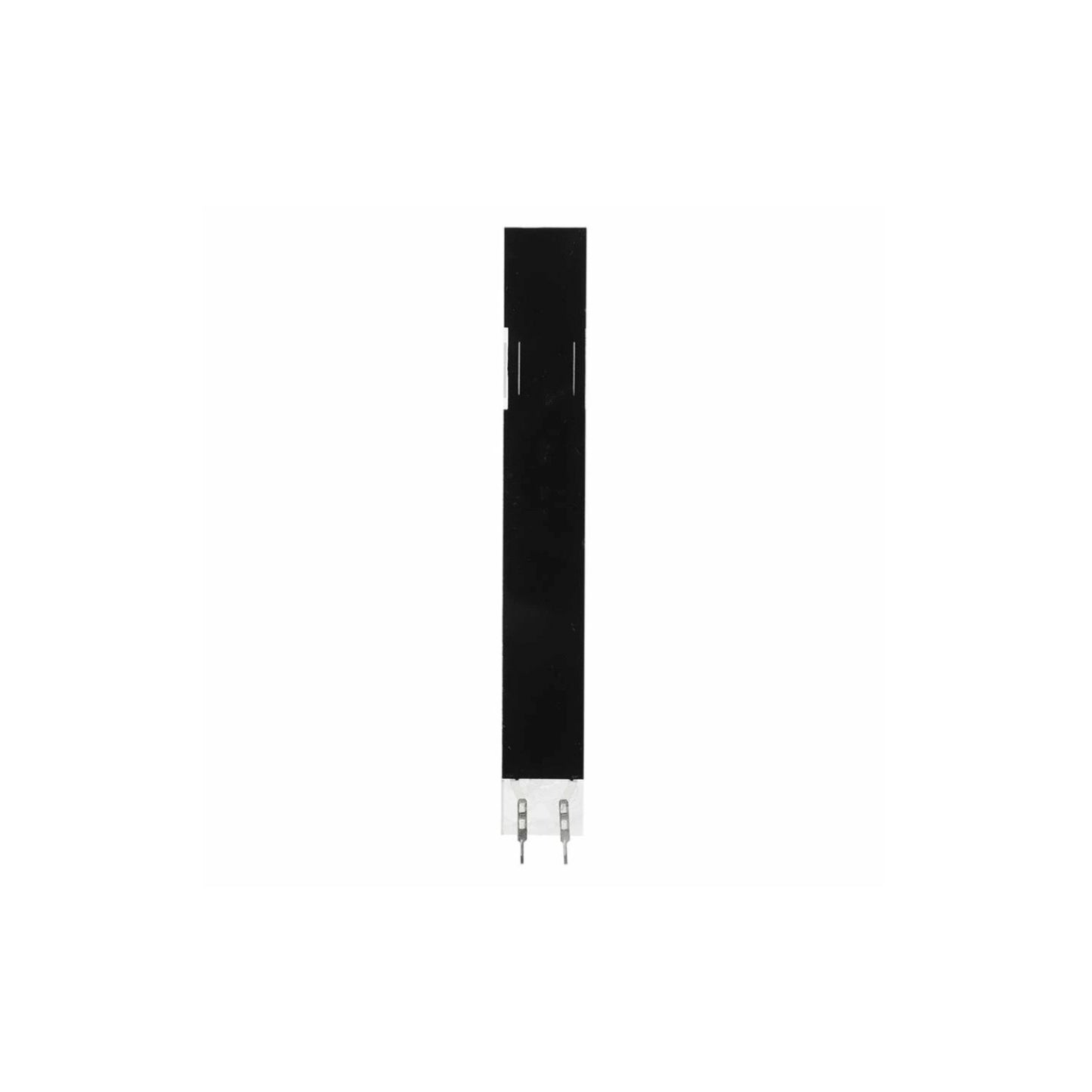

2.2 Inch Flexible Resistive Film Pressure Sensor is a flexible sensor that changes its output when it is bent or when force is applied to it. This sensor has two output wires. The resistance between these two wires varies when the sensor is bent or when subjected to a force. Hence, this sensor can be used as a flex or force sensor.
Specifications:
- Pressure Sensing Range: 20g~10kg
- Not Triggering Resistance: >10MΩ
- Hysteresis: +10%, (RF+ - RF-)/FR+, 1000g force
- Electromagnetic Interference EMI: Not generated
- Electrostatic Discharge ESD: Not ESD sensitive
- Triggering Force: 20g, trigger when resistance < 200k ohm by default
- Shape: Sheet, Flexible
- Thickness: 0.35mm
- Response Time: <10ms
- Drift: <5%, 2.5kg load, 24H
Features:
-
A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases.
- The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on the inside of the bend).
- The connector is 0.1" spaced and breadboard friendly.
Package Included:
1 x 2.2 Pressure Film Sensor 20g~10kg Flex Sensor 2.2-Inch Flexible Resistive Pressure Sensor High Sensitivity 2.2 Flex Sensor For Pressure Detection
