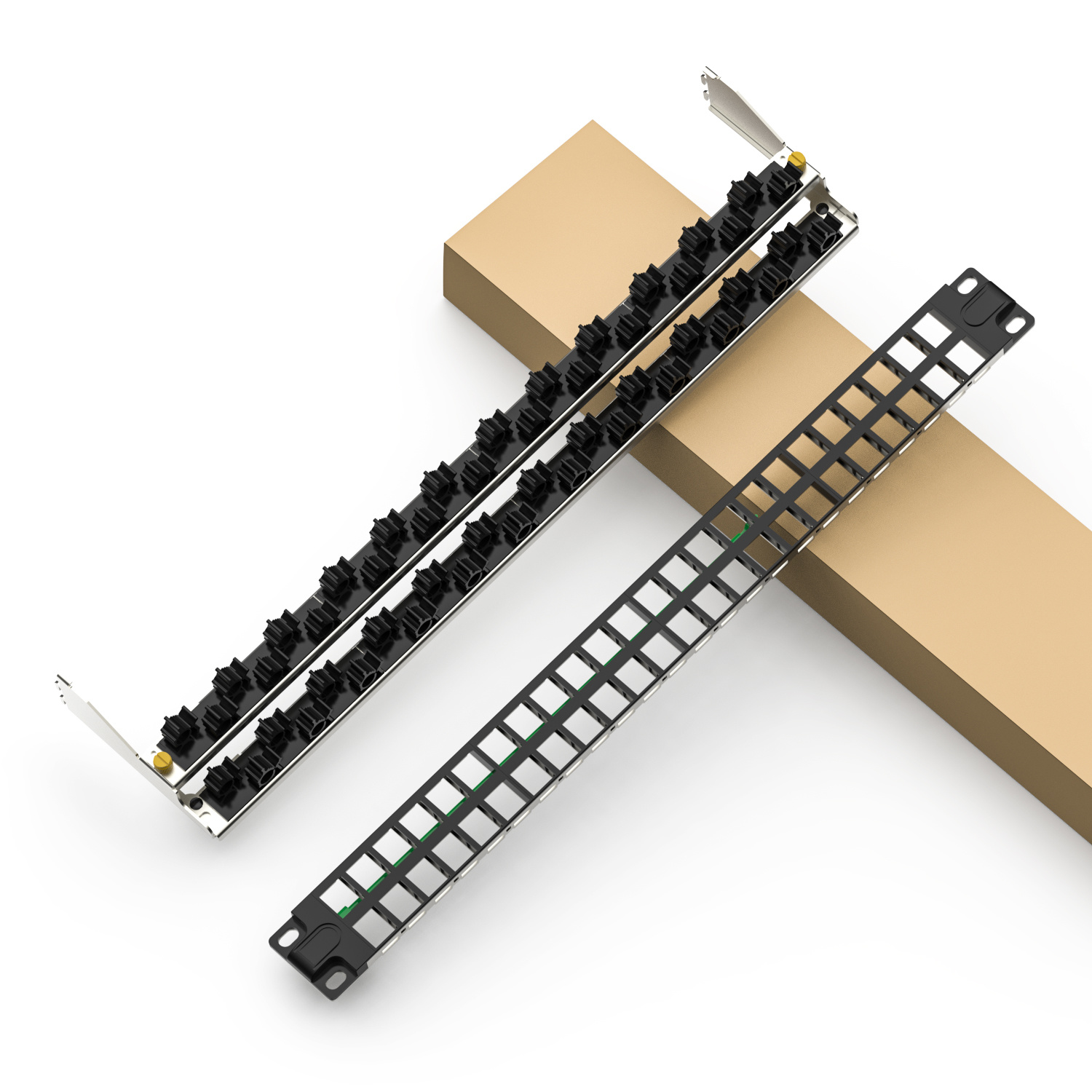

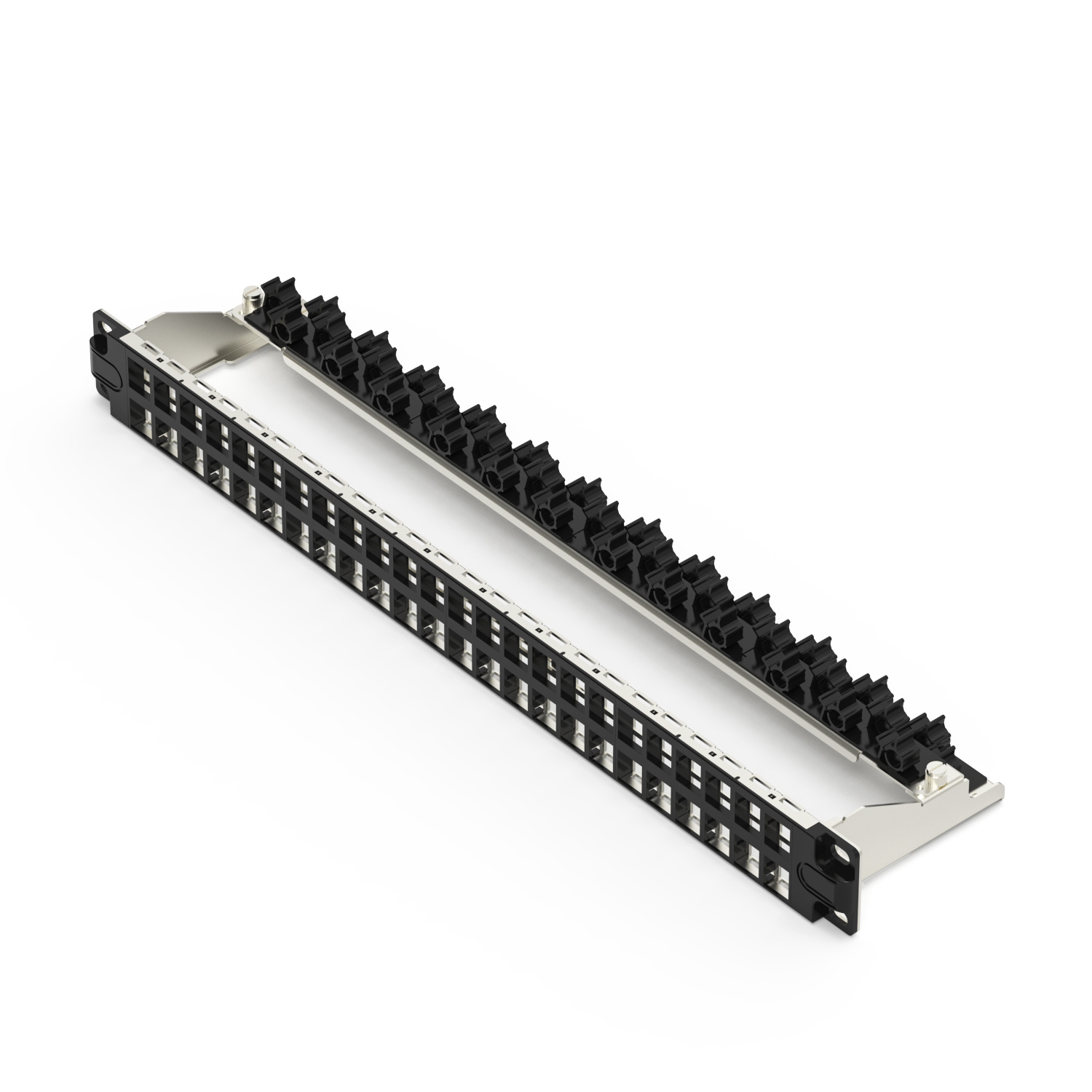

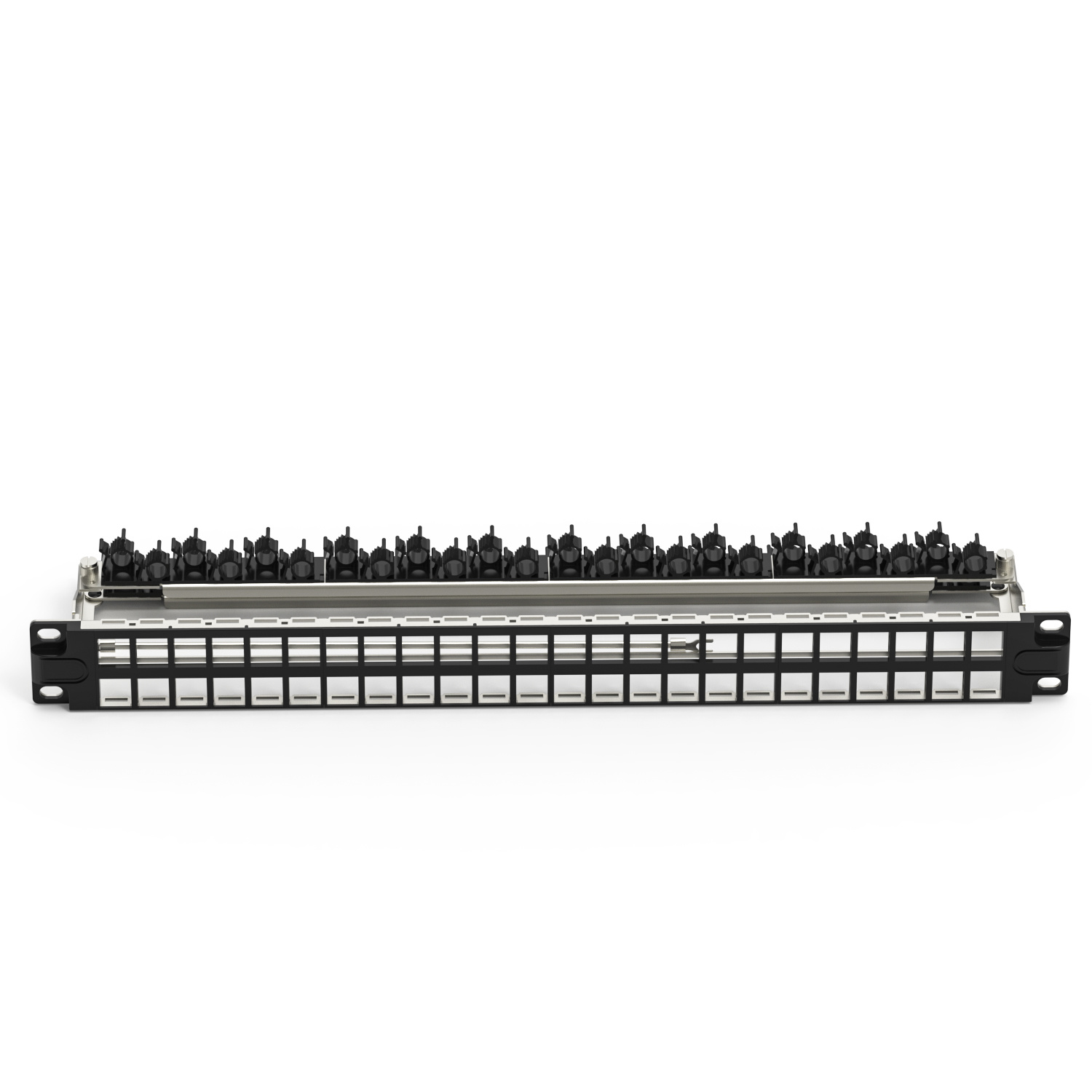

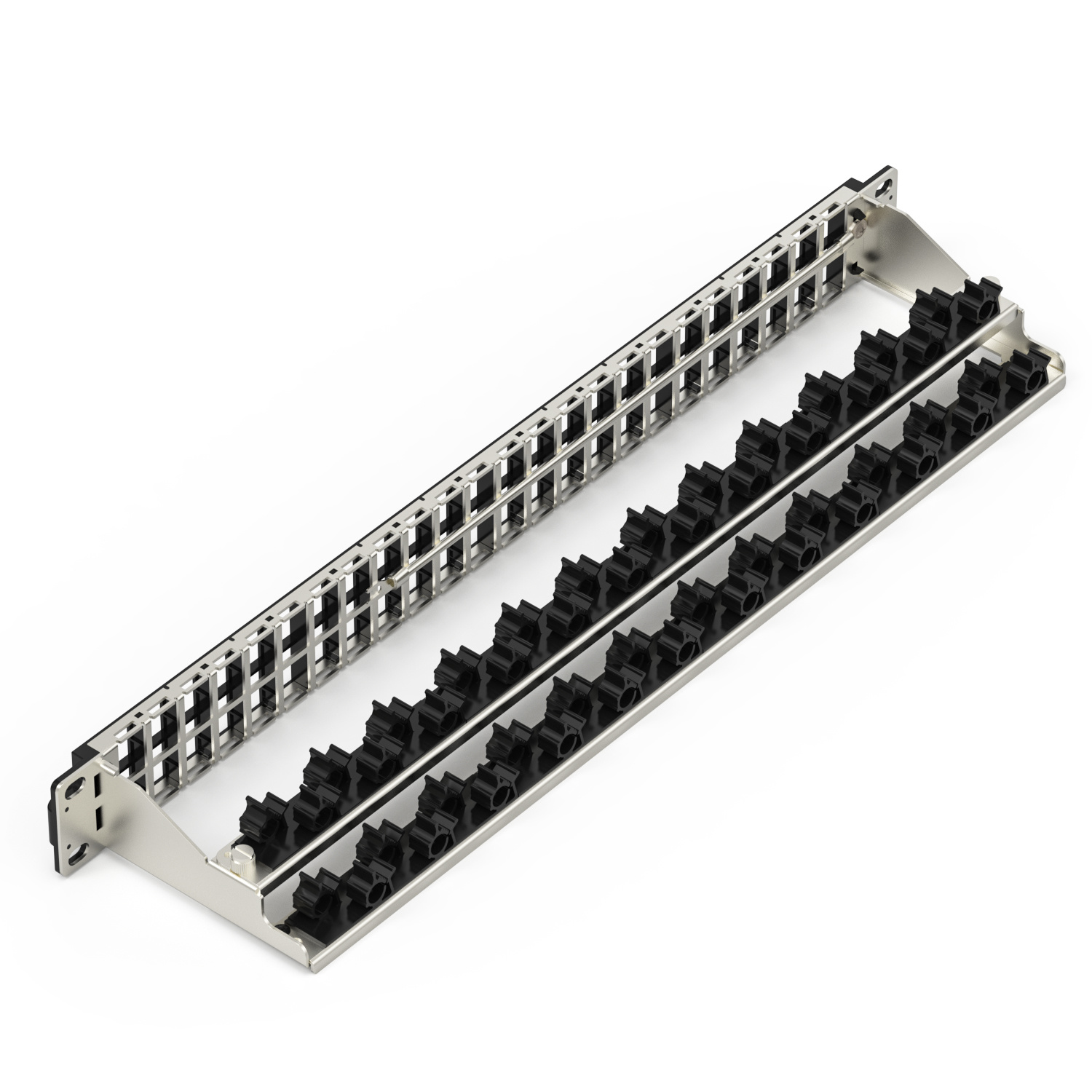

1U 48-Port Shielded Cat6a Patch Panel High-Density Patch Panel With Cable Management Bar For Data Centers and Server Racks

Description:

This 1U 48-Port Shielded Patch Panel is engineered for high-performance network installations and built with precision and durability in mind. The panel frame is constructed from high-quality SPCC cold-rolled steel with a 1.5mm thickness, and finished with a nickel plating process that enhances its appearance while providing excellent shielding, grounding, and rust resistance. The rear bumper, also made of 1.5mm SPCC steel, features a foldable and removable hanger for reduced packaging size and easier handling during installation.

Designed for optimal cable management, the rear bar is equipped with independent plastic panels that streamline organization while maintaining a clean, professional look. The panel comes pre-assembled with FTP trapezoidal jacks, delivering superior shielding performance to protect against external electromagnetic interference.

Its standard 1U height and 19" rack width make it universally compatible with data center and server rack configurations. Each of the 48 ports is clearly labeled with a transparent, easy-access label holder—simply press to remove and update port labels. This patch panel is ideal for structured cabling environments requiring reliability, ease of use, and high-density performance.

Specifications:

• Model Number: HPP-K4801F
• Material: SPCC
• Specification: 48 ports
• Color: Black

Features:

• Panel frame with qualified SPCC cold-rolledsteel with 1.5mm thickness, the panel adopts a nickel plating process to ensure good appearance, shielding grounding, and rust prevention.
•  The rear bumper is made of 1.5mm thick high-strength cold-rolled steel SPCC, and the foldable, removable hanger allows for a smaller package size.
• The rear baruses independent plastic panels, which make wiring management easier and beautiful.
• Standard 1U height 48 ports, assembled with FTP trapezoidal jacks, which can achieve a high shielding function without external electromagnetic interference.
• Clear and beautiful transparent label holder identifies 48 ports, just press the label holder slightly and the paper labelcan be taken out for remarks.
• Standard19 " wide range of applications enables fasterassembly, maintenance and upgrades.

Schematic:

Applications:

• Network

Package Included:

1 x 1U 48-Port Shielded Cat6a Patch Panel  High-Density Patch Panel  With Cable Management Bar For Data Centers and Server Racks
