Description:

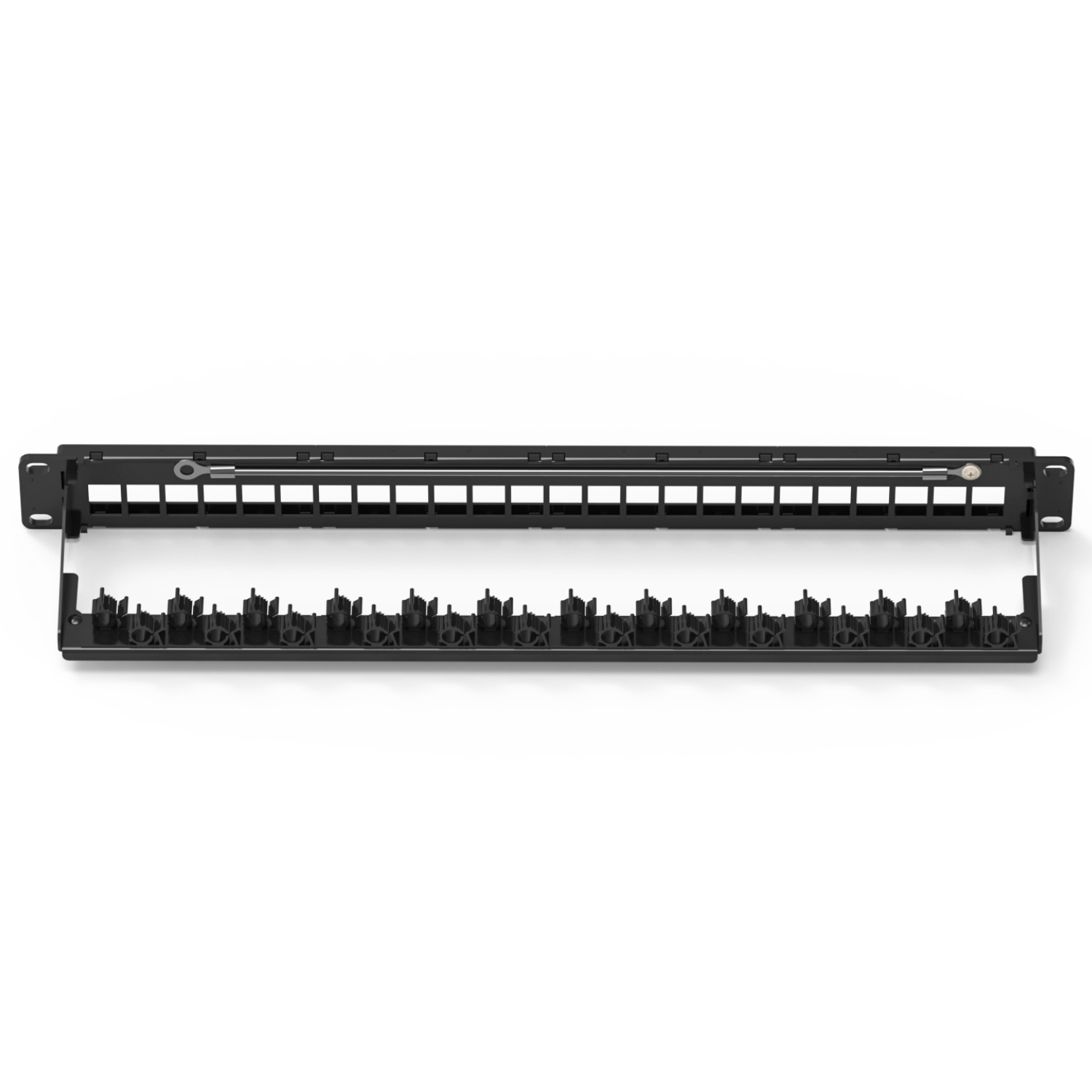

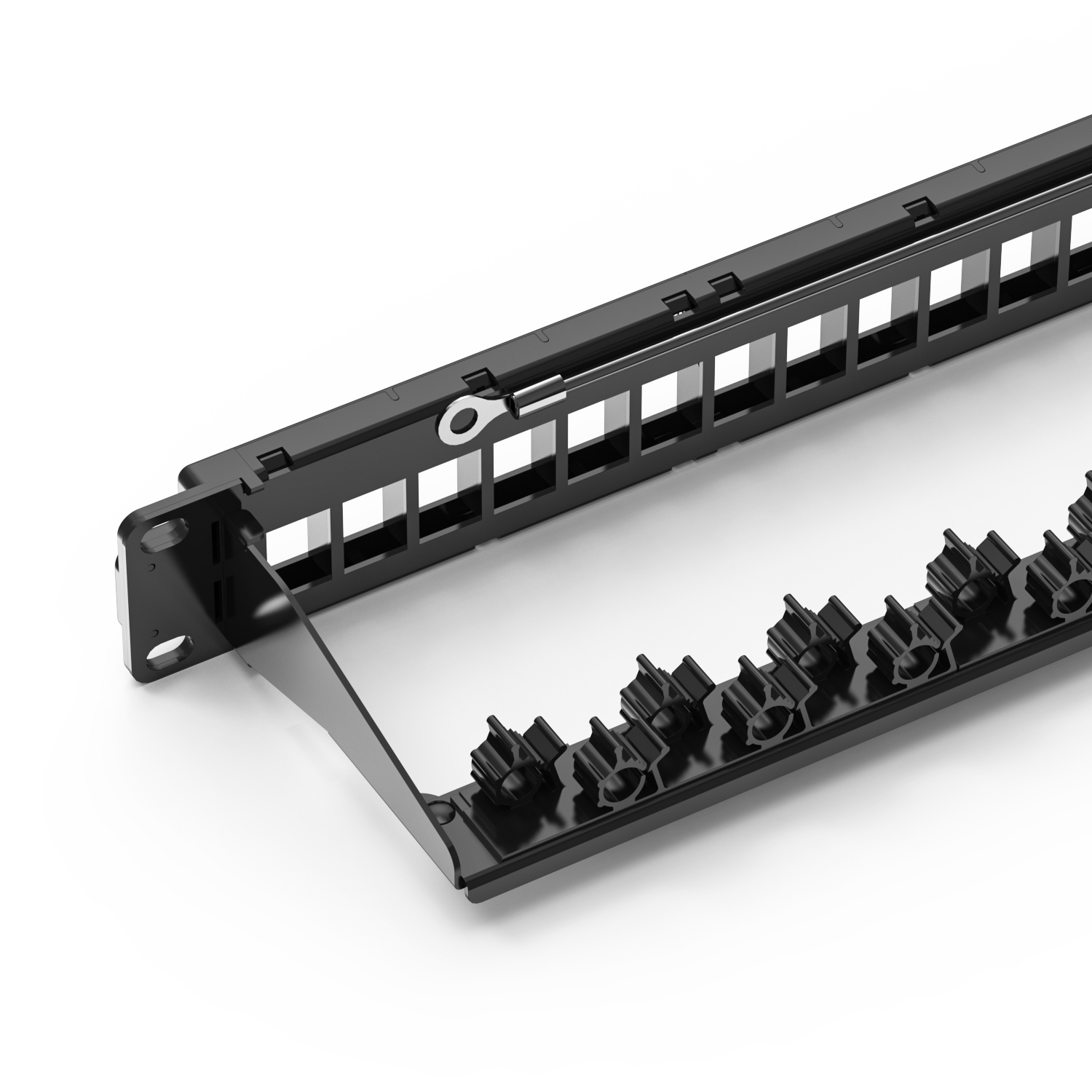

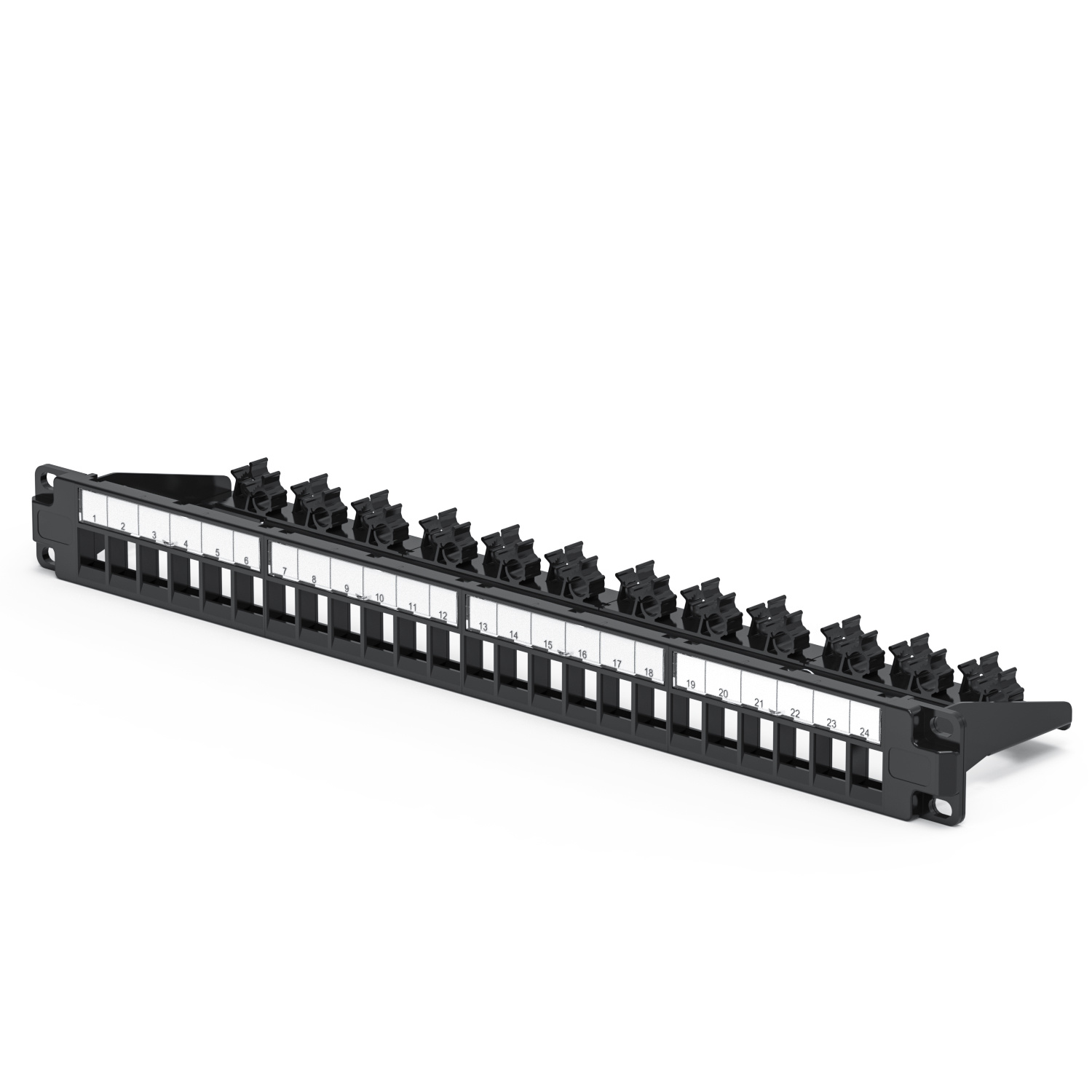

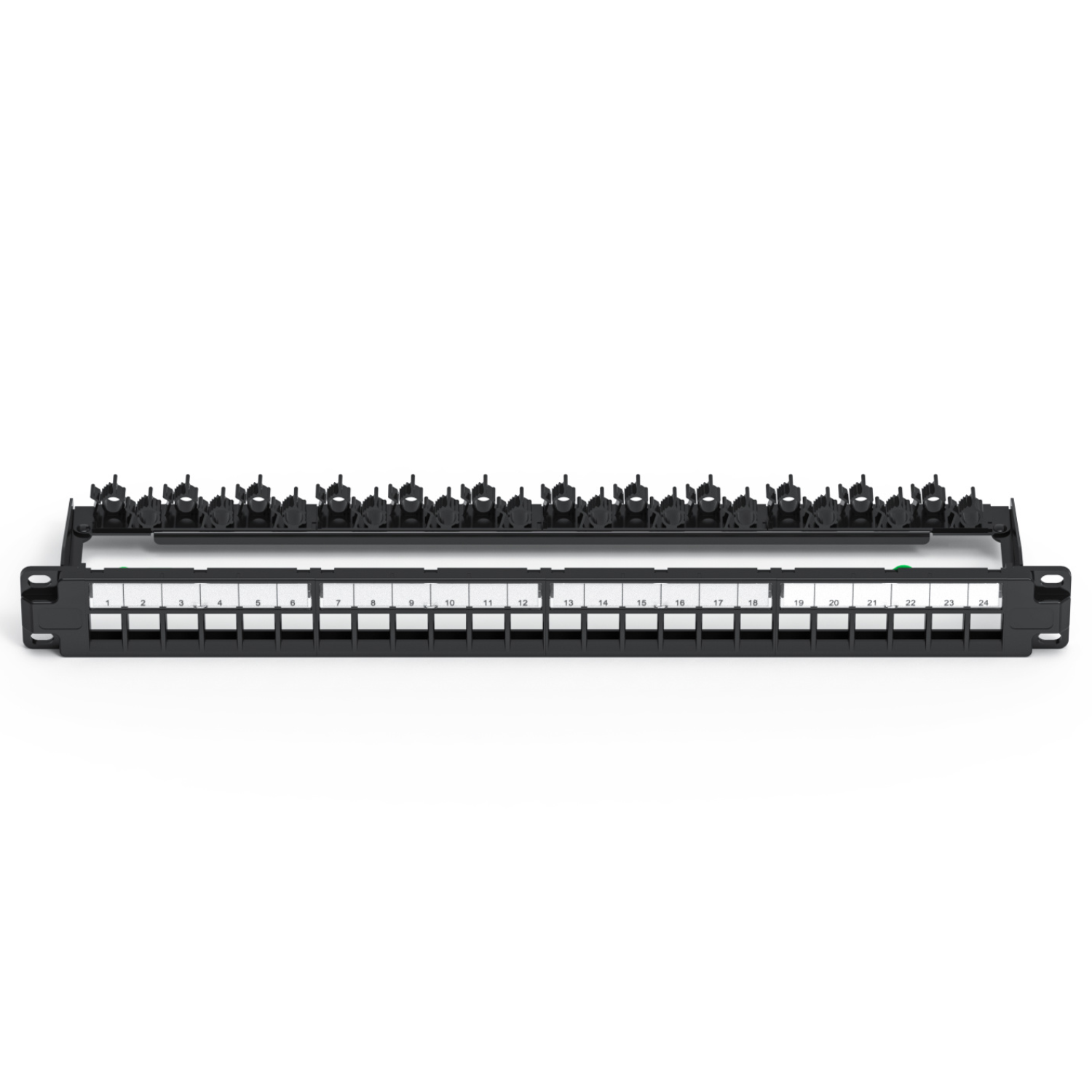

The 1U 24-Port UTP Blank Patch Panel with Back Bar is a high-quality, rackmount solution designed for structured cabling systems. Built for Cat5e and Cat6 networks, this patch panel offers flexible modular connectivity and efficient cable management for data centers, server rooms, and enterprise networks.
Its back bar support ensures organized wiring and reduces cable strain, while the 1U high-density design saves valuable rack space. Perfect for professional installations, this patch panel provides a reliable, durable, and scalable solution for high-performance Ethernet networks.
Specifications:
- Model Number: HPP-K2401
- Material: SPCC
- Specification: 24 port
- Color: Black
- Use: Data center, work area, management room, equipment room, etc.
Features:
- Panel frame with qualified SPCC cold-rolled steel with 1.5mm thickness, the panel adopts a nickel plating process to ensure good appearance, shielding grounding, and rust prevention.

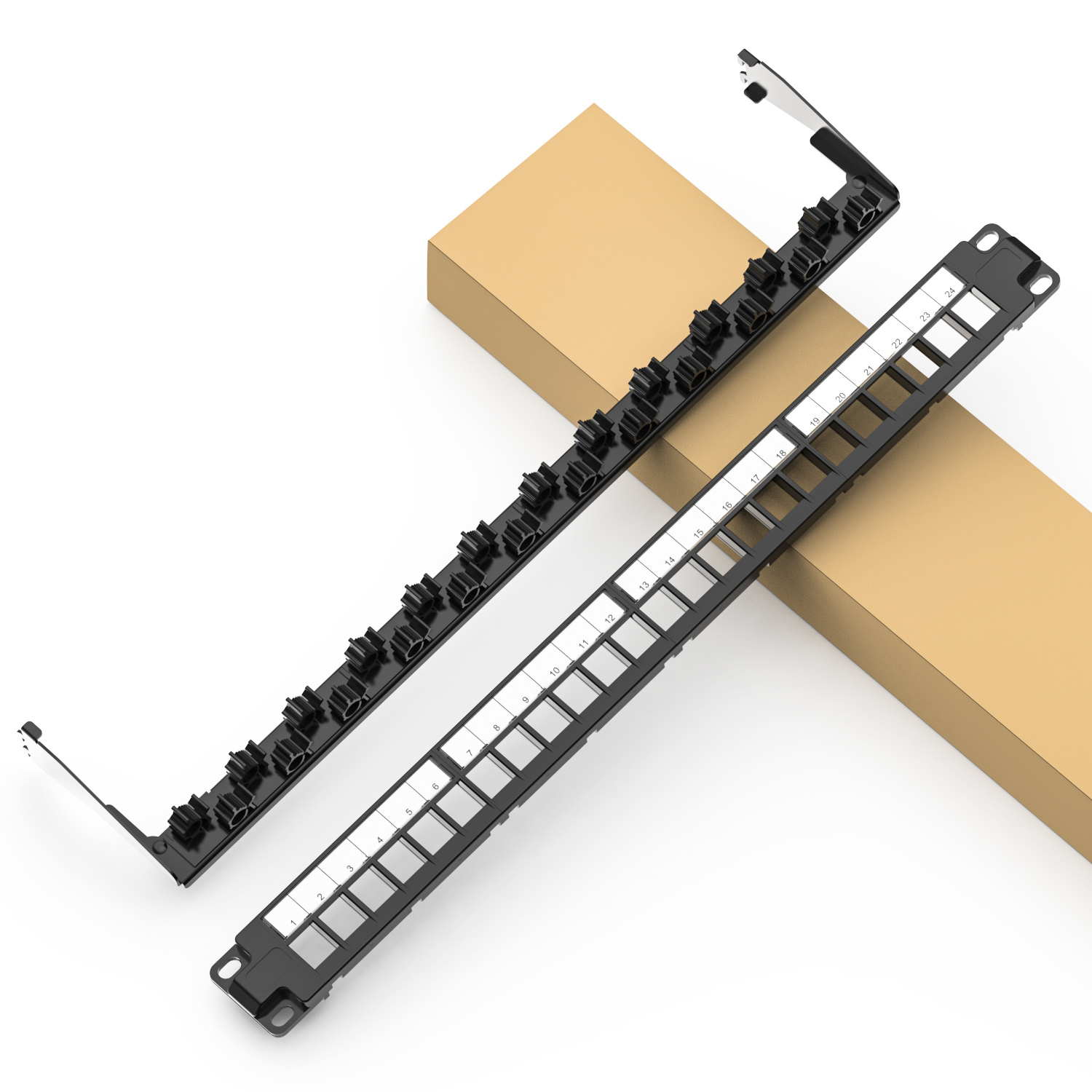

- The rear bumper is made of 1.5mm thick high-strength cold-rolled steel SPCC, and the foldable, removable hanger allows for a smaller package size.
- The rear bar uses independent plastic panels, which make wiring management easier and beautiful.
- Standard 1U height 24 ports, assembled with UTP trapezoidal jacks, which can achieve a high shielding function without external electromagnetic interference

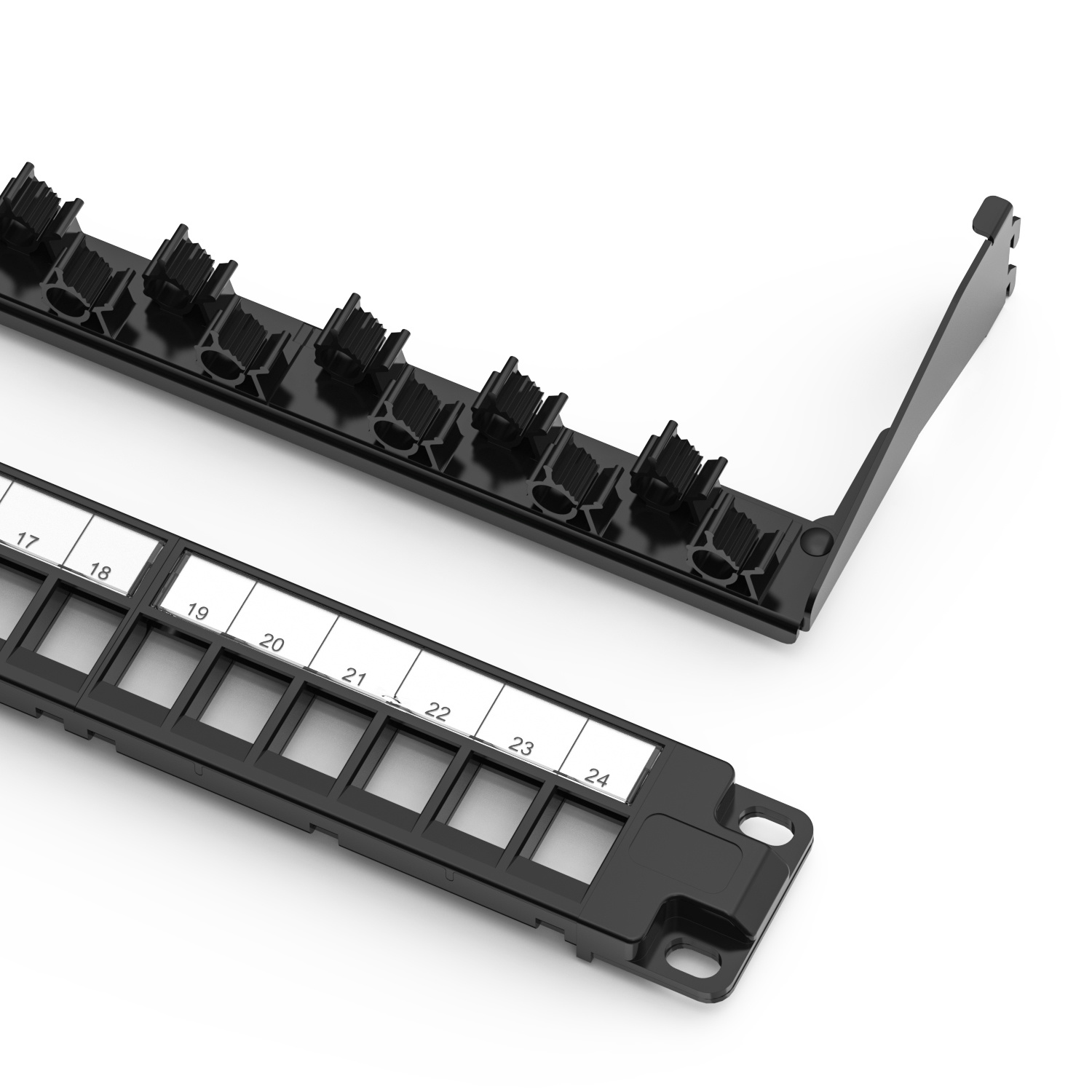

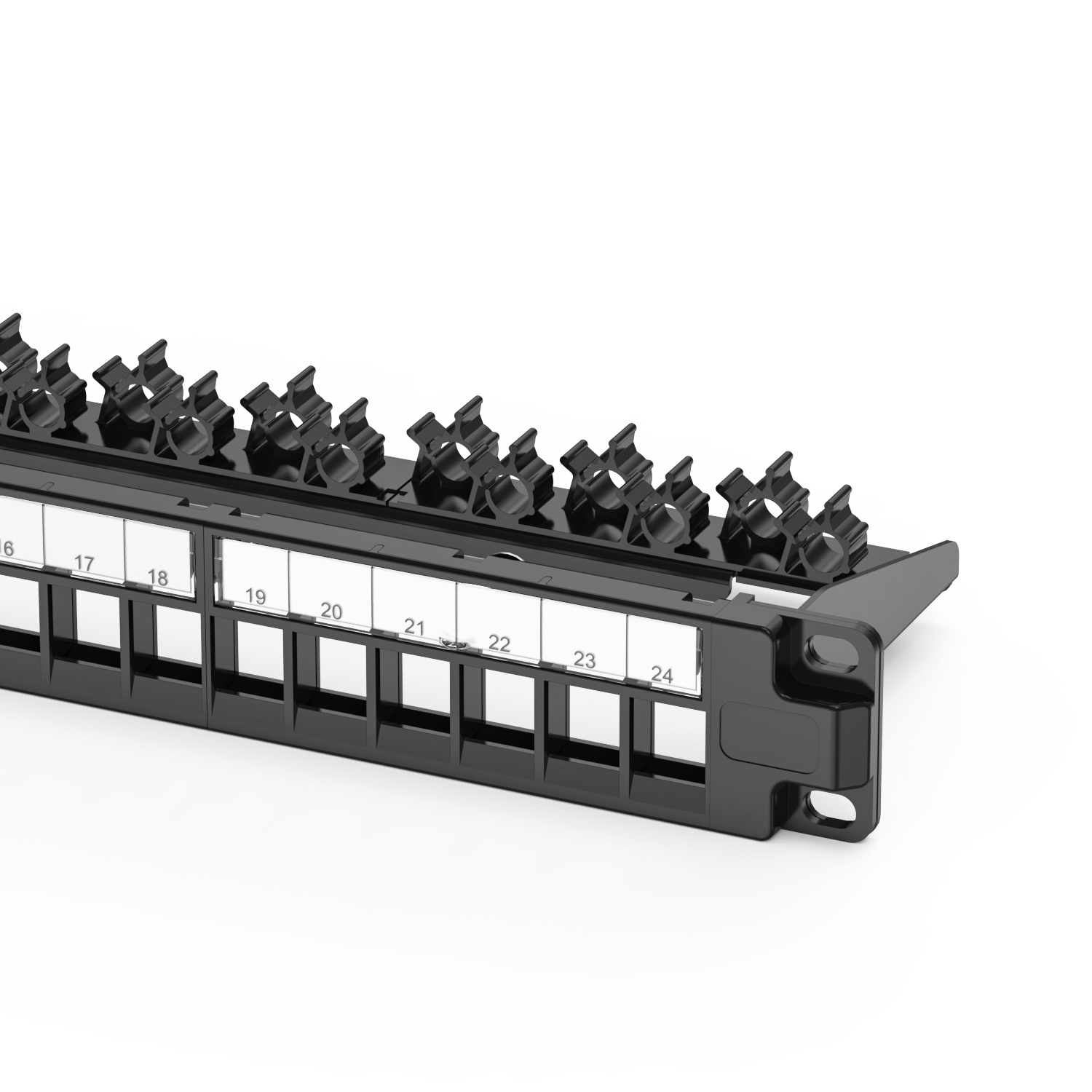

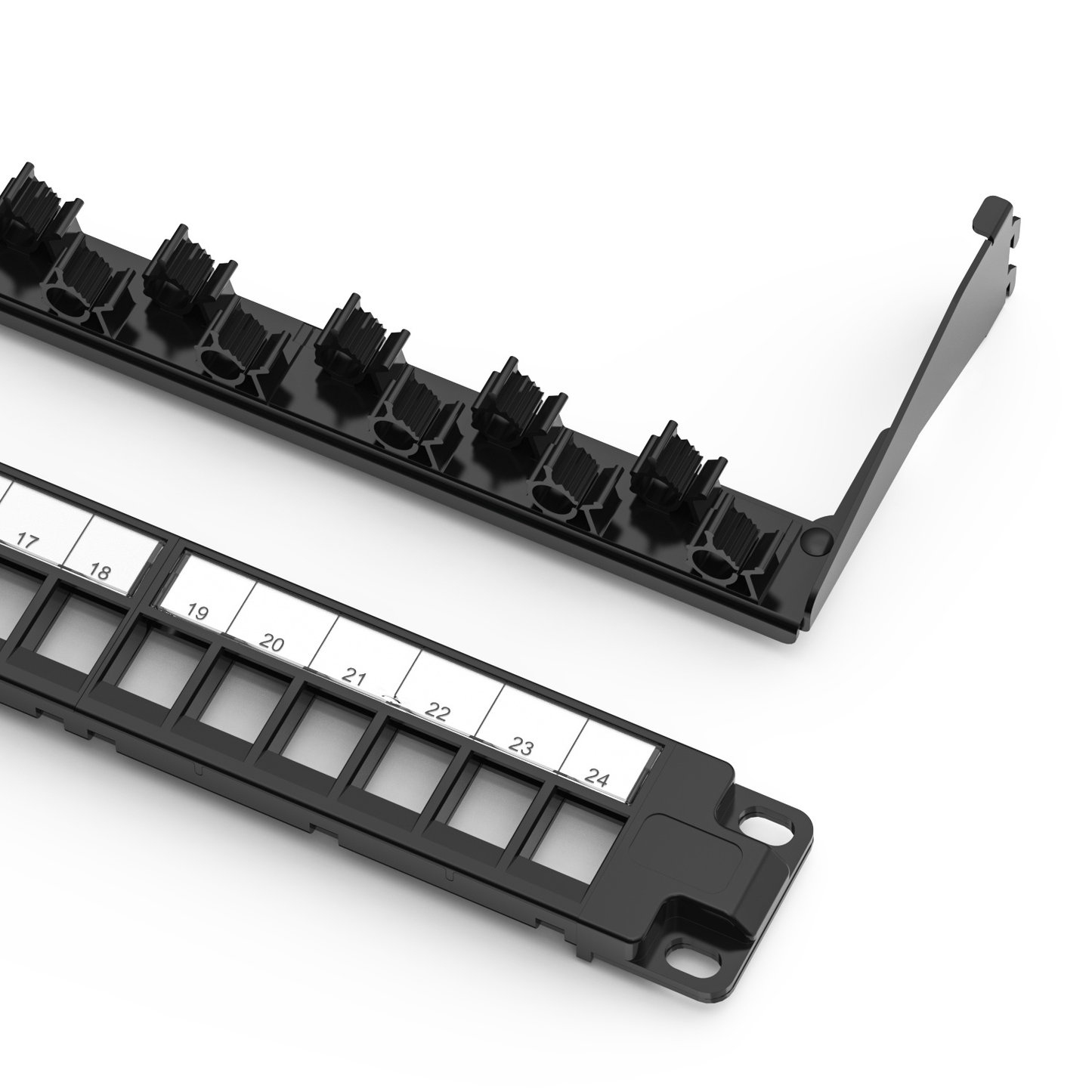

- Clear and beautiful transparent label holder identifies 24 ports, just press the label holder slightly and the paper label can be taken out for remarks.
- Standard19 " wide range of applications enables faster assembly, maintenance, and upgrades.
Physical Properties:
- Panel frame, front panel, and plastic powder-coated cover panel with qualified SPCC cold-rolled steel.
- Plastic parts: ABS
- Operating temperature: - 20 ℃ ~65 ℃
Schematic:
Applications:
- Structured cabling transmits data, voice, and video
- Confidential departments (such as government, political and legal administration, public security, military, and related confidential departments)
Standards:
- ISO/IEC11801
- TIA/EIA-568B.2-1
- EN50173
- UL 94V-0
Package Included:
1 x 1U 24-Port UTP Patch Panel With Back Bar
