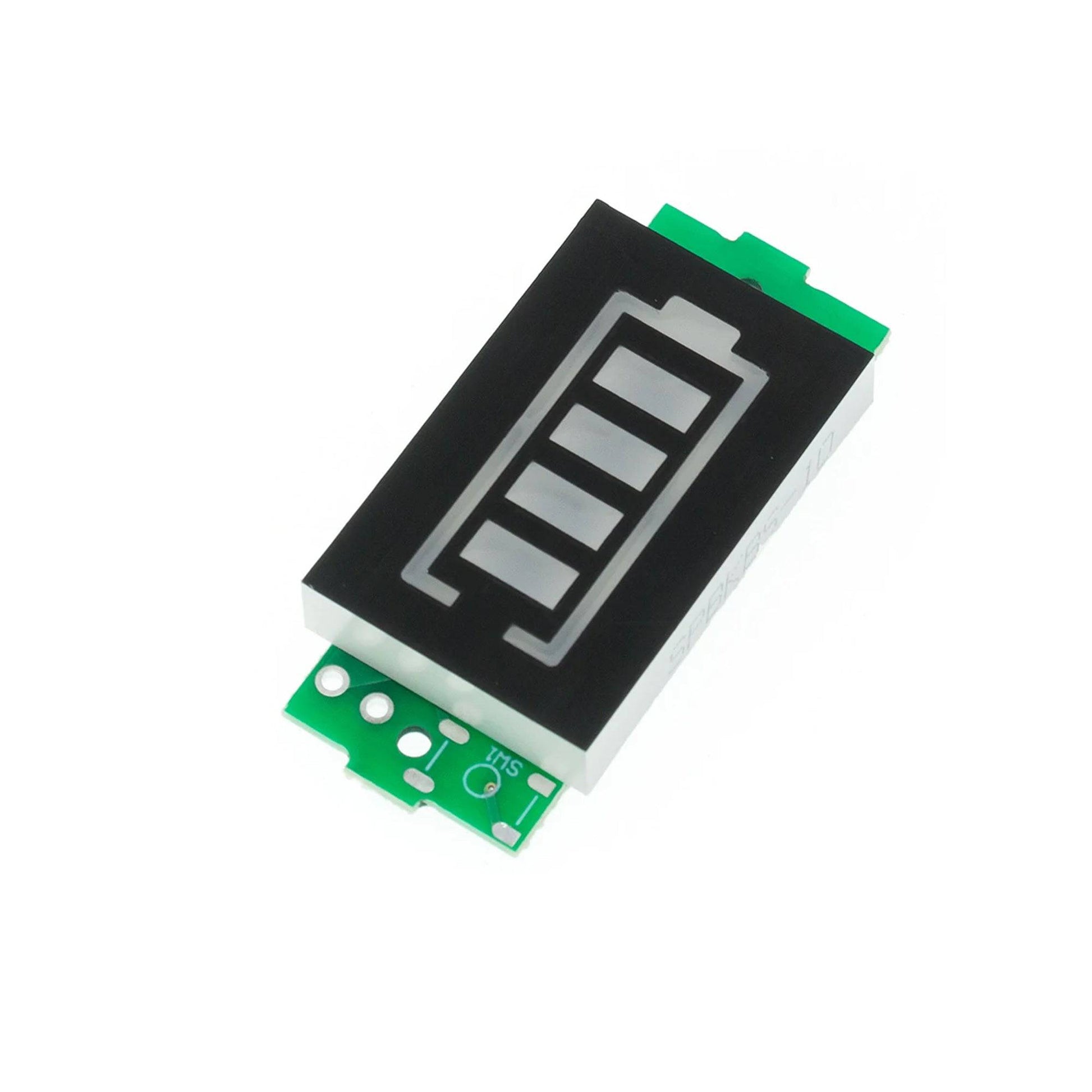

Description:
This is a 1S-8S Battery Capacity Indicator Module. The charge status (capacity) of 18650 Lithium-ion batteries and other lithium batteries with a maximum voltage of 4.2 volts per cell can be quickly visualized using these modules. This 1S-8S Battery Capacity Indicator module is ideal for DIY power supply, battery chargers, RC, and electric cars, as 1S-8S Battery Capacity Indicator displays the voltage state of the battery in a rapid and easy-to-read manner.

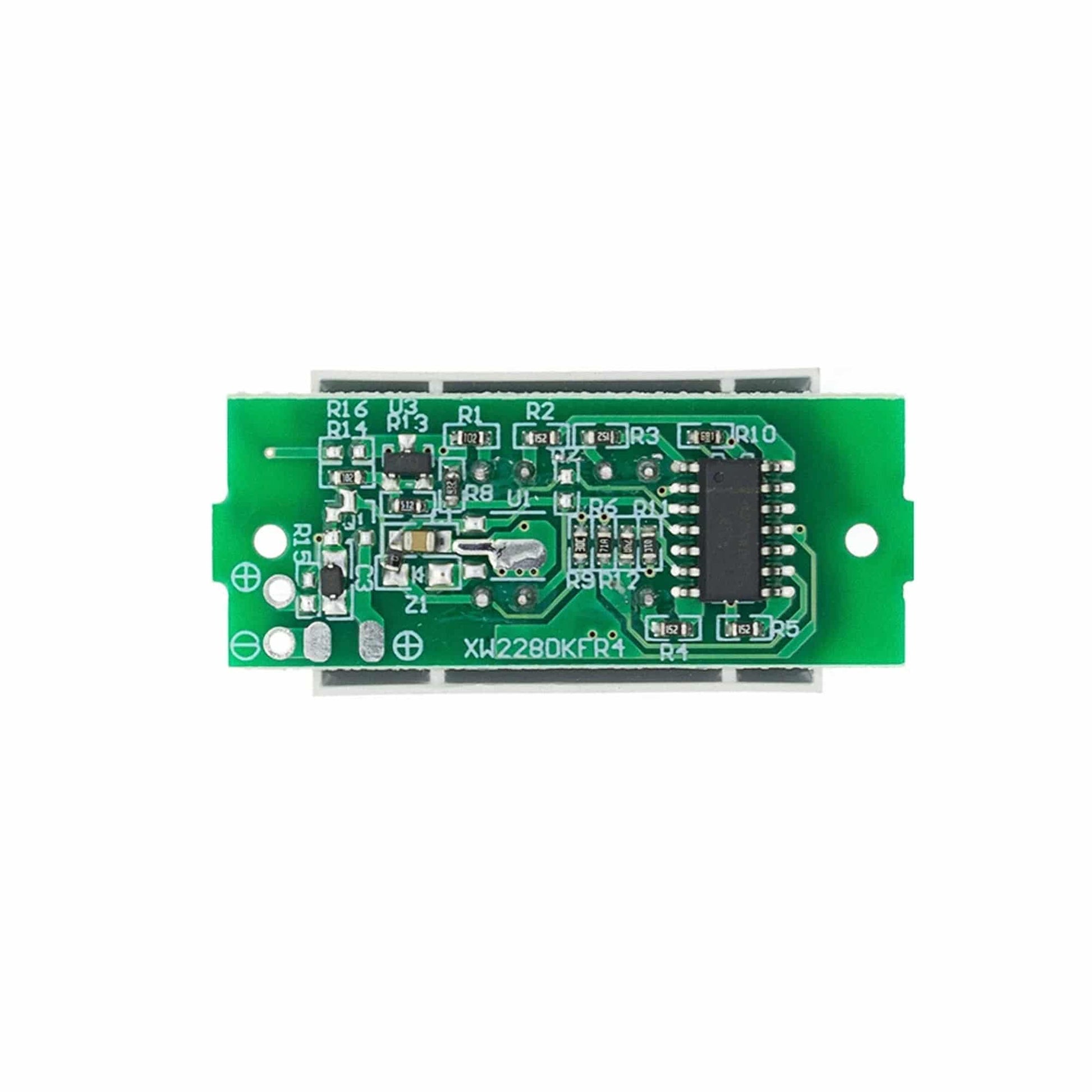

Simply connect the 1S to 8S Battery Level Indicator module to the positive and negative contacts of your battery or battery pack, and a visible bar display shows the charge status of the battery in real-time. The 1S-8S Battery Capacity Indicator Display bars are Green, and the display outline is red. 1S-8S Battery Capacity Indicator can be used as an indicator for 1 to 8 cells or 1S to 8s Battery Pack and is user-configurable with a jumper pad setting. 1S-8S Battery Capacity Indicator has a Compact design with 4-segment display.
Specifications:
- Number of Cells: 1~8S
- Number of cell Pre-set Setting: 1 Cell
- Indicator Type: 4 Bar Graph
- Operating Voltage: 3V-34VDC
- Operating Current: 5mA
- Operating Temperature: 10℃~65℃
How to Use:

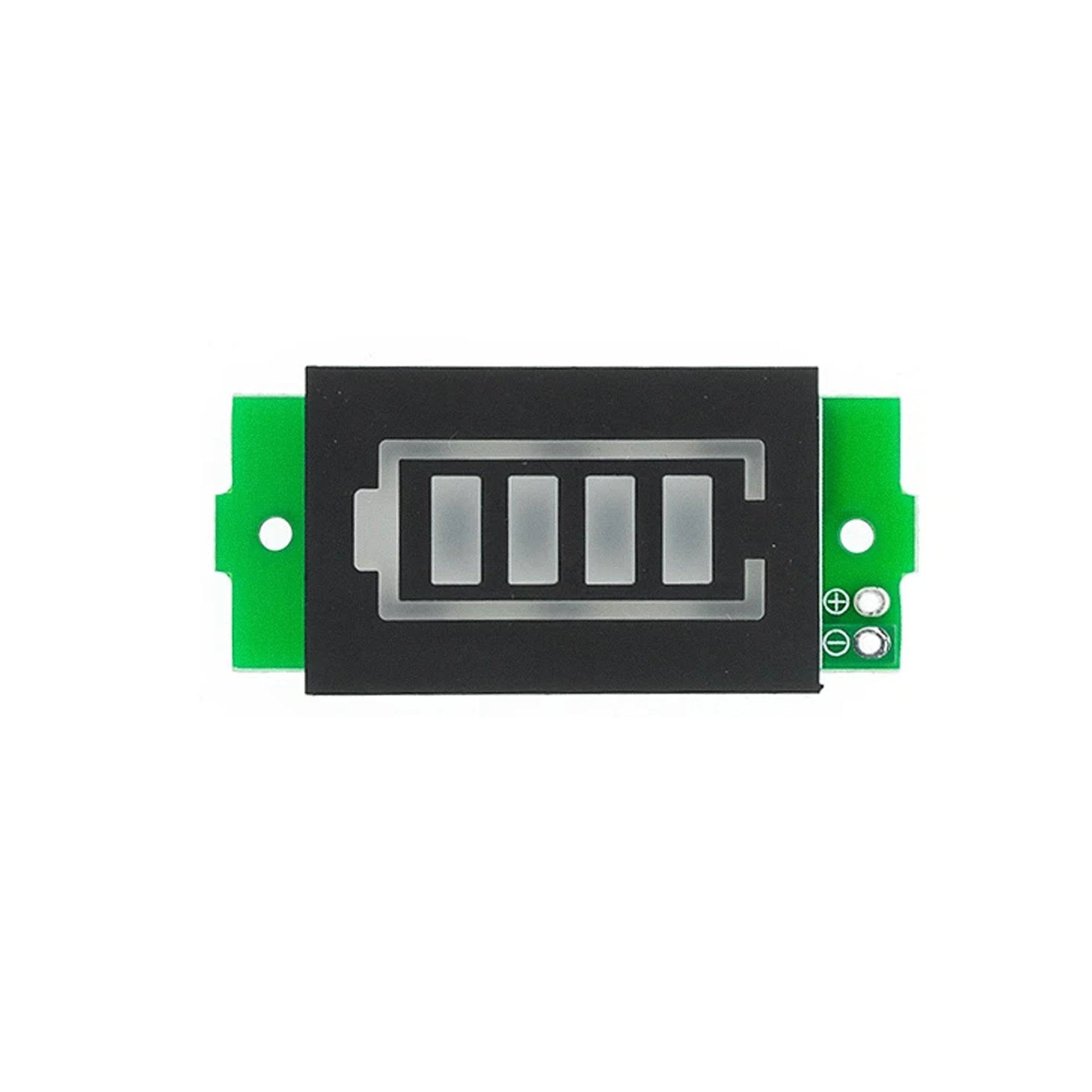

Connect the positive and negative terminals of the display panel to the positive and negative terminals of the tested battery in parallel, and the digital tube not only displays the real-time battery power.
Display power quantity parameters: (Note: N represents the number of batteries)
- When the battery voltage exceeds N*3.3V, it will illuminate 1 battery
- When the battery voltage exceeds N*3.5V, it will illuminate 2 pieces of electricity
- When the battery voltage exceeds N*3.7V, it will illuminate 3 pieces of electricity
- When the battery voltage exceeds N*3.9V, it will illuminate 4 pieces of electricity
- When the battery voltage is less than N*3.3V, the 4 displays will be turned off
Package Included:
1 x 1S-8S Battery Capacity Indicator 1S to 8S Battery Level Indicator Module - Li-ion Battery Level Indicator
