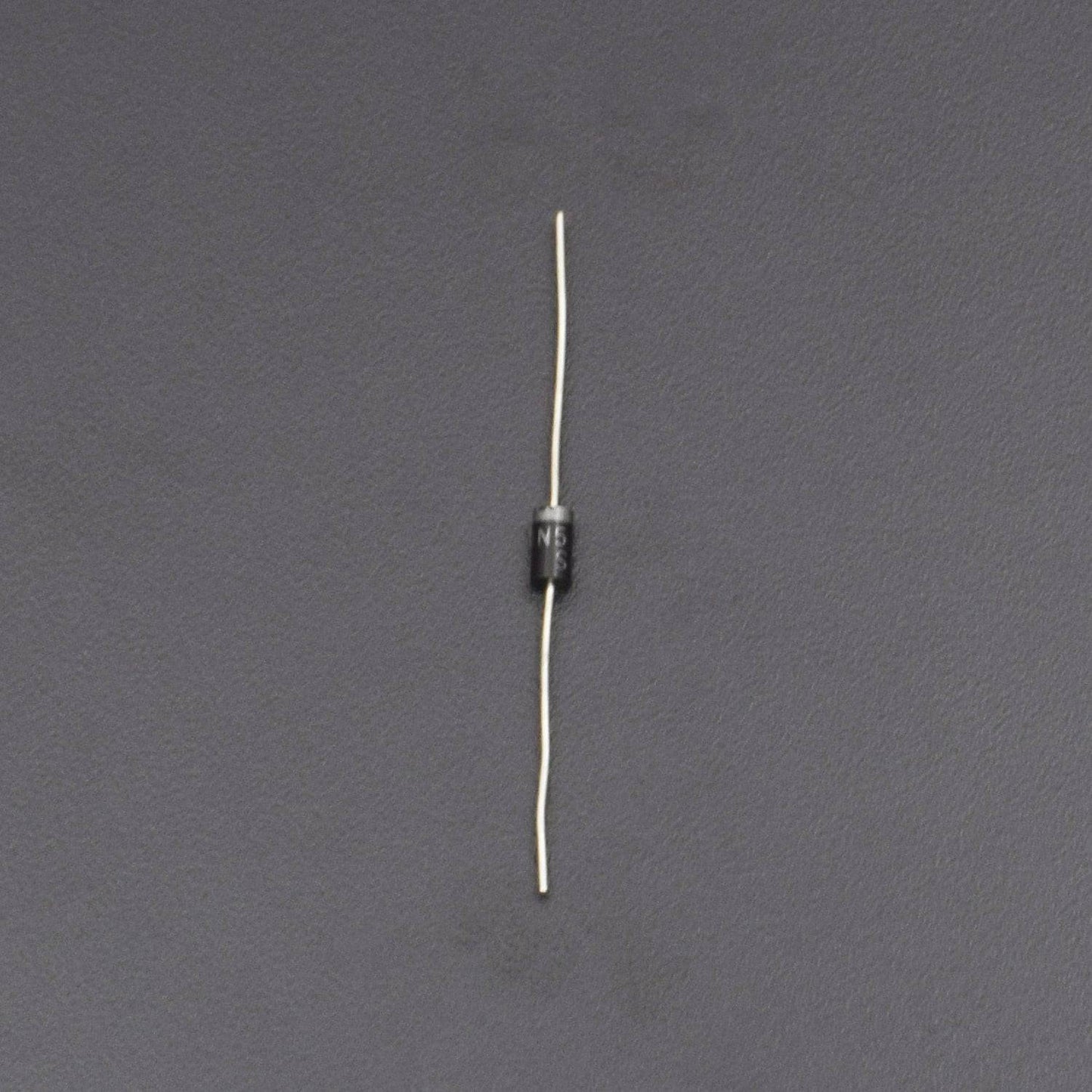

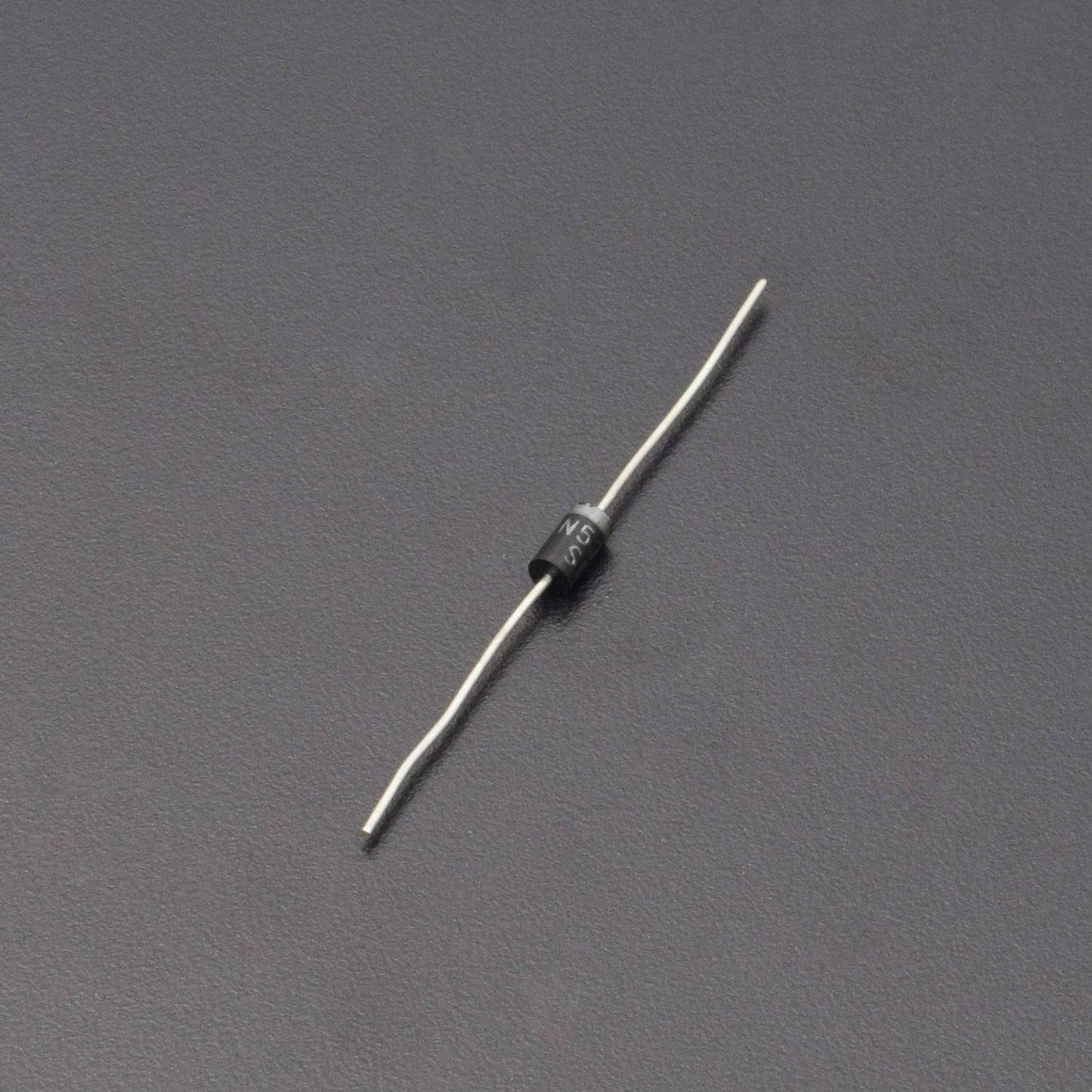

1N5399-E3/54 Switching Diode, 1000V 1.5A, 2-Pin DO-204AL pack of 100 - RS922
1N5399-E3/54 Switching Diode, 1000V 1.5A, 2-Pin DO-204AL pack of 100 - RS922
SKU:RS922
In stock
Regular price
Rs. 210.00
Regular price
Sale price
Rs. 210.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Maximum Continuous Forward Current1.5A
- Number of Elements per Chip1
- Rectifier type switching
- Peak Reverse Repetitive Voltage1000V
- Mounting TypeThrough Hole
- Package TypeDO-204AL
- Diode TypeSilicon Junction
- Diode TechnologySilicon Junction
Description:
- DIODE 1N5399
- Diode ConfigurationSingle
- Maximum Continuous Forward Current1.5A
- Number of Elements per Chip1
- Rectifier type switching
- Peak Reverse Repetitive Voltage1000V
- Mounting TypeThrough Hole
- Package TypeDO-204AL
- Diode TypeSilicon Junction
- Diode TechnologySilicon Junction
Specification:
| Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Maximum Continuous Forward Current | 1.5A |
| Number of Elements per Chip | 1 |
| Rectifier Type | Switching |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | DO-204AL |
| Diode Type | Silicon Junction |
| Diode Technology | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.4V |
| Length | 5.2mm |
| Width | 2.7mm |
| Height | 2.7mm |
| Peak Reverse Recovery Time | 2µs |
| Dimensions | 2.7 x 5.2 x 2.7mm |
| Peak Non-Repetitive Forward Surge Current | 50A |
| Minimum Operating Temperature | -50 °C |
| Maximum Operating Temperature | +150 °C |
Package Included:
100 Pieces 1N5399-E3/54 Switching Diode
