1N4148 4148 Switching Diode (set of 10 Pcs) - RS204

1N4148 4148 Switching Diode (set of 10 Pcs) - RS204

SKU:RS204

In stock

Regular price Rs. 35.00
Regular price Sale price Rs. 35.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Voltage - DC Reverse (Vr) (Max):75V
  • Current - Average Rectified (Io):150mA
  • Voltage - Forward (Vf) (Max) @ If:1V @ 10mA
  • Speed: Small Signal =< 200mA (Io), Any Speed

Description:

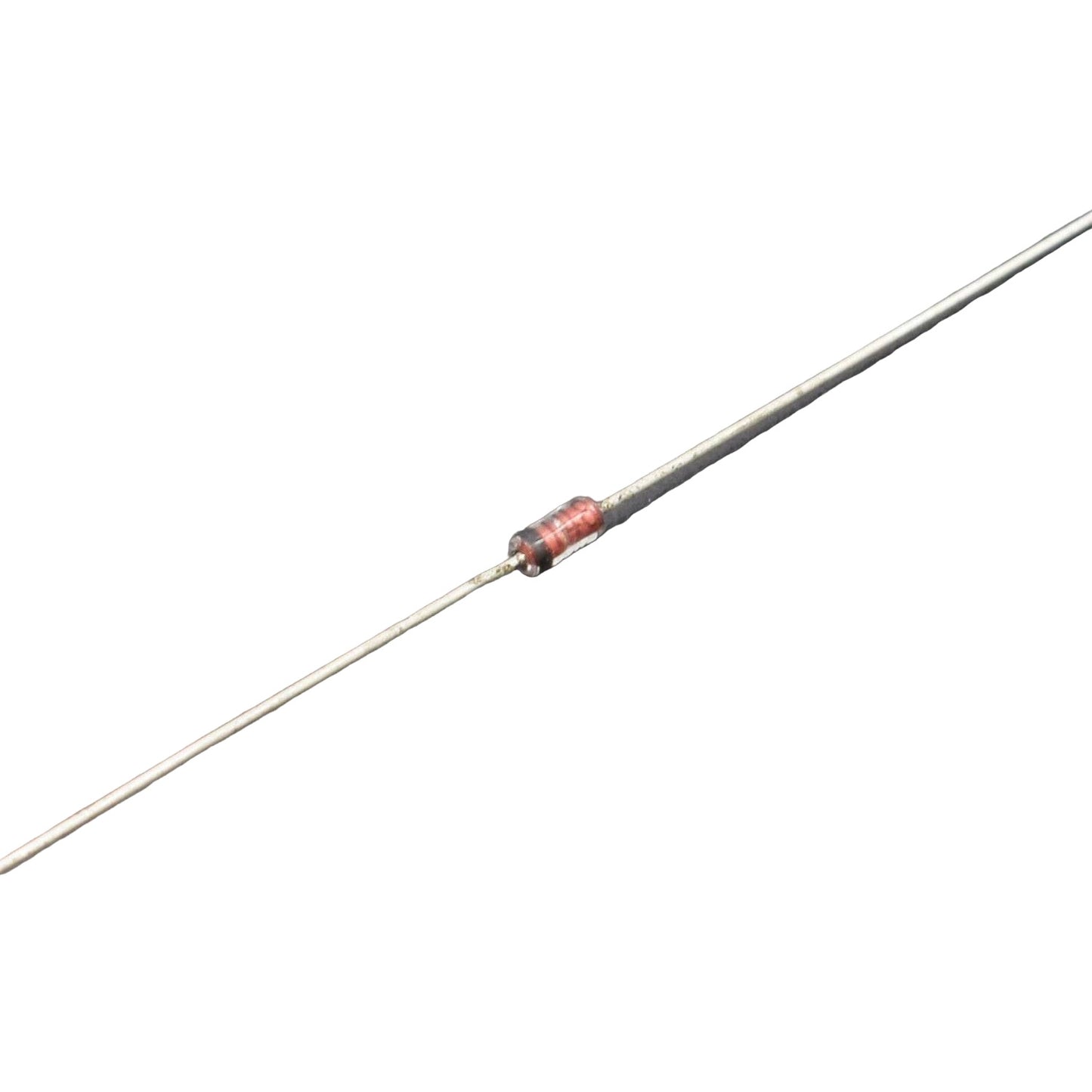

A diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. It is a 1N4148 Surface Mount Zener Diode. For 1N4148 Diode, the maximum current carrying capacity is 150mA it can withstand peaks up to 2A. The specialty of this diode is its fast recovery time of 8ns at a forward current of 10mA, hence this diode is used in places where fast switching is involved.

Specification:

  • Voltage - DC Reverse (Vr) (Max):75V
  • Current - Average Rectified (Io):150mA
  • Voltage - Forward (Vf) (Max) @ If:1V @ 10mA
  • Speed: Small Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr): 4ns
  • Reverse Recovery Time (trr): 4ns
  • Capacitance @ Vr, F: 4pF @ 0V, 1MHz
  • Mounting Type: Through Hole
  • Package / Case: DO-204AH, DO-35, Axial
  • Supplier Device Package: DO-35
  • Operating Temperature - Junction: -65°C ~ 175°C

Features:

  • Fast switching Diode
  • Peak repetitive Reverse voltage is 100V
  • RMS reverse voltage is 75V
  • Peak forward surge current is 2A
  • Forward continuous current If 300mA
  • Reverse recovery time 8ns
  • Available in DO-35 Package

Package Included:

10 x 1N4148 4148 Switching Diode
