1mm Pitch 6 Pin FPCFFC SMT Drawer Connector - RS3559

1mm Pitch 6 Pin FPCFFC SMT Drawer Connector - RS3559

RS3559

38 in stock

Rs. 21.00
Rs. 21.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Connector Type : FFCFPC
  • Voltage(V) : 50
  • Operating Current (A) : 0.5
  • No. of Pins : 6
  • Pin Spacing (mm) : 1
  • Mounting Type : SMD/SMT
  • Material : Metal and plastic
  • Contact Material : Phosphor Bronze
  • Insulation Material ; Nylon 46 UL94-V0
  • Color : Beige , Black
  • Contact Resistance : 20M (Max)
  • Insulation Resistance (M) : 800
  • Working Temperature Range (C) : -25 to 85

Description :

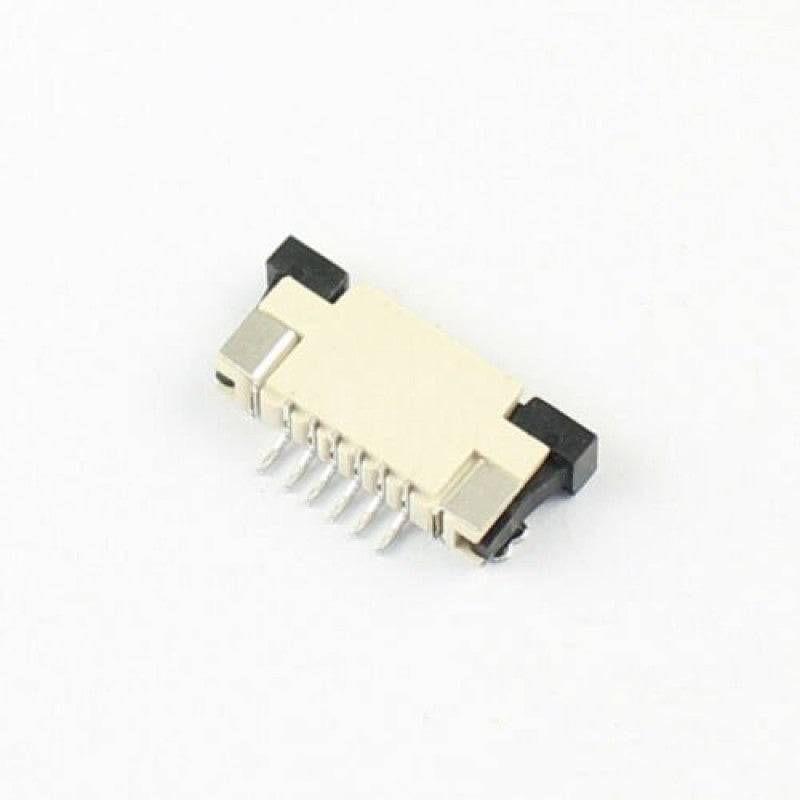

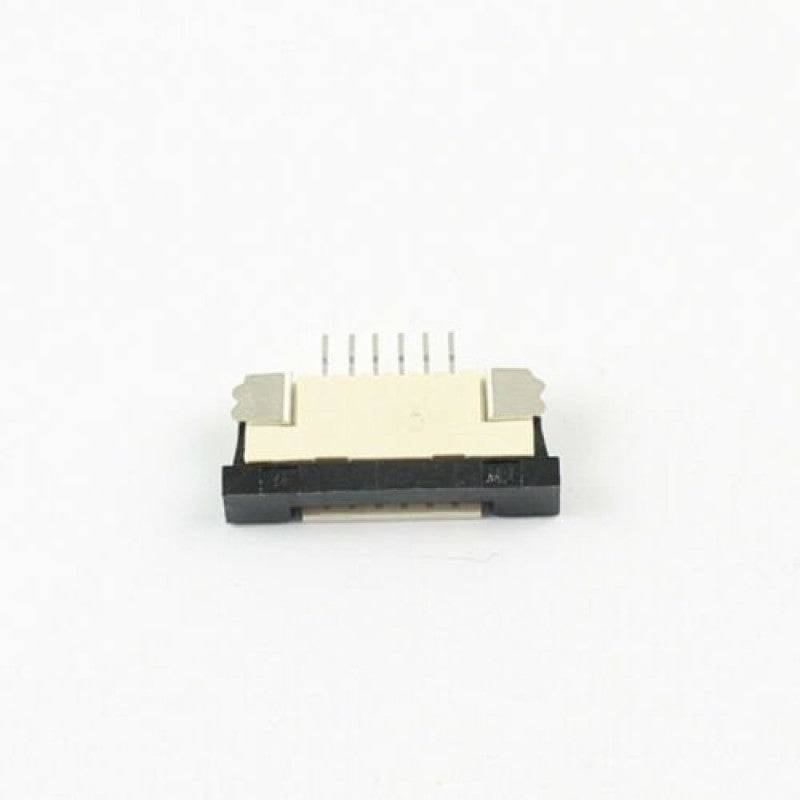

It is a 1mm Pitch 6 Pin FPCFFC SMT Drawer Connector. This is useful in terminating the displays and also for supporting board-to-board connections. The connector is a surface mount, which is ideal for applications where space is a factor.

The connector is of drawer type, i.e. it is to be lifted up like a pulling out a drawer, to attach the cable to the connector.

It is ideal for applications where space is a constrain and maneuverability is a necessity like automotive, communications, medical and consumer industries, etc.

Feature:

  • High corrosion resistance.
  • Easy to use.
  • Strengthened Drawer-lock actuator.

Specification :

  • Connector Type : FFCFPC
  • Voltage(V) : 50
  • Operating Current (A) : 0.5
  • No. of Pins : 6
  • Pin Spacing (mm) : 1
  • Mounting Type : SMD/SMT
  • Material : Metal and plastic
  • Contact Material : Phosphor Bronze
  • Insulation Material ; Nylon 46 UL94-V0
  • Color : Beige , Black
  • Contact Resistance : 20M (Max)
  • Insulation Resistance (M) : 800
  • Working Temperature Range (C) : -25 to 85
  • Length (mm) : 13

Package Included:

1 x 1mm Pitch 6 Pin FPCFFC SMT Drawer Connector.
