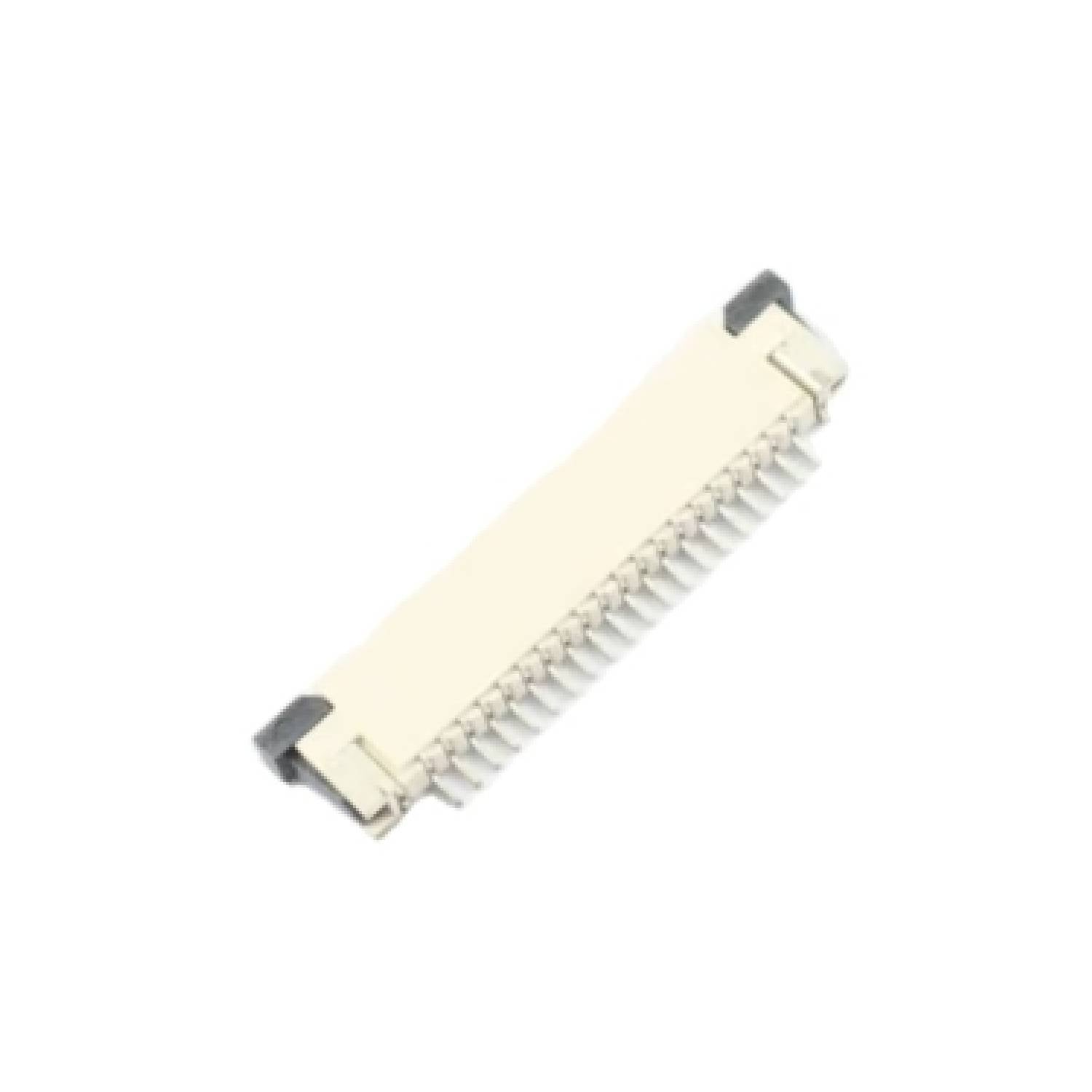

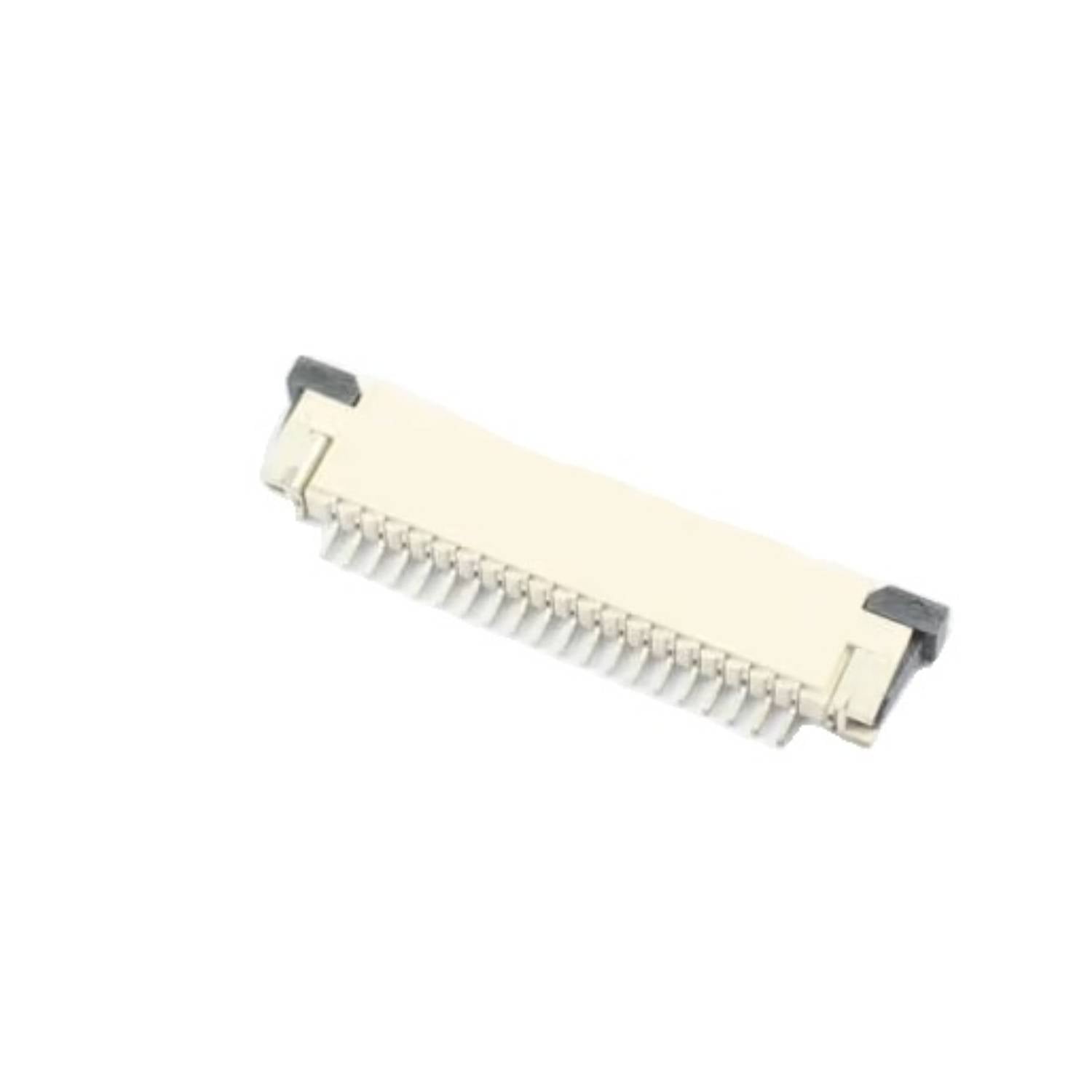

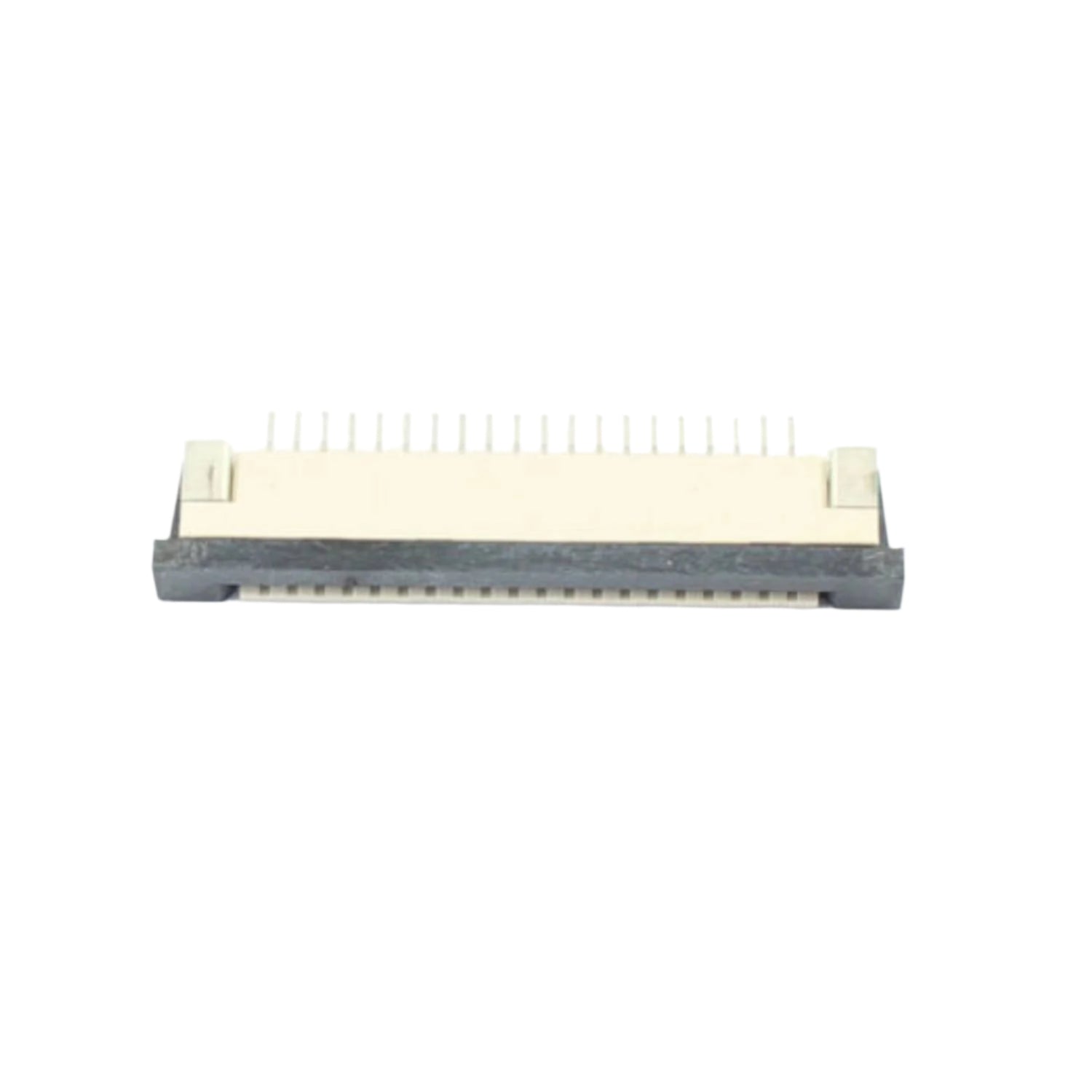

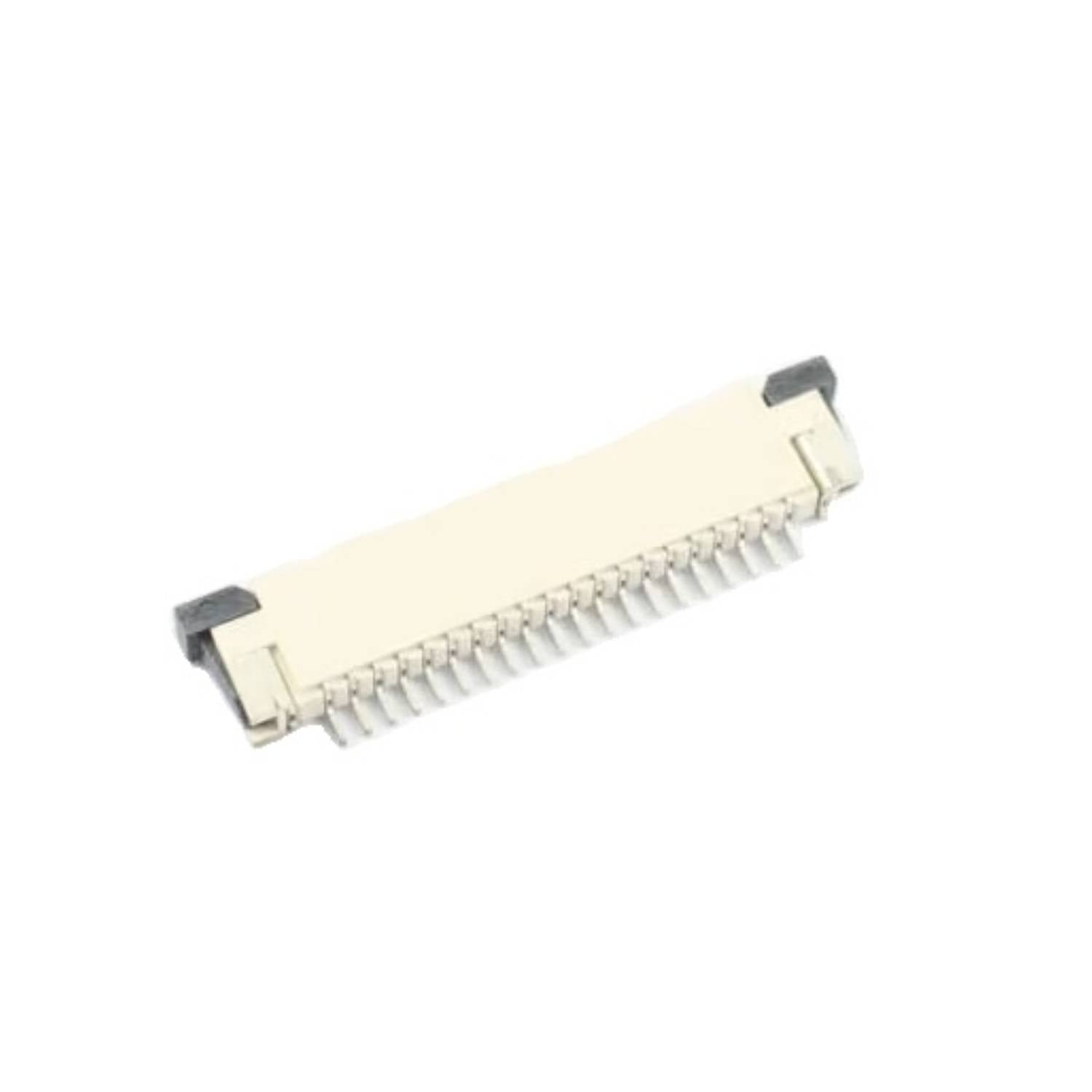

1mm Pitch 20 Pin FPC SMT Connector 20 Pin FPC/FFC SMT Flip Connector FPCFFC SMT Drawer Connector Single Row Bottom Port Flat Socket Connector- RS3517

1mm Pitch 20 Pin FPC SMT Connector 20 Pin FPC/FFC SMT Flip Connector FPCFFC SMT Drawer Connector Single Row Bottom Port Flat Socket Connector- RS3517

SKU:RS3517

11 in stock

Regular price Rs. 36.00
Regular price Sale price Rs. 36.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

It is a 1mm Pitch 20 Pin FPC SMT Connector This is useful in terminating the displays and also for supporting board-to-board connections. The 20-pin FPC/FFC SMT Flip Connector is a surface mount, which is ideal for applications where space is a factor.

 FPCFFC SMT Drawer Connector is ideal for applications where space is a constraint and maneuverability is a necessity like automotive, communications, medical, and consumer industries, etc.

Specifications:

  • Pitch Spacing (mm): 1
  • No. of Contacts/Pins: 20
  • Voltage(V): 50
  • Operating Current (A): 0.5
  • Mounting Type: SMD/SMT
  • Material: Metal and plastic
  • Contact Material: Phosphor Bronze
  • Insulation Material: Nylon 46 UL94-V0
  • Color: Beige, Black
  • Contact Resistance: 20MΩ (Max)
  • Insulation Resistance (MOhm): 800
  • Operating Temperature (°C): -25 to 85

Feature:

  • High corrosion resistance.
  • 1mm Pitch 20 Pin FPC SMT Connector Easy to use.
  • Strengthened flip-lock actuator.

Package Included:

1 x 1mm Pitch 20 Pin FPCFFC SMT Flip Connector
