1mm Pitch 10 Pin FPC Connector FPC/FFC SMT Drawer Connector High Density 10 Pin FPC Connector SMT Drawer FPC Connector Reliable Pitch SMT Drawer Connector Surface Mount 10 Pin FPC Connector PACK OF 2- RS3515

1mm Pitch 10 Pin FPC Connector FPC/FFC SMT Drawer Connector High Density 10 Pin FPC Connector SMT Drawer FPC Connector Reliable Pitch SMT Drawer Connector Surface Mount 10 Pin FPC Connector PACK OF 2- RS3515

RS3515

In stock

Rs. 42.00
Rs. 42.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

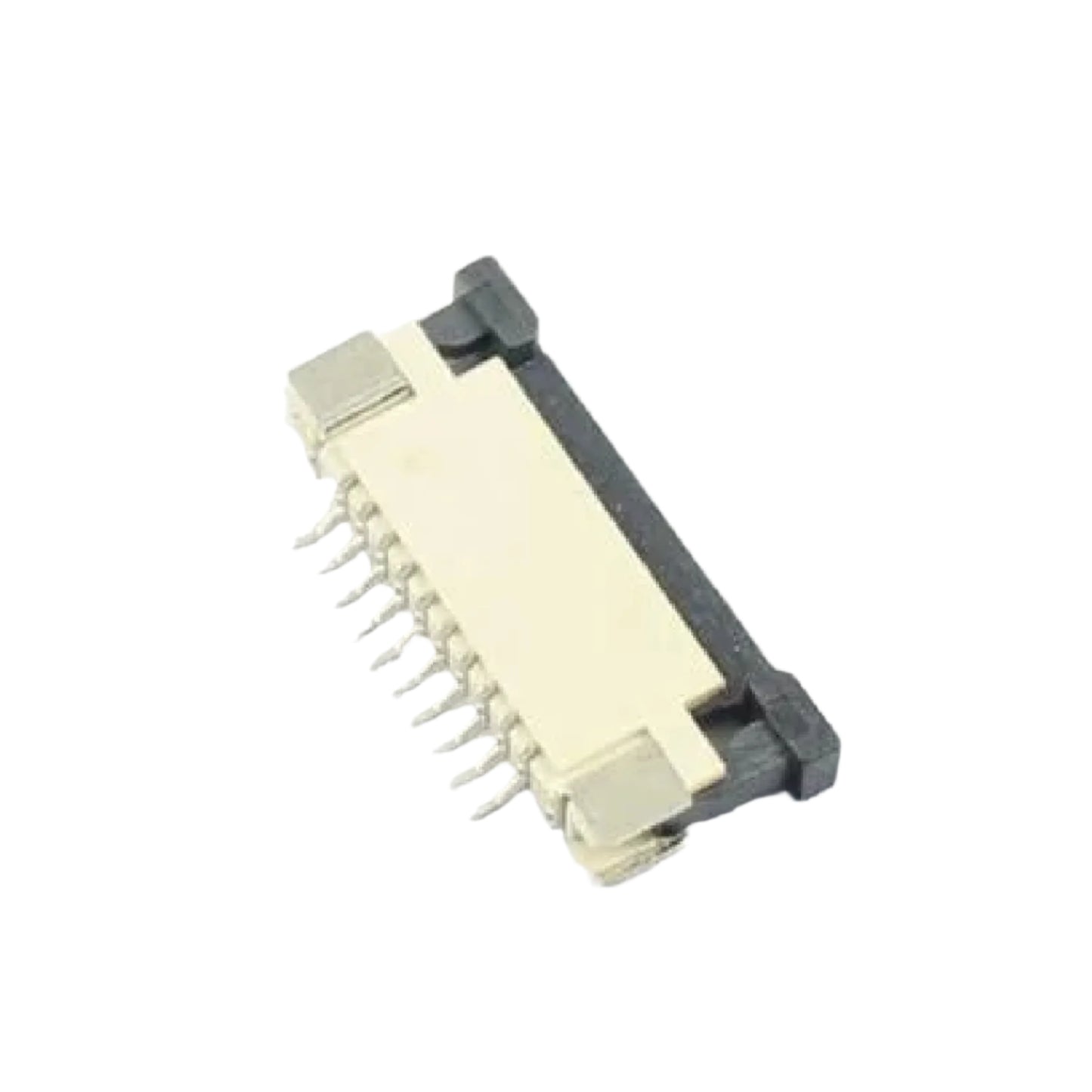

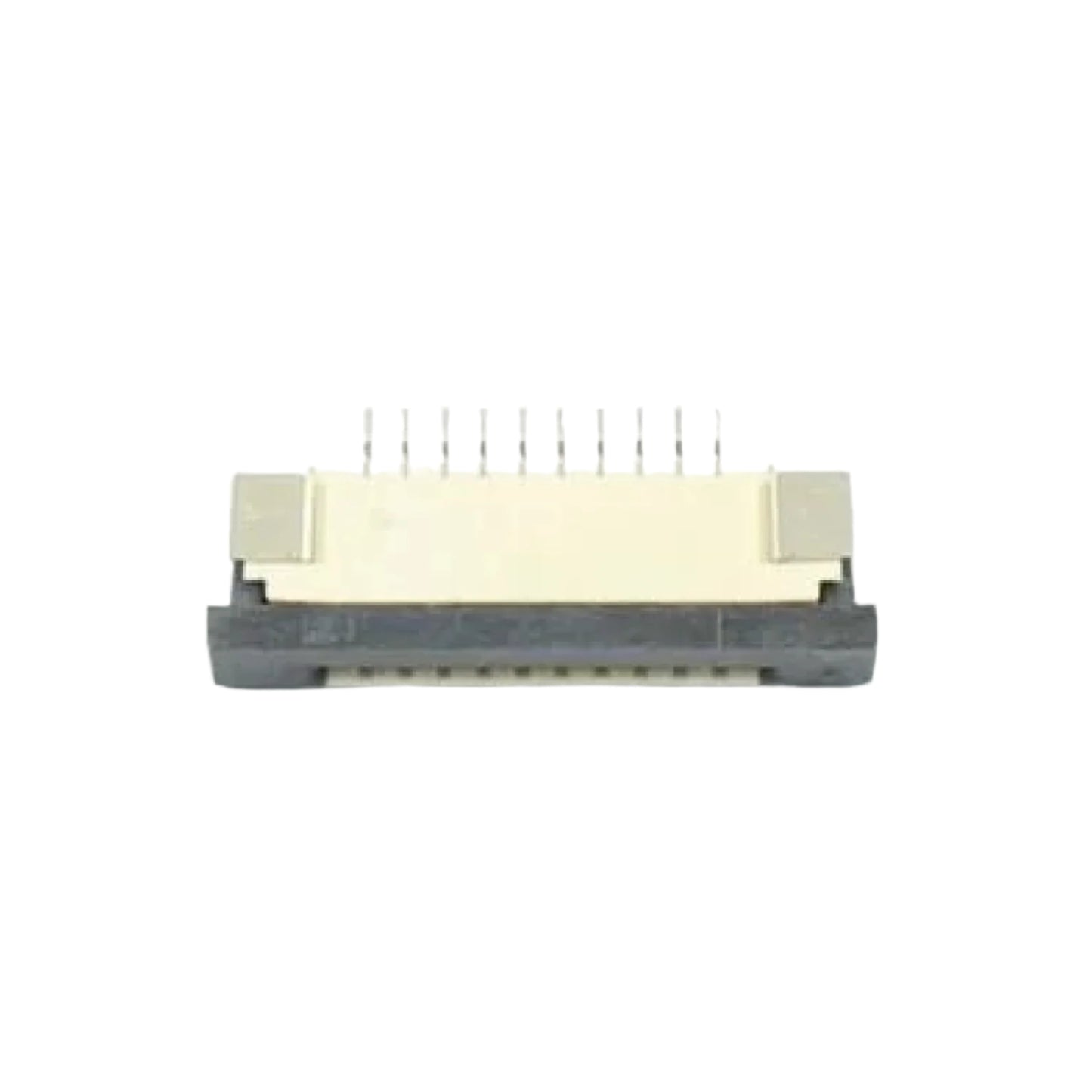

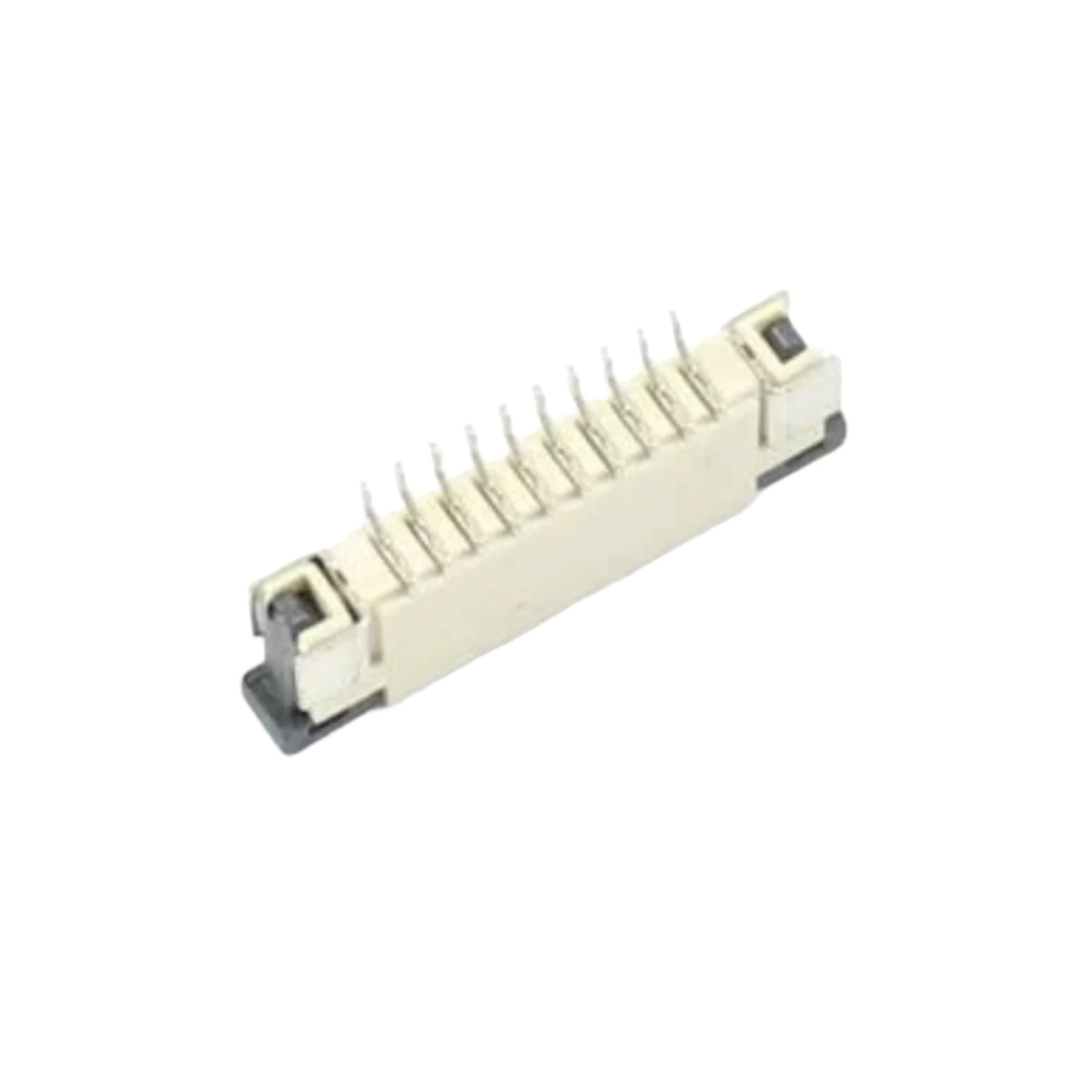

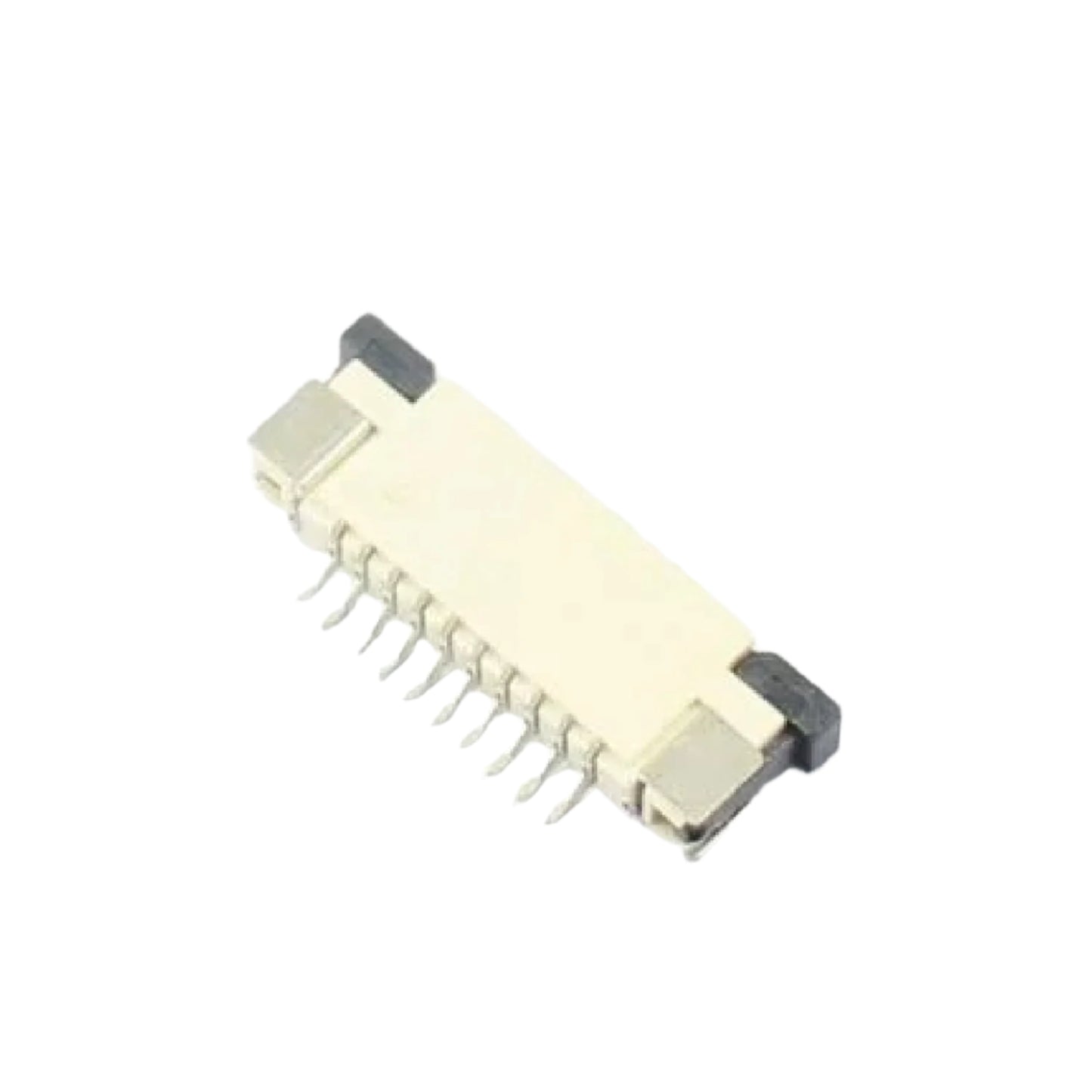

1mm Pitch 10 Pin FPCFFC SMT Drawer Connector. This is useful in terminating the displays and also for supporting board-to-board connections. The connector is a surface mount, which is ideal for applications where space is a factor.

Reliable Pitch SMT Drawer Connector the connector is of drawer type, i.e. it is to be lifted like a pulling out a drawer, to attach the cable to the connector. It is ideal for applications where space is a constraint and maneuverability is a necessity like automotive, communications, medical, and consumer industries, etc.

Specifications:

  • Mounting Type: FFC/FPC
  • Voltage(V) : 50V
  • Operating Current (A): 0.5
  • No. of Pins: 10
  • Pitch Spacing (mm): 1
  • Material: Metal and plastic
  • Contact Material: Phosphor Bronze
  • Insulation Material: Nylon 46 UL94-V0
  • Color: Beige, Black
  • Contact Resistance: 20MΩ (Max)
  • Insulation Resistance (M): 800
  • Operating Temperature (°C): -25 to 85

Features:

  • The 1mm pitch allows for a high number of connections within a small space, crucial for compact designs
  • It enables efficient and automated assembly processes, reducing manufacturing costs.
  • Facilitates easy insertion and removal of the FPC/FFC cable, making maintenance and repairs simpler.
  • FPC/FFC cable Designed to work seamlessly with flexible printed circuits and flexible flat cables, offering flexibility in design and routing
  • Space-constrained applications, such as mobile devices, wearables, and automotive electronics
  • Constructed with high-quality materials to ensure reliable performance and longevity
  • Suitable for a wide range of applications across various industries

Package Included:

1 x 1mm Pitch 10 Pin FPCFFC SMT Drawer Connector PACK OF 2
