Description:

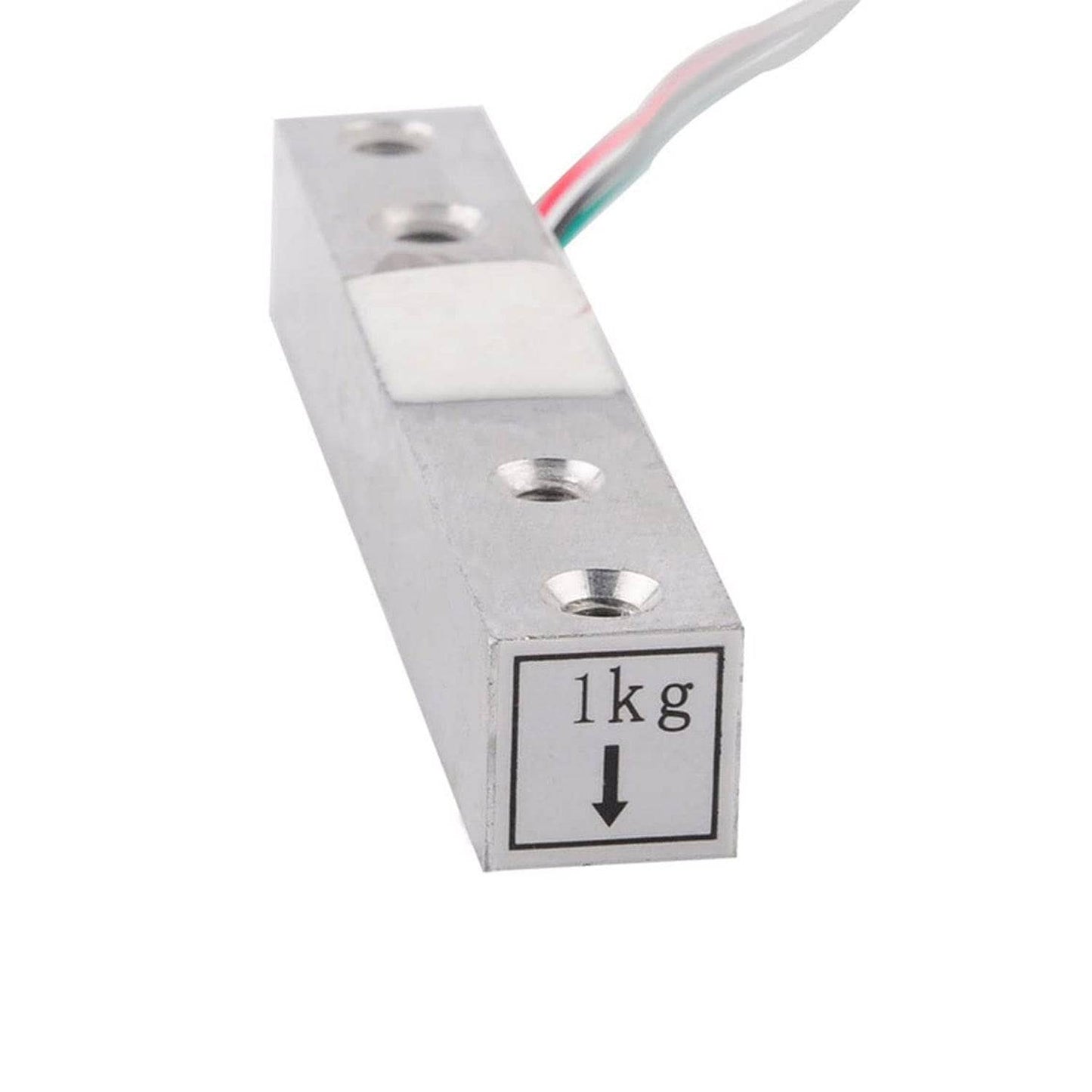

This straight bar load cell (sometimes called a strain gauge) can translate up to 1 kg of pressure (force) into an electrical signal. 1KG Weighing Load Cell can measure the electrical resistance that changes in response to, and proportional to, the strain (e.g. pressure or force) applied to the bar.

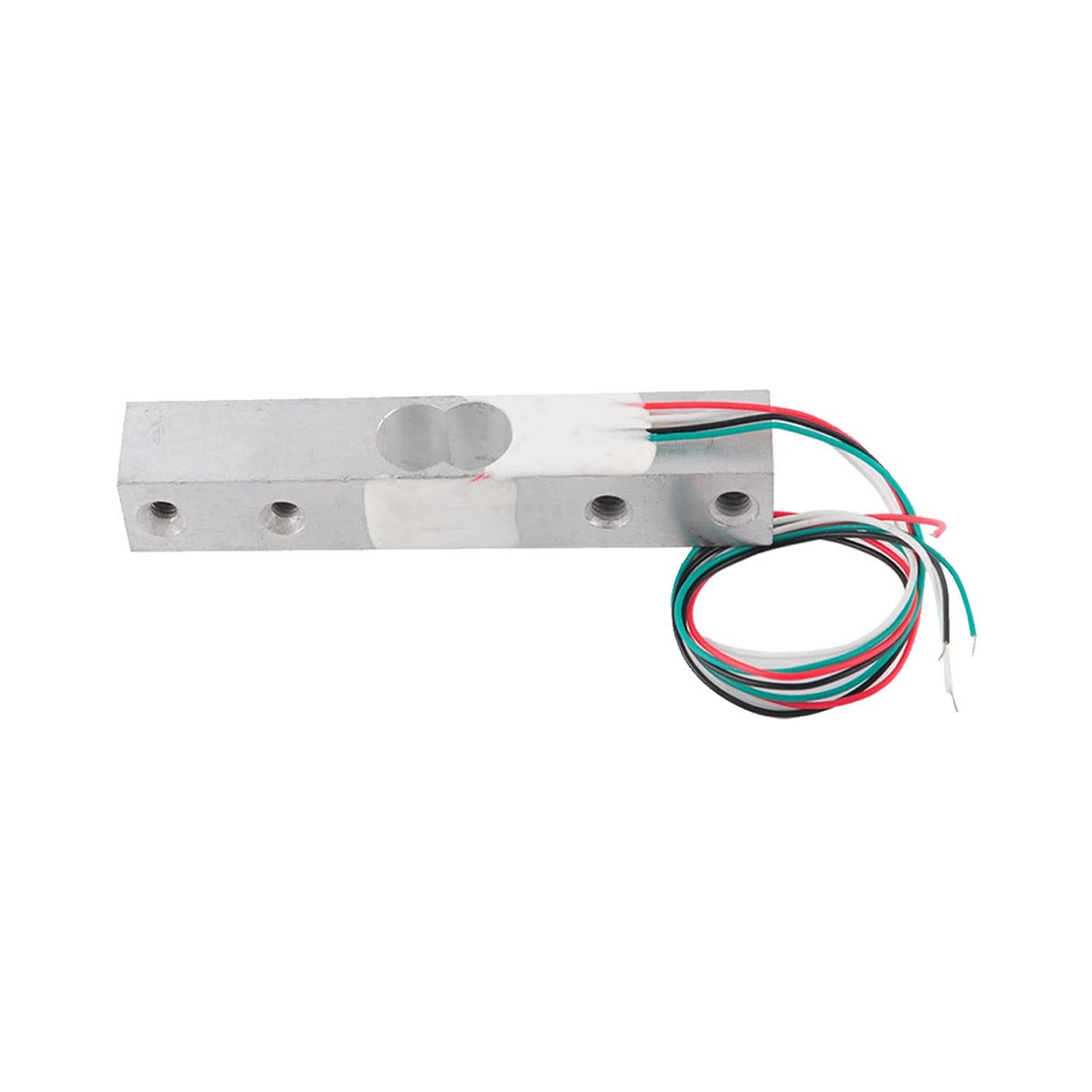

With 1KG Weighing Load Cell, you can tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight 1KG Weighing Load Cell is made from an aluminium alloy and can read a capacity of 1 kg of weight. 1KG Weighing Load Cell has Four lead wires which can be connected to the HX711 A/D pressure sensor.
1KG Weighing Load Cell is easy to use with a driving voltage of 5-10V and produces the output voltage as per the force changes over it. Installation of the Sensor is also a simple task, it needs to fix one end through the screw hole and the other end left the floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor to avoid damage.
Specifications:
- Material: Aluminium
- Dimensions (LxWxH): 75 x 12.6 x 12.6mm
- Weighing Range: 0~1Kg
- Rated Output: 1.0 ± 0.1mV / V
- Non Linear Output: ± 0.03% F.S
- Impedance: 1066 ± 10% Ω
- Output Impedance: 1000 ± 10% Ω
- Insulation Resistance: 2000mΩ
- Hysteresis: 0.03% F.S
- Repeatability: 0.03% F.S
- Creep: (5 minutes) 0.05% F.S
- Zero Balance: ± 0.1 mV / V
Using Instruction:
The 1KG Weighing Load Cell has four wires, which must be connected to the first four pins of the HX711 module -- Red wire to E+, black wire to E-, white wire to A-, and green wire to A+. The remaining pins, B- and B+, can be used if a second load cell has to be connected to the HX711 module.
- One end of 1KG Weighing Load Cell is fixed by a screw hole, and the other end is left in the air.
- Apply force in the direction indicated by the label.
- You will retrieve consistent pressure values from the load cell if you mount the load cell on something solid and heavy.
- Please be careful not to directly press the white latex part to avoid damage to the sensor.
Package Included:
1 x 1KG Weighing Load Cell Sensor 1Kg for Electronic Kitchen Scale with Wires
