Description:
This is a PIC microcontroller based on the DIY Frequency meter kits, with a crystal measurement function and programmable addition and subtraction frequency settings, five digital display, easy and intuitive, all use of in-line components, the circuit is simple and easy to produce.
Specifications:

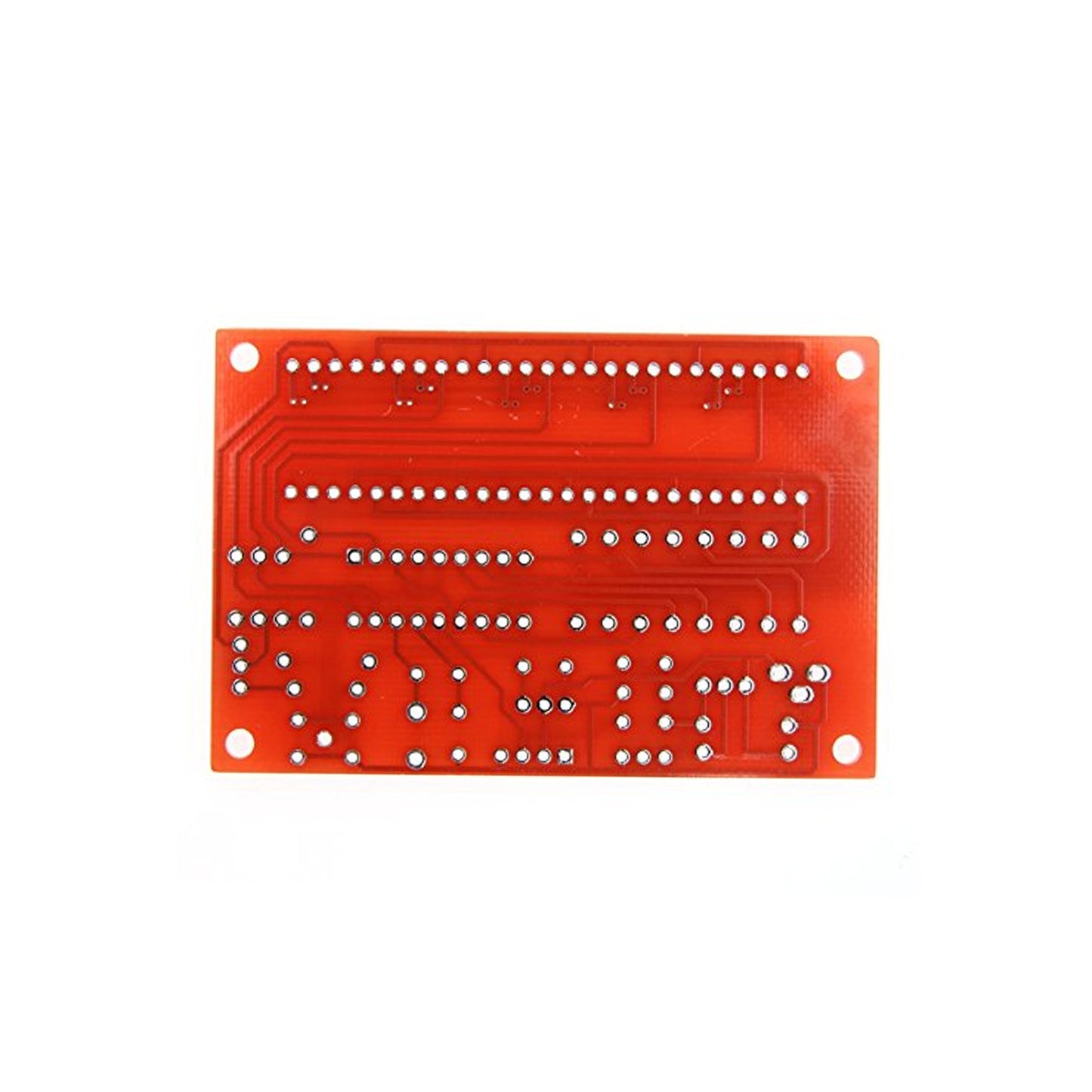

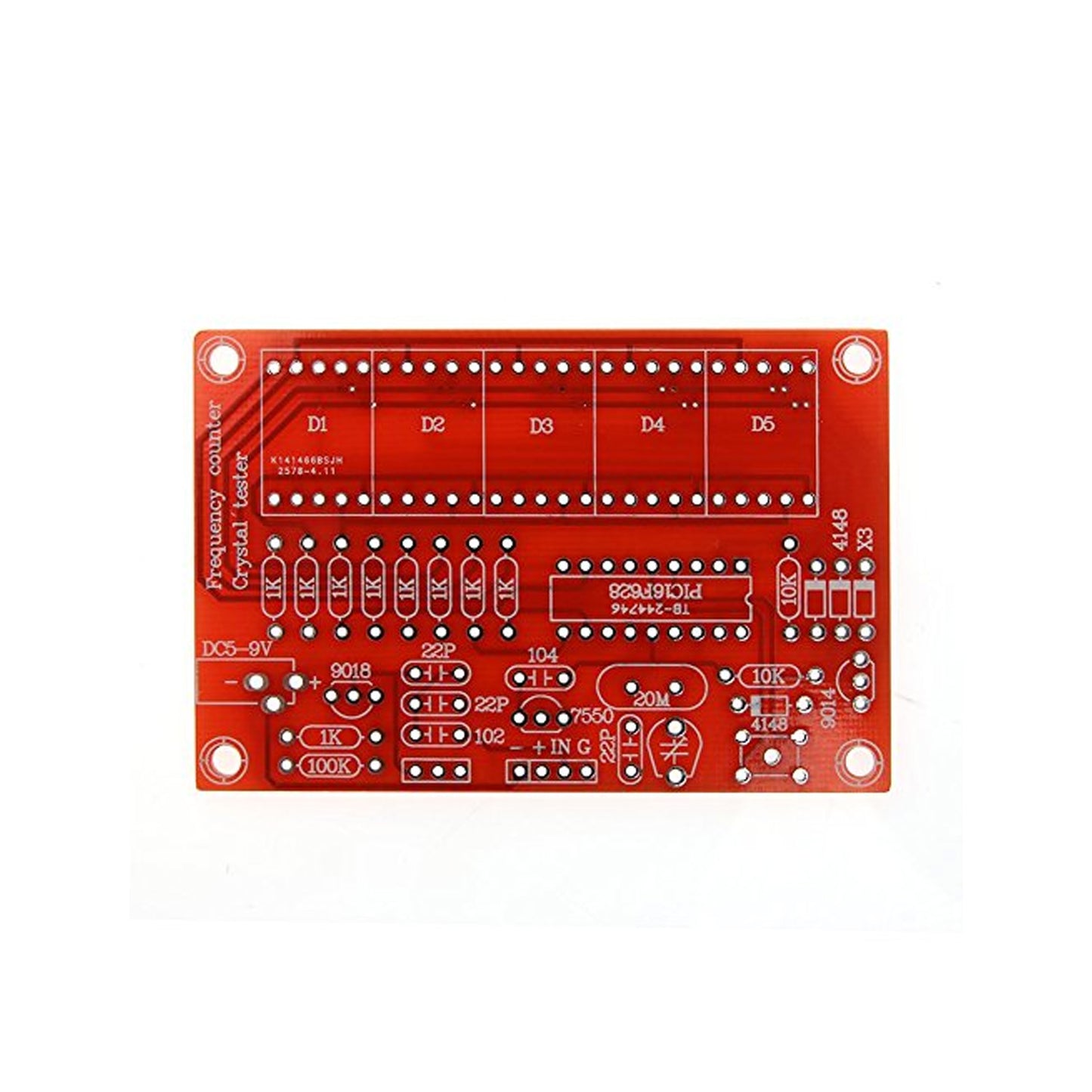

- Material: PCB
- Colour: Red
- Frequency Range: 1Hz-50MHz
- Crystal Test Range: 4MHz-48MHz
Features:
- Measures 1Hz-50MHz frequency and most of crystal oscillator frequency.

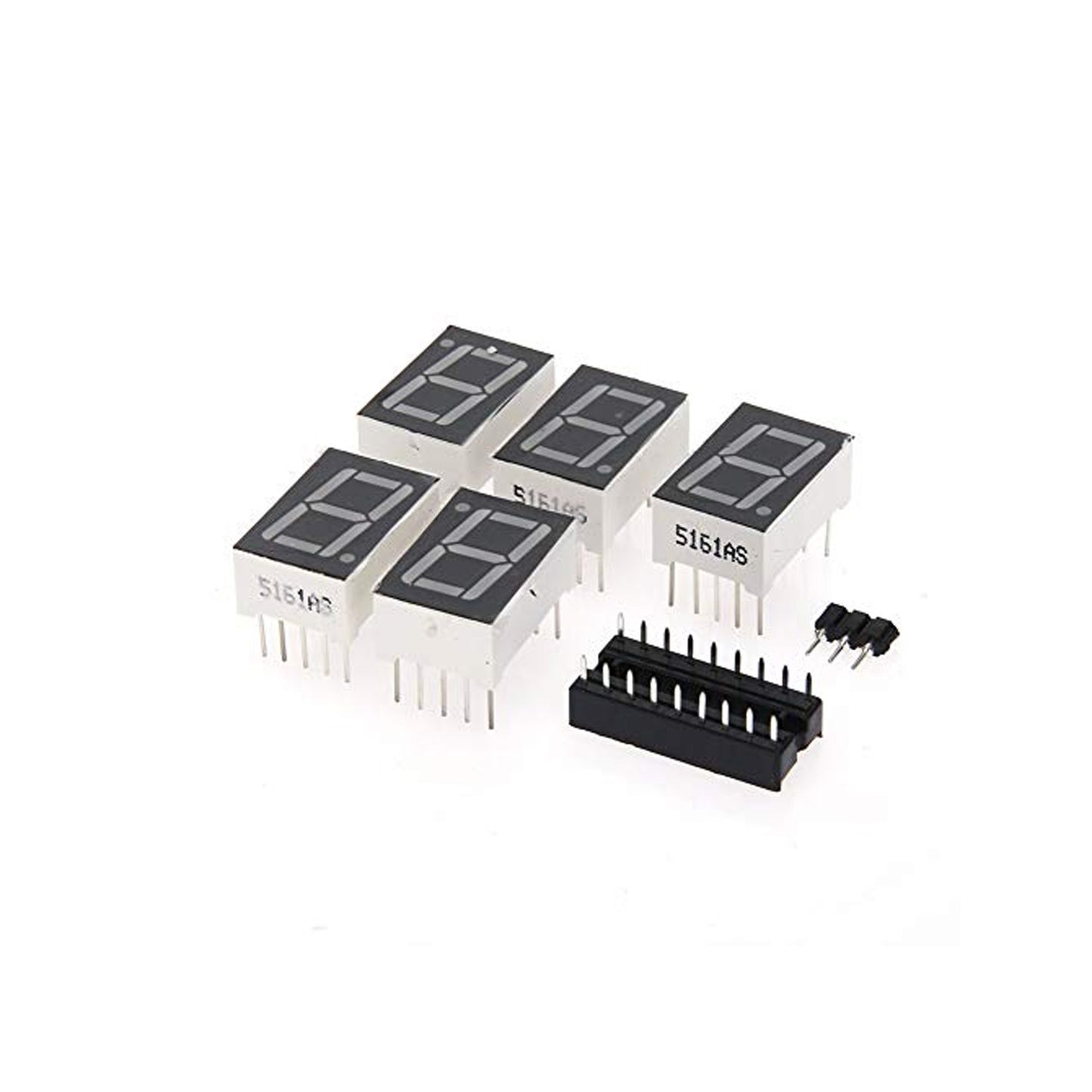

- Large 5-digit LED display, easy and clean for readings.
- Automatically switch range, no need to switch manually.
- Programmable frequency settings can be used to test transceivers, etc.
- Can select energy-saving mode, it will turn off the display if the frequency is not changed in 15s.
- Powered by USB 5V or external DC power supply or 9V battery(Not included).

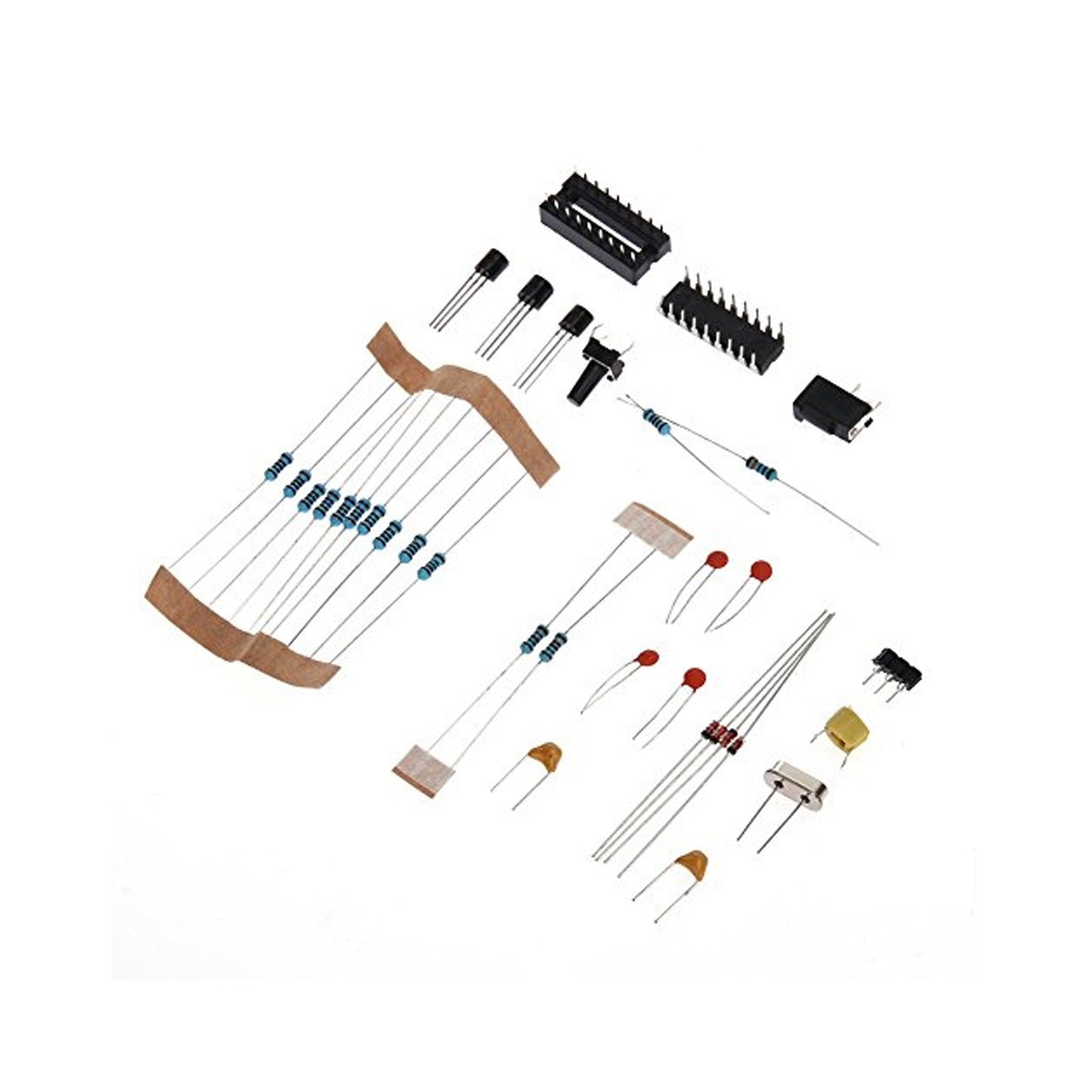

- All the parts are inserted components, easy and simple to install.

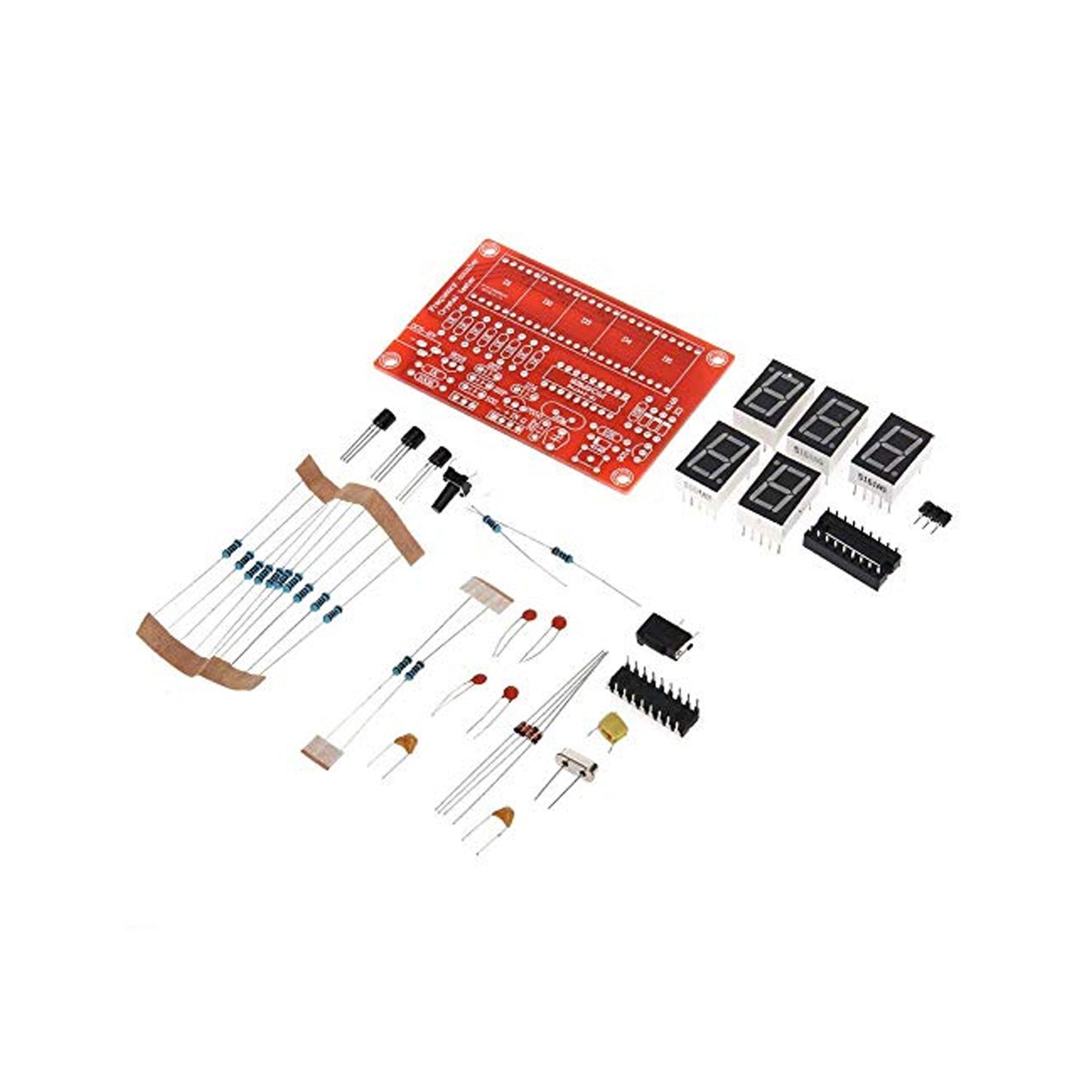

Package Included:
1 x DIY Frequency Meter Kit 1Hz-50mhz Crystal Oscillator Frequency Meter Digital led Meter Tester For led DIY kits led Diode Accessories
