Description:

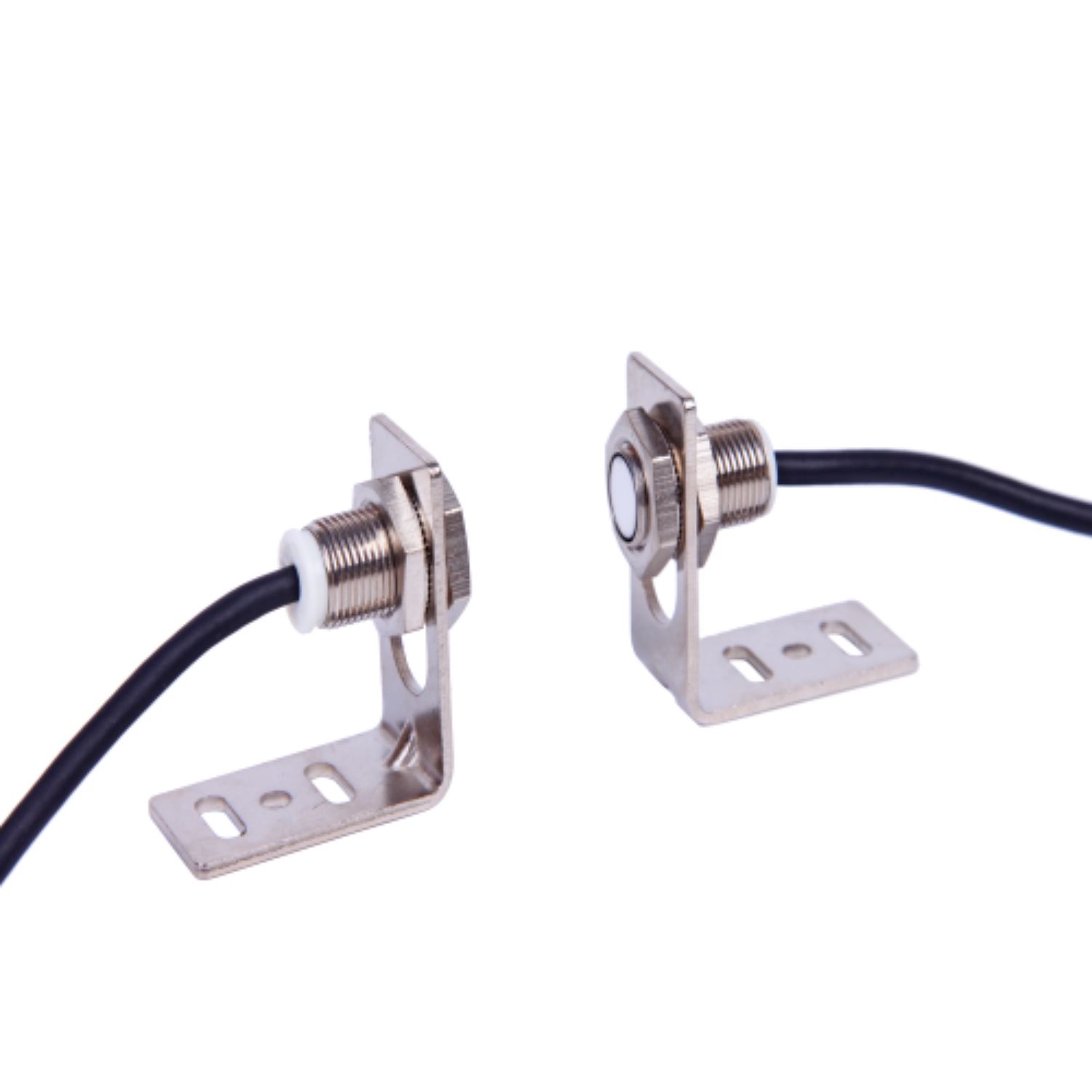

The 18GM75‑B60 Ultrasonic Sensor is a compact, IP67-rated device designed for precise single- and double-sheet detection over a 30–60 mm range, with 1 mm resolution. It operates via non-contact through-beam detection, consuming <50 mA and dropping <2 V, with fast response (~15 ms) and power-up (<300 ms).
Built for industrial use in packaging, logistics, and electronics, it handles –25 °C to +70 °C (storage –40 °C to +85 °C) and connects via a six-core VC cable. LED indicators show green for single-sheet, yellow for empty, and red for double-sheet, while a teach-in input lets users configure outputs (PNP/NPN, NO/NC, hysteresis) via serial upgrades
Specifications:
- Model:18GM75-B60
- Usage Scenarios: Single and Double Sheet Detection
- Detection Range: 30~60mm
- Detection Method: Through-beam - non-contact
- Resolution: 1mm
- No-load Current: <50mA
- Impedance >4kQ
- Voltage Drop: <2V
- Response Delay: About 15 ms
- Delay in judging: About 15 ms
- Power-on delay: <300ms
- Operating Voltage: 18-30VDC
- Display: LED green light, single sheet detected, LED yellow light, no target ( air ) LED red light, double sheet detected
- Output Type: 3- way PNP/NPN
- Input Type: With learning Function
- Protection Level: IP67
- Connection Type: VC, six-core cable
- Ambient Temperature: - 25 deg C sim+70^ C(248^ sim 343K)
- Storage Temperature: - 40 deg C sim+85^ C(233^ sim 358K)
- Output Characteristics: The output type can be changed by serial port upgrade
- Output E1: 1 switch output NPN, NO/NC/ hysteresis mode
- Output Type E2: 1 switch output PNP, NO/NC/ hysteresis mode
Features:
- Support self-learning and quick installation.
- 3 -way NPN/PNP output, temperature compensation.
- Detects single and double sheets of various materials.
- Cost-effective.
Useful Link:
Package Included:
1 x 18GM75-B Series Ultrasonic Sensor
