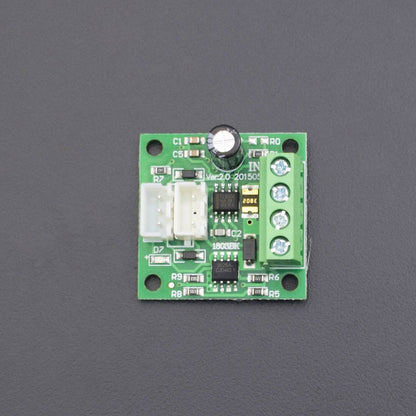

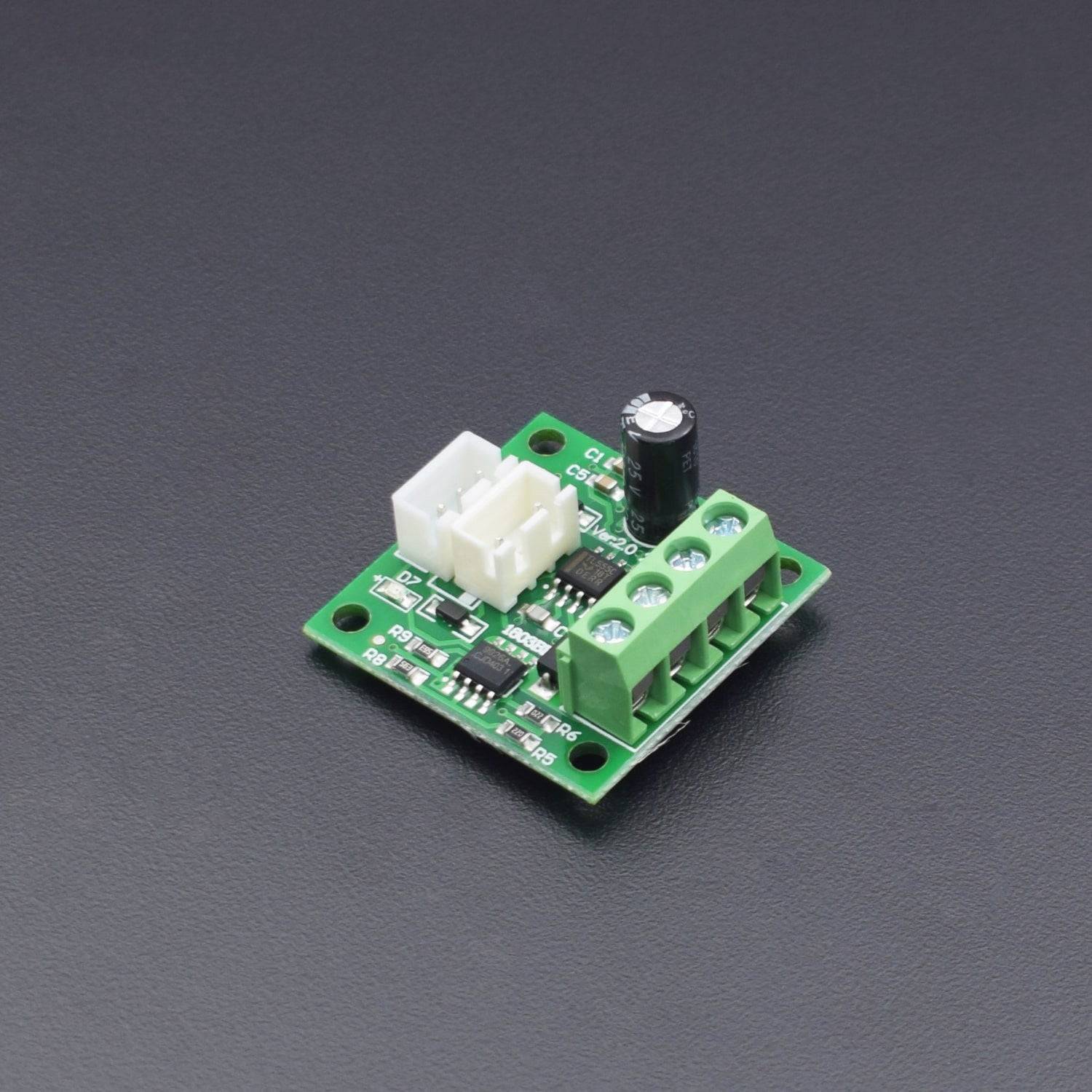

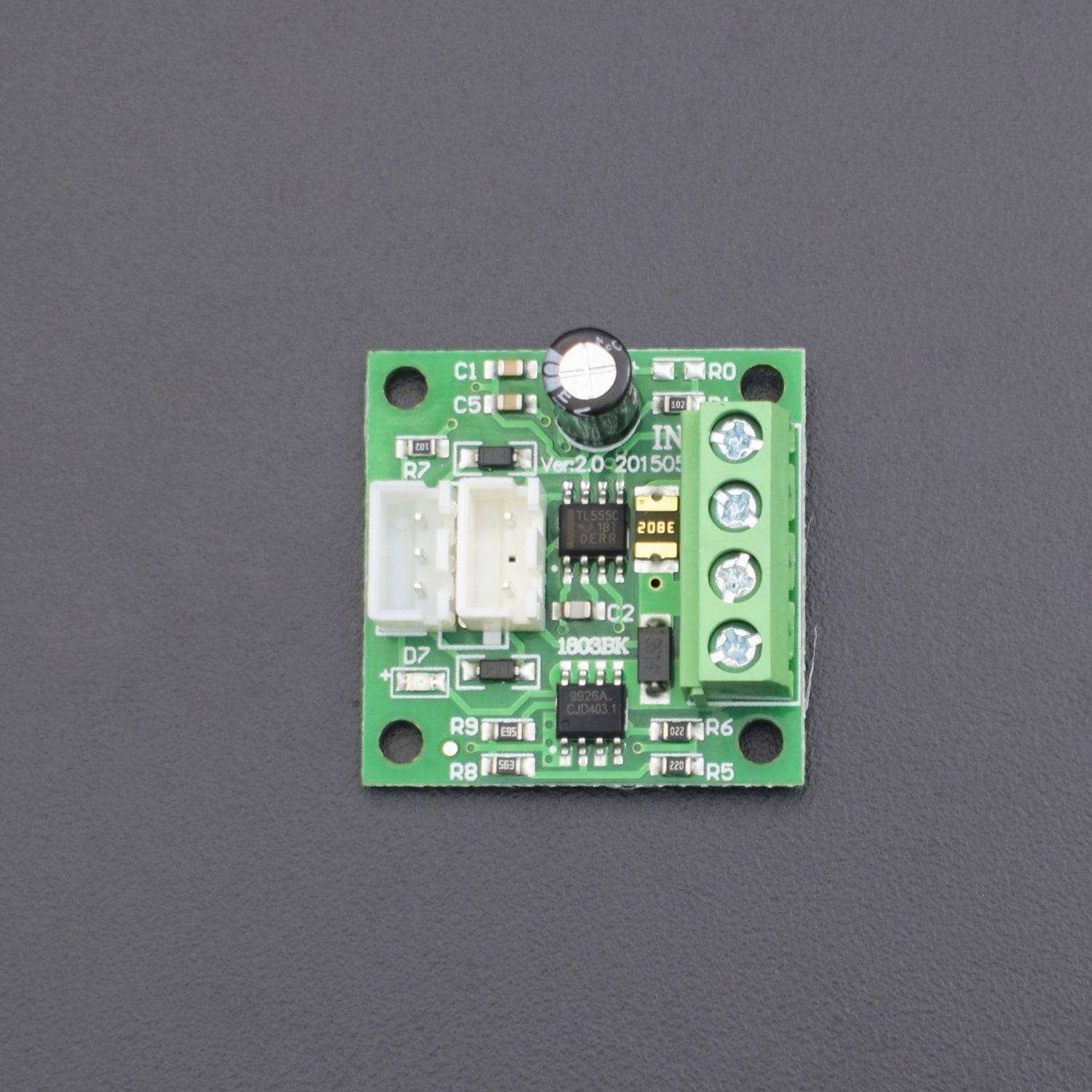

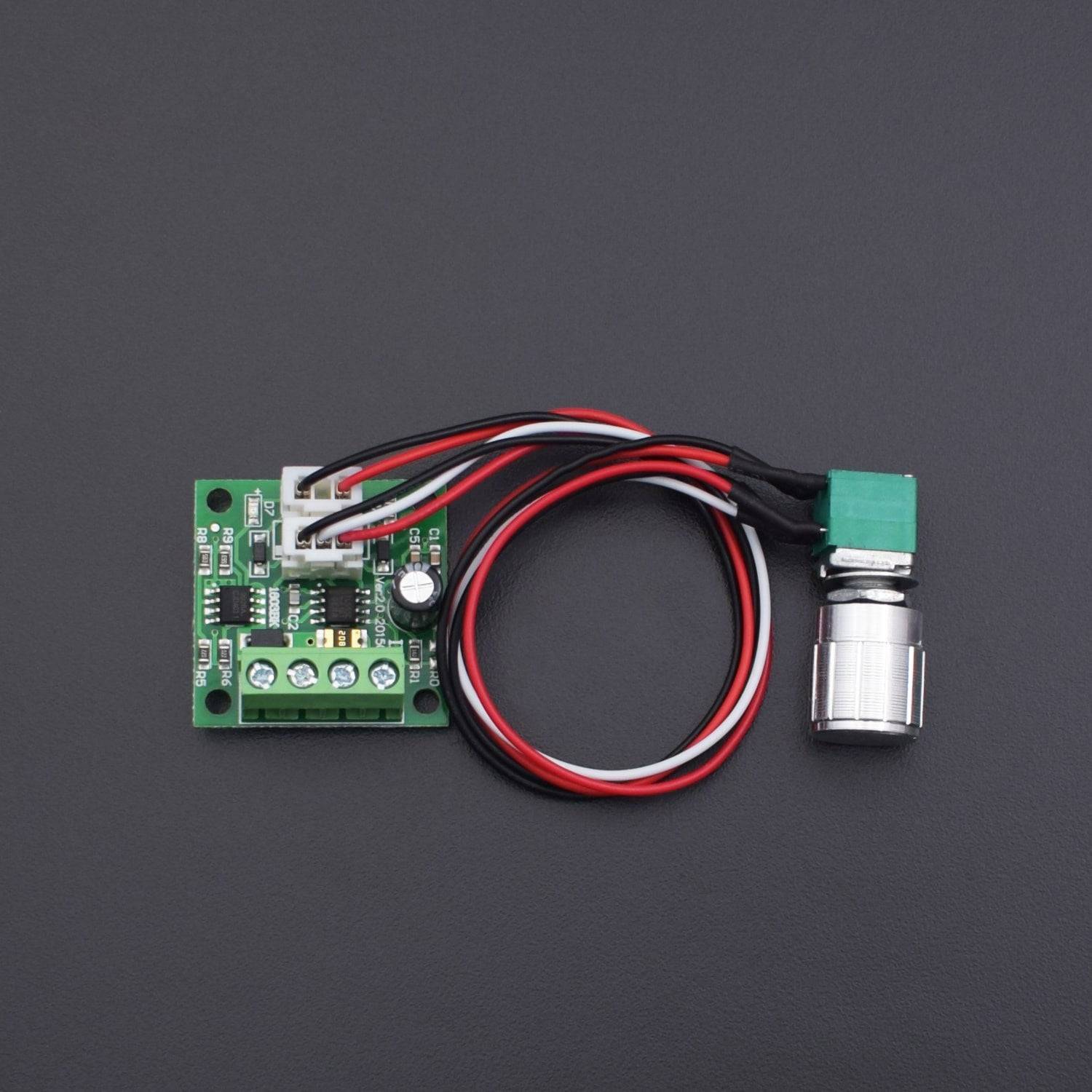

1803BKW 1.8v 3v 5v 6v 7.2v 12v 2A 30W DC Motor Speed Controller (PWM) Adjustable Driver Switch- RS696

• Model: 1803BKW
• Input Supply Voltage: 1.8V-15VDC
• Maximum Output Power: 30W
• Maximum Continuous Output Current: 2A

Description:

The 1803BKW DC motor speed controller controls the speed and direction of a DC motor by setting PWM. It provides a continuous current of 2A to your DC motor or other DC load. In addition, the circuit also includes a 2A fuse, with reverse connection of power supply and control voltage overvoltage protection function.

Specification:

• Model: 1803BKW
• Input Supply Voltage: 1.8V-15VDC
• Maximum Output Power: 30W
• Maximum Continuous Output Current: 2A

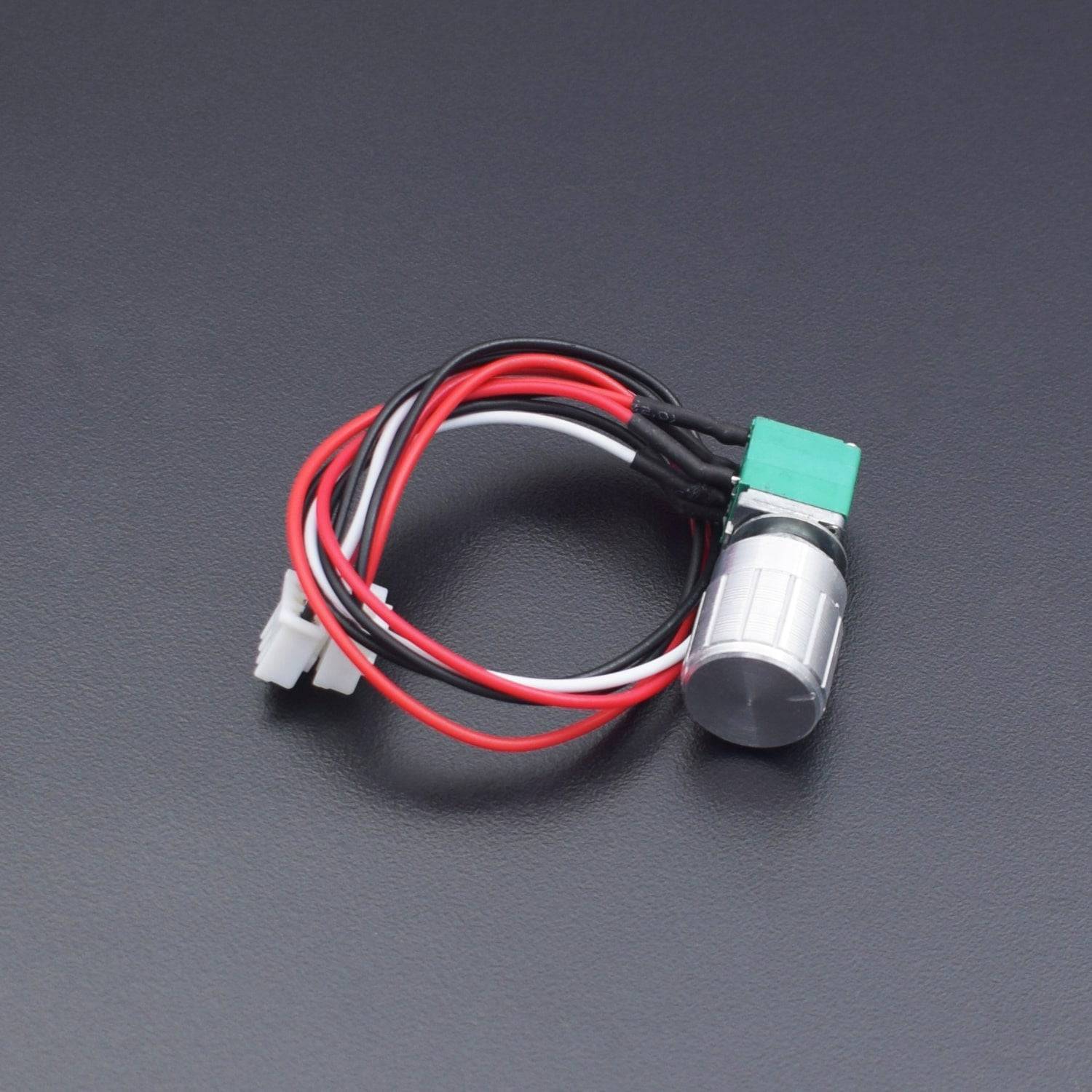

• Duty Cycle adjustable: 5%-100%potentiometer with switch function

Features:

• With fixing screw hole, convenient for install and fixed.
• Use a 2A resettable fuse to protect the controller.

Operating Instruction:

• Before you try to wire the controller, pls ensure that the power supply is turned off.
• Warning: To change the motor direction, replace the positive and negative wires of the motor.
  1. Connect the cables see wiring diagram.
  2. Switch on the power supply and set the potentiometer.
  3. The LED indicates the power on and the motor speed.
