Description:

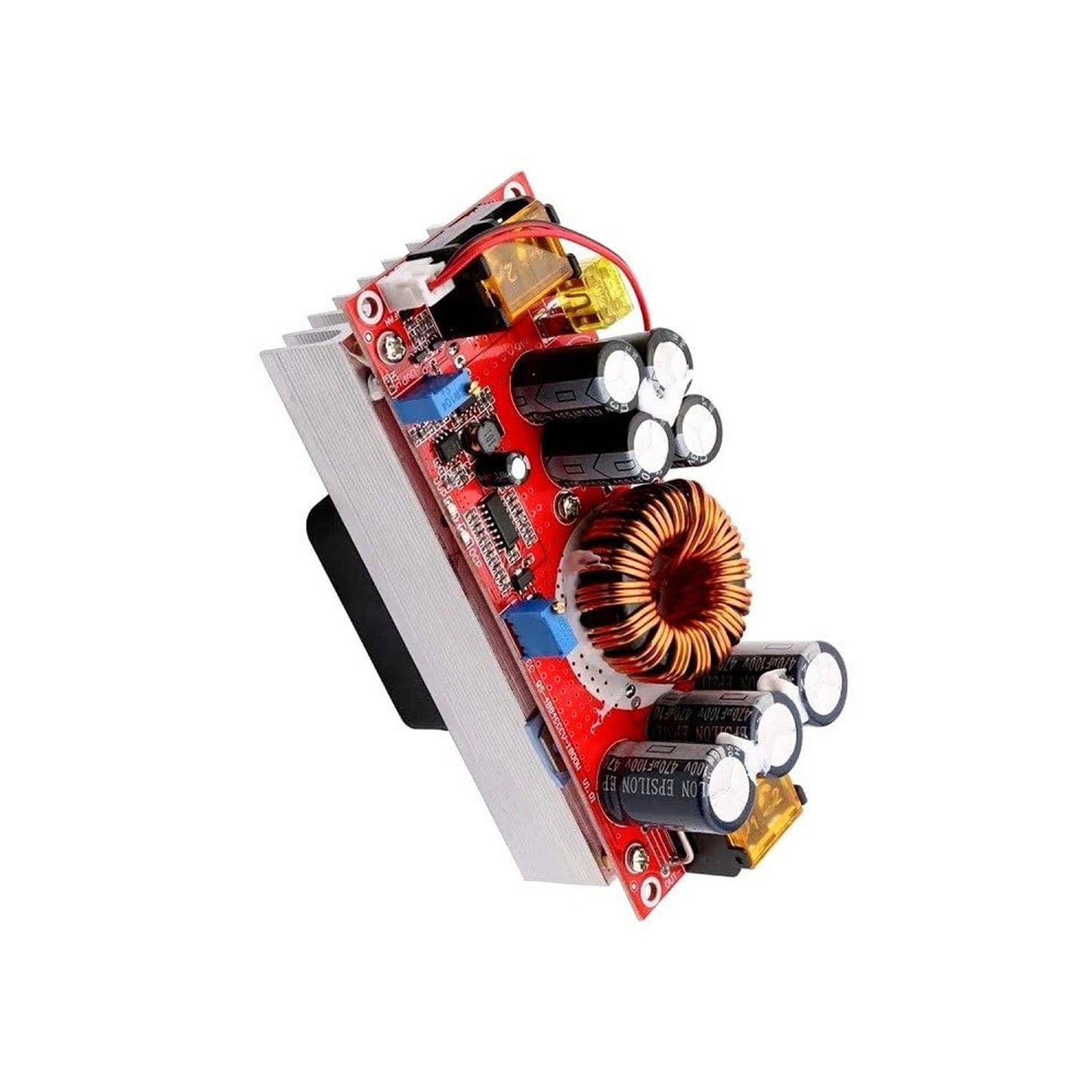

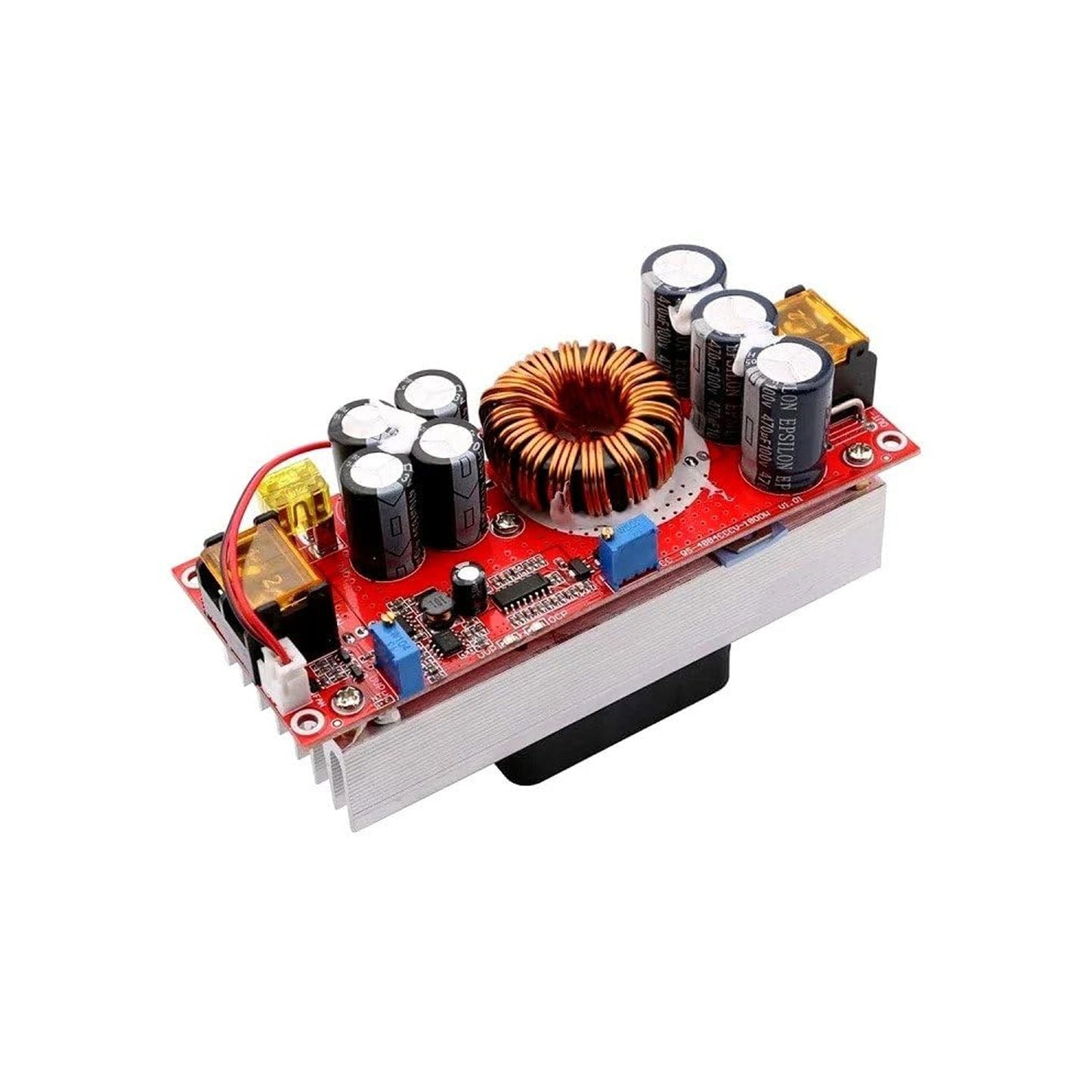

1800W DC-DC Power Supply Module is Designed with a smart temperature control fan, which will automatically work when the temperature reaches about 60℃, and stop when the temperature drops below 60℃. This is a non-isolated DC power converter module. With high power and stable output, it converts 10-60V DC to 12-97V DC. High-quality components ensure high conversion efficiency, up to 97%.

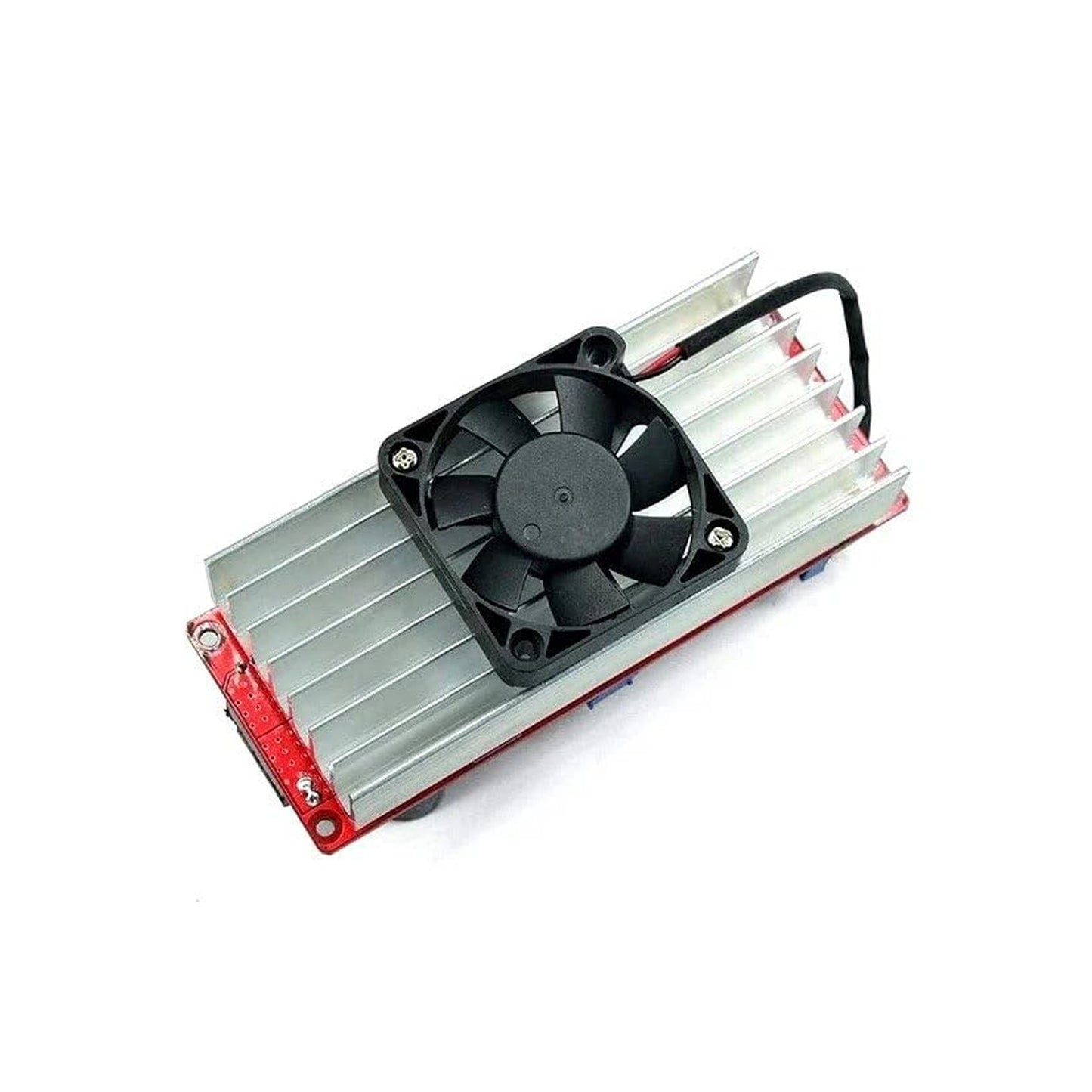

Temperature-controlled fans, with hydraulic bearing fans, have a very good balance between noise and heat dissipation. When the load is light, the fan does not rotate. After the temperature of the load reaches approximately 60 degrees, the fan automatically turns.
40A Adjustable DC Power Supply Widely used for high-power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power supply, DIY adjustable CV CC power supply, solar power charging, and various battery charging.
Specifications:
- Input voltage: 8 to 60V
- Input Current: 10V-30V input voltage, maximum current is 35A-40A; 31-60V input voltage, maximum current is 30A-35A
- Quiescent current: 15mA (measured at 12V to 20V, the higher output voltage will increase the quiescent current)

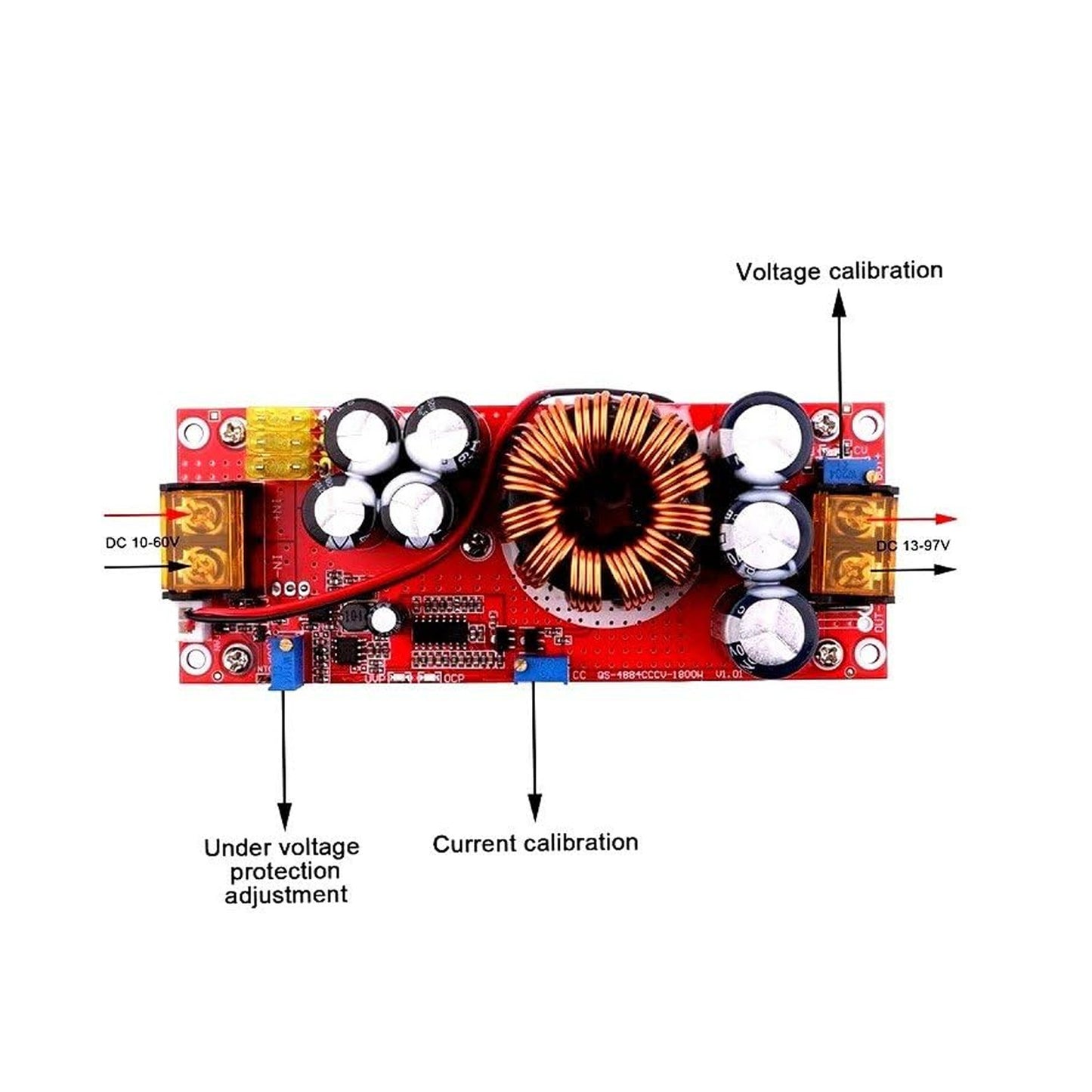

- Output voltage: 12 – 97V continuously adjustable
- Output Current: 35A MAX
Features:
- The High-Power DC-DC Converter MLCC ceramic capacitor is added to the input and output, and the output ripple is significantly reduced, which is about 100mV at 48V to 72V 4A
- With airfoil-type heat dissipation, the heat dissipation effect is very good, and the output power is even greater (the power of the 48V input and fan can reach around 1800W). The 100V 210A TO-247 large package power tube has a large power margin and good dynamic response
- Temperature-controlled fans, with hydraulic bearing fans, have a very good balance between noise and heat dissipation.
Package Included:
1 x 1800W DC-DC Power Supply Module 40A Adjustable
