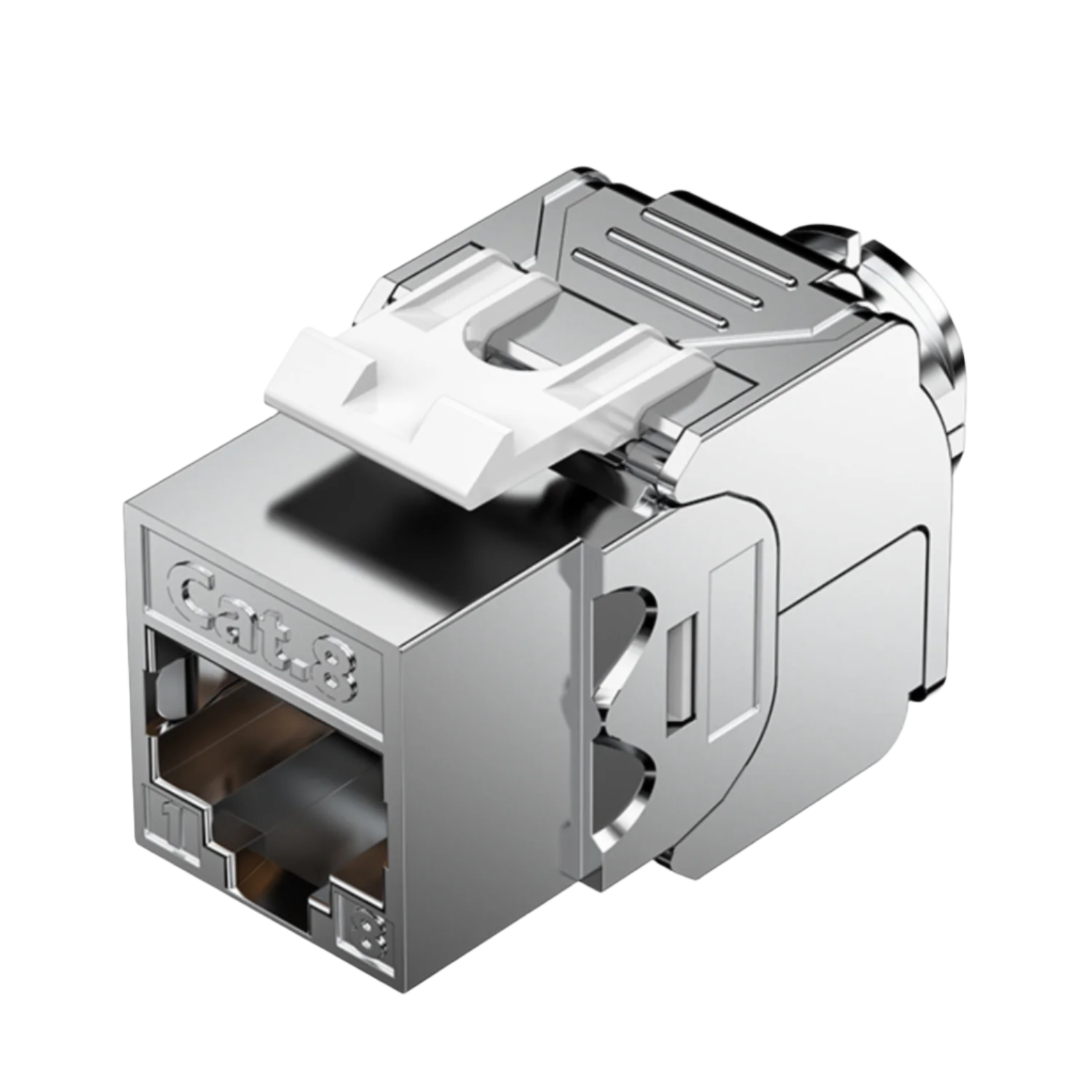

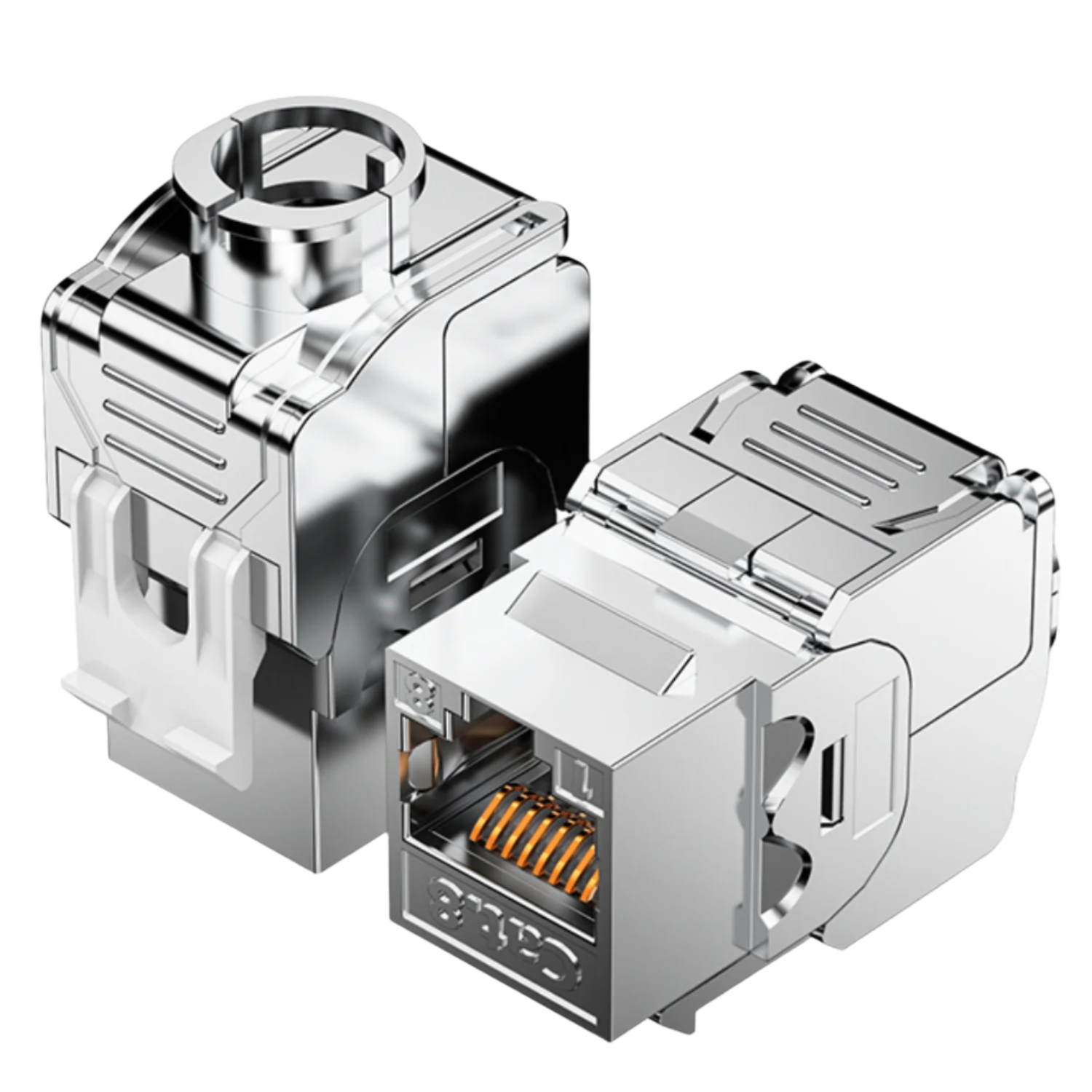

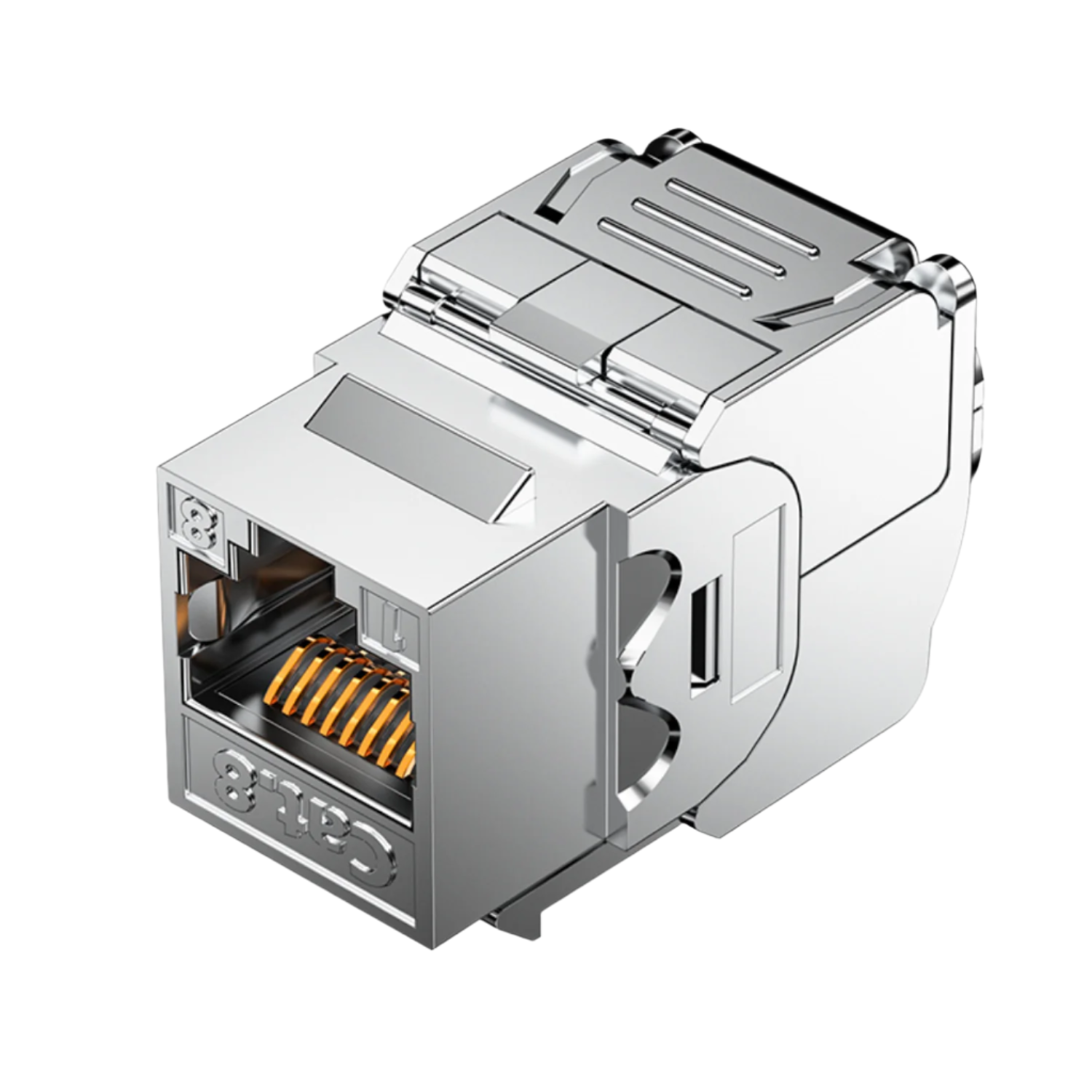

180-Degree FTP Toolless Keystone Jack With Shielded RJ45 Connector For Solid And Stranded Ethernet Cables

Description:

 These plastic parts are engineered with a robust zinc alloy construction, designed for seamless integration with Standard 110 and LSA dual-use punching tools, enhancing operational efficiency. The 180-degree angled design of the Insulation Displacement Connector (IDC) clips ensures a secure and reliable cable termination. Compliant with ISO/IEC 11801 and TIA/EIA 568-B.2 Cat.6 standards, these components guarantee optimal transmission performance.

The internal architecture features precisely matched gold-plated pins, IDC clips, and PCB board to minimize signal loss and maximize data transfer. A comprehensive plating strategy includes full nickel plating of the pin assembly and a 6μ gold plating on the contact pins, providing superior oxidation resistance and extending the product's lifespan. The IDC clips, made from tinned phosphor bronze with nickel plating, are rigorously tested to ensure a minimum of 250 reliable terminations.

Specifications:

• Model Number: HKJ-803FM
• Material: zinc alloy
• gold plated: 3u"-50u"

Electrical Characteristics

• DCResistance: ≤300mΩ
• ContactResistance: ≤20mΩ
• Dielectricstrength: 1000V(AC750V)1min
• InsulationResistance: ≥1000MΩ

Physical Characteristics

• Phosphor bronze with nickel-plated, connector pins with golden plated 6μ
• IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22- 26AWG cables
• Inserting Duration: ≥750 times
• PunchingDuration: ≥250 times
• Jack housing plastic part: UL 94V-0, RED, YELLOW, BLUE, GREEN, BLACK, and other colors available
• Termination caps material UL94V-0
• Working temperature: -25ºC~60ºC

Features:

• Zinc alloy plastic parts.
• Compatible with Standard 110 and LSA punch down tools for easy operation.
• 180° angled IDC clips ensure secure cable connections.
• Meets ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6 standards.
• Gold-plated pins, IDC clips, and internal PCB for superior signal quality.
• Nickel-plated pins with 6μ gold-plated contact points prevent oxidation and extend lifespan.
• Tinned phosphor bronze with nickel plating, rated for 250 terminations.

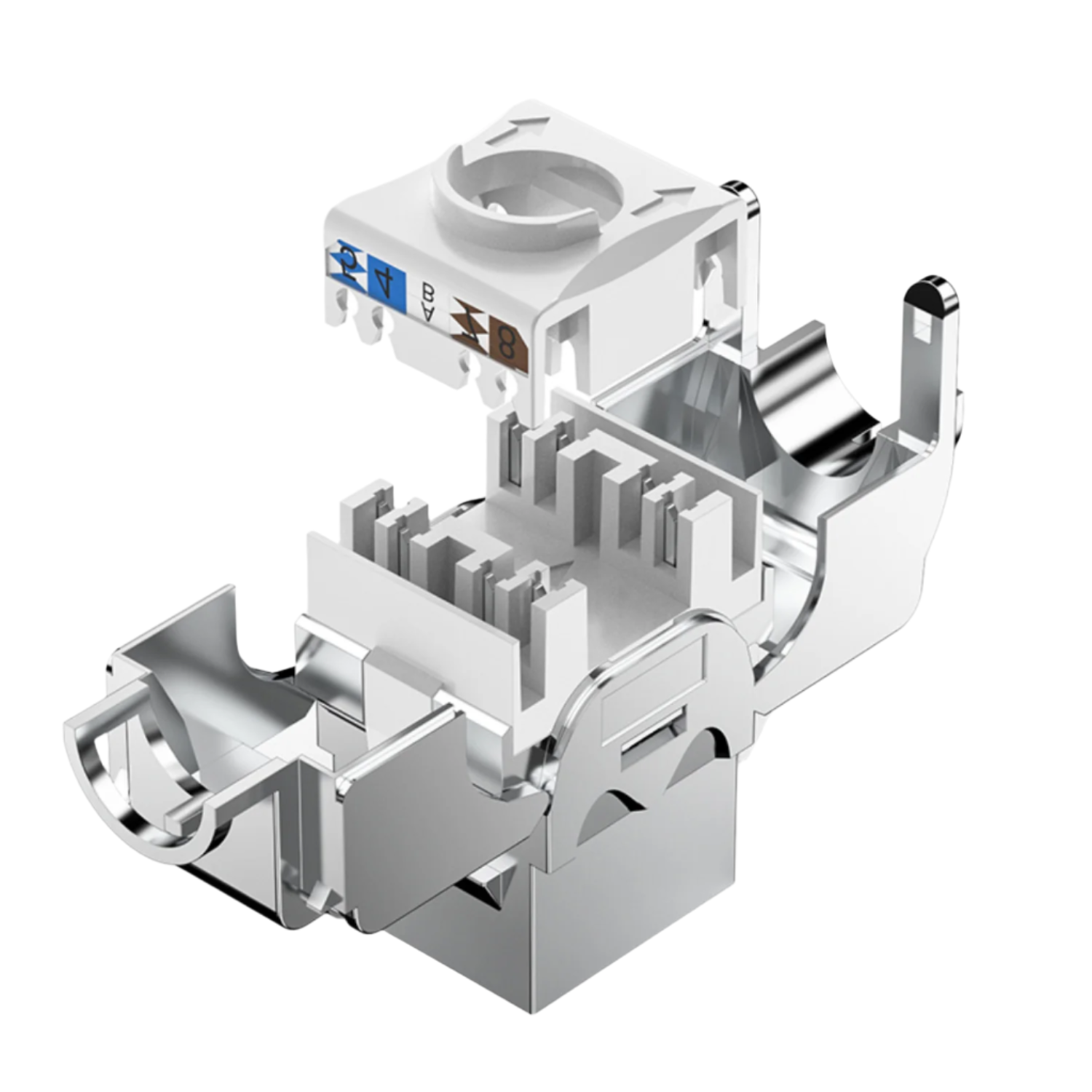

Schematic:

Applications:

• Structured cabling transmits data, voice, and video
• Applied for Cat.6 and E Classes
• Suitable for working area, central room, managing room, equipment room, and subsystem applications

Standards:

• ISO/IEC11801
• TIA/EIA-568B.2-1
• EN50173
• UL 94V-0

Package Included:

1 x 180-Degree FTP Toolless Keystone Jack
