Description:

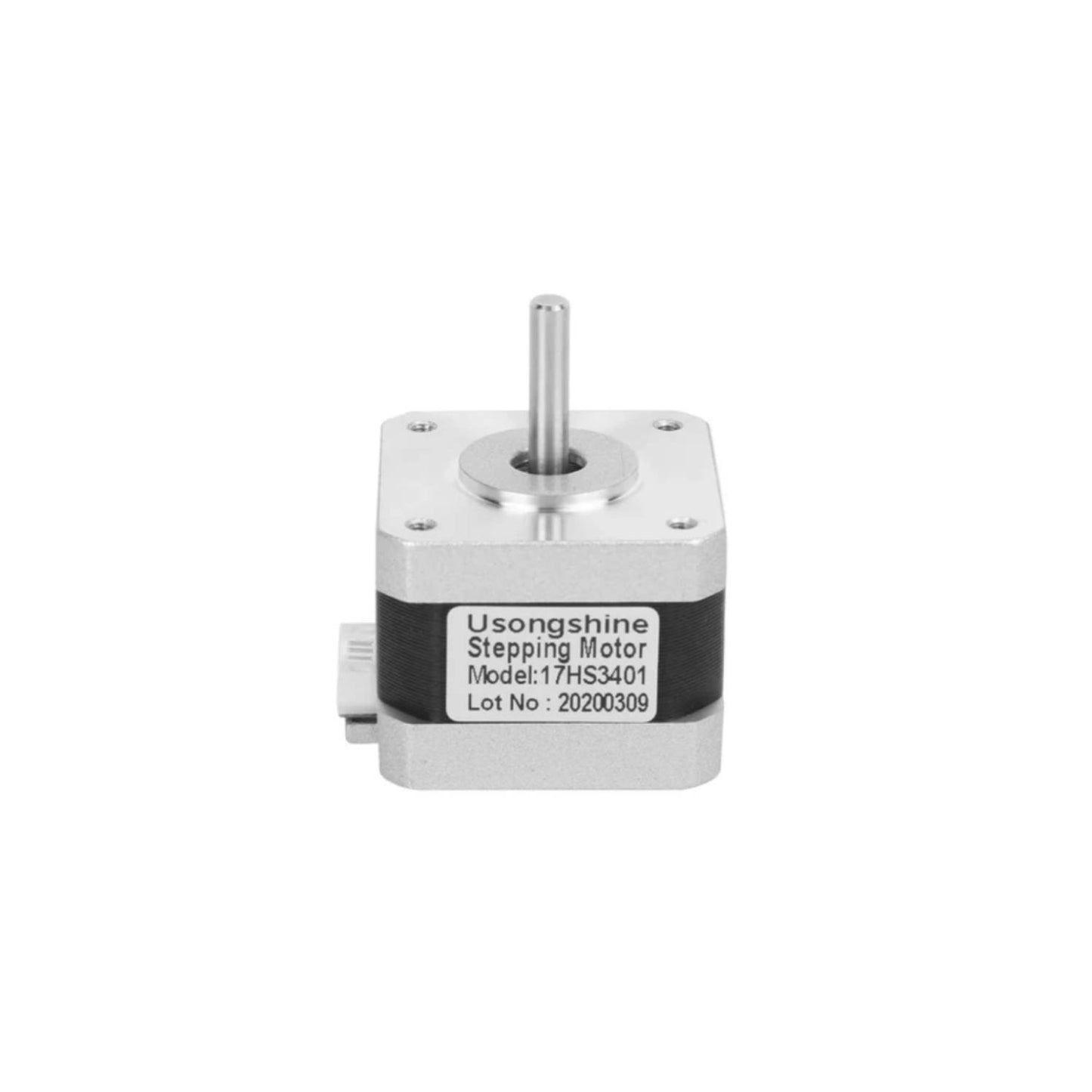

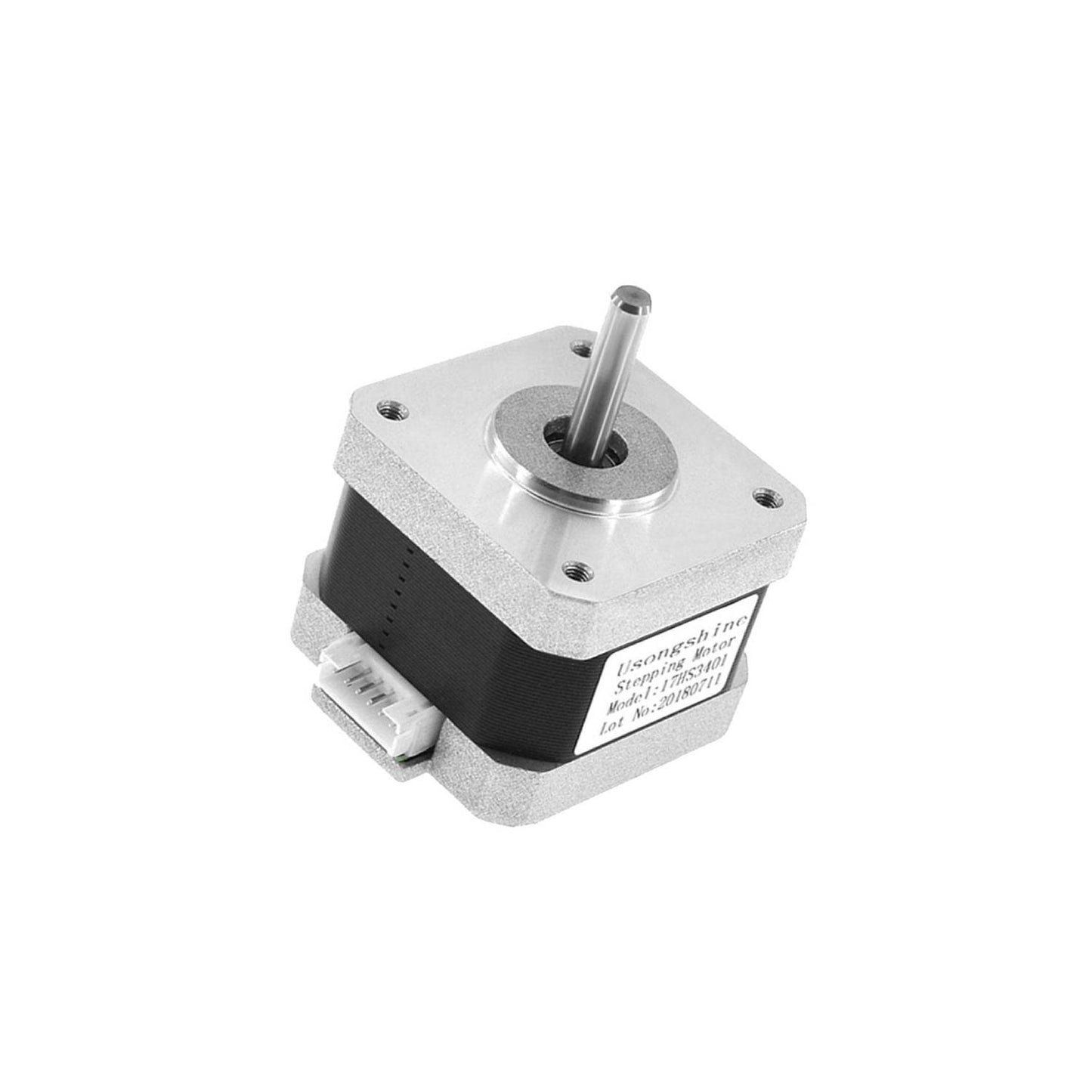

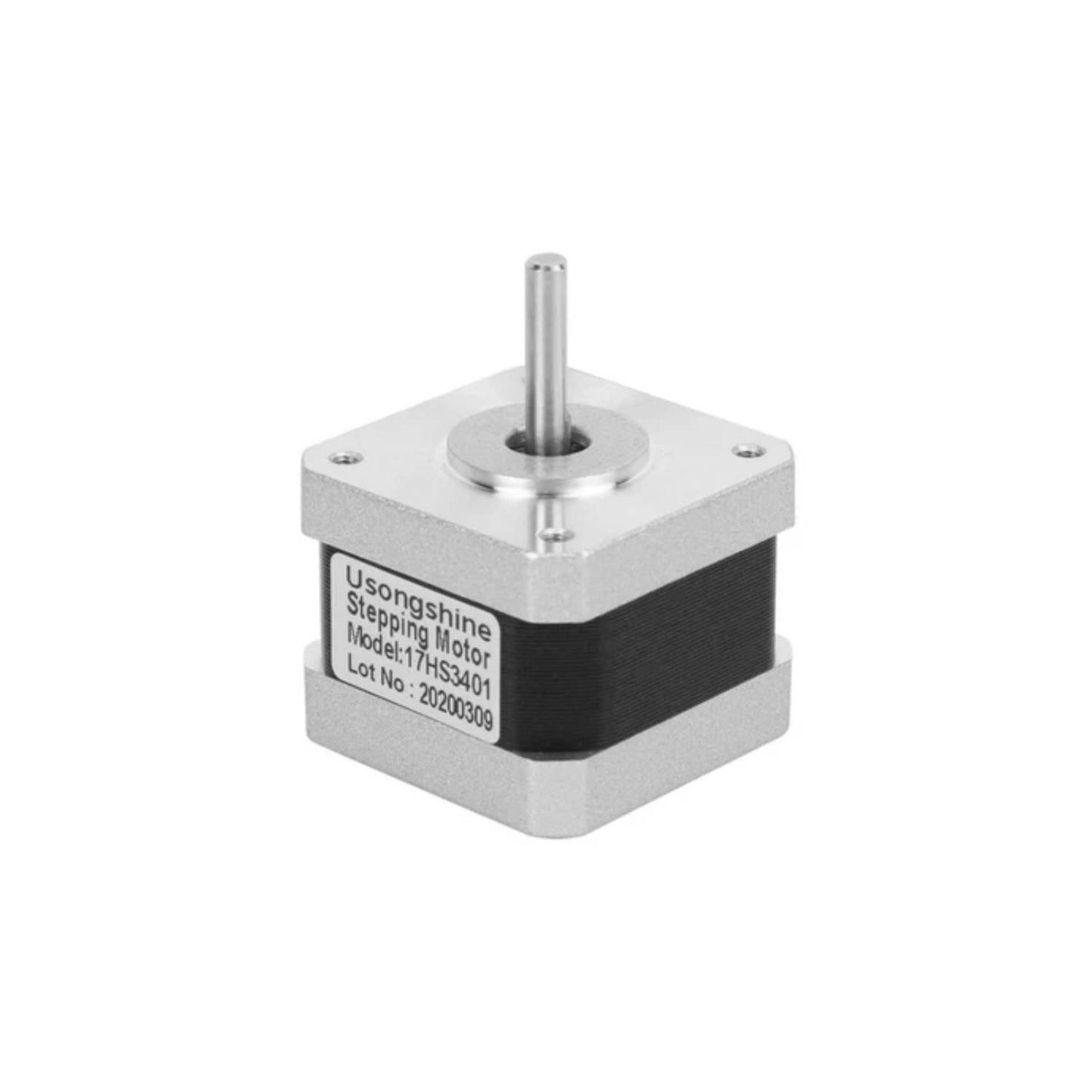

17HS3401 NEMA 17 Stepper Motor provides smooth and reliable operation, ensuring accurate positioning and efficient motion control. 4 Pin Stepper Motor is widely used in 3D printers, CNC machines, laser engraving, medical equipment and other automation systems. Its compact size and high torque make it suitable for various demanding applications.
Specifications:
- Model: 17HS3401
- Wiring Configuration: 4-Wire Bipolar
- Actual Rated Input Voltage: 12-24VDC
- Holding Torque: 0.25Nm
- Current Type: DC
- Rated Current: 1.3A
- Resistance per Phase: 30Ω±10%
- Full Step Angle: 1.8° Degree
- Nominal Rated Input Voltage: 24 V, 12 V
- Step angle accuracy: + – 5% (full step, not load)
- Temperature rise: 80deg Max (rated current, 2 phase on)
- Ambient temperature: 20deg ~ +50deg
- Insulation resistance: 100MΩ Min, 500VDC
- Insulation Strength: 500VAC for one minute
- Resistance accuracy: + – 10%
- Inductance accuracy: + – 20%
Features:
- Reduced automatic errors caused by the use of reduction gears.
- Made of high-quality alloy material, durable and long service.
- The motor adopts a 4-pin cable outlet method, easy to connect.
- The use of advanced technology reduces noise.
- Good acceleration performance.
- Smooth operation.
- Low heat.
- Low noise.
Application:
- 3D printers
- Monitoring devices
- Packaging machines
- Stage lighting
- DIY projects
- CNC machines
- Robotics projects
- Custom automation systems
Package Included:

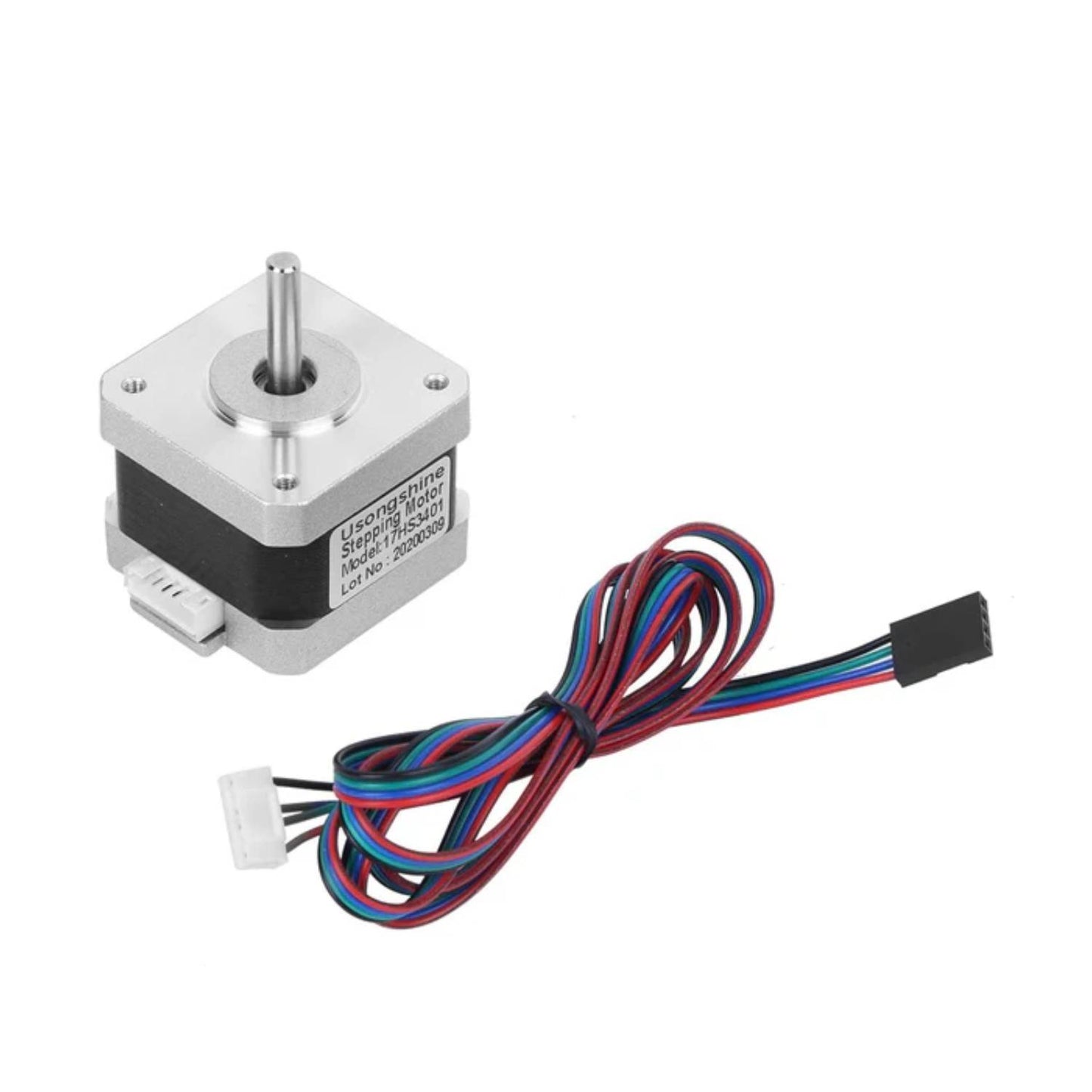

1 x 17HS3401 NEMA Stepper Motor NEMA 17 Stepper Motor NEMA 17 Stepper Motor With 4-Pin Cable Quiet And Smooth Stepper Motor For 3D Printing And CNC Machining
