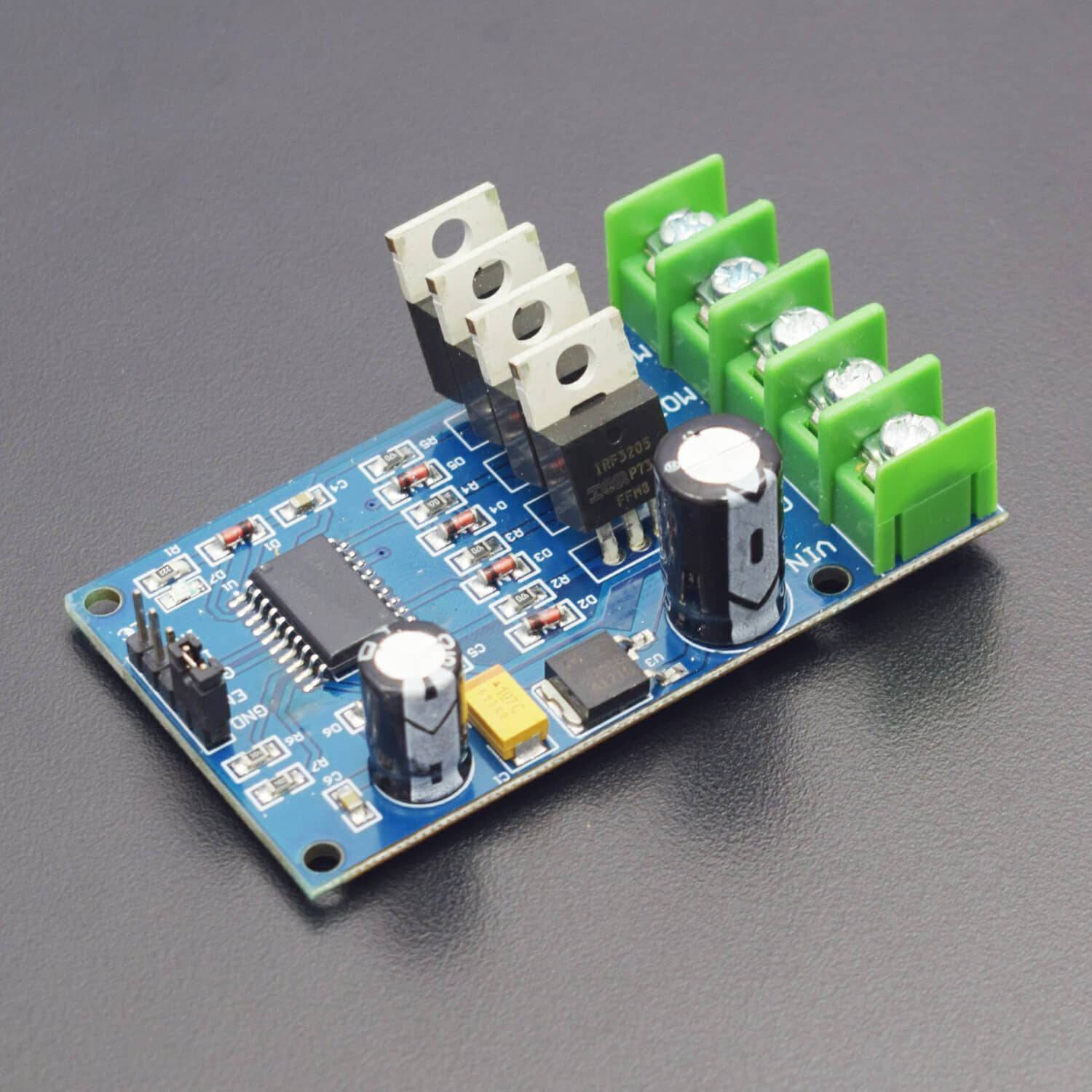

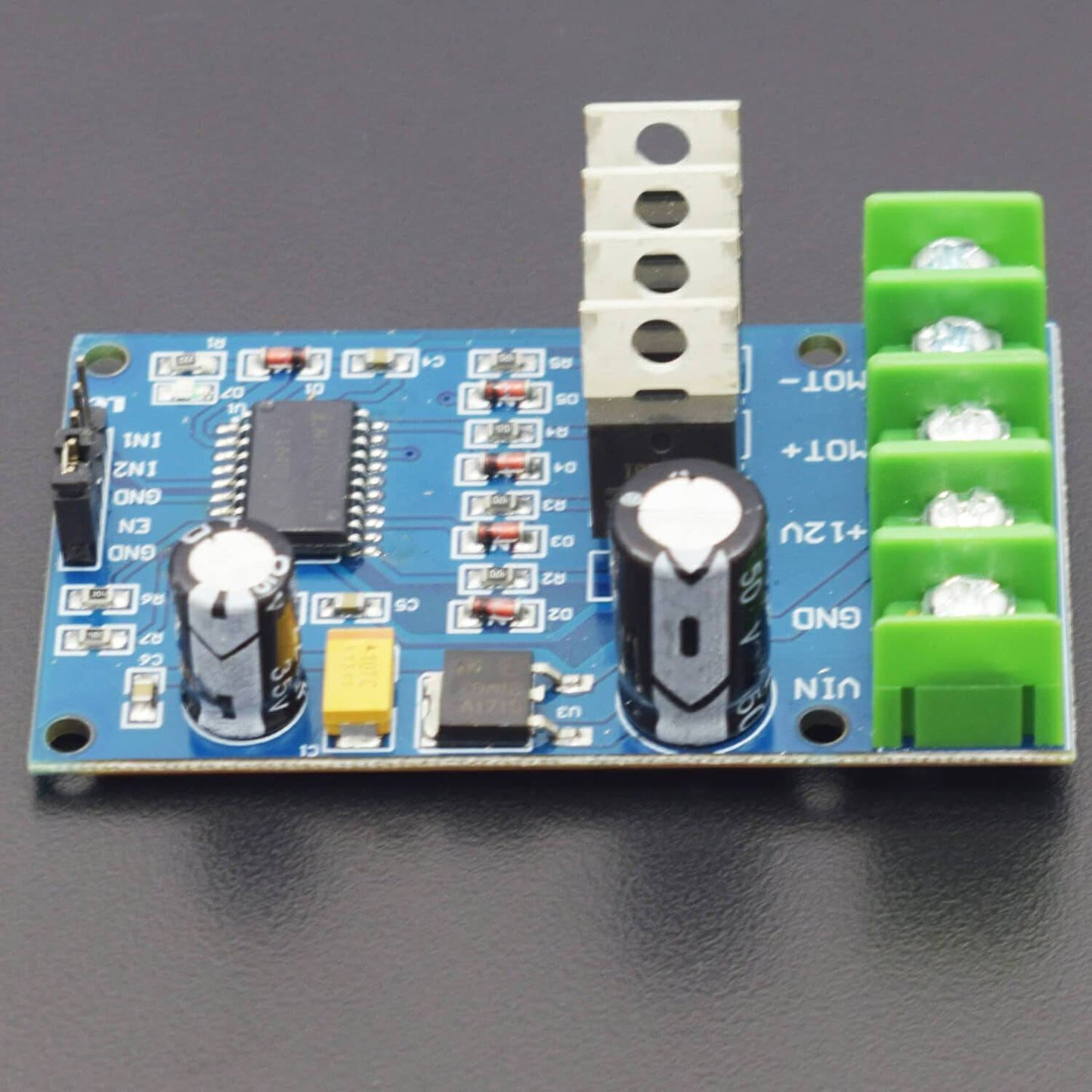

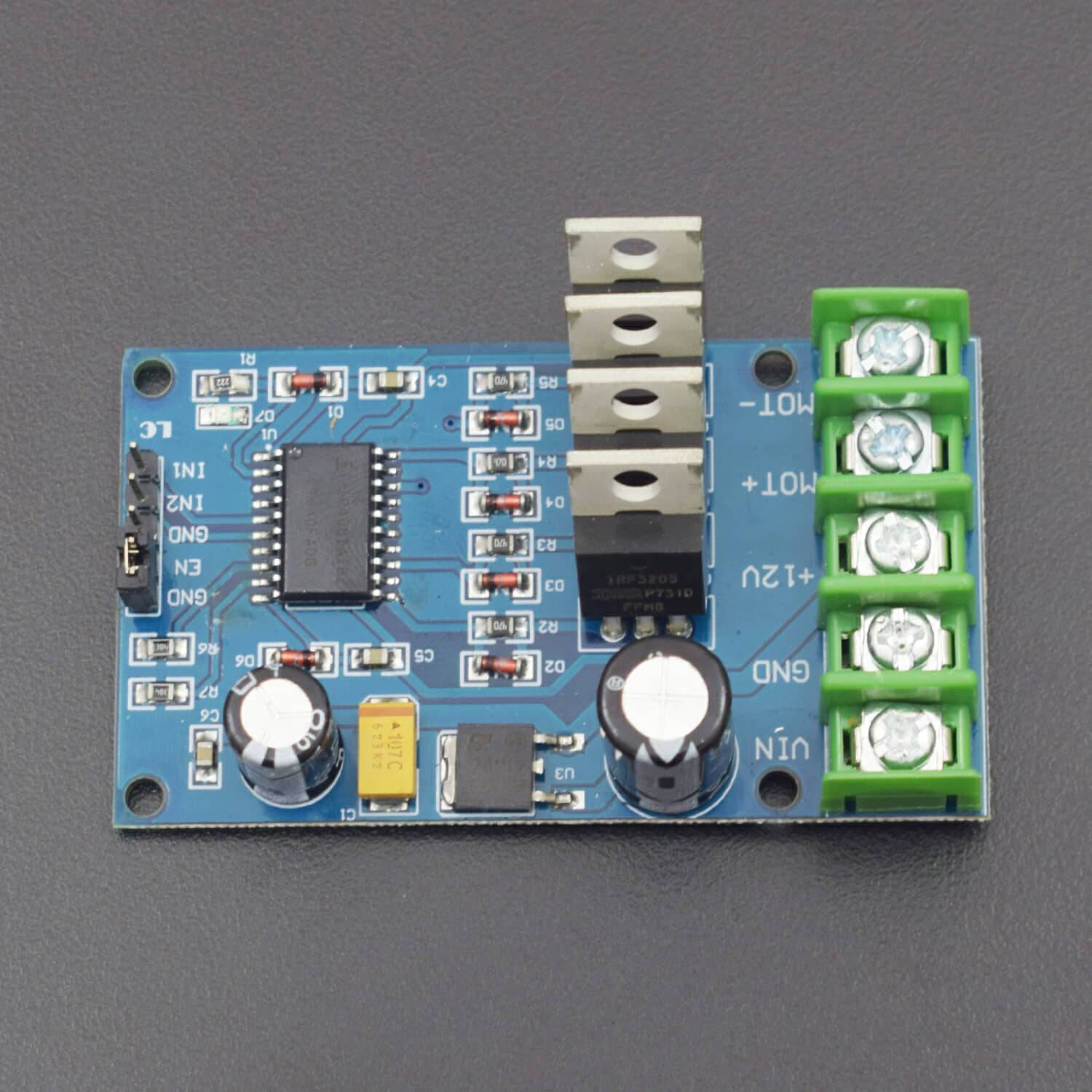

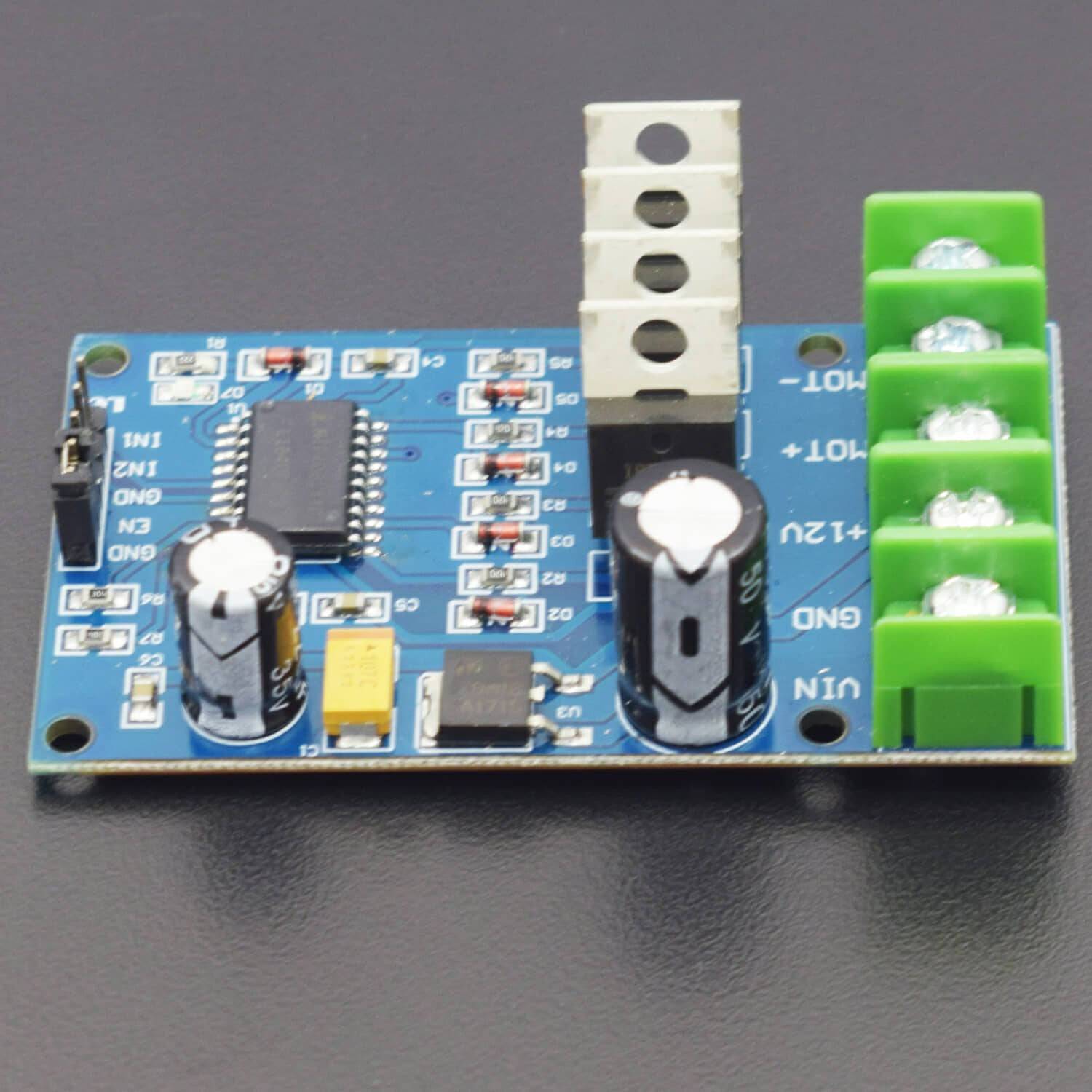

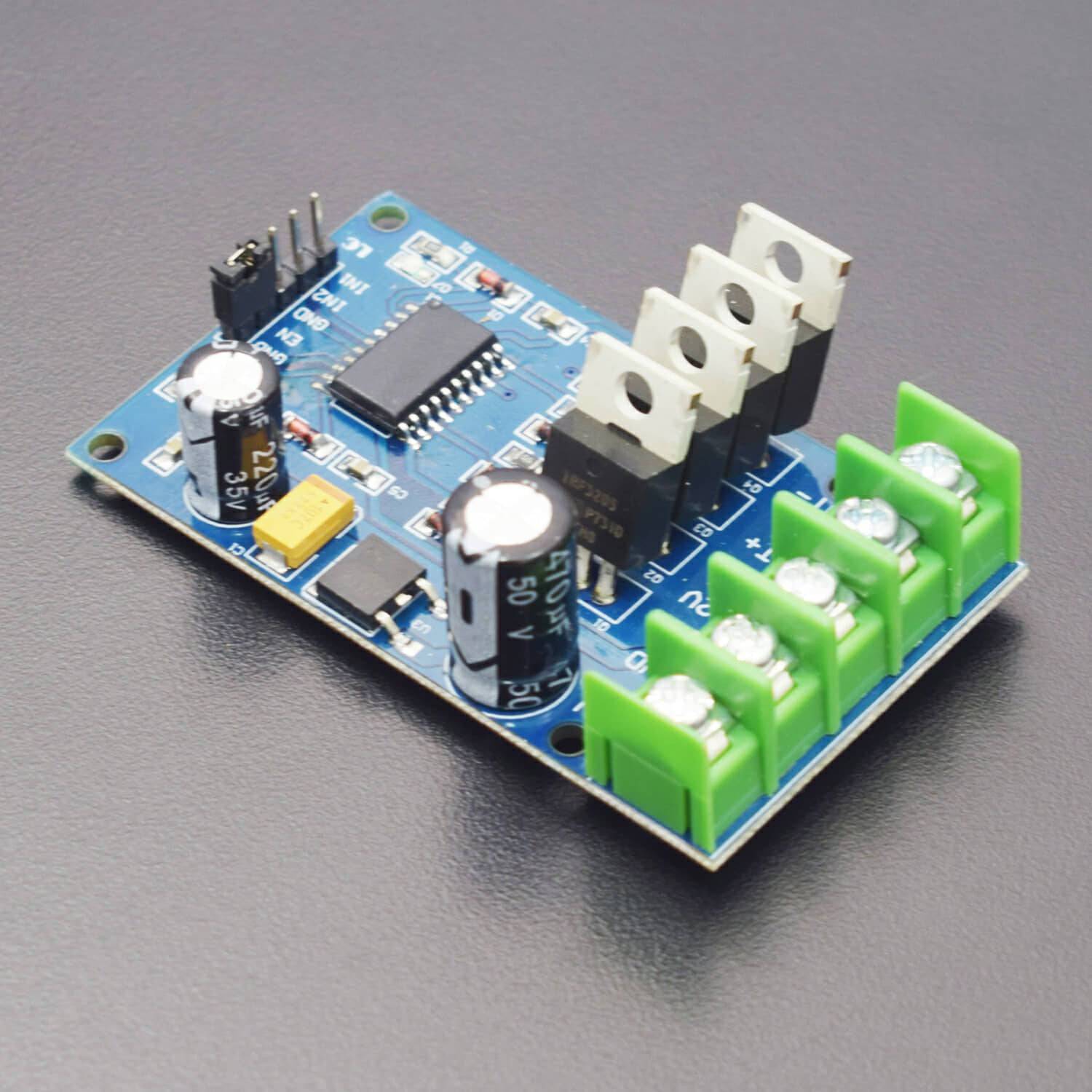

170W High Power H-Bridge Drive Board NMOS with Brakes Forward and Reverse Full-Duty - RS1798

170W High Power H-Bridge Drive Board NMOS with Brakes Forward and Reverse Full-Duty - RS1798

SKU:RS1798

25 in stock

Regular price Rs. 1,600.00
Regular price Sale price Rs. 1,600.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Working voltage 10v-40v, power below 170w
  • Supports 5v, 3.3v logic input
  • Two PWM inputs, duty cycle adjustable from 0-100%
  • Package Included : 1 x 170 Watt High Power h Bridge Driver Board
  • Board size: 38.8 * 67.5mm



Description:

  • Full-bridge driver chip + low-pass resistance 55v110a nmos, positive and negative motors can be realized.
  • Two PWM inputs, duty cycle adjustable from 0-100%, with instantaneous braking.
  • Working voltage 10v-40v, power below 170w.
  • The control is effortless and convenient, only three input lines are needed to control the motor.
  • The chip has built-in dead zone hardware control to better adapt to mutations and reduce the loss of the pipe itself.
  • The tin plating on the back of the module allows a high current to flow through the wire.
  • Supports 5v, 3.3v logic input. Suitable for all types of single chip io port direct control, you can also control motor input via analogue input.
  • Board size: 38.8 * 67.5mm

Specification:

  • Full-bridge driver chip + low-pass resistance 55v110a nmos, positive and negative motors can be realized
  • Two PWM inputs, duty cycle adjustable from 0-100%, with instantaneous braking
  • Working voltage 10v-40v, power below 170w
  • 6. Support 5V, and 3.3V logic input. It is suitable for direct control of the IO port of different MCU and can also control rotation by the analogue input.

Instruction For Use:

  • In1 = 1, in2 = 0; motor advance;
  • In1 = 0, in2 = 1; motor reversal; click In1 = 0, in2 = 0; motor braking. Click on PWM speed control:
  • IN1 = PWM pulse (0-100%); IN2 = 0; forward speed adjustable;
  • IN1 = 0; IN2 = PWM Pulse (0-100%); Inverting Speed.
  • Adjustable; Result IN1 = 0; IN2 = 0, motor braking result.

Package Included:

1 x 170W High Power H-Bridge Drive Board NMOS with Brakes Forward and Reverse Full-Duty
