150W DC Boost Converter Power Module Voltage Regulator Board 10-32V/8-16V to 8-46V 12/24V Step-up Volt Inverter- RS1839

150W DC Boost Converter Power Module Voltage Regulator Board 10-32V/8-16V to 8-46V 12/24V Step-up Volt Inverter- RS1839

SKU:RS1839

80 in stock

Regular price Rs. 310.00
Regular price Sale price Rs. 310.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Module Properties: Non-isolated Module
  • Minimum Voltage difference: 0V
  • Two Input voltage optional: select the input voltage by adjusting the jumper on the back of the PCB.
  • Input/output Voltage 1: When Input DC 10-32V £¨aimed at application to wide input voltage)

Description:

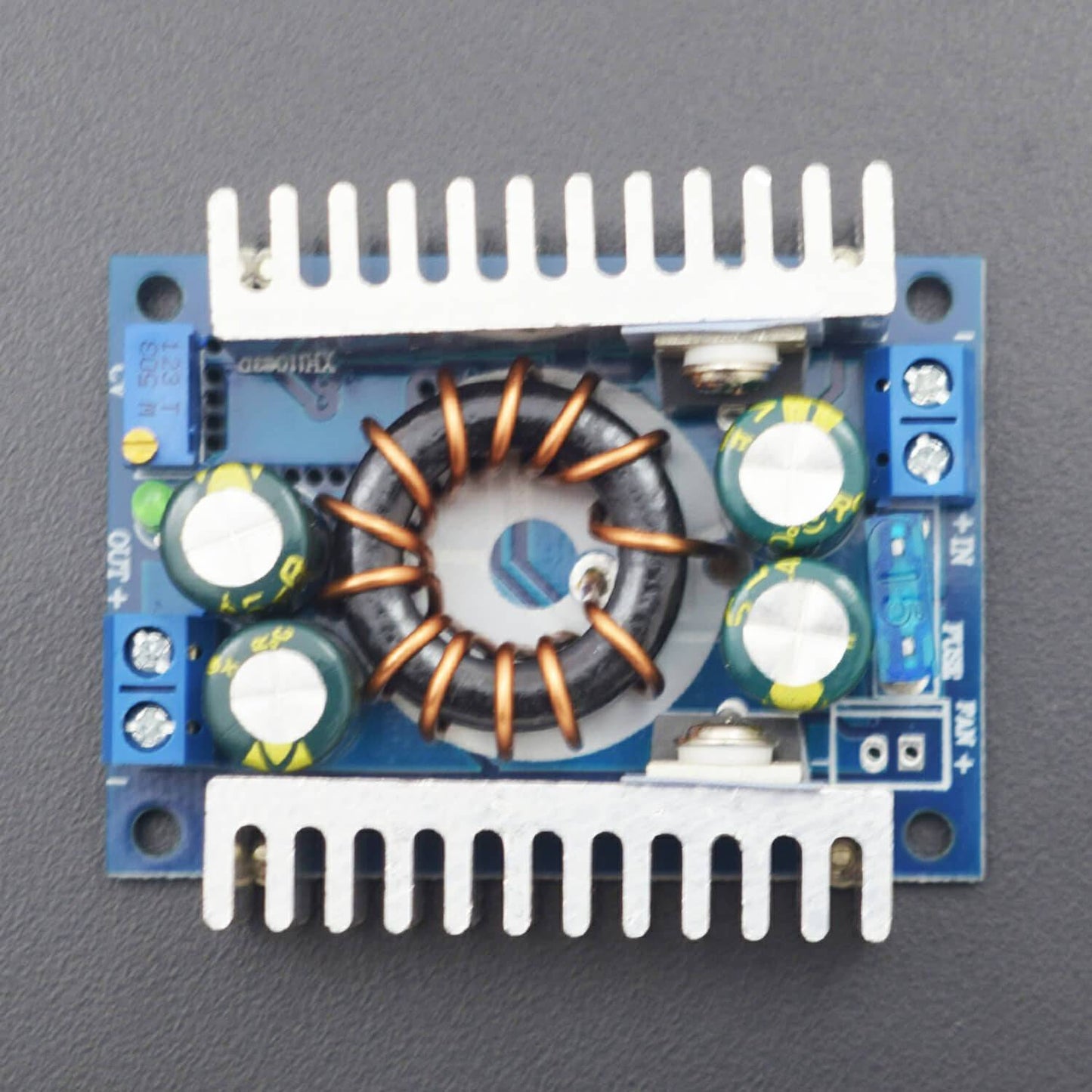

This versatile DC-DC boost power supply/converter module steps up any input voltage from 10V to 32V to any output voltage from 12V to 35V at up to 150W output power and 6A current. This 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply is well into the heavy-duty end of the spectrum @ 150W; as you can tell by the huge toroidal inductor and dual heatsinks. It is especially useful for automotive 12V applications, where standard 12V battery power can be boosted to 19V for use as a laptop computer power supply, or to 18V or 24V for other applications requiring higher voltages.

Specification:

  • Module Properties: Non-isolated Module
  • Minimum Voltage difference: 0V
  • Two Input voltage optional: select the input voltage by adjusting the jumper on the back of the PCB.
  • Input/output Voltage 1: When Input DC 10-32V £¨aimed at application to wide input voltage)
  • Input/output Voltage 2: When Input DC 8-16V (aimed at application to 3 strings of lithium battery and 12V accumulator)
  • Output Voltage 1 : When Input DC 10-32V,Output 10-46V((adjustable, default 19V)
  • Output Voltage 2 : When Input DC 8-16V,Output 8-46V(adjustable, default 19V)
  • Input Current: 16A Max. (exceed 8A please enhance heat dissipation)
  • Output Current: 8A Max. (exceed 4A please enhance heat dissipation)
  • Quiescent Operating Current: 15mA (12V to 20V, higher output voltage will increase the quiescent current)
  • Output Power: 90W(natural cooling), 150W(enhance heat dissipation)
  • Capacitances:2x 470uF/35V(input) ; 2x 330uF/50V(output)
  • Operating Temperature: -40¡ãc to +85¡ãc
  • Working Frequency: 380KHz
  • Conversion Efficiency: up to 95%
  • Operating Indicator: Yes
  • Short Circuit Protection: None
  • Installation: 4x 3mm screws
  • Wiring: Terminals, Needn't solder, V-IN input, V-OUT output

Features:

  • Auto Boost Buck Converter, Wide input voltage range Constant current and voltage, Used to drive high power LEDs, and to charge the battery
  • Efficiency as high as 94%
  • Low Ripple design, 12V to 12V 2A, Typical ripple is 21mV security design (equipment safety)
  • With input reverse and under voltage protection, Output short circuit and overcurrent protection
  • Aluminum shell potting design, shockproof, Waterproof, Heat-Sink, harsh environments adaptable Pluggable terminal design, easy assembly and disassembly, wiring more convenient Can be used in parallel

Using Instruction:

  • Adjusting method of output current:
    • Firstly, adjust CV potentiometer, set the output voltage to the value you need according to your battery or LED.
    • Secondly, anticlockwise set CC potentiometer about 30 circles and set the minimum output current, connect LED, then adjust the CC potentiometer to the current you need. If the module is used for battery charging, please let the battery discharged and connect the output, then adjust CC potentiometer to current you need(when for charging, the battery must be discharged full, so adjustment can be correct. Please don't use the way of short circuit to adjust current.
  • Adjusting method of turn lights:
    • Connect a full-charged battery to output port, it is ok if the turn light potentiometer shows red light.(turn light function is to remind you if the battery is full charged. when charging, the light shows red; when full charged, it shows green.)

Package Included:

1 x 150W DC Boost Converter Power Module Voltage Regulator Board 10-32V/8-16V to 8-46V 12/24V Step-up Volt Inverter
