150W Boost Converter 10-32V to 12-35V DC-DC Step-Up Adjustable Power Supply Module, 6A - NA065

150W Boost Converter 10-32V to 12-35V DC-DC Step-Up Adjustable Power Supply Module, 6A - NA065

NA065

219 in stock

Rs. 169.00
Rs. 169.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Heavy-Duty 150W DC-DC Step-Up Adjustable Power Supply Module (10-32V to 12-35V)

This powerful 150W DC-DC Boost Converter is a heavy-duty, non-isolated Step-Up Adjustable Power Supply Module designed for reliable high-power applications. It efficiently steps up any DC input voltage from 10V to 32V to a higher DC output voltage, continuously adjustable from 12V to 35V.

With a maximum output power of 150W and a 6A current rating, this module is built to last, featuring a huge toroidal inductor and dual heatsinks for superior thermal performance.

Please note that this DC-DC Boost Converter does not feature reverse polarity protection. Exercise extreme caution when connecting the input. Connecting the polarity incorrectly will likely damage the module. For added protection, a series diode is highly recommended, though this may not be feasible for very high-load applications. Always double-check your input polarity before powering the module!

Specifications:

  • Input Voltage: 10 to 32V
  • Input Current: 10A
  • Output Voltage: 12 to 35A
  • Max. Output Current: 6A
  • Output Power: 100W
  • Conversion Efficiency: 94%
  • Operating Temperature: -40 to 90°C
  • No-Load Current: 25mA

Features:

  • Function: Non-isolated Step-Up (Boost) Power Conversion Module.
  • Adjustability: Equipped with a Multi-turn Potentiometer for precise voltage setting.
  • Indicators: Onboard LED illuminates when voltage is applied.

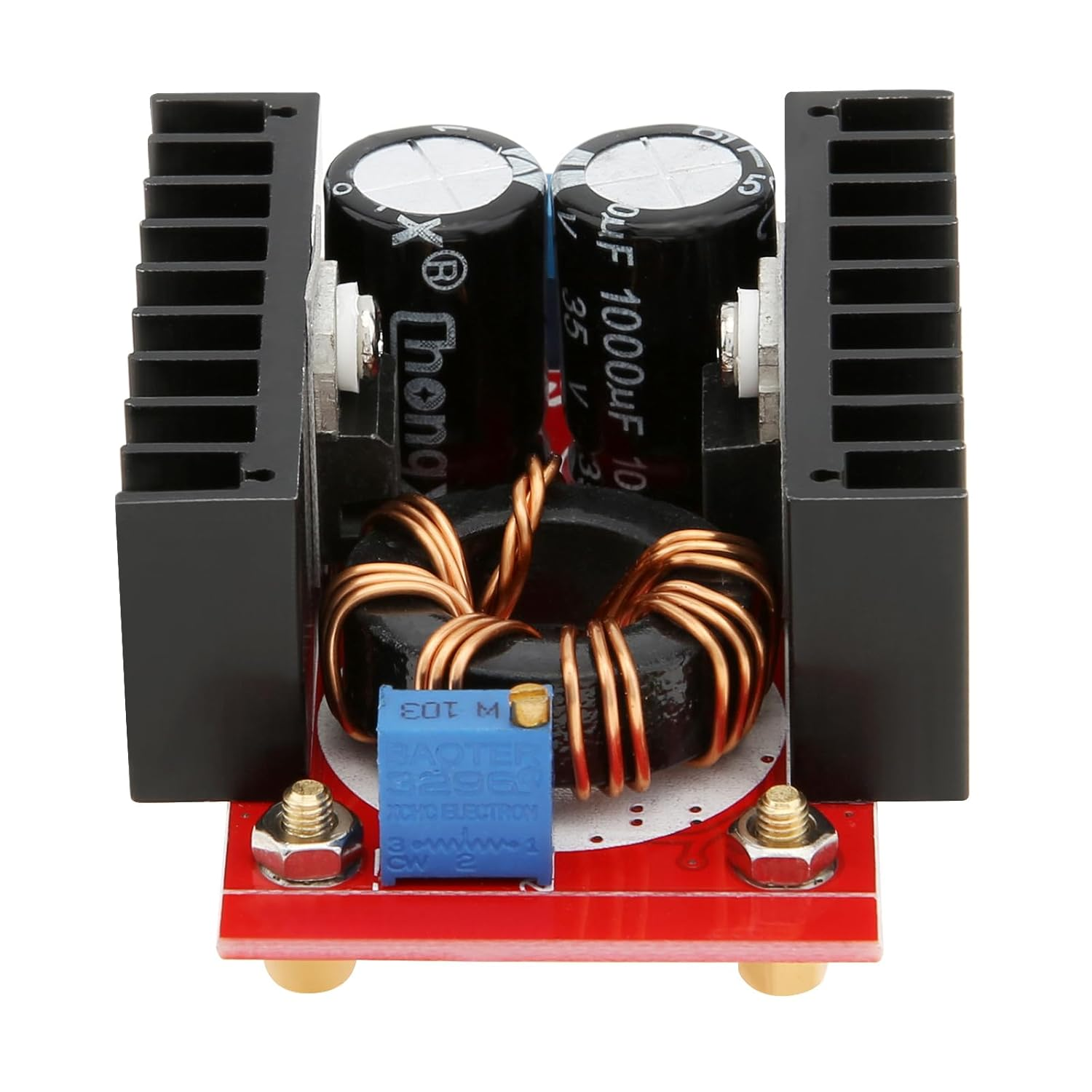

  • Build: Heavy-duty design with dual heatsinks and a large toroidal inductor.

Application:

  • DIY Adjustable Vehicle Power Supply: Use a 12V car battery input and continuously adjust the output from 14V to 35V to power custom electronics.
  • Universal Car Laptop Power Supply: Easily convert 12V car power to 19V to run dual-core or quad-core notebooks (can drive up to 6A).
  • Boost Charger: Convert your car's 12V power to a higher voltage (e.g., 18V or 24V) for specialised battery charging needs.
  • Powering Electronic Devices: Adjust the output voltage to perfectly match the requirements of your electronic devices (within the module's 150W/6A rating).

Note:

  • Set the output voltage to the desired level using a voltmeter before connecting it to your equipment or load.
  • Short circuit protection: None, please use caution to protect the module from overcurrent
  • Input reverse polarity protection: None, please use a diode in series with the input to protect against input reverse polarity

Package Included:

1 x 150W Boost Converter 10-32V to 12-35V
