- Module model: SZ-BT07CCCV-D1
- Input voltage: DC10-60V
- Static working current: 15mA
- Working temperature: -40~+85 degree
Description :

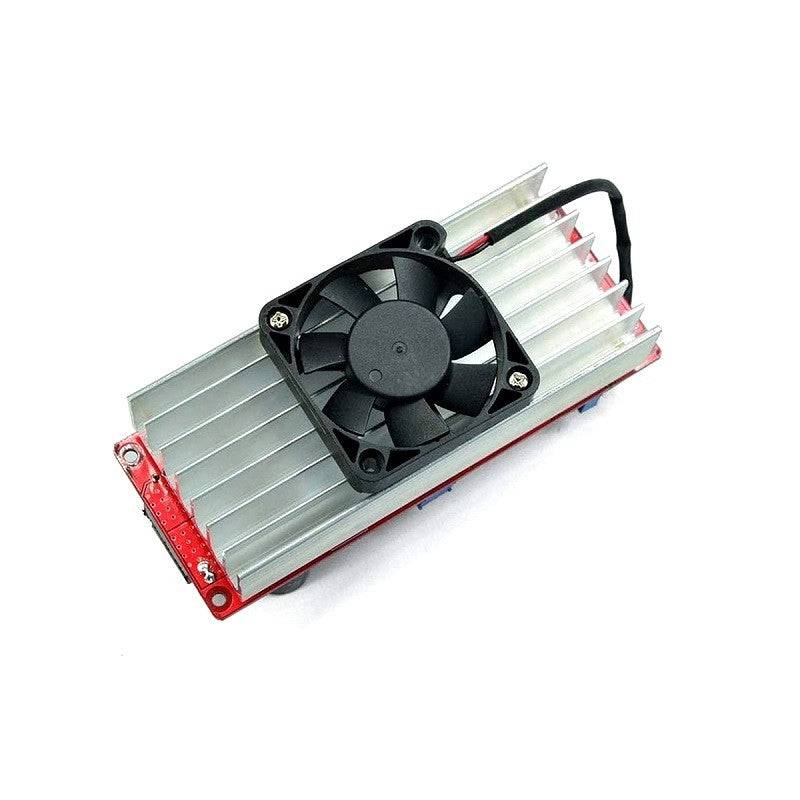

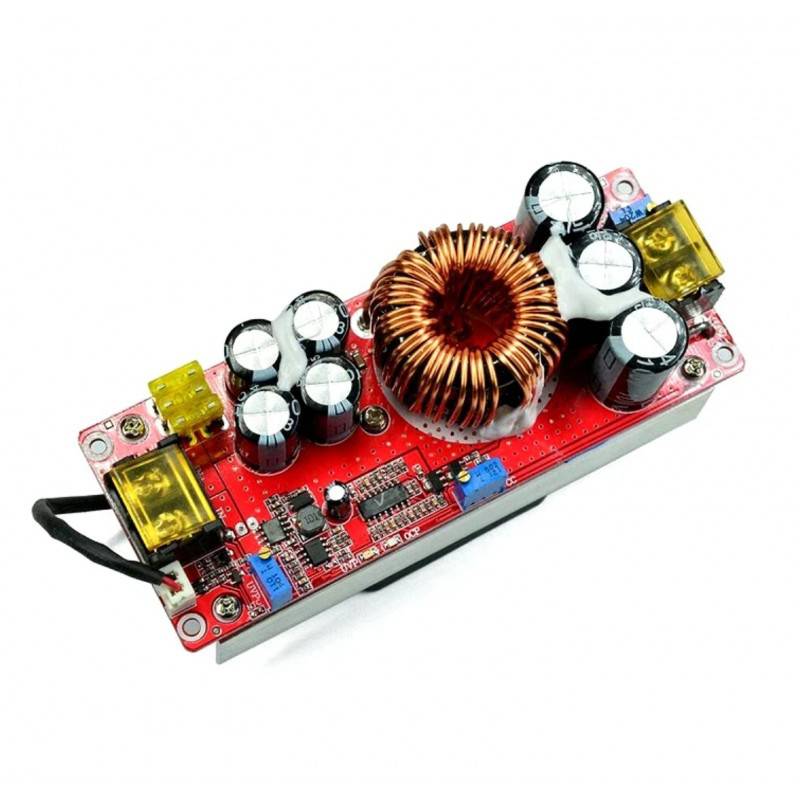

This is a non-isolated DC power converter module. With high power and stable output, it converts 10-60VDC to 12-97V DC. High-quality components ensure high conversion efficiency, up to 97%. Designed with a smart temperature control fan, which will automatically work when the temperature reaches about 60%, and stop when the temperature drops below 60%. Widely used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power supply, DIY adjustable CV CC power supply, solar power charging, and various battery charging.
Applications:
- Charge for electric bikes
- As the car power supply for your laptop, PDA or a variety of digital products
- The solar panel boost regulator
Features and Specifications:
- Module model: SZ-BT07CCCV-D1
- Input voltage: DC10-60V
-
Input current:
- 10-30V input voltage, maximum current 30A
- 31-60V input voltage, maximum current 25A
- Static working current: 15mA
-
Output voltage:
- 12-90V continuously adjustable (default output is adjusted to 19V)
- 12-90V fixed output
- Working temperature: -40~+85 degrees
Output power:
Input voltage * 30A, such as: input 12V * 30A = 360W The maximum power when inputting 12V is 360W
Input voltage *30A
For example: input 24V * 30A = 720W,
That is: the maximum power is 720W when inputting 24V

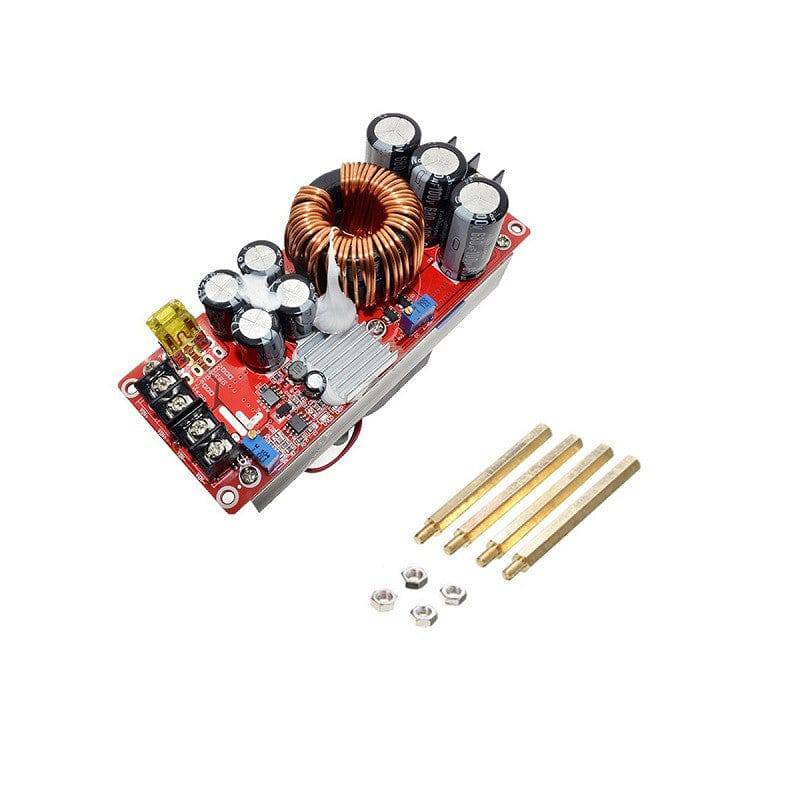

Package Included:
1 x 1500W DC-DC 12-48V to 24-72V Boost Step Up Converter Module For Car Laptop Solar Battery
