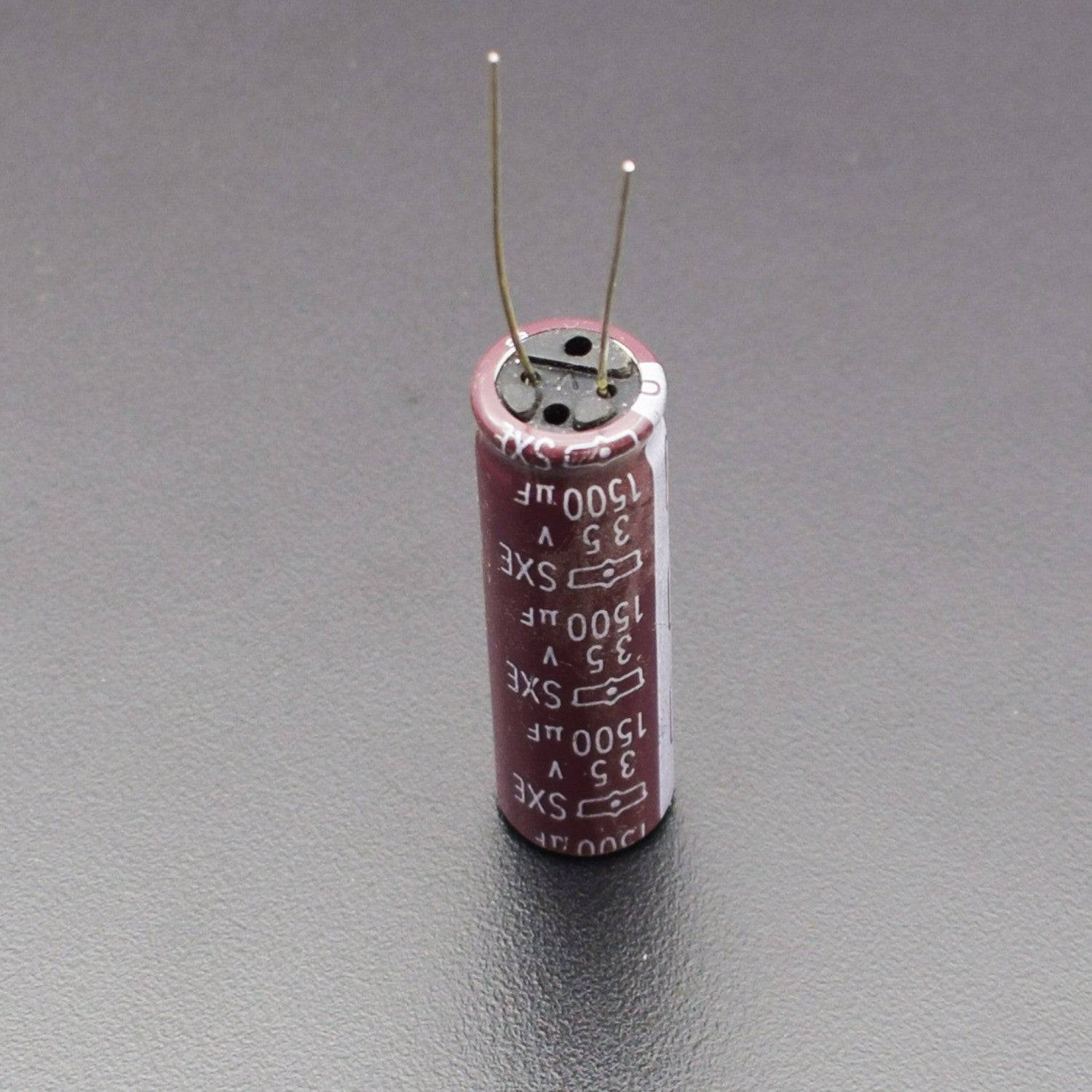

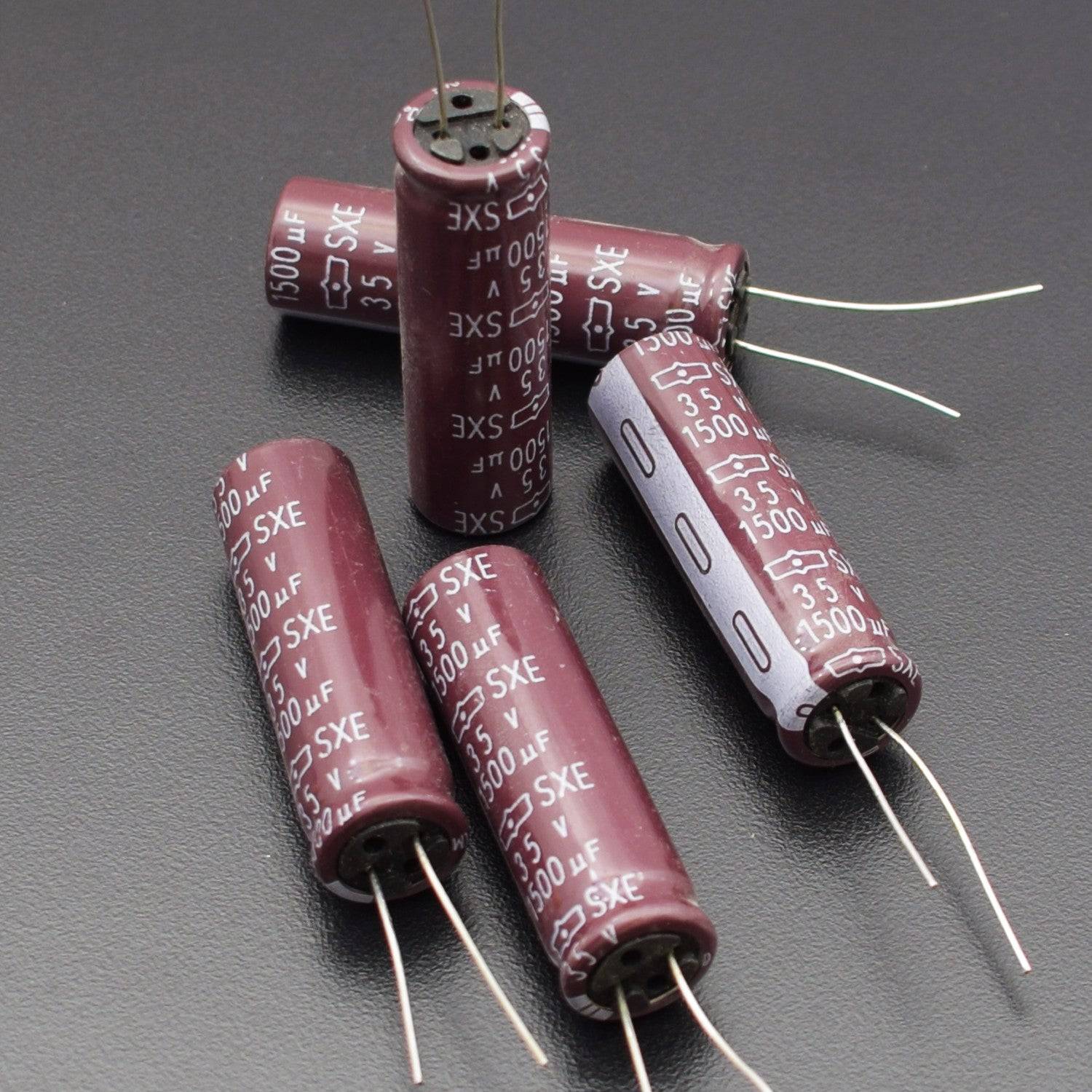

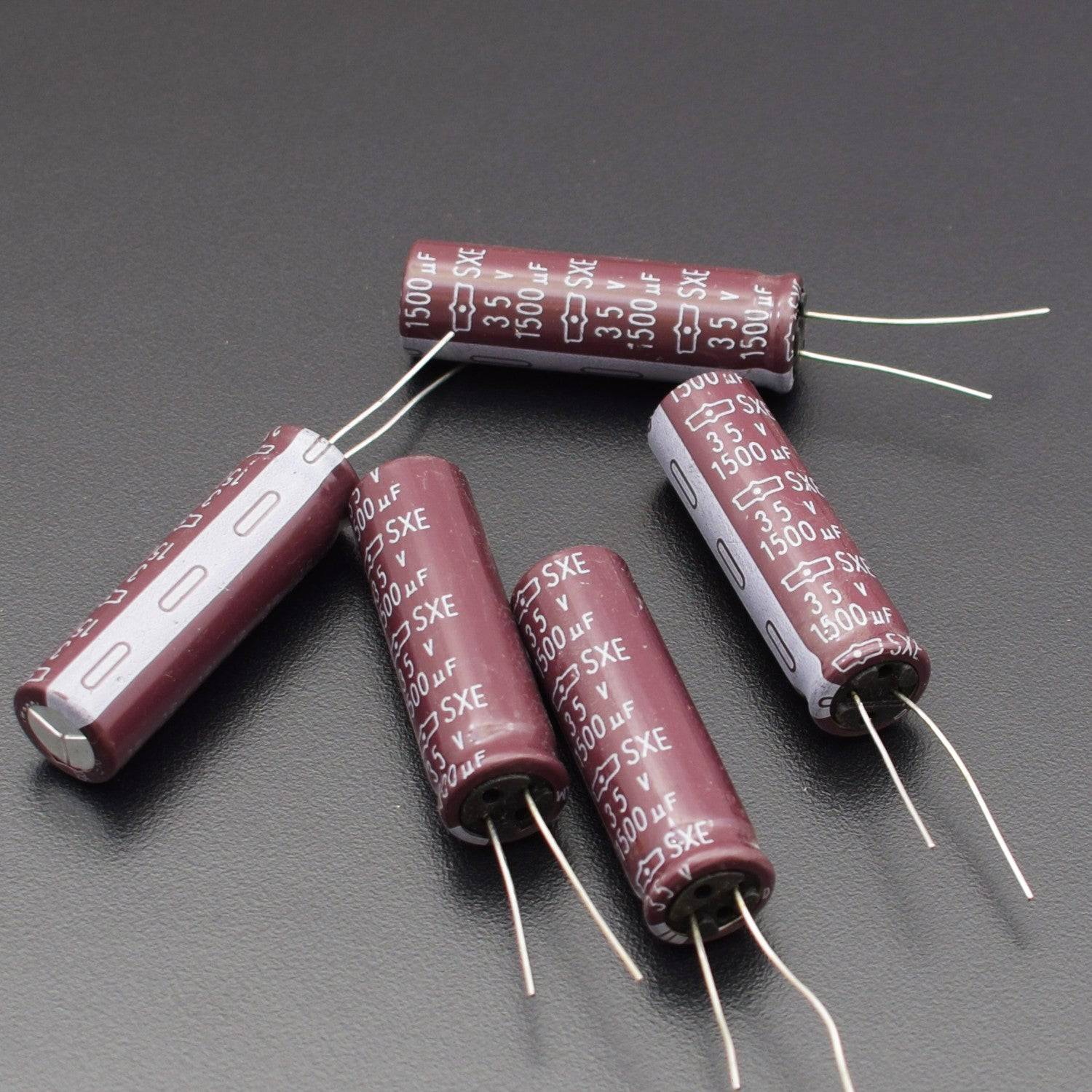

1500uF 35V Radial Electrolytic Capacitor 105°C - RS2115

• Capacitance: 1500 uF
• Voltage Rating DC: 35 VDC
• Tolerance: 20 %
• Ripple Current: 3250 mA
• Minimum Operating Temperature: - 55 C

Description:

These electrolytic capacitors provide long life and high endurance of 4000 hours to 5000 hours at 105°C in a through-hole mount package.

Specification:

• Capacitance: 1500 uF
• Voltage Rating DC: 35 VDC
• Tolerance: 20 %
• Ripple Current: 3250 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 105 C
• Diameter: 12.5 mm
• Length: 20 mm
• Lead Spacing: 5 mm
• Product Type: Electrolytic Capacitors
• Subcategory: Capacitors

Pin Configuration:

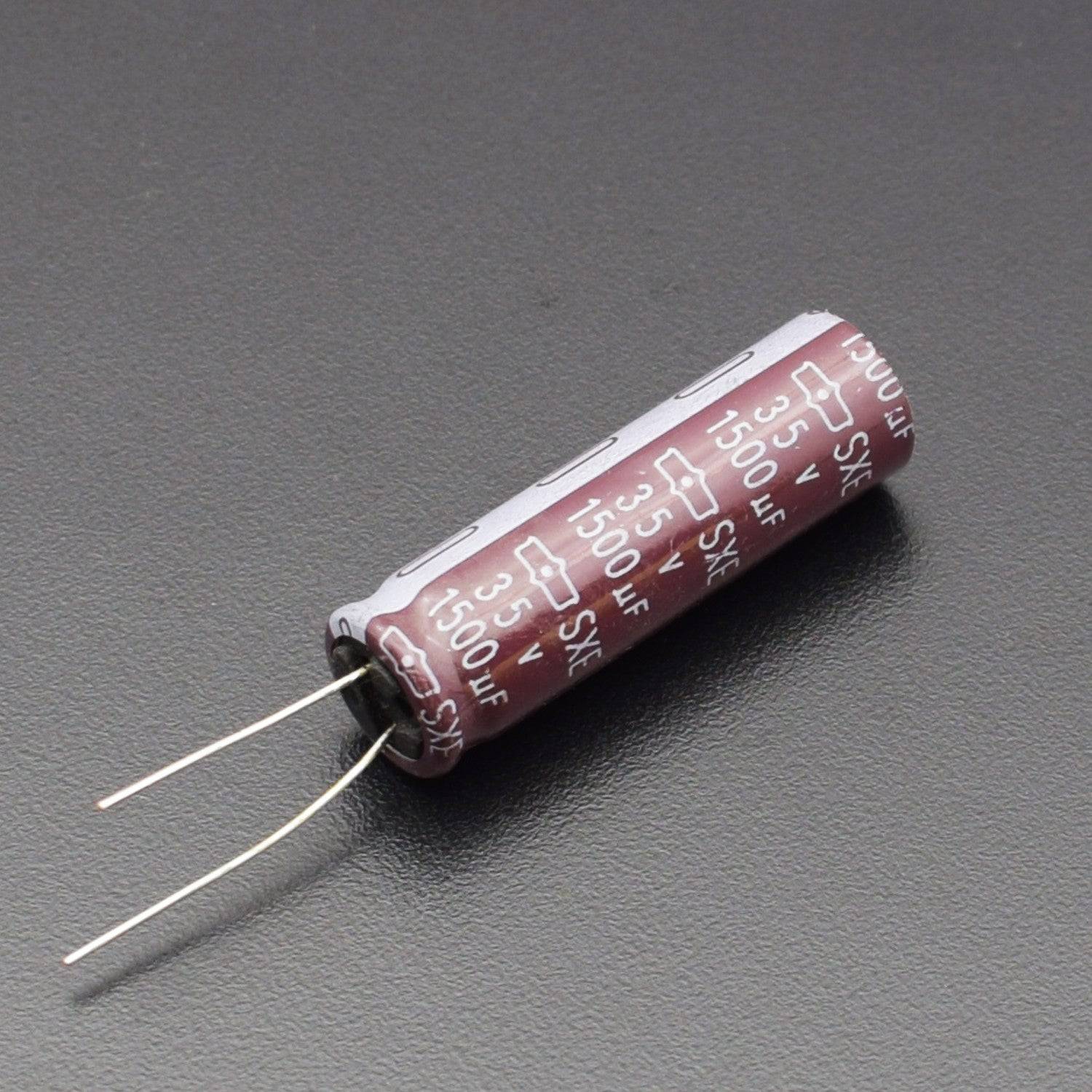

The Electrolytic Capacitors have polarity. Meaning they have a positive and negative pin. The pin which is long is the positive pin and the pin which is short is the negative pin. You can also identify the polarity using the negative strip on the capacitor label. As shown in the picture above the negative pin will be directly under the negative symbol.

Applications:

• Filter circuits like High/Low pass filter etc.
• Remove noise from a circuit
• Smoothing ripples in converters
• Fading LED circuits
• Resonant circuits.

Package Included:

1 x 1500uF 35V Radial Electrolytic Capacitor 105°C
