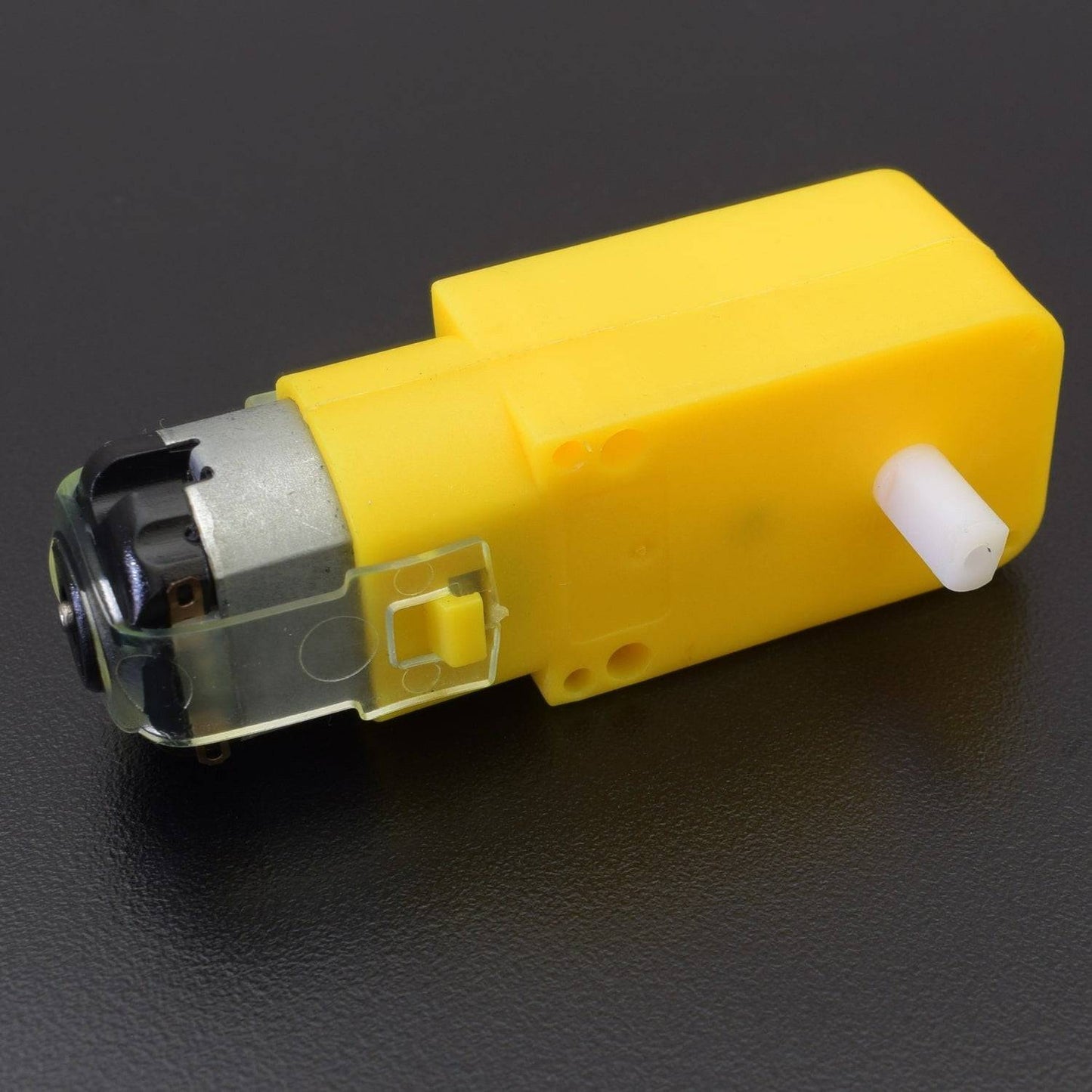

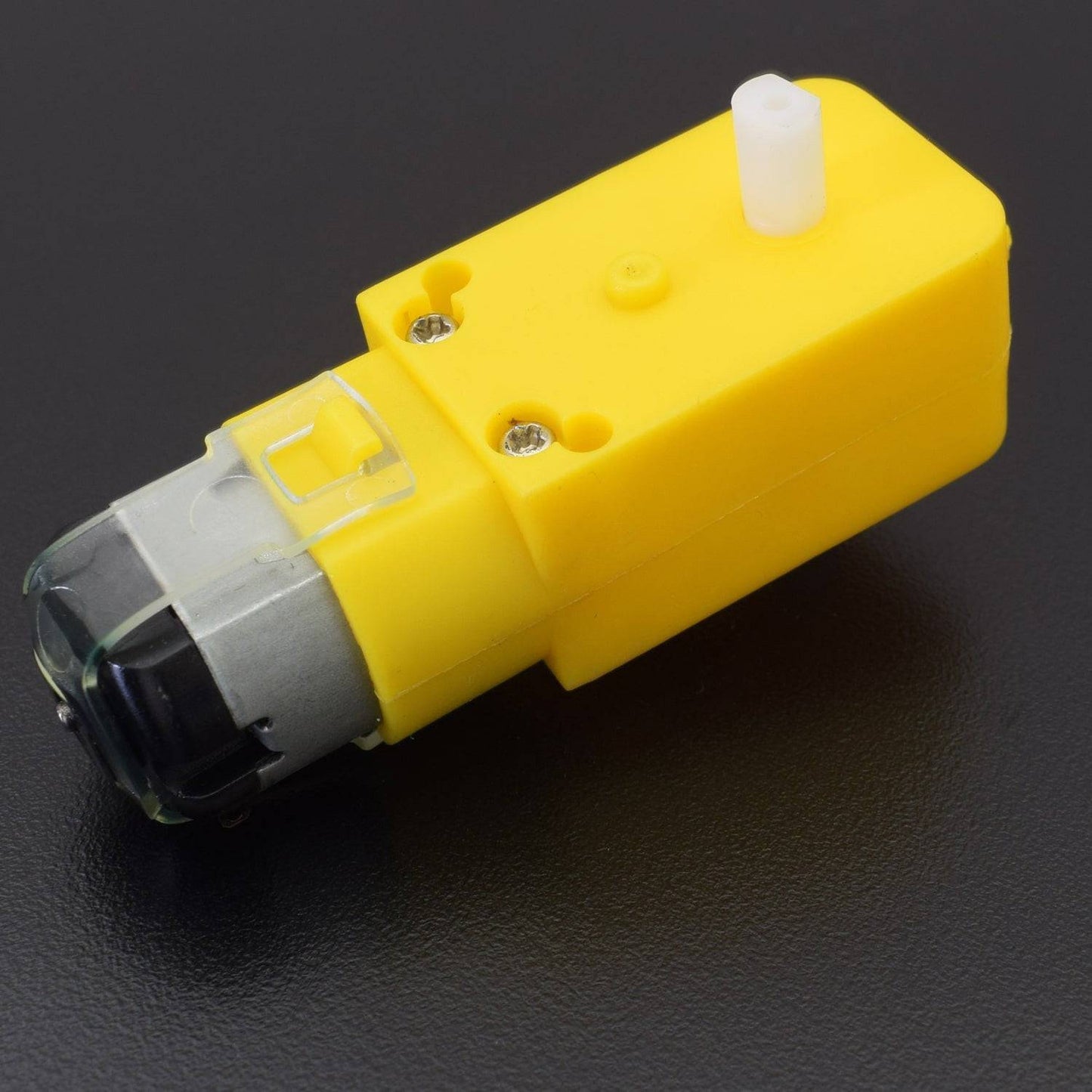

150 RPM Single Shaft BO Rectangle Motor - MR019

150 RPM Single Shaft BO Rectangle Motor - MR019

SKU:MR019

Regular price Rs. 55.00
Regular price Sale price Rs. 55.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
Operating Voltage(VDC)

3~12

Shaft Length (mm)

8.5

Shaft Diameter (mm)

(Double D-type)
5.5

No Load Current

40-180mA.

Rated Speed(After Reduction)

150 RPM

Rated Torque

1KgCm

Weight (gm)

30

Dimensions in mm (LxWxH)

42 x 23 x 55

Gearbox Shape

L-Shape


DESCRIPTION

  • This is a 150 RPM low-cost single shaft DC geared motor.
  • It is most suitable for lightweight robot requiring small power.
  • This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors.
  • Drive shaft has a clutch for non-continuous protection from overload which protects gears from the sudden overload.
  • Motor runs smoothly from 2V to 12V and gives a wide range of RPM, and torque.
  • The table below gives a fairly good idea of the motorâs performance in terms of RPM, no load current as a function of voltage and stall torque, stall current as a function of voltage.

Features :

  • Cost-effectiveness of the injection-molding process.
  • Elimination of machining operations.
  • Low density: lightweight, low inertia.
  • Uniformity of parts.
  • Capability to absorb shock and vibration as a result of elastic compliance.
  • Ability to operate with minimum or no lubrication, due to inherent lubricity.
  • The relatively low coefficient of friction.
  • Corrosion-resistance; elimination of plating, or protective coatings.
  • The quietness of operation.
  • Tolerances often less critical than for metal gears, due in part to their greater resilience.
  • Consistency with the trend to greater use of plastic housings and other components.

Specification:

Operating Voltage(VDC)

3~12

Shaft Length (mm)

8.5

Shaft Diameter (mm)

(Double D-type)
5.5

No Load Current

40-180mA.

Rated Speed(After Reduction)

150 RPM

Rated Torque

1KgCm

Weight (gm)

30

Dimensions in mm (LxWxH)

42 x 23 x 55

Gearbox Shape

L-Shape

Dimensions :
