Description:
This 15 RPM N20 Gear Motor is a durable DC motor with a small size, a high torque, and an all-metal gear that resists wear and tear. 3V Micro Metal Gear Motor is an ideal replacement for the DC geared speed reduction motor that is rusty or damaged on your machine. You can use the Mini Gear Motor for various applications, such as boats, cars, electric bicycles, fans, and home appliances.

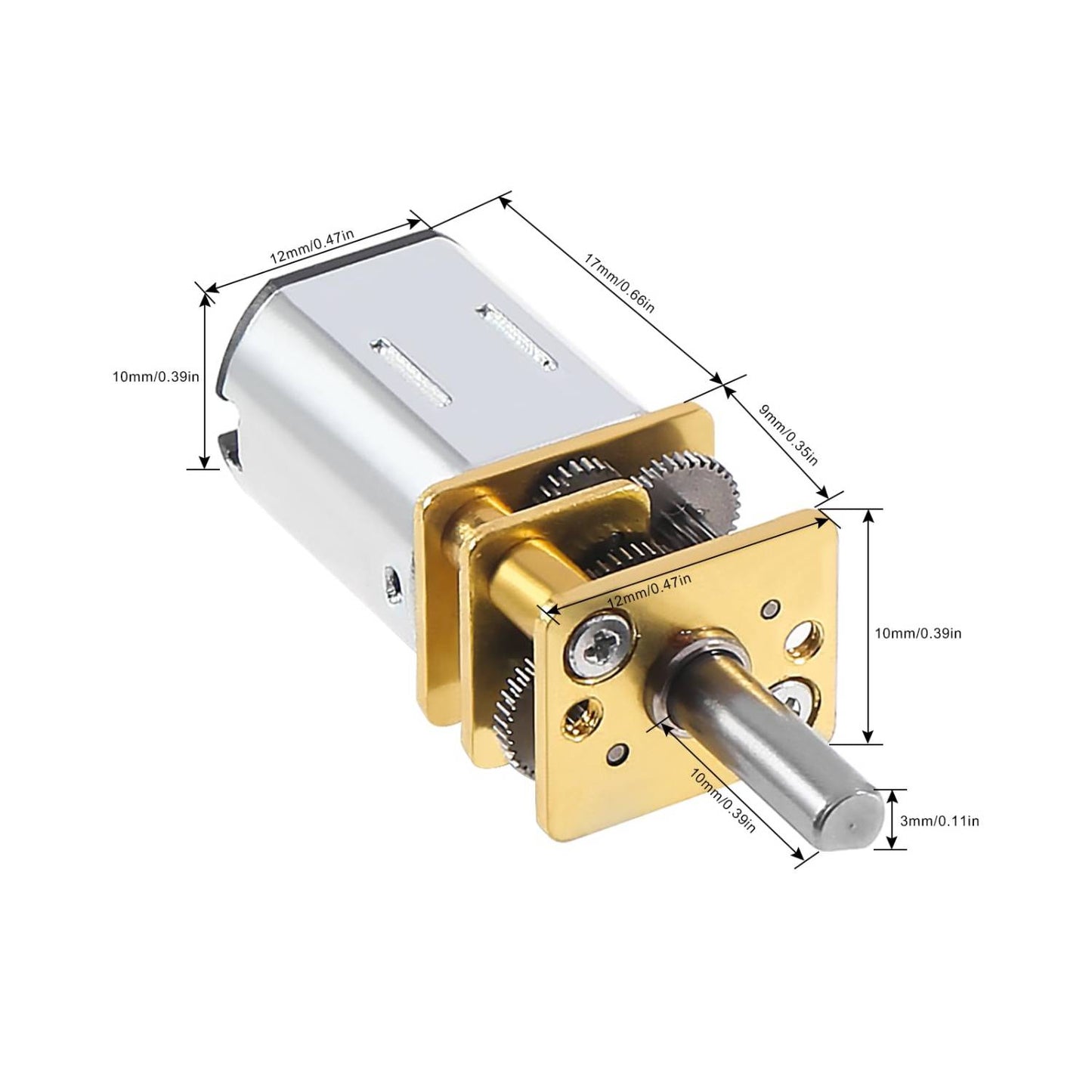

The N20 Micro Gear Motor is a low-RPM motor that is lightweight and has a high torque. It comes with a gearbox assembly that increases the motor’s torque. The N20 3V 15RPM Gear Motor has a 10 × 12 mm cross-section, and the gearbox output shaft is D-shaped, 9 mm long, and 3 mm in diameter. The motor’s small size makes it suitable for small-scale applications that require complex space arrangements. You can attach this Micro Gear Motor to wheels to move them from one place to another while carrying heavy loads.
Specifications:
| Motor Type |
Center Shaft DC Geared Motor |
| Rated Operating Voltage |
3V DC |
| No Load Current |
0.01mA |
| Stall Current |
1.0A |
| Rated Speed |
10RPM |
| Operating Voltage |
1.5 ~ 5V DC |
| Rated Torque |
0.5 kg-cm |
| Stall Torque |
4.0 kg-cm |
| No-load speed |
15RPM |
| Gear Ratio |
298: 1 |
| Shaft Type |
D-type |
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, one can climb hills easily.
- You can also easily mount a wheel on the motor's output shaft.
Package Included:
1 x 15 RPM N20 Gear Motor 3V Micro Metal Gear Motor Mini Gear Motor N20 Micro Gear Motor N20 3V 15RPM Gear Motor
