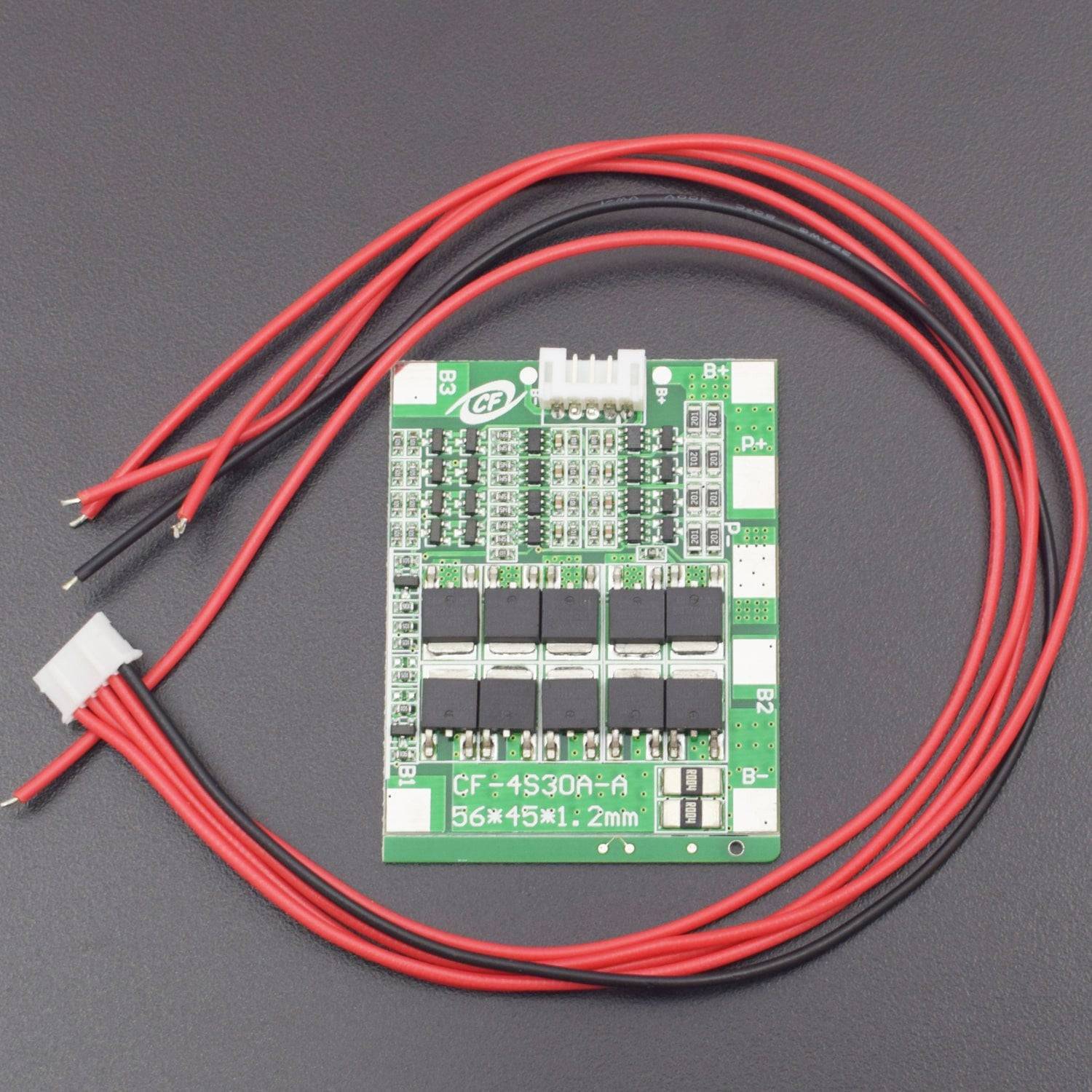

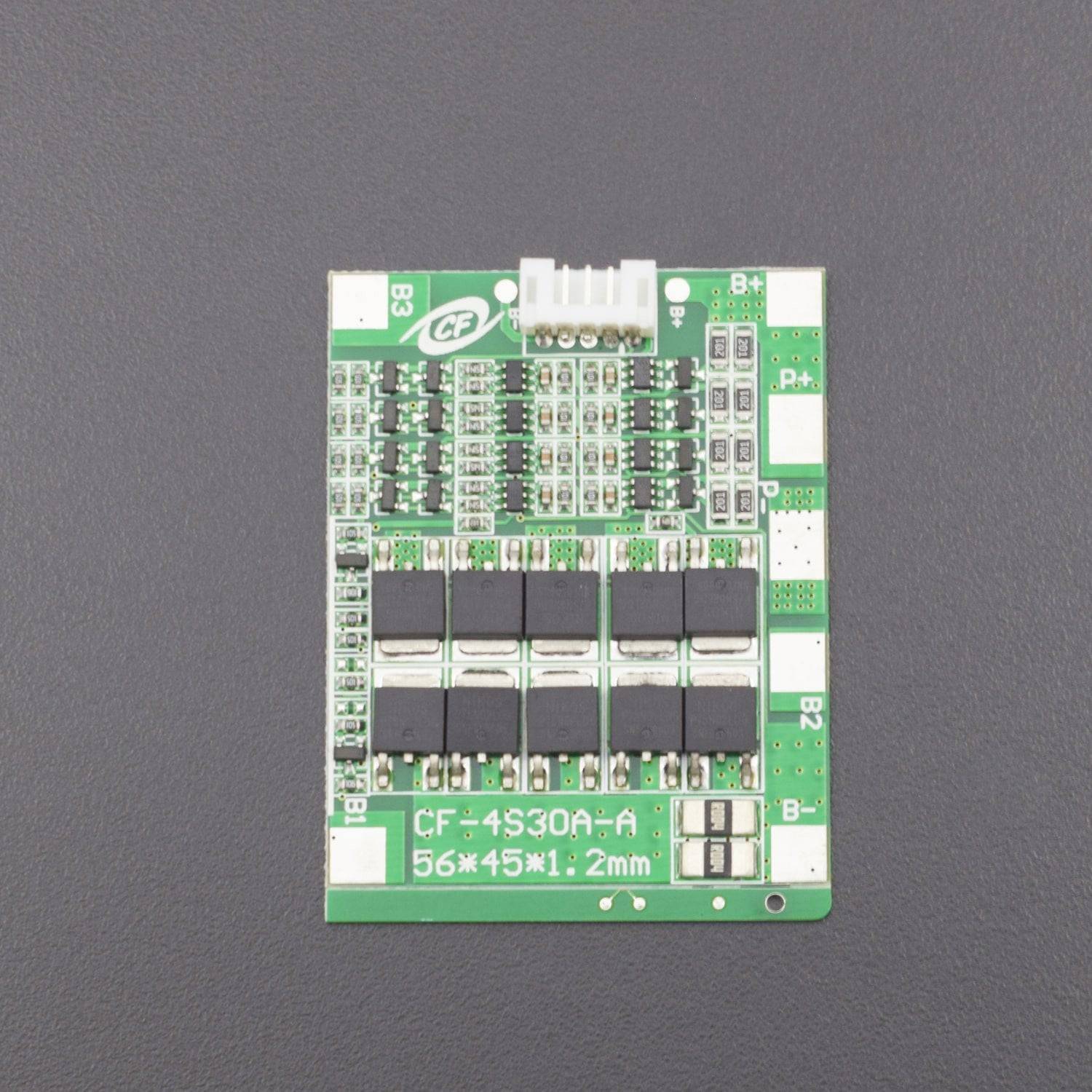

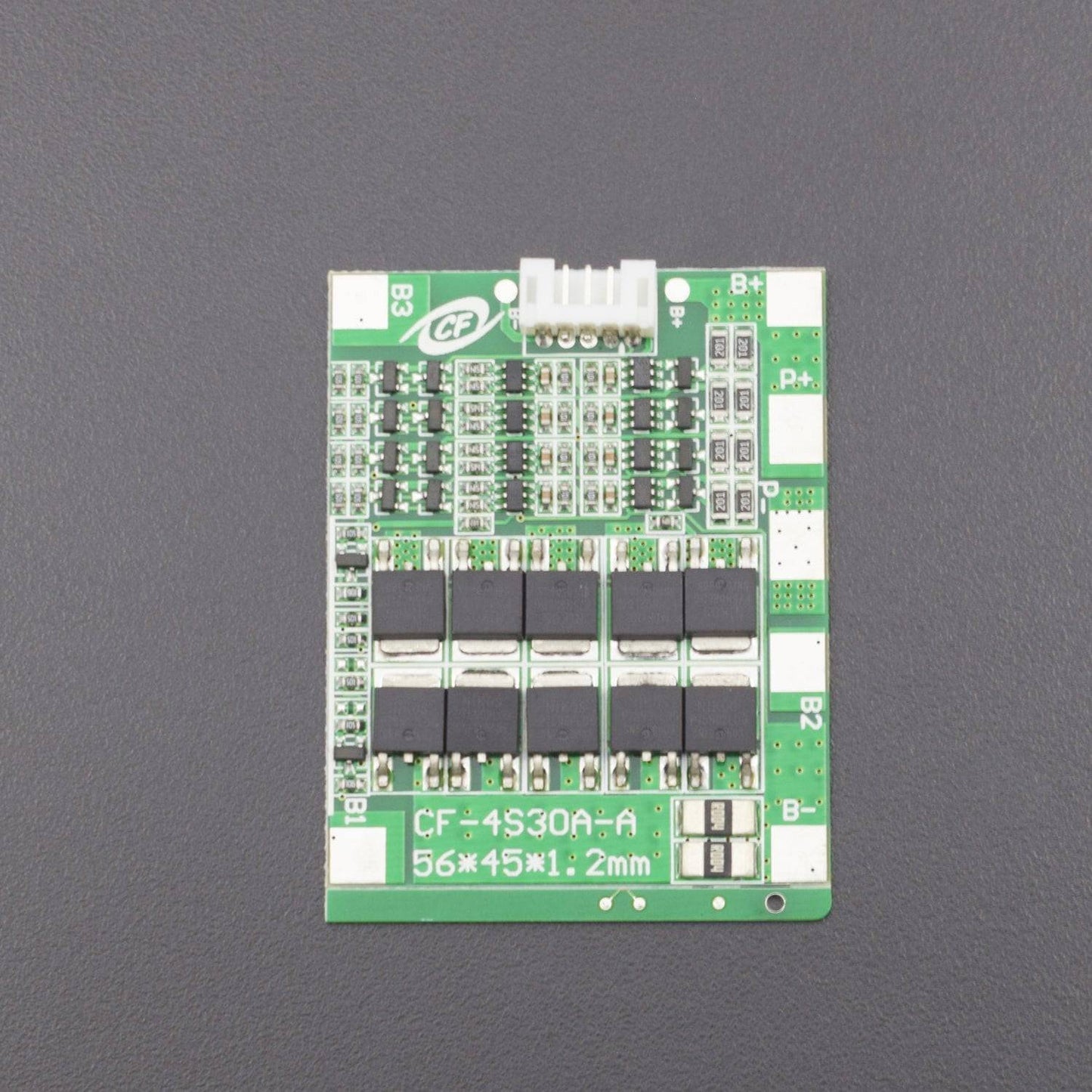

14.8V 4S 30A 18650 Lithium Battery BMS PCB Integrated Circuits Protection Board PCB Cell Protection Board- RS1808

14.8V 4S 30A 18650 Lithium Battery BMS PCB Integrated Circuits Protection Board PCB Cell Protection Board- RS1808

SKU:RS1808

20 in stock

Regular price Rs. 320.00
Regular price Sale price Rs. 320.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Overcharge detection voltage: 3.9+ 0.05 V
  • Over charging voltage: 3.9+ 0.05 V
  • Over discharge voltage: 2.55±0.08
  • Overcharge detection delay time: 0.1s

Description:

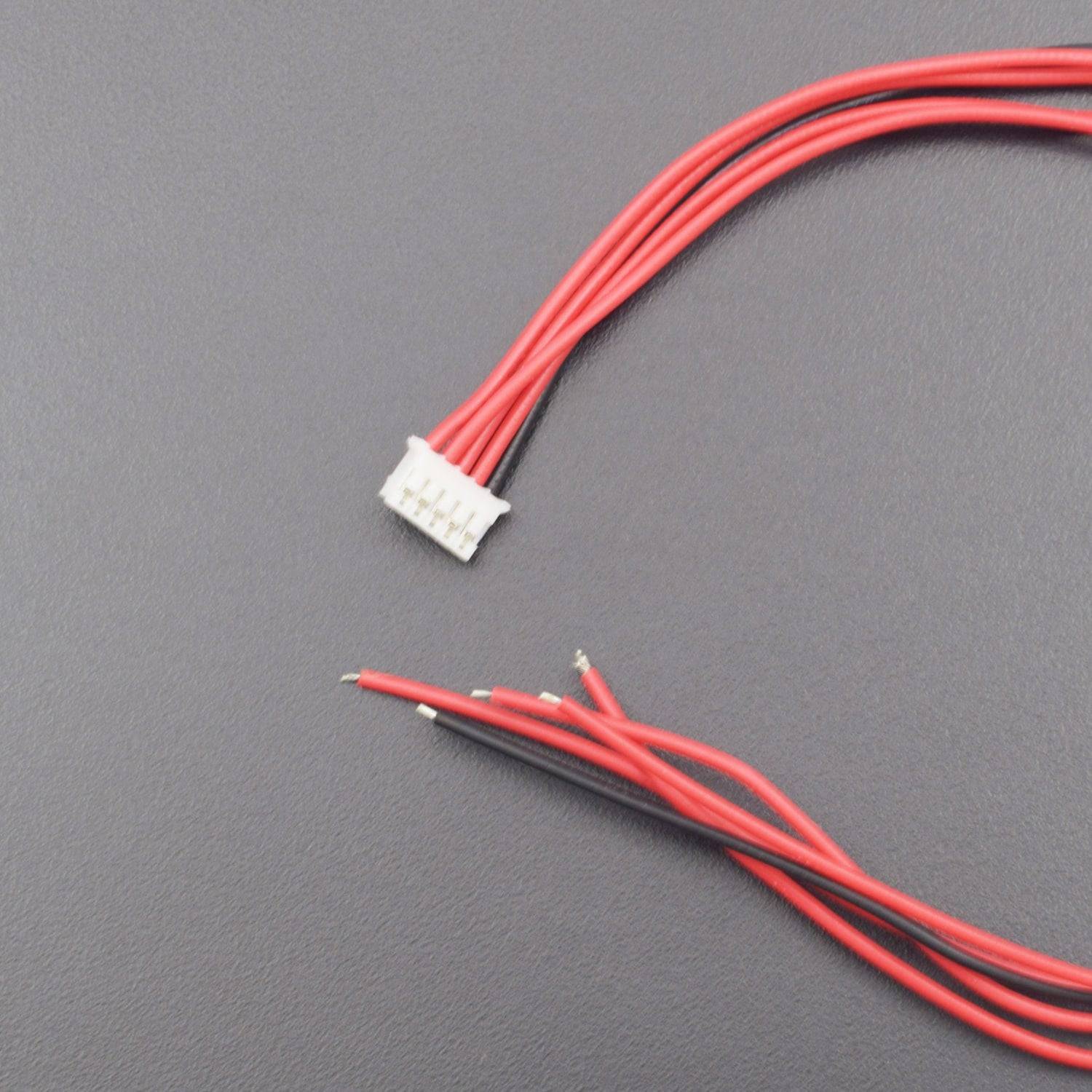

4 Series 30A 18650 Lithium Battery Protection Board 14.8V 16V with Cable, a Balance Board for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides continuous discharge of 30A, Balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use). The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance). The Board comes in a size of approx. 46 x 60 x 3.4 mm which can be easily installed in a compact size or on battery bundle itself.

Specification:

Overcharge detection voltage

3.9+ 0.05 V

Over charging voltage

3.9+ 0.05 V

Over discharge voltage

2.55±0.08

Overcharge detection delay time

0.1s

Temperature range

-30-80 Degree Cel.

Short circuit detection delay time

100ms

Over current detection delay time

500 ms

Balanced current

60mA

Working current

30A

Over current

60A

Package Included:

1 x 14.8V 4S 30A 18650 Lithium Battery BMS PCB Integrated Circuits Protection Board PCB Cell Protection Board
