- Material: PVC
- Operating Distance: Up to 100mm
- Operating Frequency: 13.56 MHz
- Data Transfer: 106 kbps
- Data Integrity: 16 bit
Description:
This is RFID 13.56MHz Card used for Contactless transmission of data and supplies energy with no battery needed. Its Operating distance is Up to 1 Meter depending on antenna geometry. Operating frequency is 13.56MHz and Data transfer speed is 106 kbit/s. It is featured with Data integrity of 16 Bit CRC, parity, bit coding bit counting which allows Anti collision. These cards are typically used in ticketing transaction: <100 ms including backup management.
Specification:
| Material | PVC |
| Operating Distance | Up to 100mm (depending on antenna geometry) |
| Operating Frequency | 13.56MHz |
| Data Transfer | 106 kbit/s |
| Data Integrity | 16 Bit |
| Typical Ticketing Transaction | <100 ms |
| Data Storage Time | minimum 10 years |
Features:
- Can read and write, large storage capacity, with an encryption function, data recording and reliable, more convenient to use.
- High security.
- The recorded content can be erased repeatedly.
- Can run away from the computer platform to achieve the Internet and offline automatic conversion mode of operation, to achieve a wide range of use, less wiring needs.
Application:
- Public transportation
- Access control
- Event Ticketing
- Gaming & identity
Package Included:

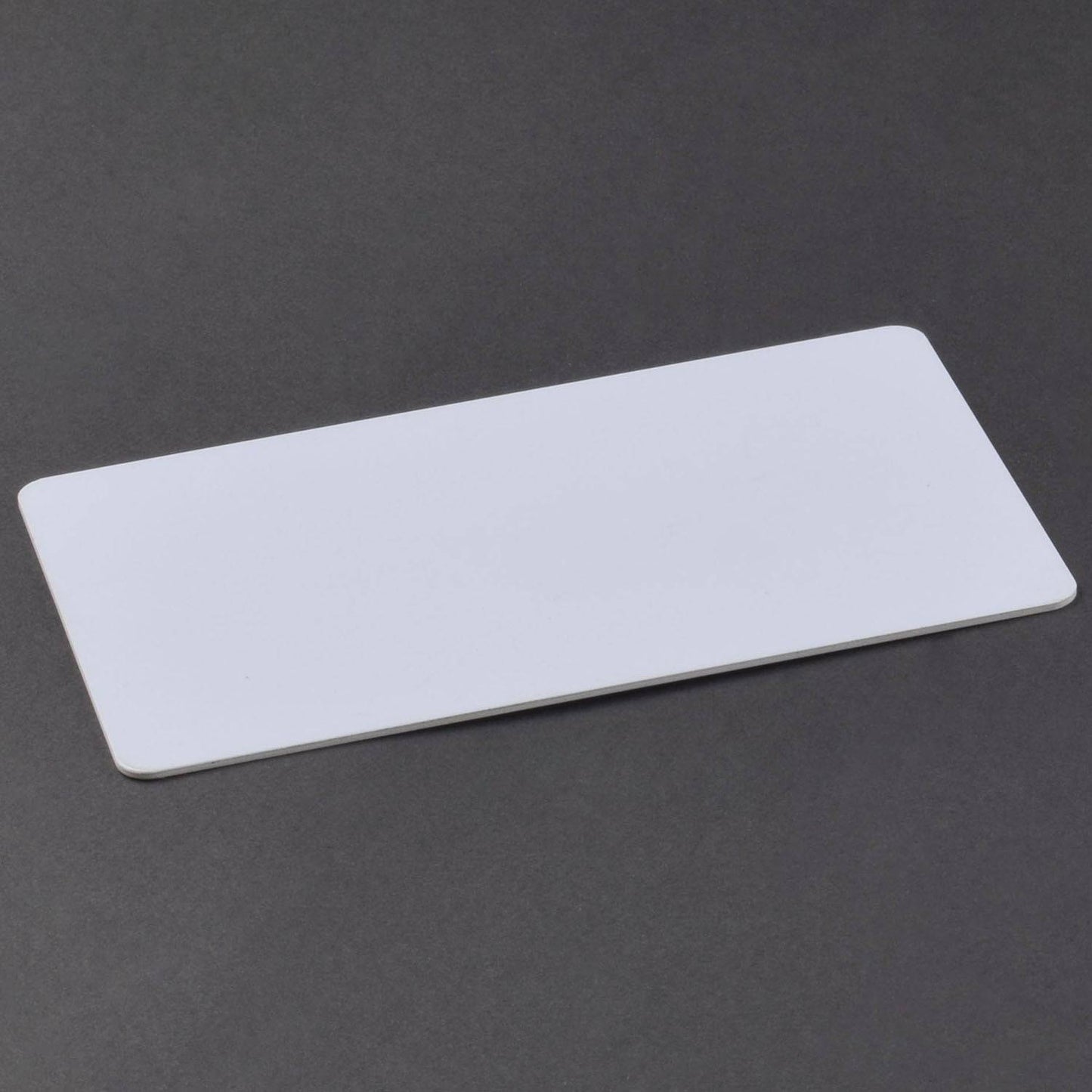

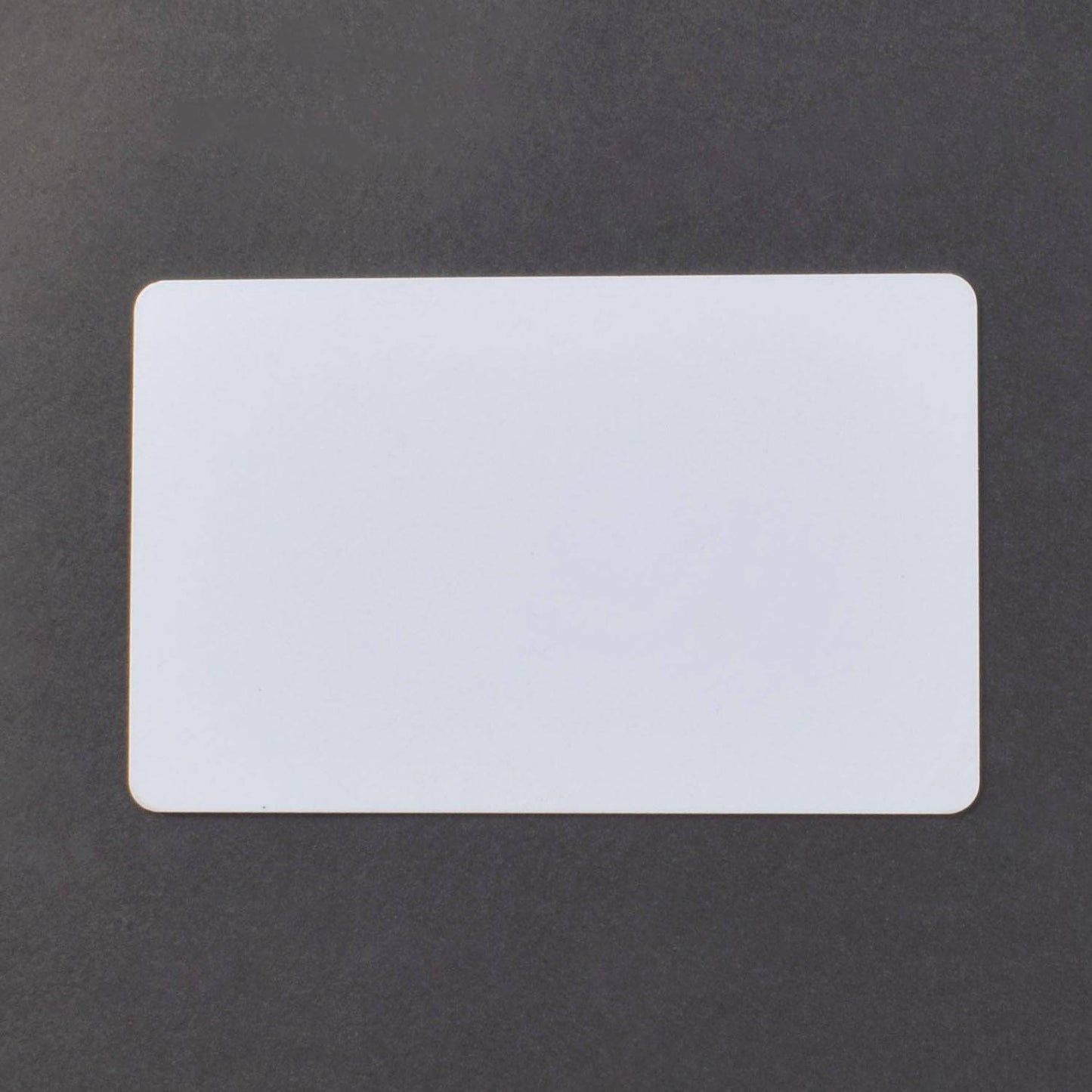

1 x 13.56mhz Inductive Smart Integrated Circuit Card RFID Card IC Card
