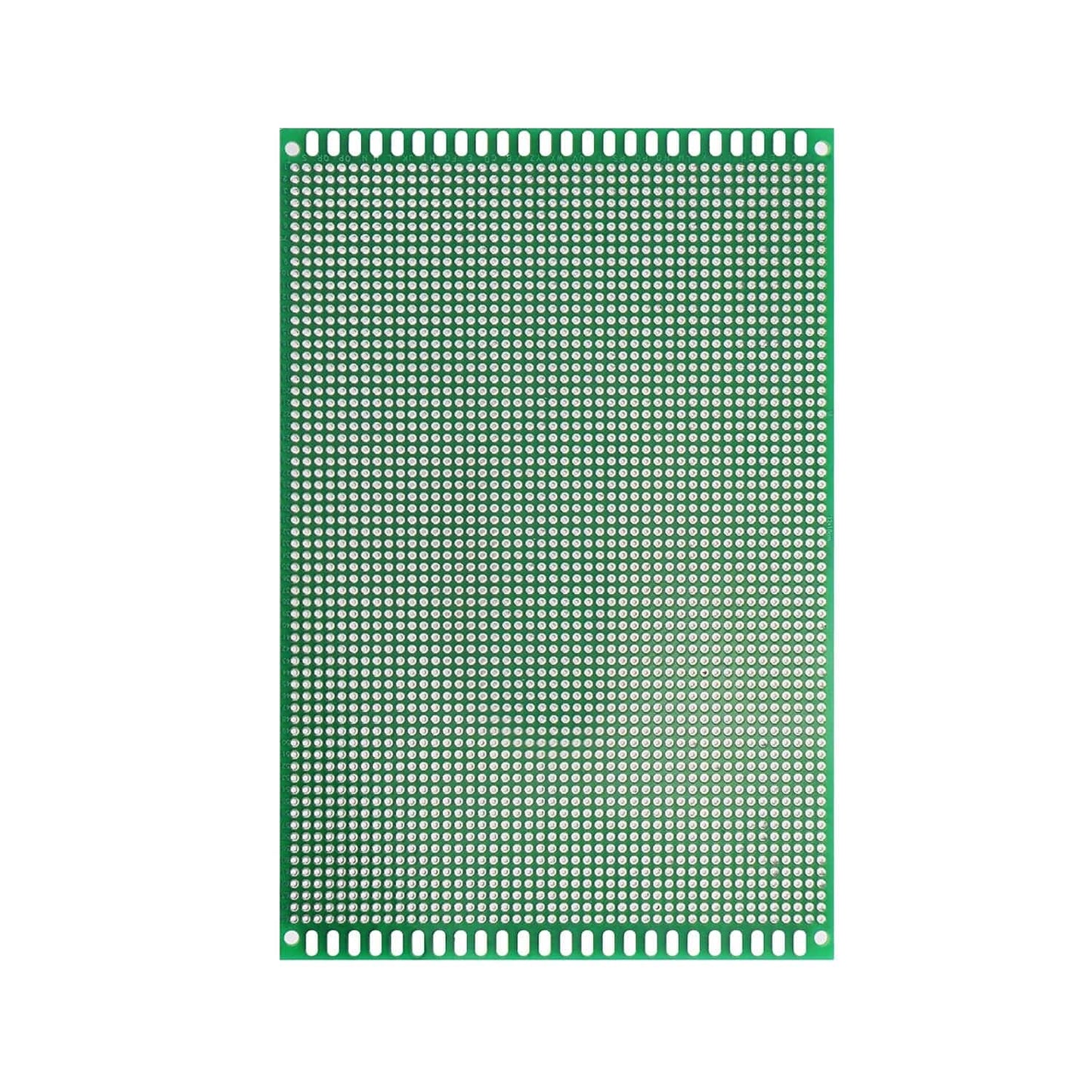

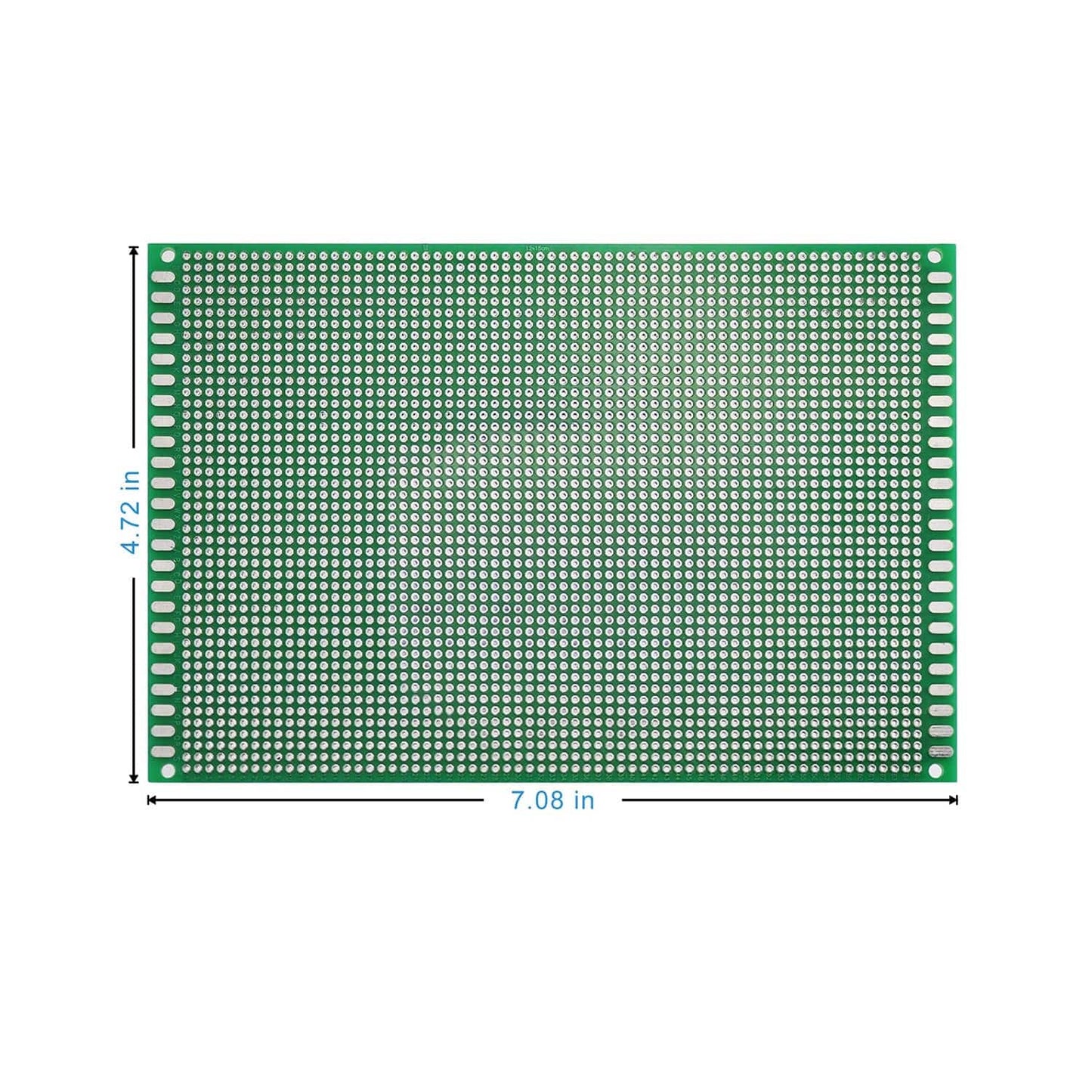

12x18cm Double Sided PCB Board Universal Soldering PCB Board Tinned Through Holes Universal Printed Circuit Proto Board 2.54mm - RS6903

12x18cm Double Sided PCB Board Universal Soldering PCB Board Tinned Through Holes Universal Printed Circuit Proto Board 2.54mm - RS6903

SKU:RS6903

98 in stock

Regular price Rs. 114.00
Regular price Sale price Rs. 114.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The 12x18cm Double Sided PCB Board Tinned Through Holes Universal Printed Circuit Proto Board. This means the PCB has copper traces (conductors) on both sides of the board. Double-sided PCBs allow for more complex circuit designs and can accommodate more components compared to single-sided boards.

This 12x18cm Double Sided PCB Board is designed for prototyping purposes. Prototyping boards often feature a grid of holes or pads spaced at a standard pitch (often 2.54mm or 0.1 inch), allowing components to be easily mounted and interconnected using soldering techniques.

Specifications:

  • Material:  FR-4
  • Hole Size: 0.8 - 1.0 mm diameter.
  • Layers: Double-sided PCB with copper traces on both sides.

Features:

  • 12x18cm Double Sided PCB Board is likely to have a solder mask coating applied. A solder mask is a protective layer that covers the copper traces on the board, except where the components are soldered. It helps prevent short circuits and corrosion.
  • The holes are typically spaced on a standard pitch, commonly 2.54 mm (0.1 inch) apart. This allows for easy mounting of through-hole components and prototyping.
  • The plated holes are pre-tinned/pre-coppered and very solid which makes them very easy to soldering components on.

Package Included:

1 x 12x18cm Double Sided PCB Board, Universal Soldering PCB Board, Tinned Through Holes Universal Printed Circuit Proto Board 2.54mm
