12Volt DC Motor(Multipurpose Brushed Motor for DIY applications PCB Drill) - RS833
12Volt DC Motor(Multipurpose Brushed Motor for DIY applications PCB Drill) - RS833
SKU:RS833
98 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- High Torque Rated Voltage Current : DC 12V
- Speed: 4000RPM Motor
- Shaft Diameter: 3.17mm Mounting
- Diameter of the Motor: 36mm Length of the Motor (Body): 50mm Length of Shaft: 16mm
- No load Power Consumption- 2.4 Watts (Max ~15 Watts)
Description:

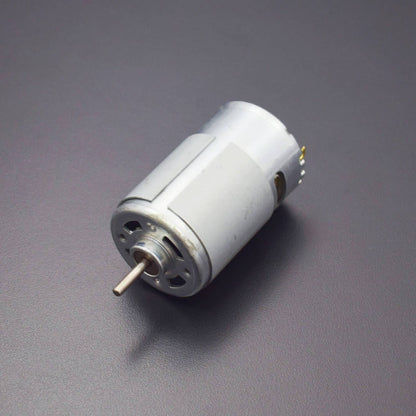

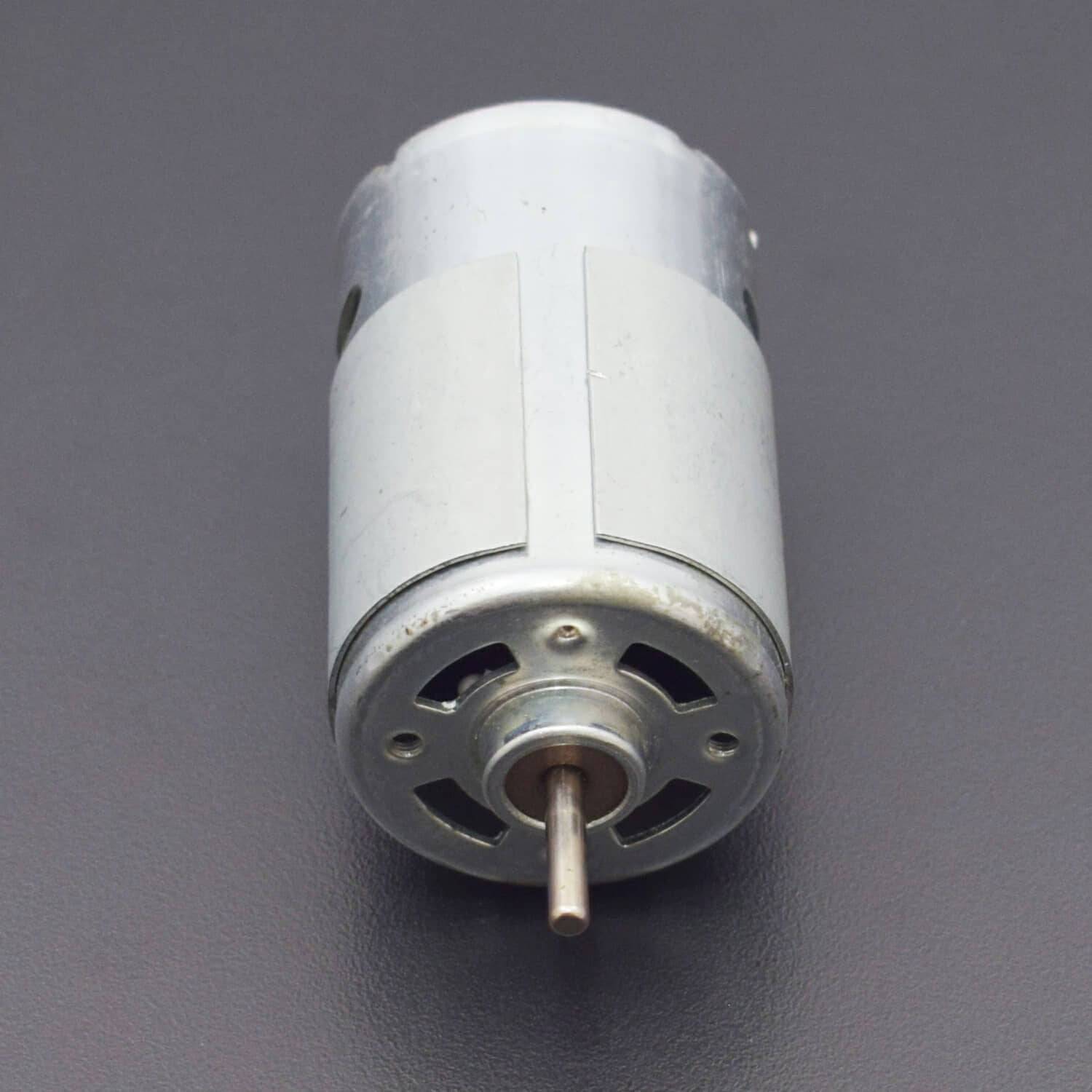

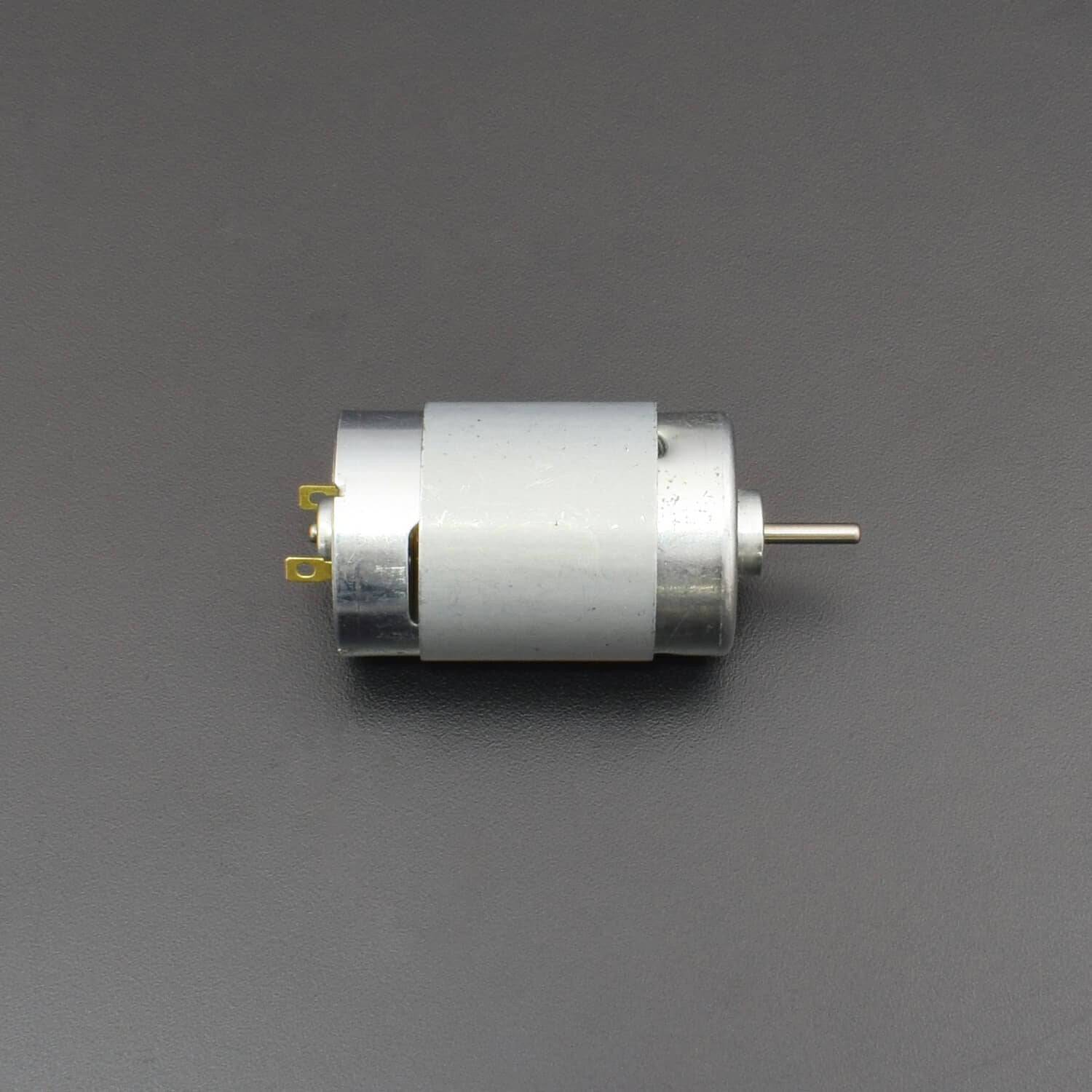

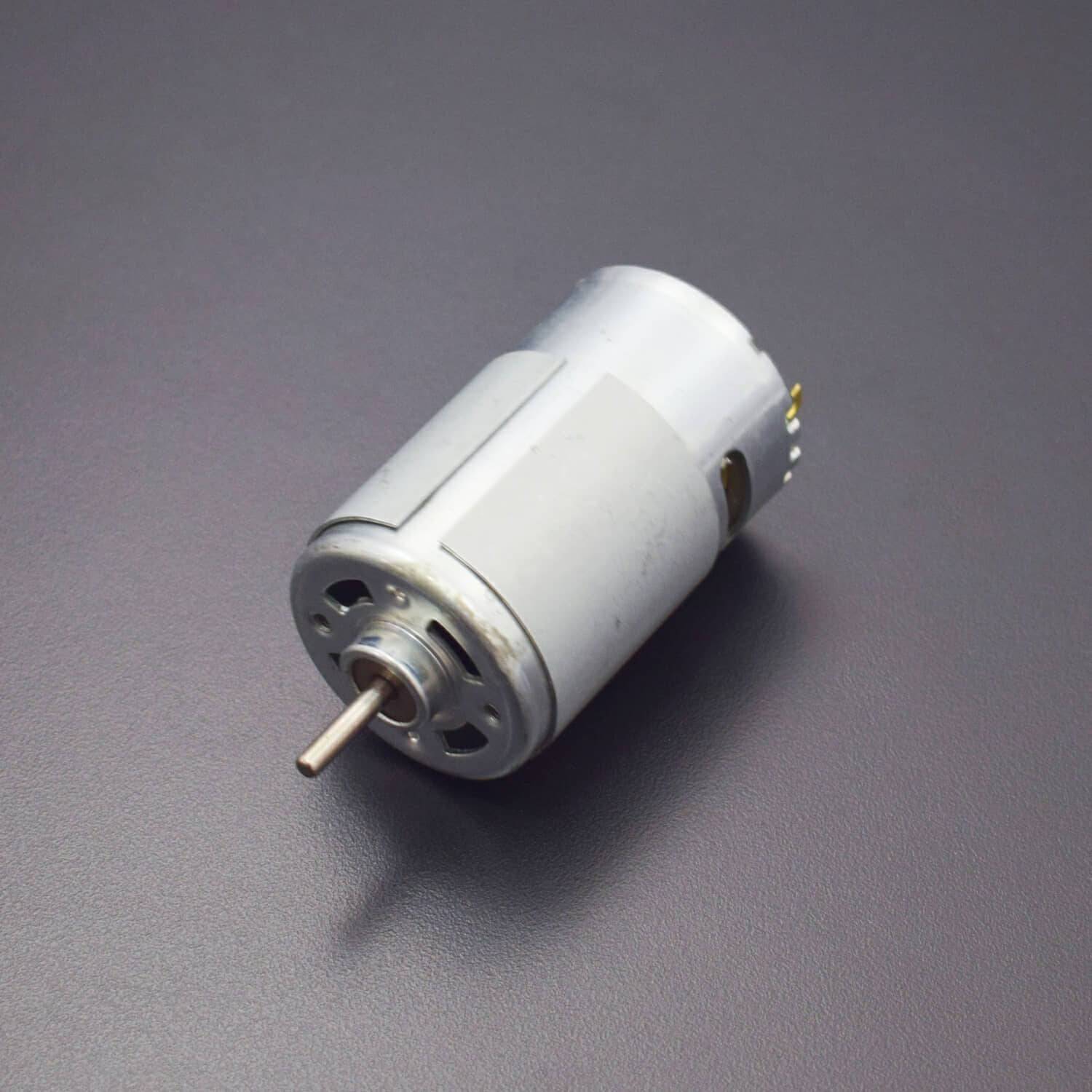

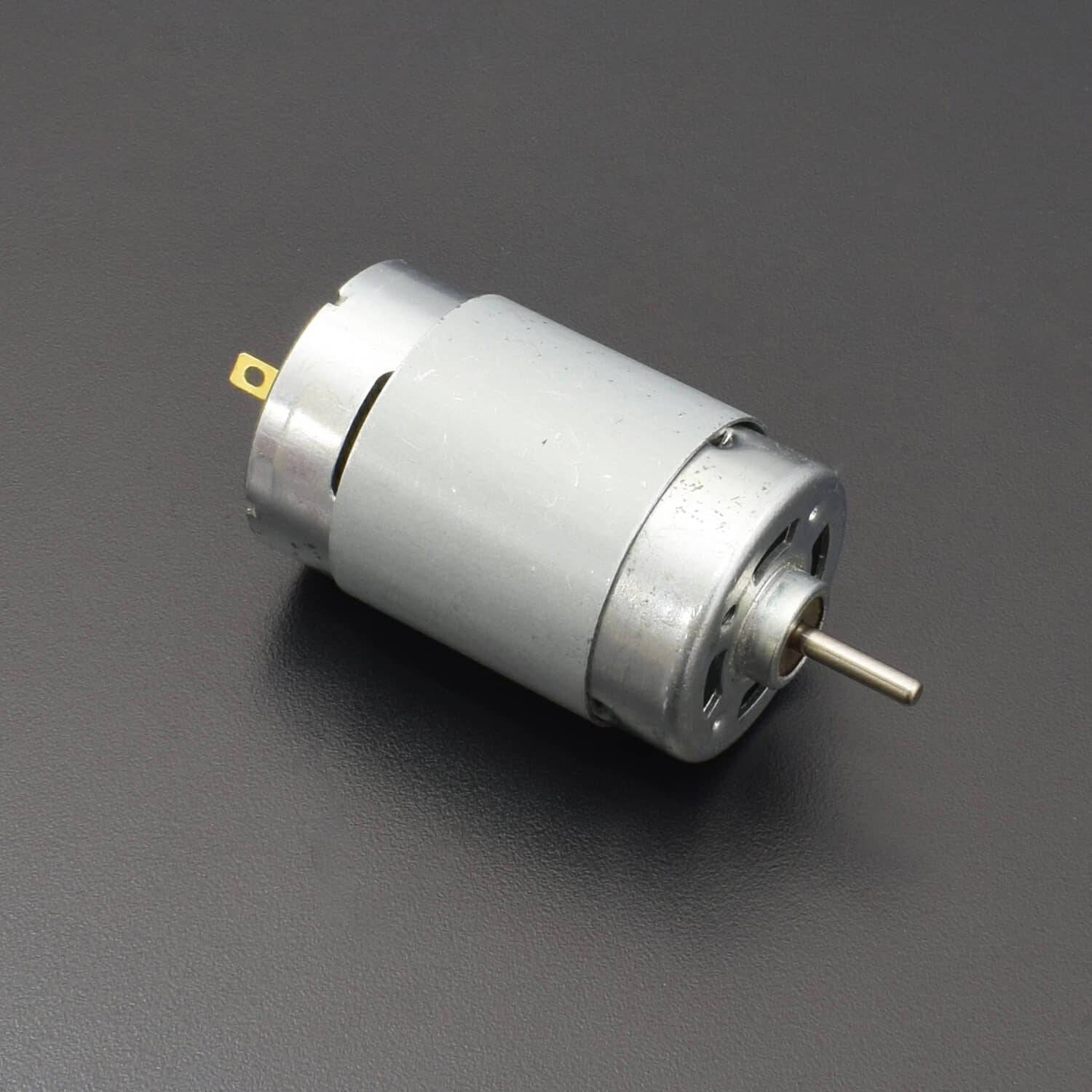

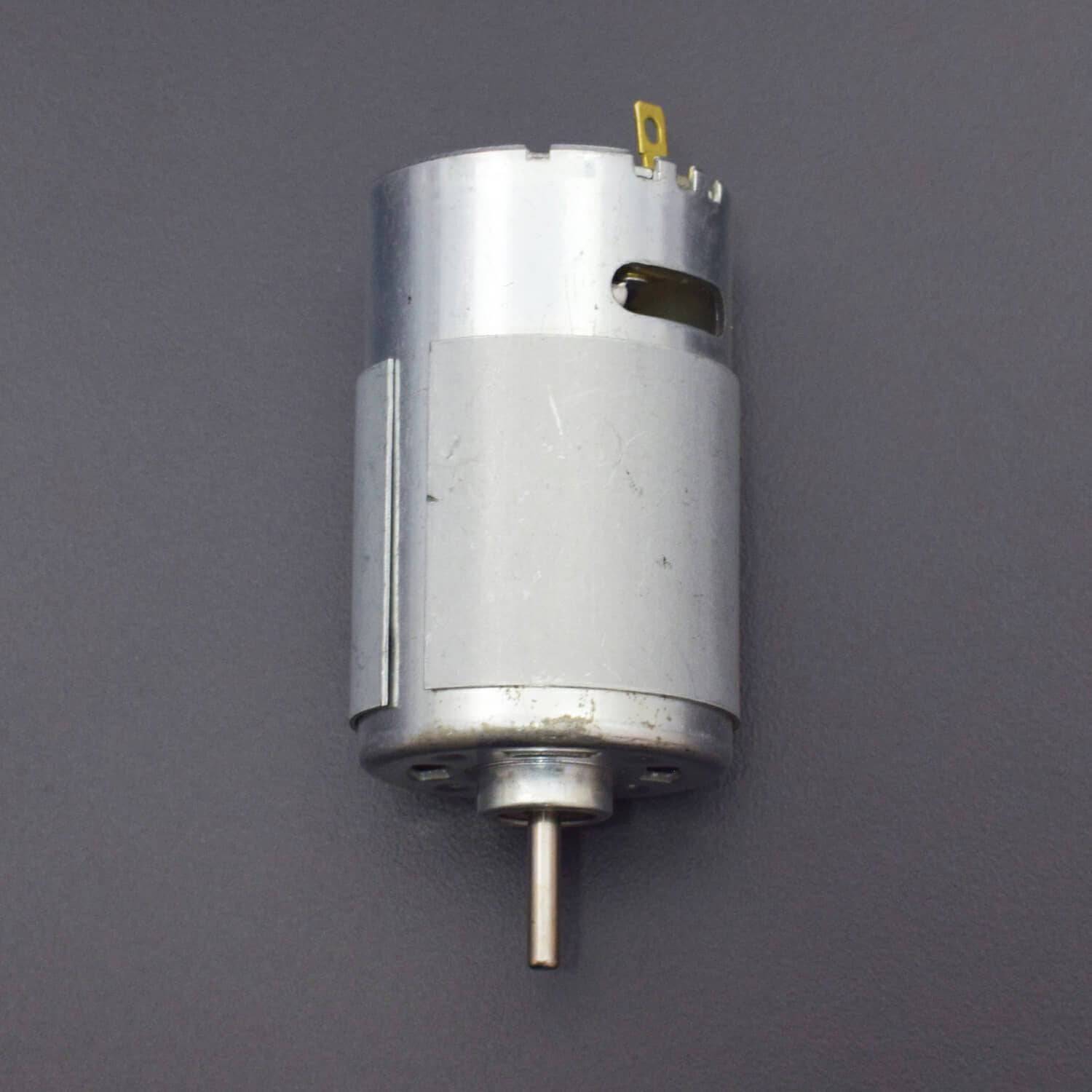

This is a 12Volt DC Motor(Multipurpose Brushed Motor for DIY applications PCB Drill). Great for the rusty or damaged DC motor on the machine. To run this motor, you would need a 12 Volt DC Power supply. Perfect for various use in electric tool motors, power is very large, you can make a small spindle motor, and is also suitable for DIY aspect.
Specification:
- High Torque Rated Voltage Current: DC 12V
- No Load Current: 0.2 Amps (Max 1.2 Amps)
- No load Power Consumption: 2.4 Watts (Max 15 Watts)
- No Load Speed: 4000RPM
- Motor Shaft Diameter: 3.17mm
- Mounting Screw Hole Diameter: 3mm
- Distance between Screw Holes: 25mm
- Diameter of the Motor: 36mm
- Length of the Motor (Body): 50mm
- Length of Shaft: 16mm
- Main Color: Silver Tone
- Material: Metal
- Net Weight: 150gm
Features:
- Cylindrical shape and with 3mm diameter shaft and 2 pin connectors
- The Amperage rating on it should be 1 Amp or above.
- Alternatively, you can also directly connect it to a 12 Volt Battery.
- Ball bearing, with cooling fan.
- Copper sets of back-end
- 5 groups winding
- At a voltage of 12V
- Large torque
- Low noise.
Package Included:
1 x 12Volt DC Motor(Multipurpose Brushed Motor for DIY applications PCB Drill)
