Description:

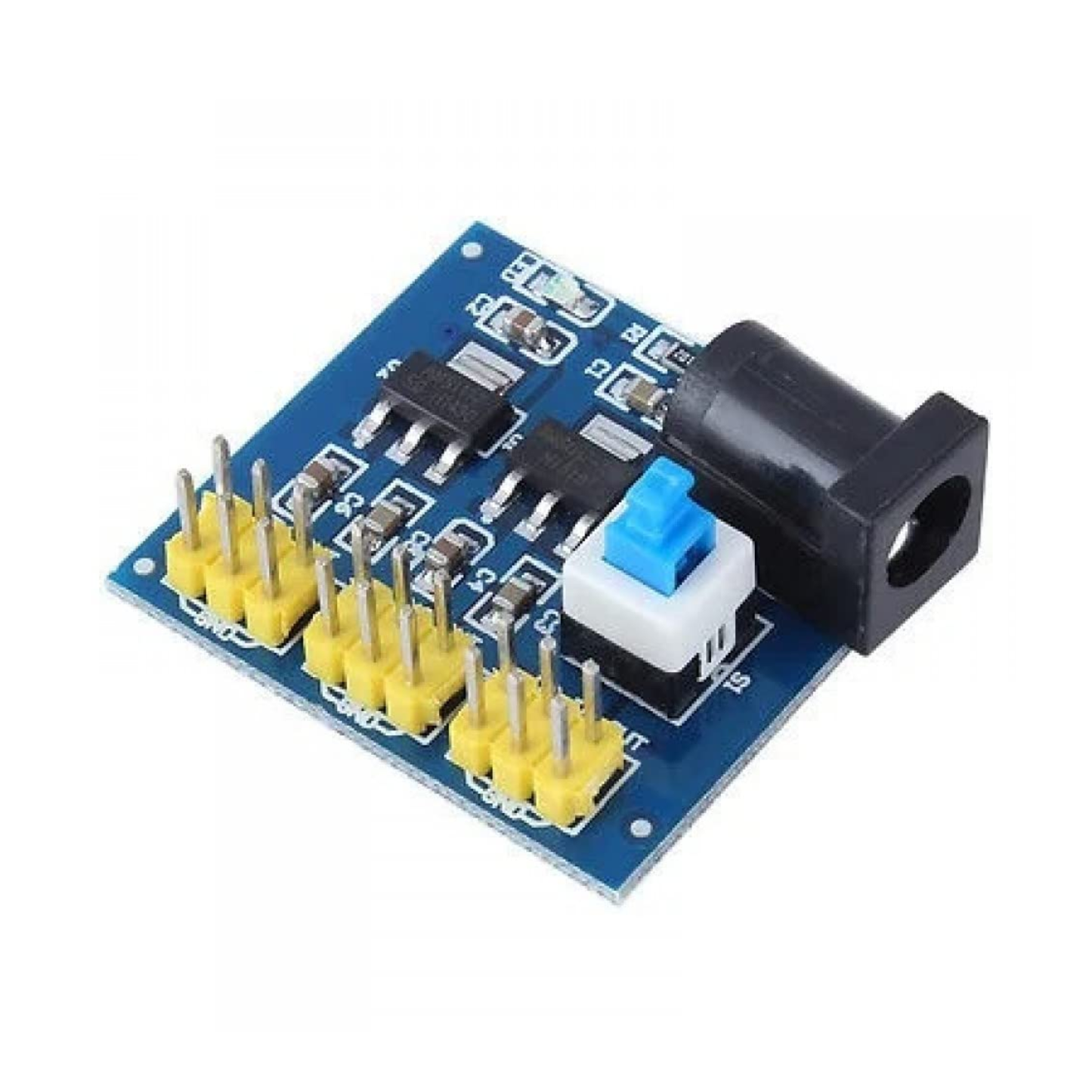

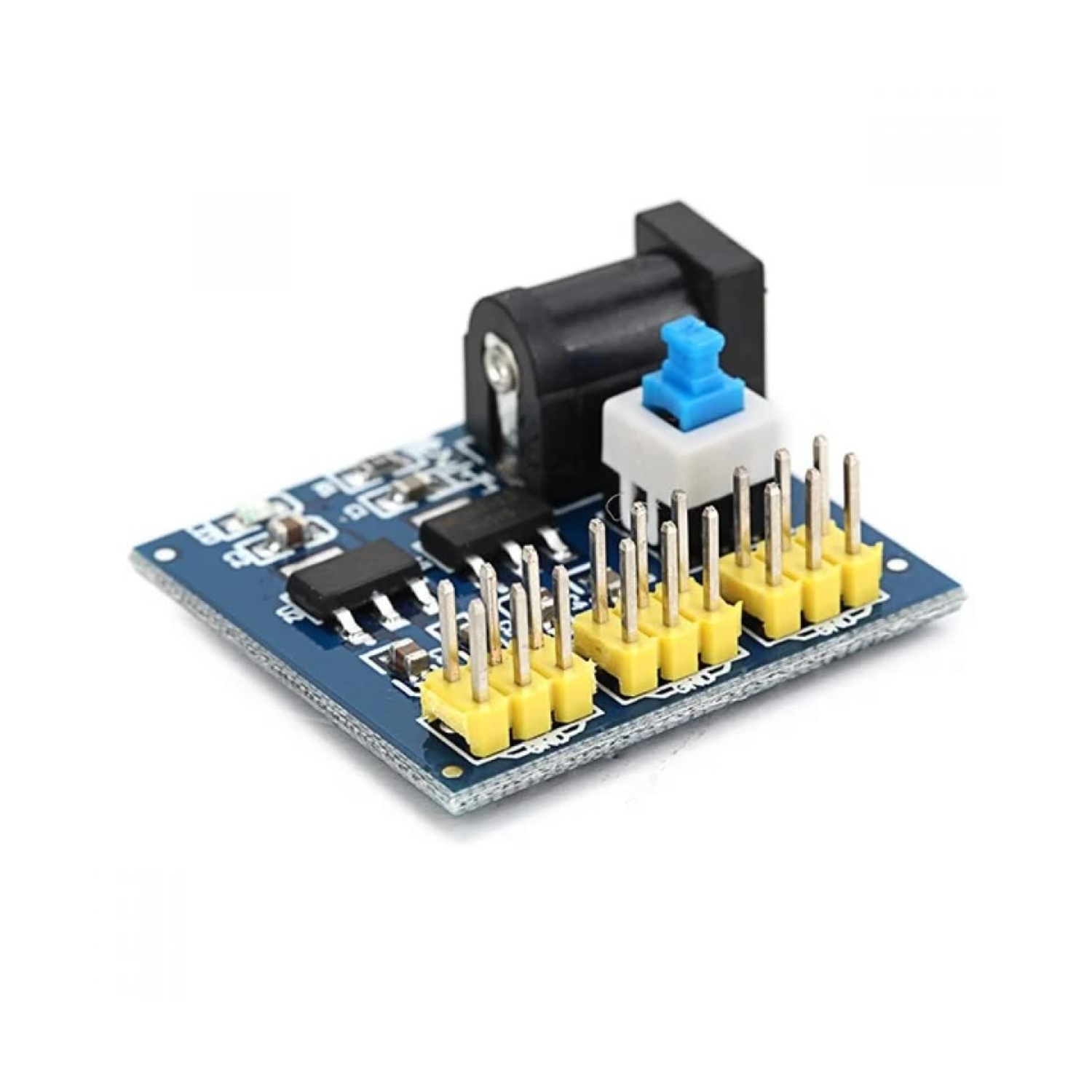

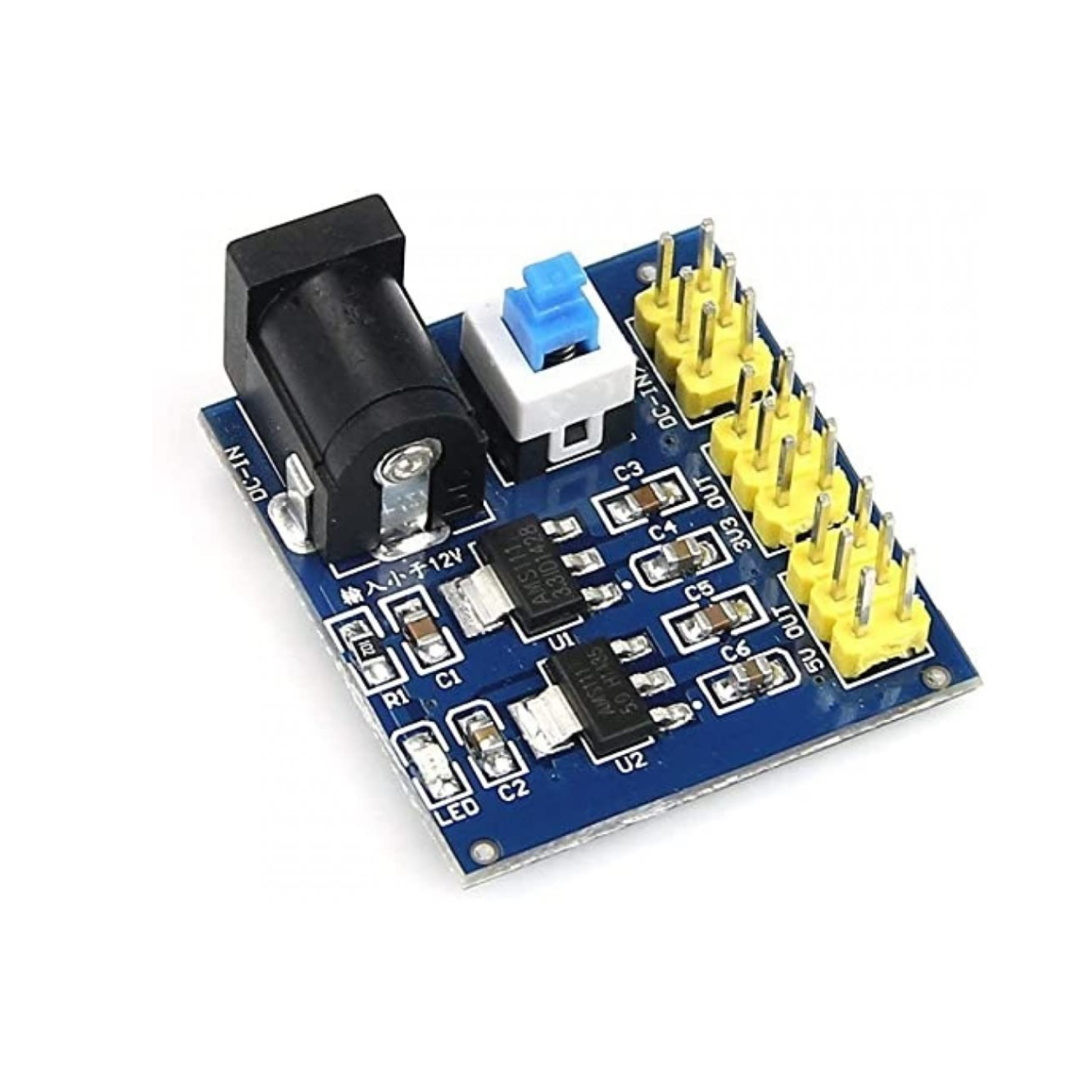

12V to 3.3V 5V 12V DC-DC Voltage Converter power module efficiently converts a 6V to 12V DC input into three distinct outputs: 3.3V, 5V, and a direct pass-through of the input voltage (12V nominally). Also known as a buck converter or step-down voltage converter, this module regulates the input voltage to provide stable and reliable power to your connected devices.
Its multi-output design makes it an invaluable tool for electronics projects, allowing you to power multiple components with different voltage requirements simultaneously. Ideal for DIY enthusiasts and professional engineers alike, this compact and easy-to-use module simplifies power management in a wide range of applications, from hobbyist projects to embedded systems. Keep a few of these essential power supplies on hand for your next electronic design or repair.
Specification:
- Input Voltage: 6~12V
- Connector: 5.5mm Power Jack
- Output Voltage: 3.3V and 5V
- Error Voltage: 0.05V
Features:
- Output power on/off switch
- Two-row multiple-pin outputs, easy to use and connect
- Red LED illuminates when input DC power is supplied and output is turned ON.
- Outputs
- 3.3V DC at 800mA maximum current
- 5.0V DC at 800mA maximum current
- 12V DC (the 12V output is directly connected to the input, i.e. with 12VDC input, this output will be 12VDC; with 9VDC input, this output will be 9VDC)
- Small and Handy Module.
- Dual-side plate design
- Easy to use.
Package Included:
1 x 12V to 3.3V 5V 12V DC-DC Voltage Converter
