Description:
12V 5050 RGB LED Strip Controller box with 24 Key IR Remote Control Are you searching for a good Quality RGB Strip driver? Here you can end your search. This 12V 5050 RGB LED Strip Controller box with 24 Key IR Remote Control out of the box will serve the purpose.

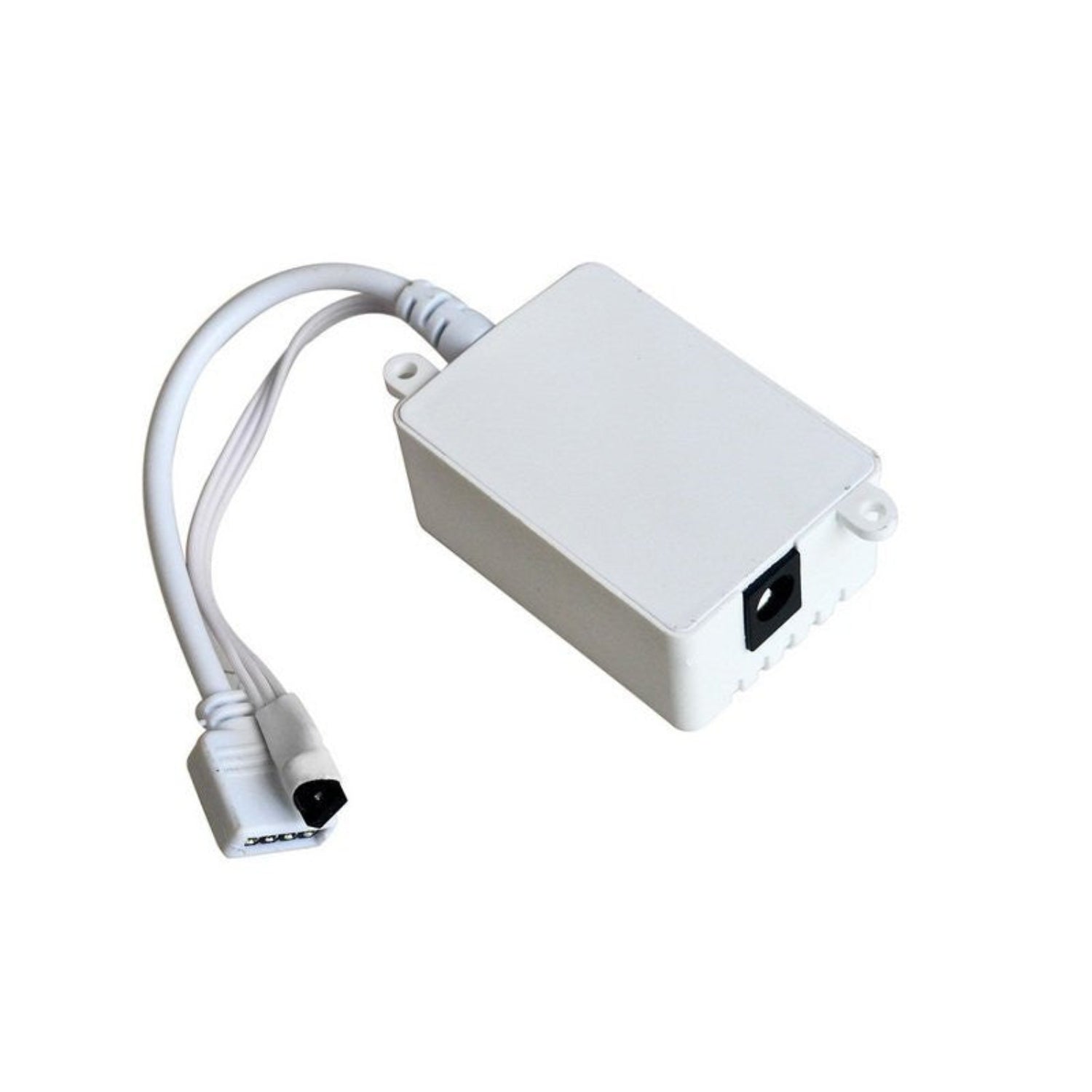

This controller box operates on a 12V DC supply via an onboard 5mm female DC port. At the other end, it has a 4-pin Output female connector that can be connected to the RGB strip directly. Also, the controller box has an IR receiver with a flexible probe to set it according to the requirement or to hide the controller in systematic decorations.
The controller box can operate at up to 6A current, which means you can easily run a 5-meter RGB Strip on this controller. The IR remote control comes with 42 keys, including various keys for the differential pattern of RGB functions, Brightness Adjustments, Blink frequency Adjustments, and ON and OFF buttons.
Button use:
R: Color change to Red
G: Color change to Green
B: Color change to Blue
W: Color change to White
Use: 12V 5050 RGB SMD LED strip lights
Specifications:
| Item Type: |
LED Controller |
|---|---|
| Color: |
White |
| Operating Voltage (VDC): |
12 |
| Output Current (A): |
2A each colour (6A max) |
| Connecting Mode: |
common anode |
| Output: |
Three CMOS Drain-open Output |
| Total Buttons: |
44 |
| Operating Temperature (°C): |
-20℃-60℃ |
Features:
- Plug and Play Easy to connect
- Flexible IR Receiver Probe
- Multi-Function IR Remote control
- 16-classes Static Mode Dim Control
- 16 colors, 5 light patterns: Static/Flash/Strobe/Fade-change/RGB Smooth-change.
- 16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change.
Remote Description:
Package Included:

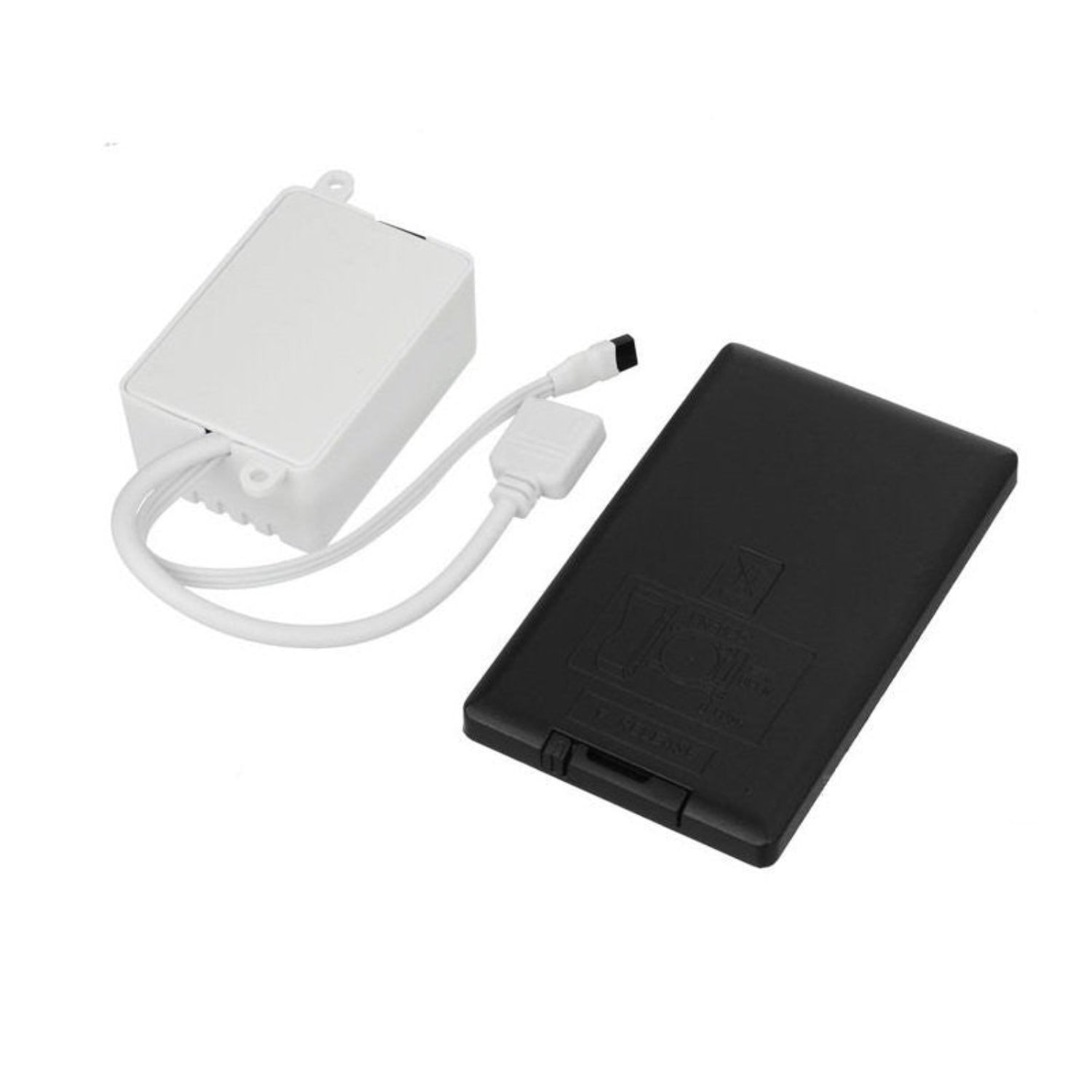

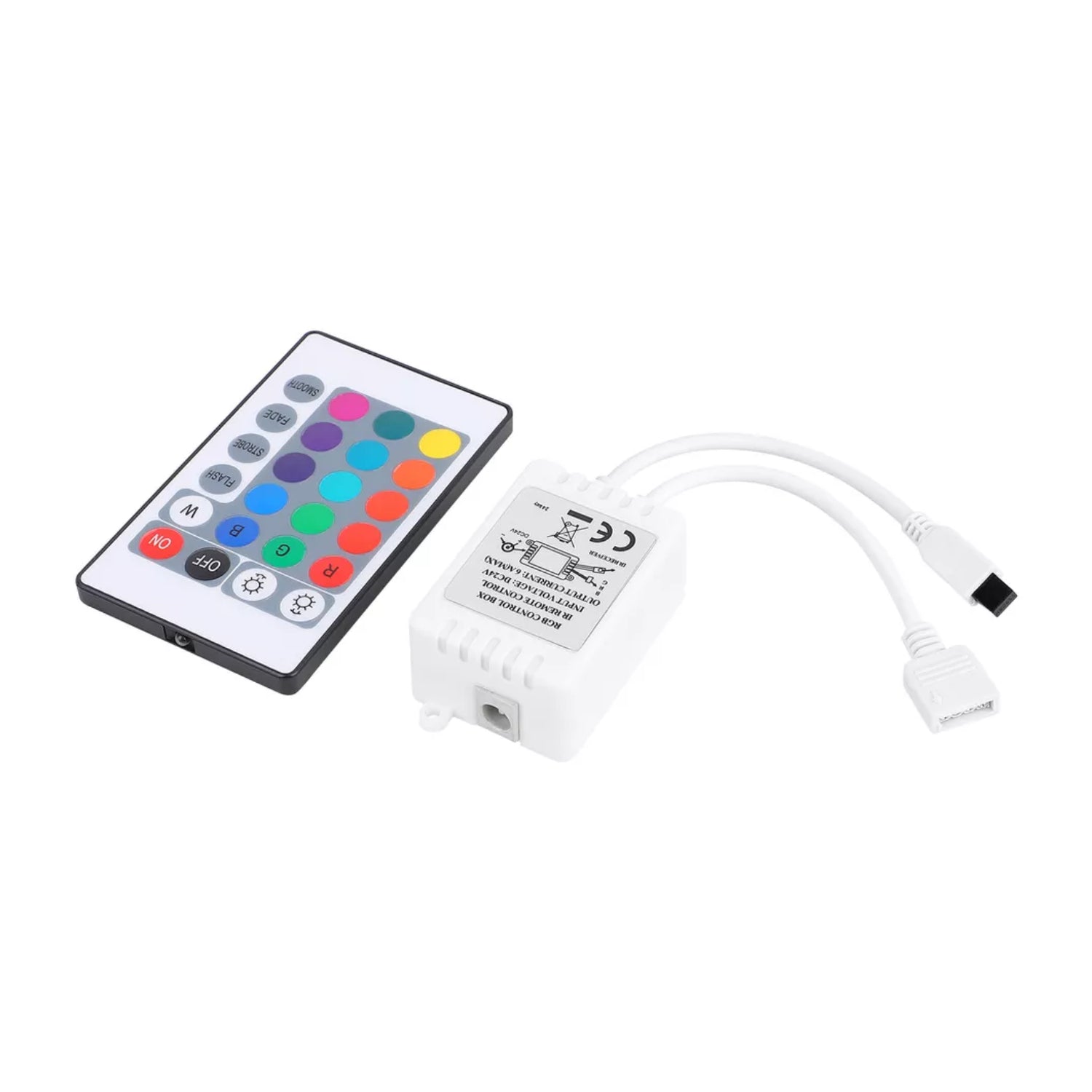

- 1 x 12V 5050 RGB LED Strip Controller box

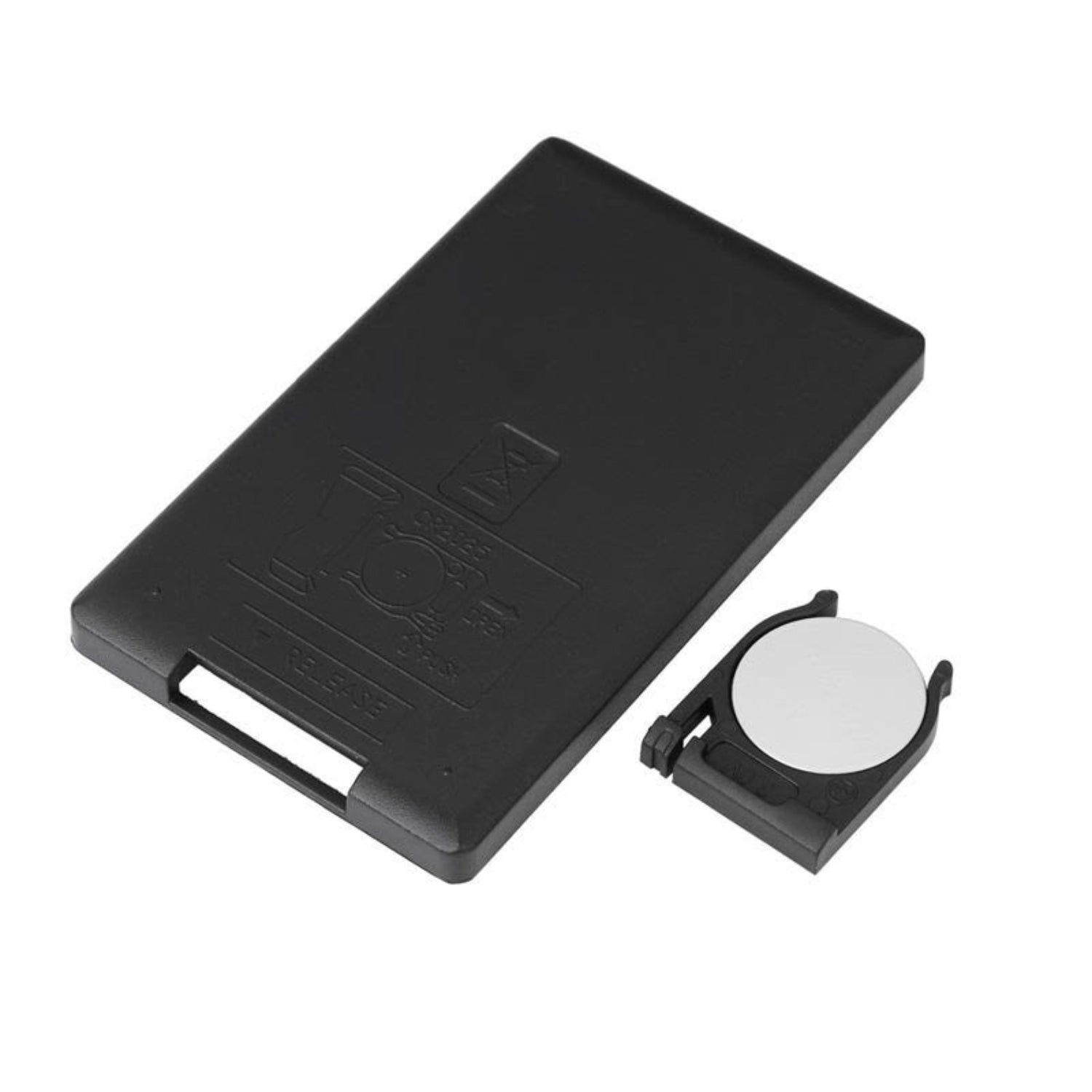

- 1 x 24 Key IR Remote Control (Battery Included)
