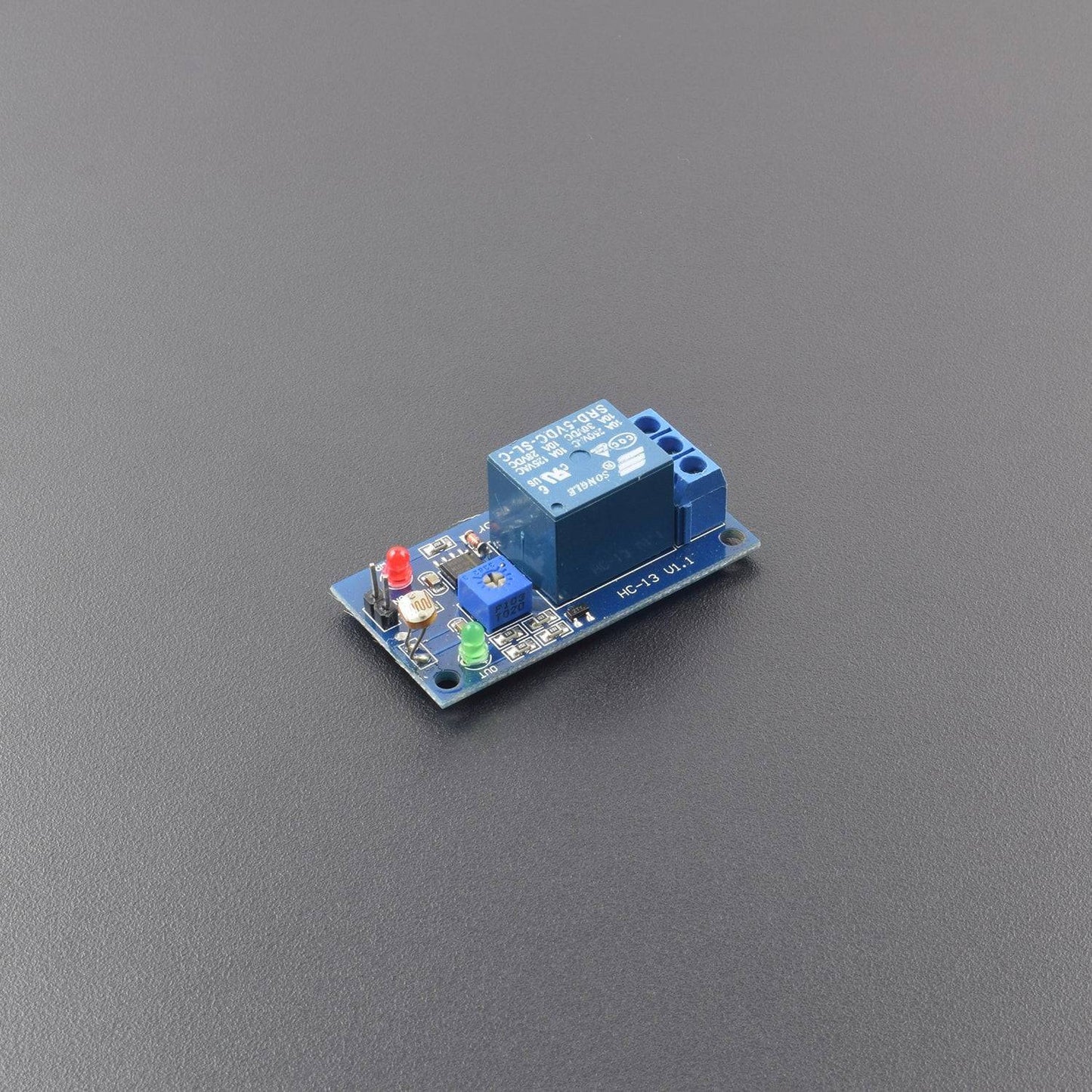

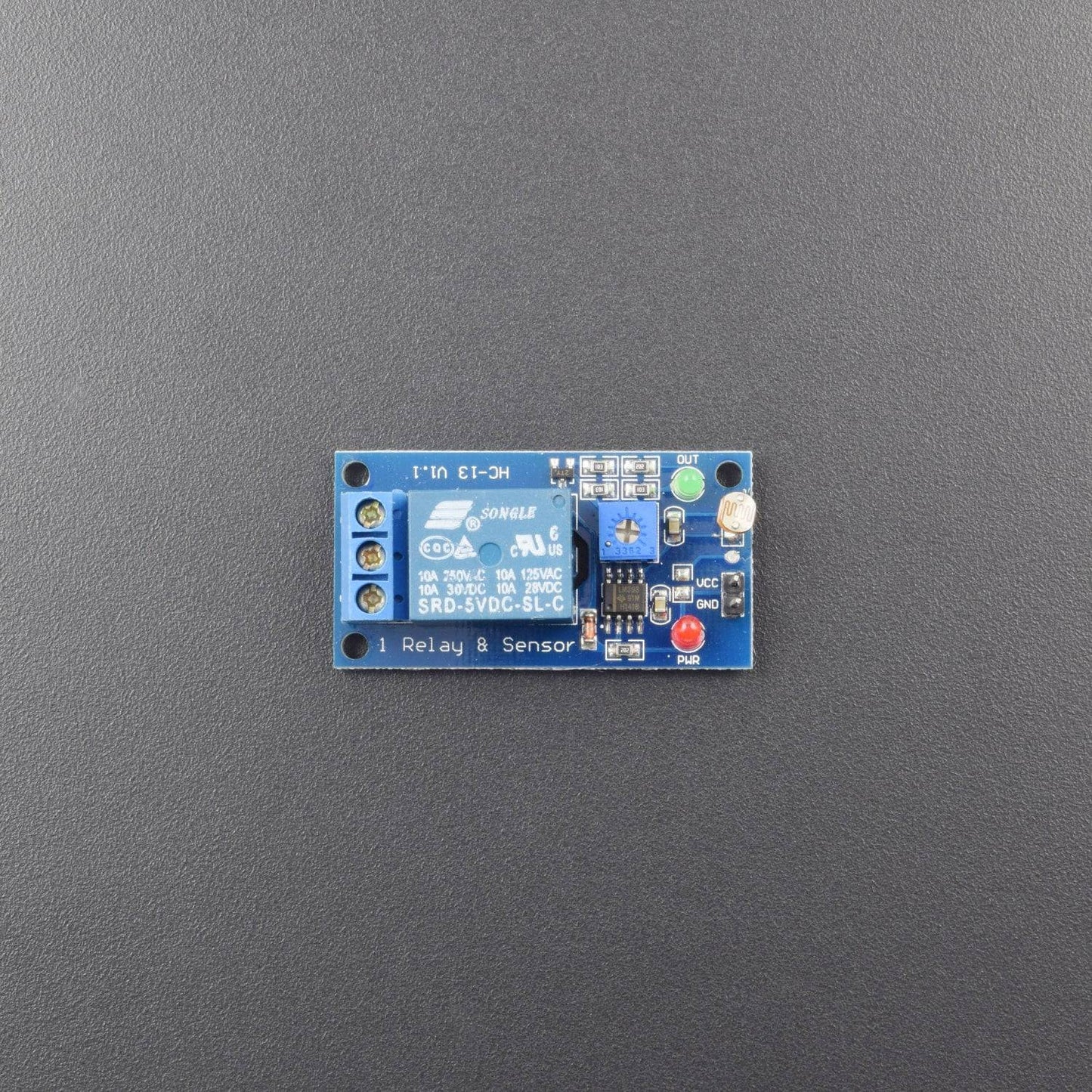

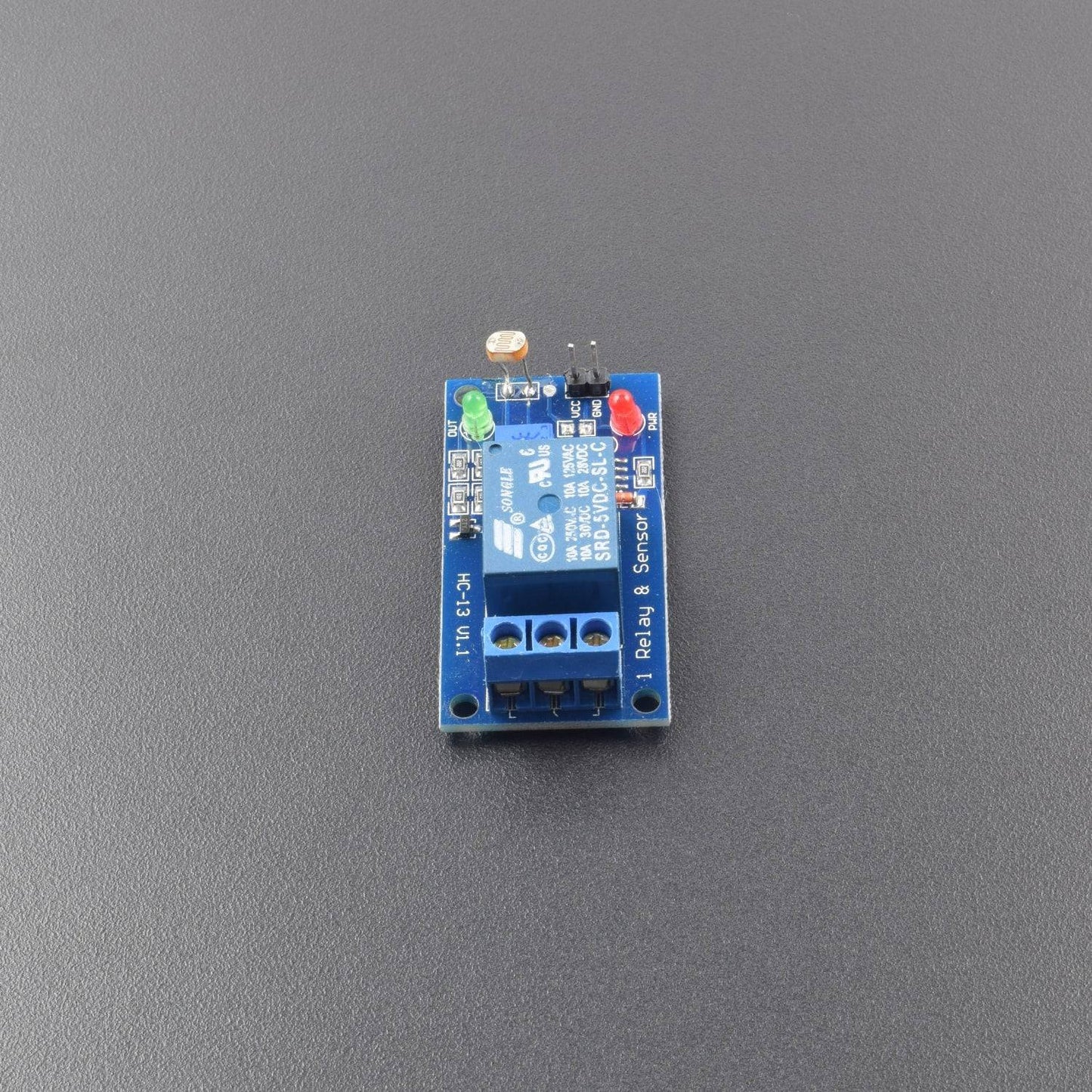

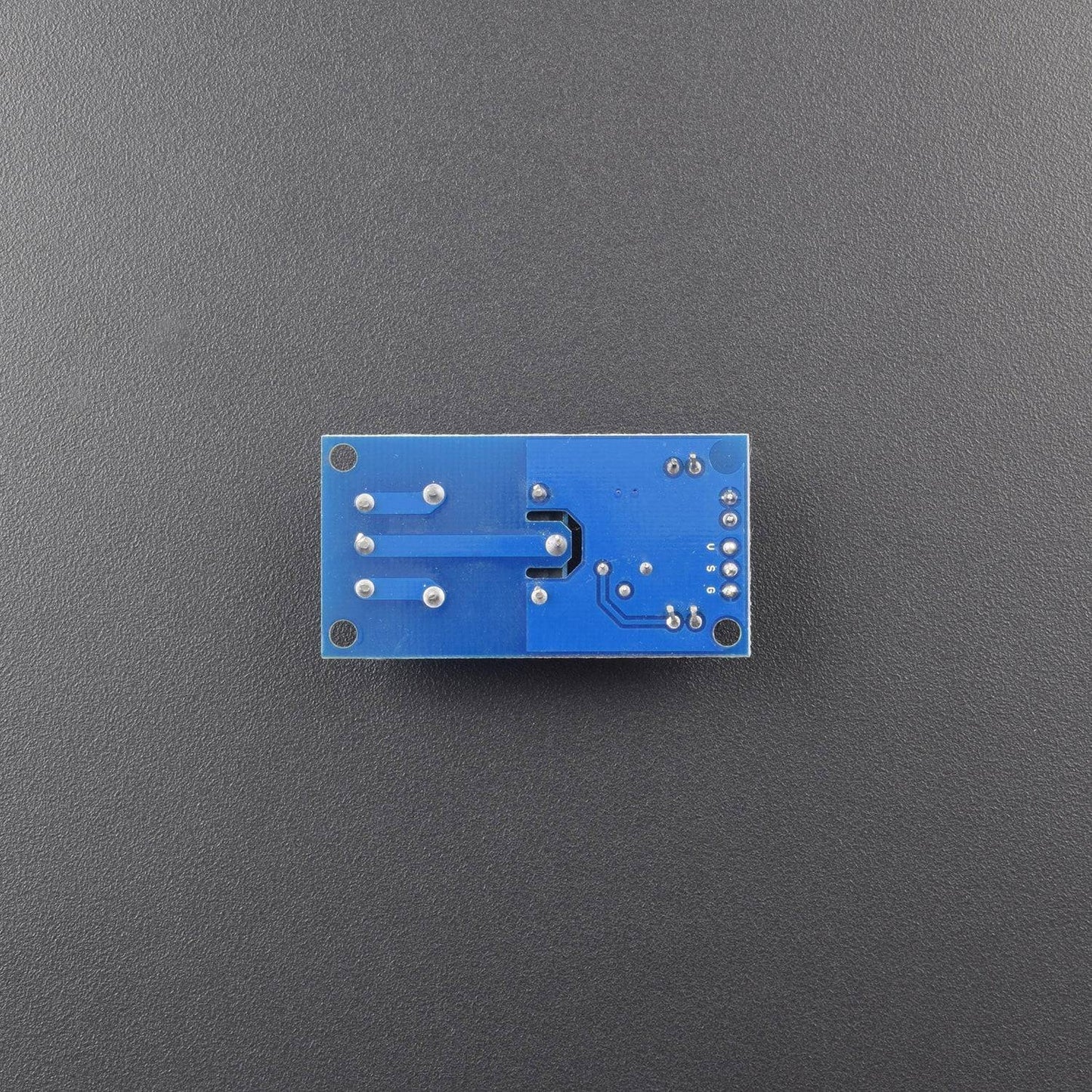

12V Photosensitive Resistance Light Sensitive Sensor Relay Module Light Switch - NB016 ( RS3488 )

12V Photosensitive Resistance Light Sensitive Sensor Relay Module Light Switch - NB016 ( RS3488 )

SKU:NB016 ( RS3488 )

25 in stock

Regular price Rs. 250.00
Regular price Sale price Rs. 250.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This module is the 12 v power supply stable version, with no time delay function, relay and matt, there is light off. photosensitive resistor module is the most sensitive to ambient light, usually used to detect ambient light brightness.the module in the ambient light when the threshold is set, the relay pull in, the public end and the beginning of the switch, when the ambient light is set at the threshold value, the relay is off, the common end and the normally closed end of the switch. the public side, normally open, normally closed three ports is equivalent to a double control switch, when the relay coil is power, the public end and often start conduction, no electricity, the common end and the normally closed side conduction.

Specifications:

  • Type : Voltage Regulator
  • Working voltage: 12V DC
  • Current: 100mA
  • Output: AC 250V 10A/DC 30V 10A
  • Load: 250V 10A AC or 30V 10A DC (below the current in this range are available)

Features:

  • Using photosensitive resistance induction light intensity, built-in relay, direct control of the load
  • With a potentiometer sensitivity adjustment, by adjusting the potentiometer, set the start relay valve value, when the dark at the threshold, relay and module, light on the threshold, the relay release
  • 12 v power supply input for relay, onboard 78 l05 regulator triode, provide sensor is used, make our products more stable and reliable
  • The on board optical coupling isolation drive relay, effective protection chip, make our products more reliable
  • Equipped with four fixed bolt hole, convenient installation

Uses:

The light brightness detection, bright detection,through the potentiometer can adjust to detect the brightness valve point,self with relay,, can be a variety of brightness detection switch, can control a variety of road lamp, night automatically open, daytime automatically extinguished and car supplies control and automation equipment.

Package Included:

1 x 12V Photosensitive Resistance Light Sensitive Sensor Relay Module Light Switch
