Description:

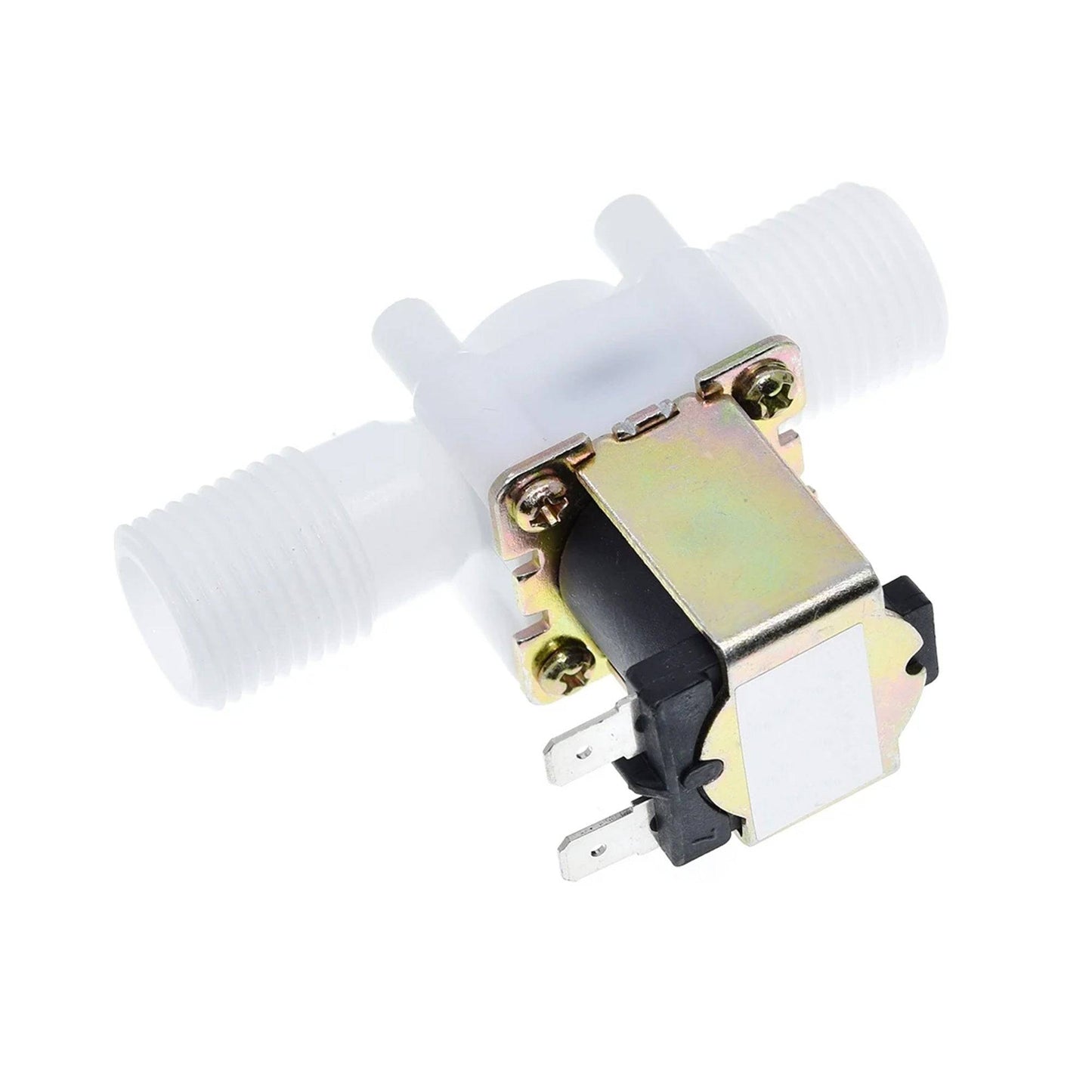

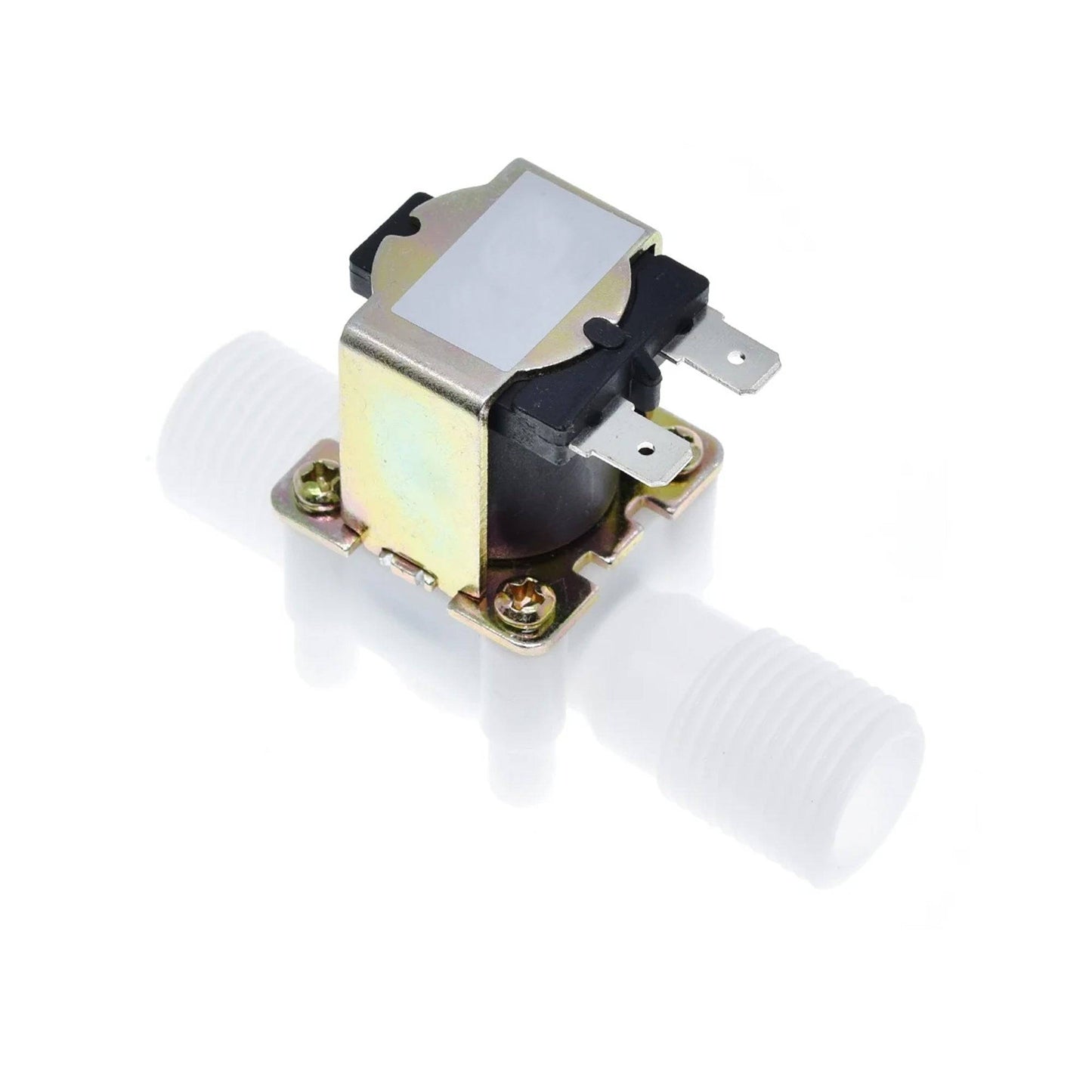

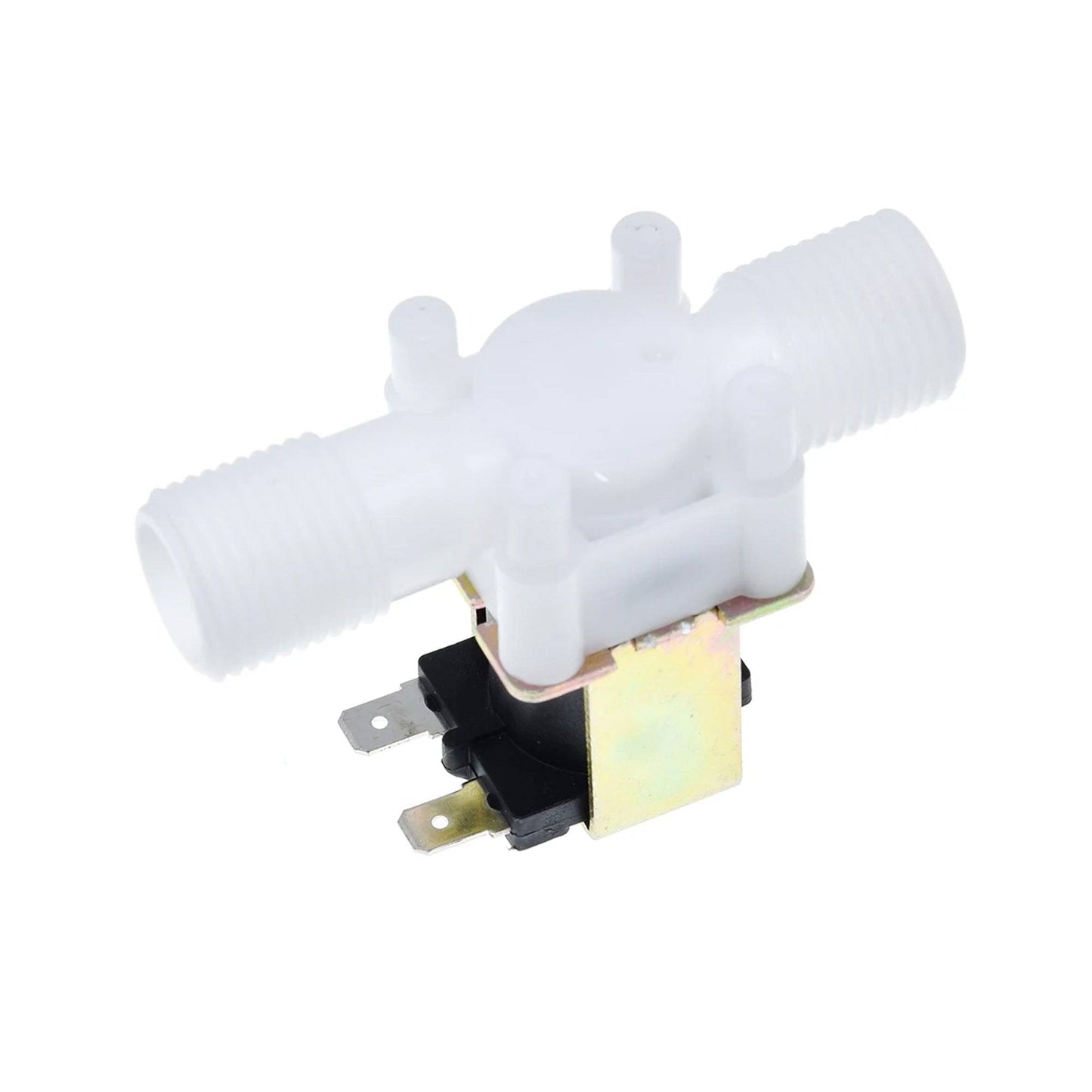

12V DC 1/2″ Solenoid Valve controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid! This 12V DC 1/2″ Solenoid Valve would make a great addition to your robotic gardening project. There are two ½” (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens and water can push through. The flow rate is ≥1.8L/min when the water pressure is 0.02MPa; the flow rate is ≥20L/min when the water pressure is 0.8MPa.
Specifications:
- Operating Voltage: 12V DC
- Rated Current: 600mA
- Operation Mode: Normally Closed
- Power Consumption: 8W
- Pressure: 0.02- 0.8Mpa
- Energized Forms: Intermittent
- Inlet and outlet Diameter: Hose barbs for 1/2" (outer diameter) hose
- Max Fluid Temperature: 100°C
Features:
- The installation direction can be arbitrary Angle
- Pressure-regulating valve (steady flow valve) functions similarly to the water flow switch
- Not only can it provide a steady flow, but it also prevents dry burning.
- 12V DC 1/2″ Solenoid Valve is suitable for fluids like water, oil, and air.
Package Included:
1 x 12V DC 1/2″ Solenoid Valve 12V DC 1/2″ Electric Solenoid Water Air Valve Switch (Normally Closed)
