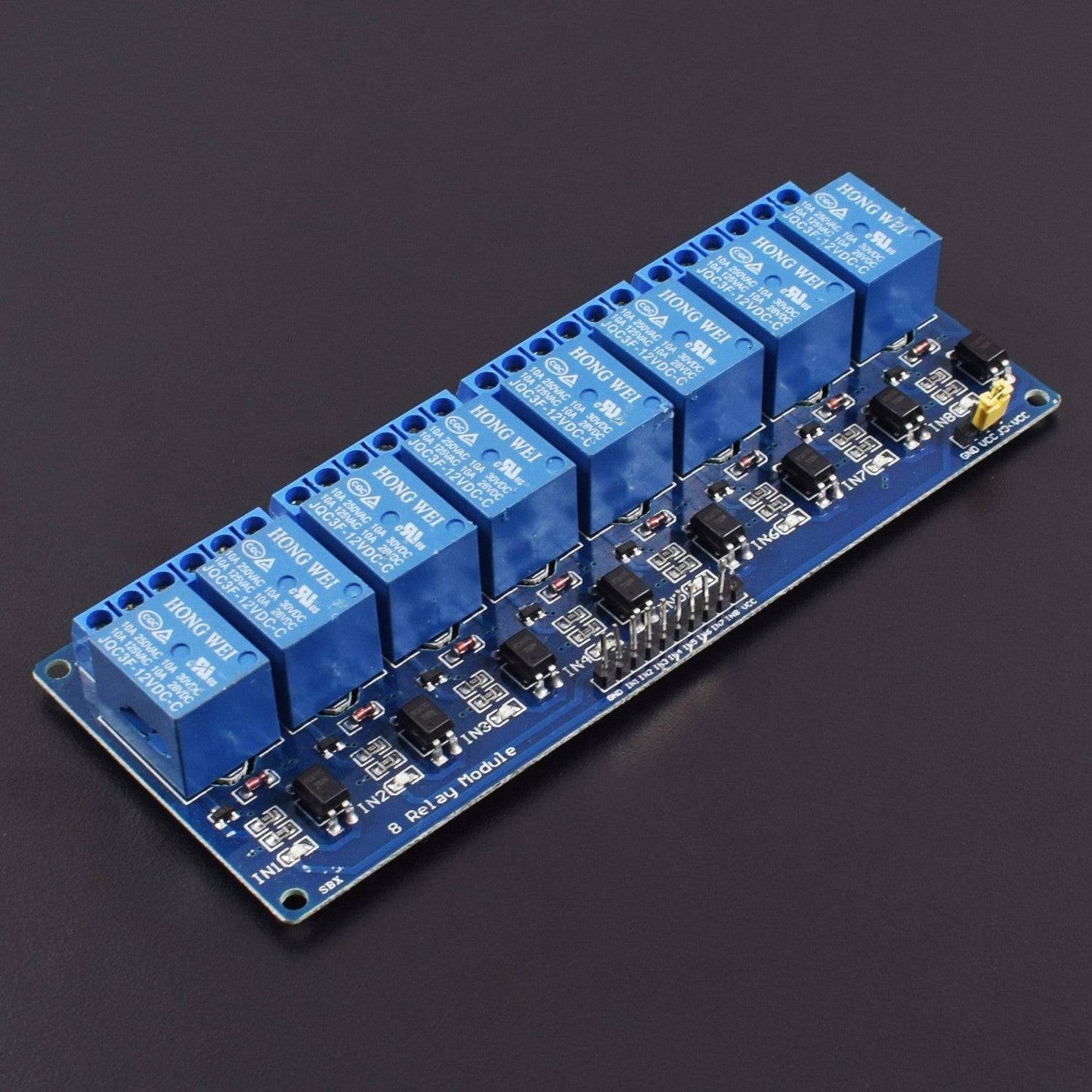

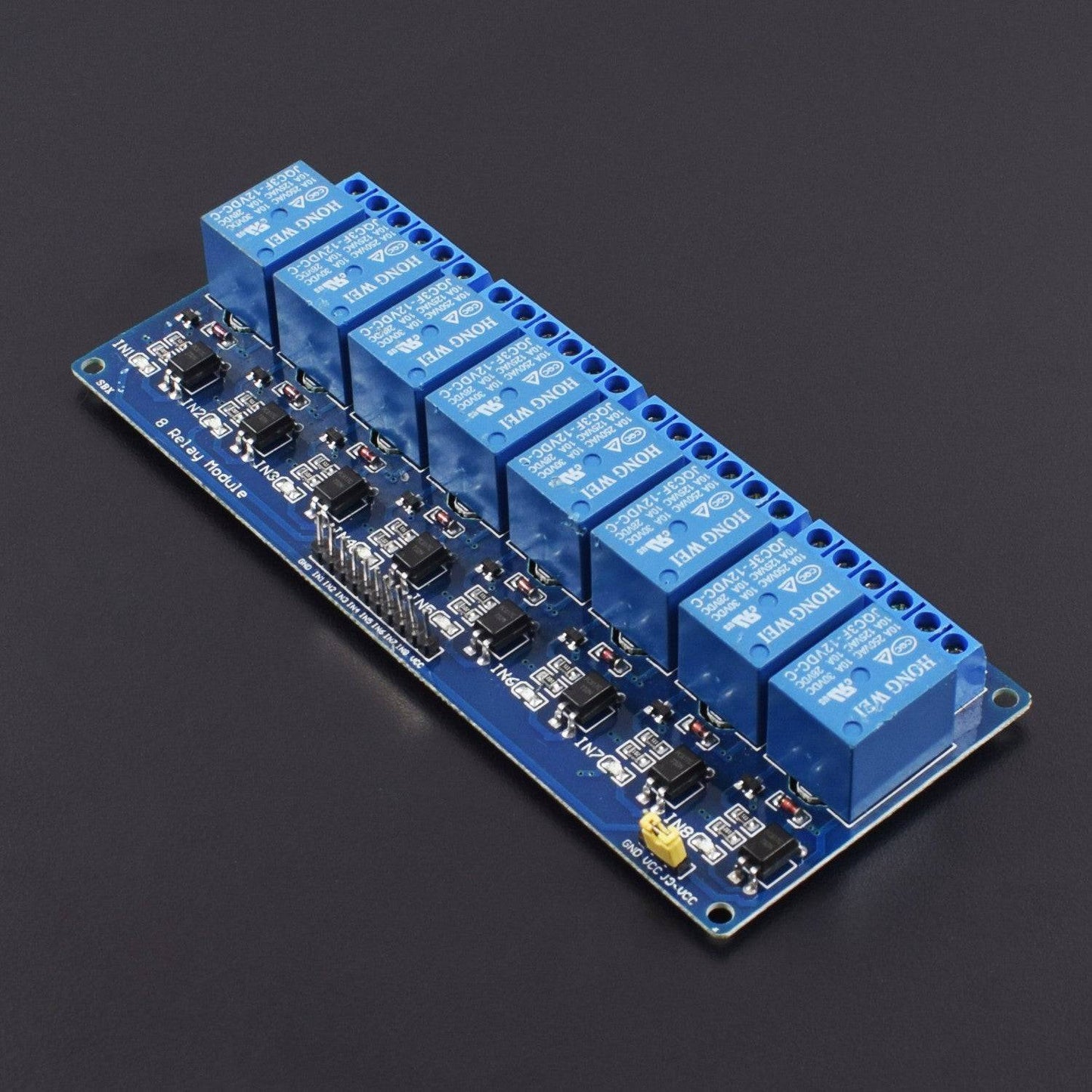

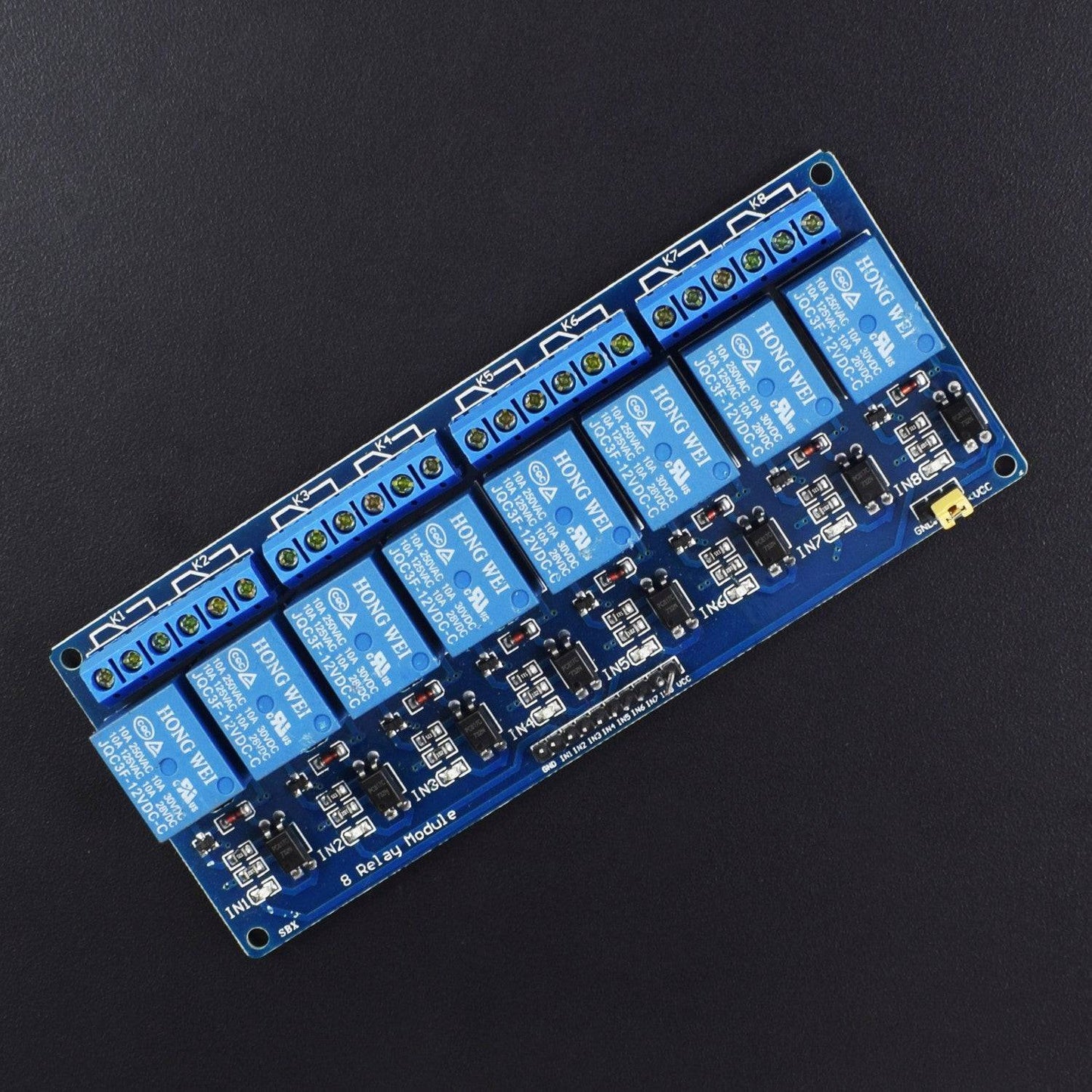

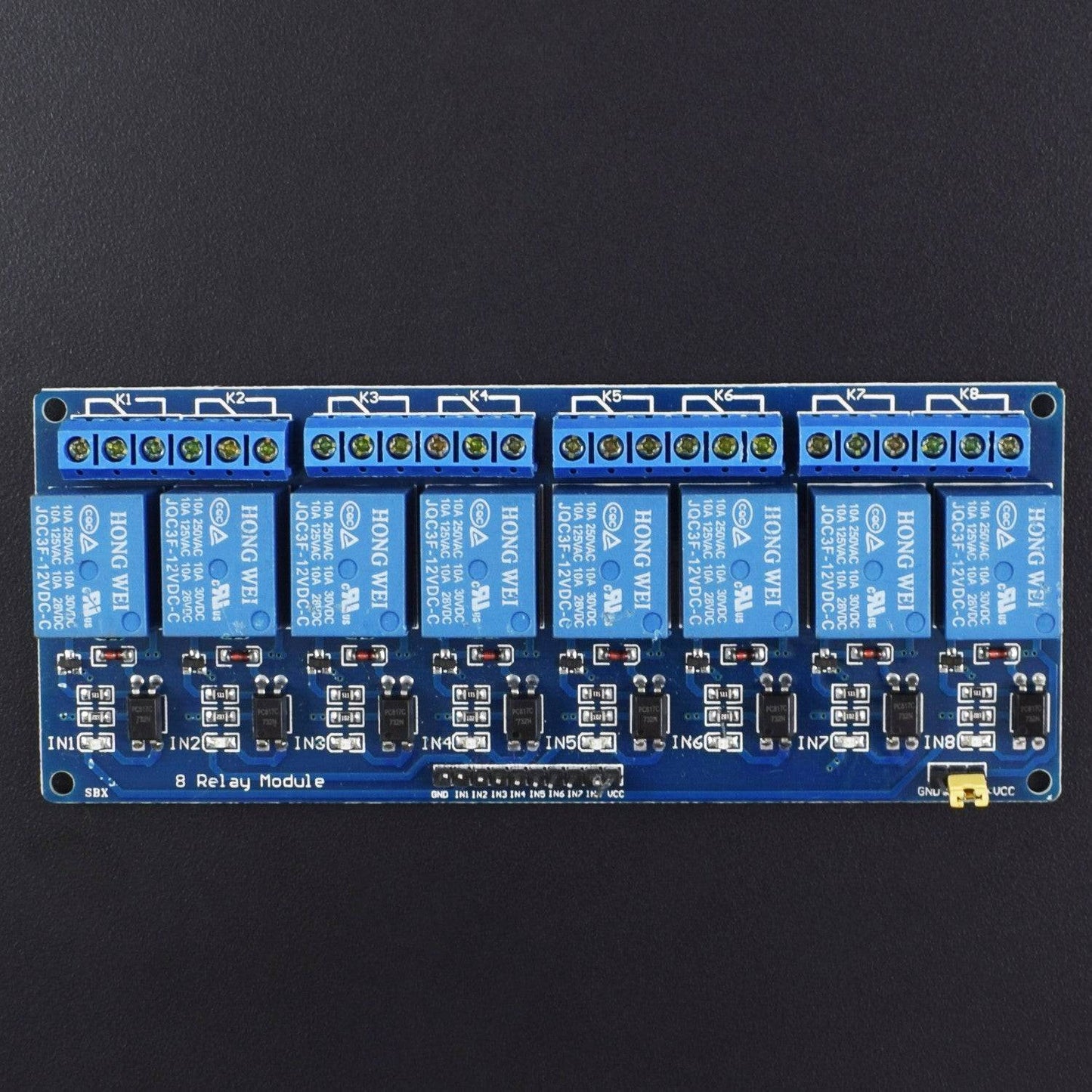

12V 8-Channel Relay Module Control Panel Plc for Arduino Avr Arduino Raspberry Pi and Other Mcu - NA195/RS4586
12V 8-Channel Relay Module Control Panel Plc for Arduino Avr Arduino Raspberry Pi and Other Mcu - NA195/RS4586
SKU:NA195
50 in stock
Regular price
Rs. 365.00
Regular price
Sale price
Rs. 365.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Maximum load: AC 250V/10A, DC 30V/10A.
- The chip optocoupler isolation, strong driving ability, stable performance, trigger current 5mA.
- Working voltage is 12V.
- Each channel of the module can be set up by a high jumper or low-level trigger.
- Fault-tolerant design, even if the control line is broken, the relay will not act.
- Power indicator (green), 8 relay status indicator (red).
- The interface design is humanized, all interfaces can be directly connected through the terminals, so it is very convenient.
- Module size: 142mm x 50mm x 18.5mm (length x width x height).
Description:
- Maximum load: AC 250V/10A, DC 30V/10A.
- The chip optocoupler isolation, strong driving ability, stable performance, trigger current 5mA.
- Working voltage is 12V.
- Each channel of the module can be set up by a high jumper or low-level trigger.
- Fault-tolerant design, even if the control line is broken, the relay will not act.
- Power indicator (green), 8 relay status indicator (red).
- The interface design is humanized, all interfaces can be directly connected through the terminals, so it is very convenient.
- Module size: 142mm x 50mm x 18.5mm (length x width x height).
- There are 4 fixed bolt holes, holes 3.1mm, spacing 67mm x 44.5mm
Module interface:
1. DC+: Connect the power positive pole
2. DC-: Connect the power negative pole.
3. IN1-IN8: According to the setting of each way, the corresponding relay-operating can be controlled by a high or low level.
2. DC-: Connect the power negative pole.
3. IN1-IN8: According to the setting of each way, the corresponding relay-operating can be controlled by a high or low level.
Relay output: there is a 24 wire interface, all interfaces can be directly connected to lead to facilitate user use.
1. NO1--NO8: Relay normal open, the relay suspends before pulling in, and then short-connect with the COM.
2. COM1--COM8: Relay common interface
3. NC1--NC8: Relay normal close, short connected with COM before pulling in and suspended after pulling in.
2. COM1--COM8: Relay common interface
3. NC1--NC8: Relay normal close, short connected with COM before pulling in and suspended after pulling in.
High and low-level trigger option:
1. S1-S8 is the high-level trigger selection of relay 1 Channel - 8 Channel.
2. When COM is short connected with LOW, the corresponding relay is a LOW-level trigger, while when COM is short connected with high end is a high-level trigger.
2. When COM is short connected with LOW, the corresponding relay is a LOW-level trigger, while when COM is short connected with high end is a high-level trigger.
Package Included:
1 x 8 Channel 12V Relay Module
