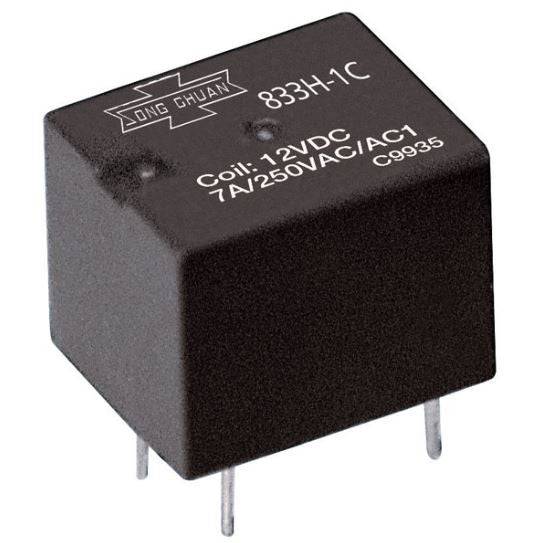

12V 7A PCB Mount Relay - SPDT Relay - RS8974

12V 7A PCB Mount Relay - SPDT Relay - RS8974

RS8974

16 in stock

Rs. 17.00
Rs. 17.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Product type: SPDT sugar cube relay
  • Voltage: 12v
  • Number of pins: 5
  • Pin type: through hole

Description:

A 7A 12V DC miniature PCB relay that comes in a baby sugar cube case and is suitable for general applications where high reliability and high switching capacity are needed, but where VDE approval is not required.

Specification:

  • Contact rating: 7A 250V AC
  • Coil voltage: 12V DC
  • Coil current: 30mA
  • Coil resistance: 400Ω
  • Coil power: 360mW
  • Operate time: 10ms
  • Release time: 5ms
  • Insulation resistance: 100MΩ min.
  • Dielectric strength: 1500V
  • Operating temperature: -40°C to +70°C

Features:

  • Small size, light weight, Low price.
  • Sensitive operation, good synchronism.
  • Low coil power consumption.
  • PC board mounting.

Application:

  • Electrical application relay
  • Telecommunication relay
  • Automatic control relay
  • Wireless radio remote relay control
  • Sound control toy relay

Package Included:

1 x 12V 7A PCB Mount Relay - SPDT Relay
