Generic

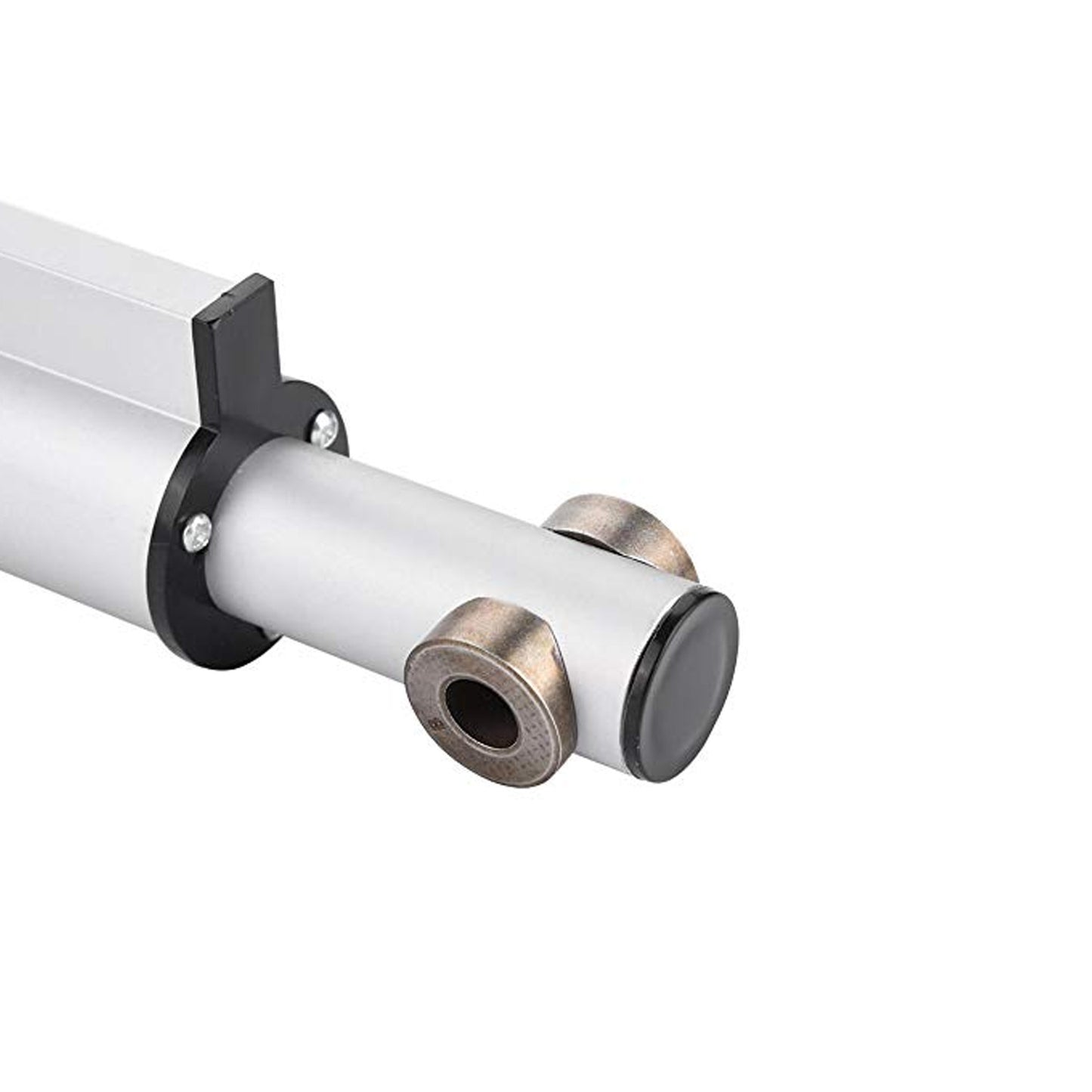

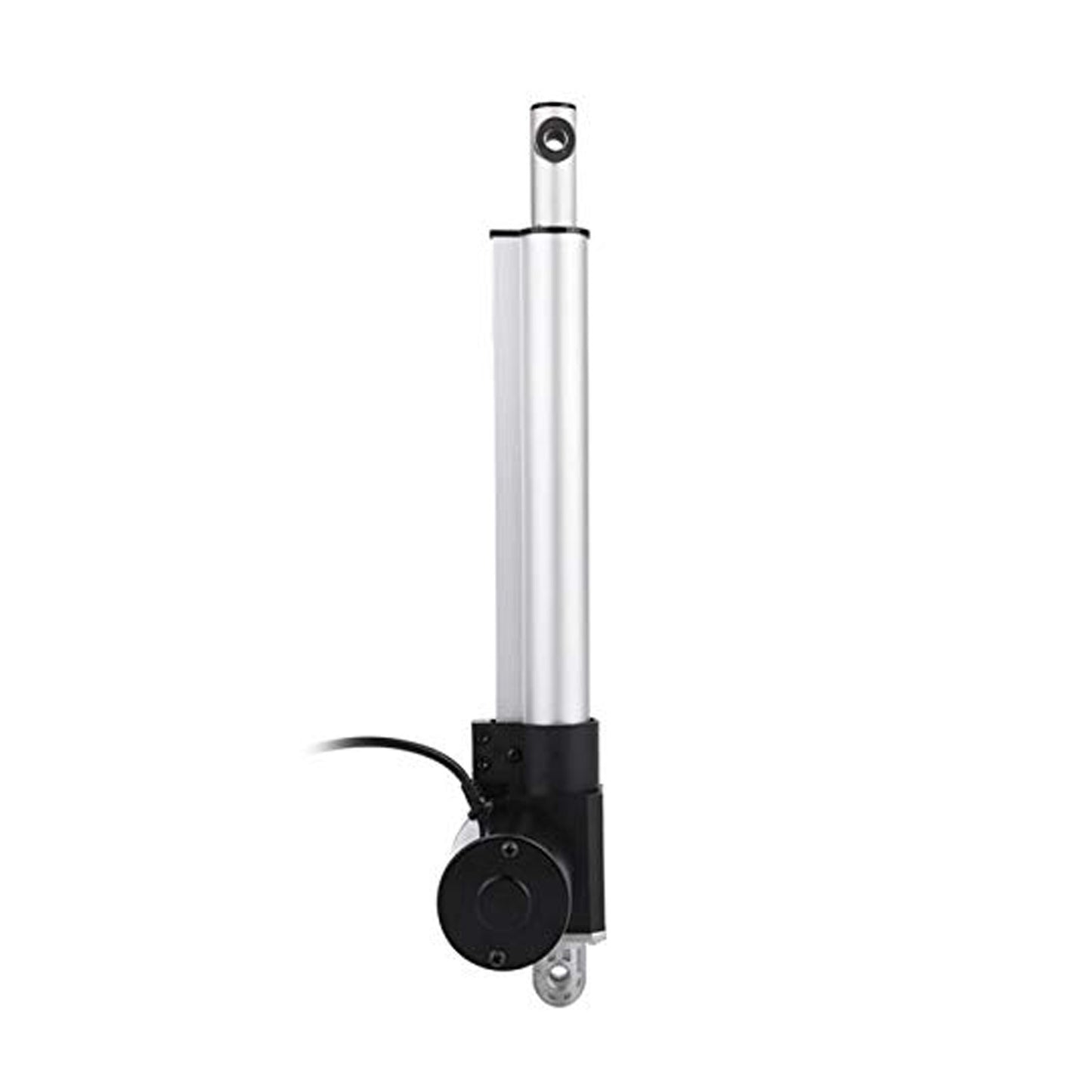

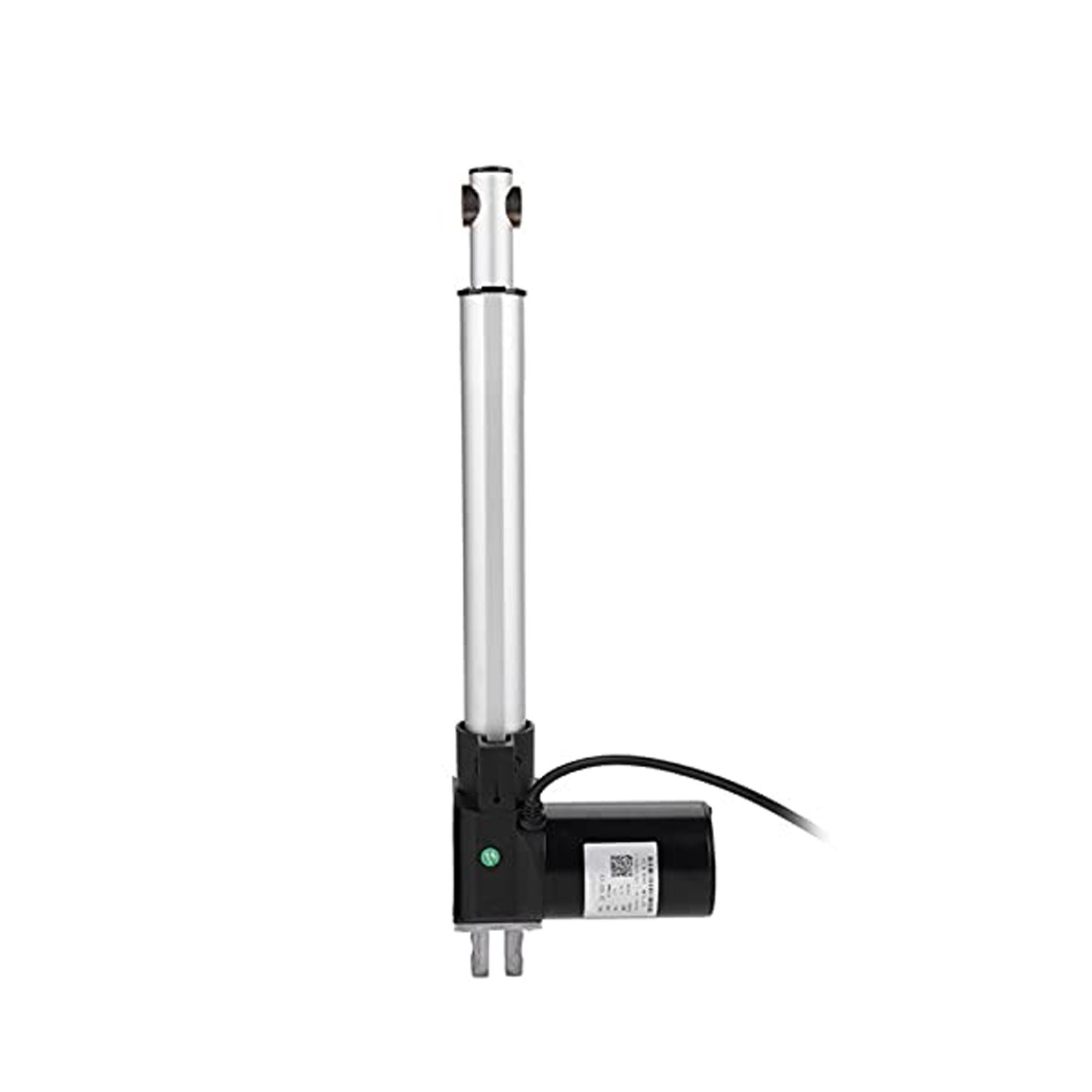

12V 600MM Linear Actuator 12V 600MM Stroke Length Linear Actuator 6000N 5mm/s - RS5025/RS4923

12V 600MM Linear Actuator 12V 600MM Stroke Length Linear Actuator 6000N 5mm/s - RS5025/RS4923

SKU:RS5025/RS4923

13 in stock

Regular price Rs. 4,459.00
Regular price Sale price Rs. 4,459.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This 12V 600MM Linear Actuator is an electric push rod and an ideal solution for industrial, and agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This 12V 600MM Linear Actuator is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod.

12V 600MM Linear Actuator can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, pushrod, sliding seat, shell, micro-motion control switch, etc.

With Reliable performance, sensitive action stable running. Good environment adaptability. High-quality metal material, high-performance motor, built-in stroke switch. Maximum push/pull is up to 6000N, and stroke speed is up to 5mm/s when under no load.

Specifications:

  • Operating Voltage: 12V DC
  • No Load Current: 75mA
  • Body Material: Aluminium Alloy
  • Operating Temperature: -20 ~ 85°C
  • Noise Level: <40dB
  • Protection Standard: IP52
  • Self-Locking Force: 6000N
  • Speed at Full Load: 5mm/Sec
  • Speed at No Load: 7mm/Sec

Features:

  • 12V 600MM Linear Actuator has an aluminium frame and extension tube.
  • Compact Design, built-in limit switch and low noise.
  • Moisture-proof Surface
  • Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.

Package Included:

1 x 12V 600MM Linear Actuator 12V 600MM Stroke Length Linear Actuator 6000N 5mm/s
