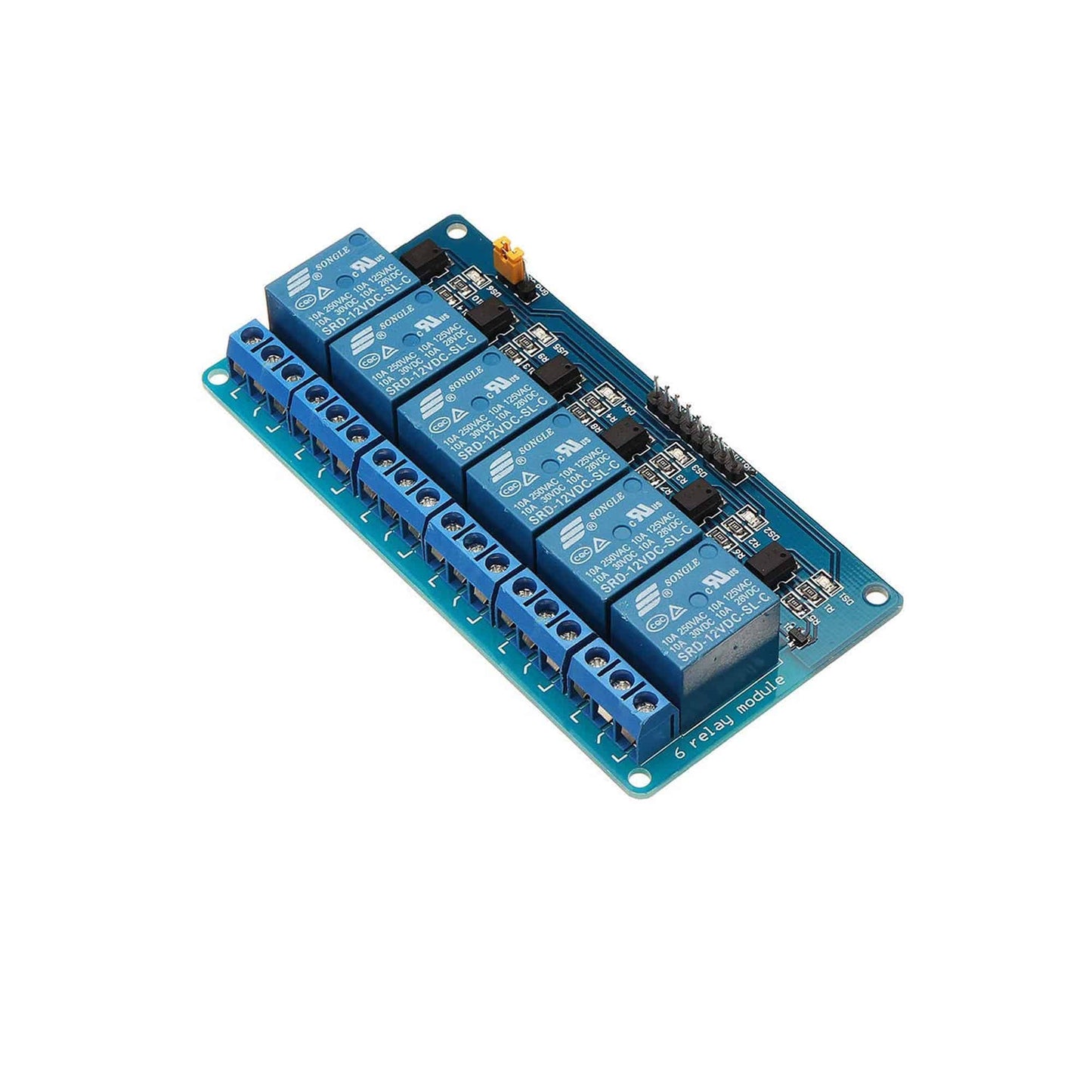

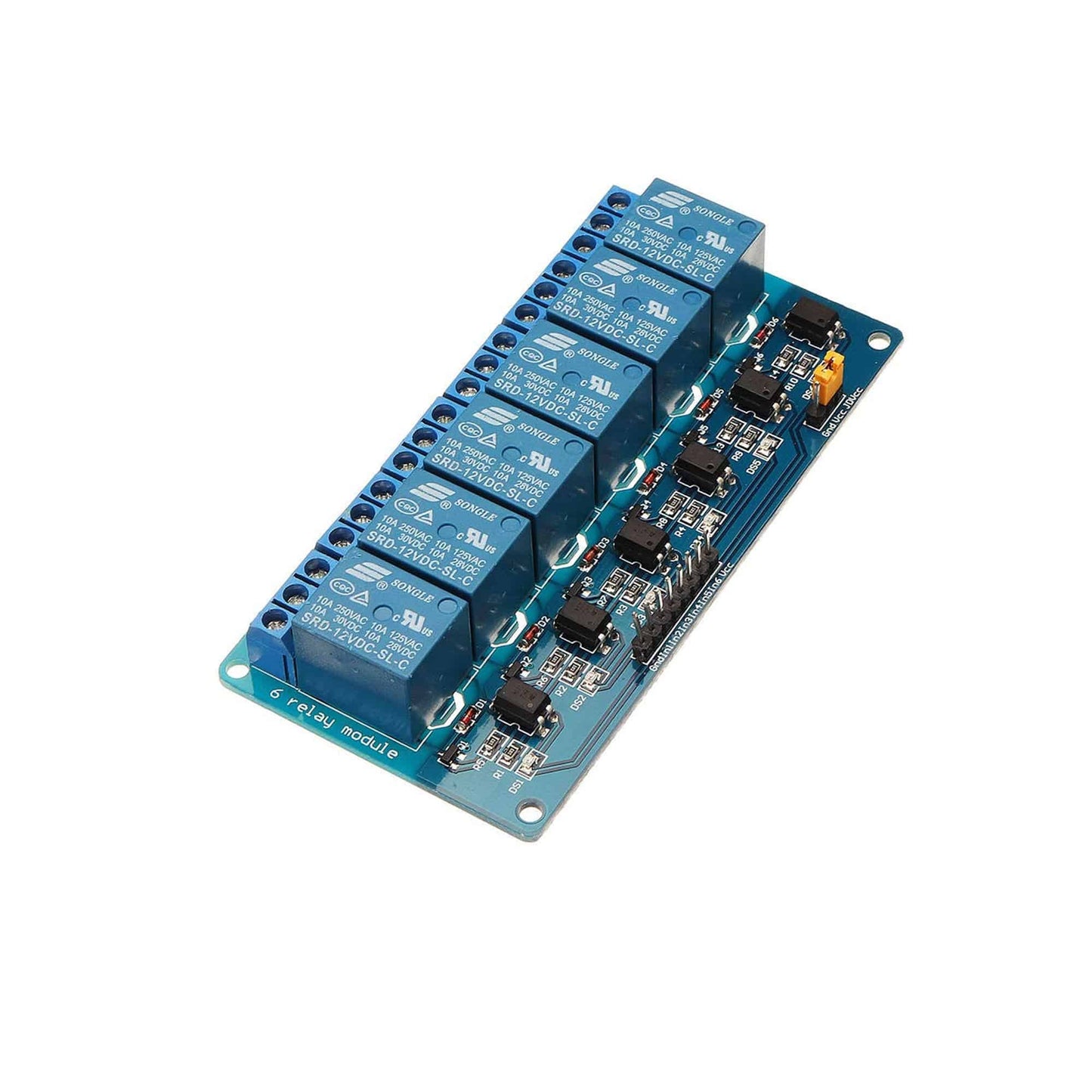

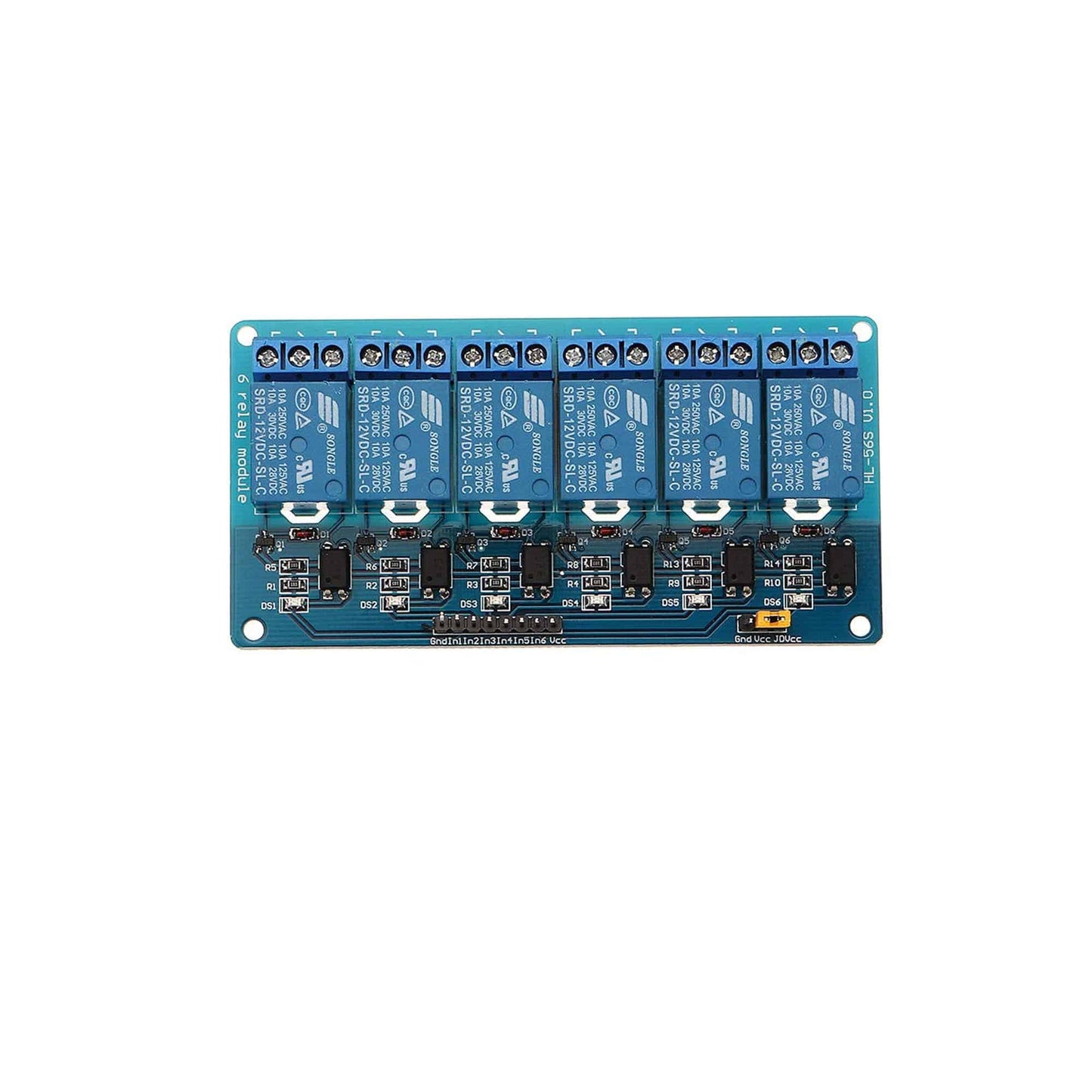

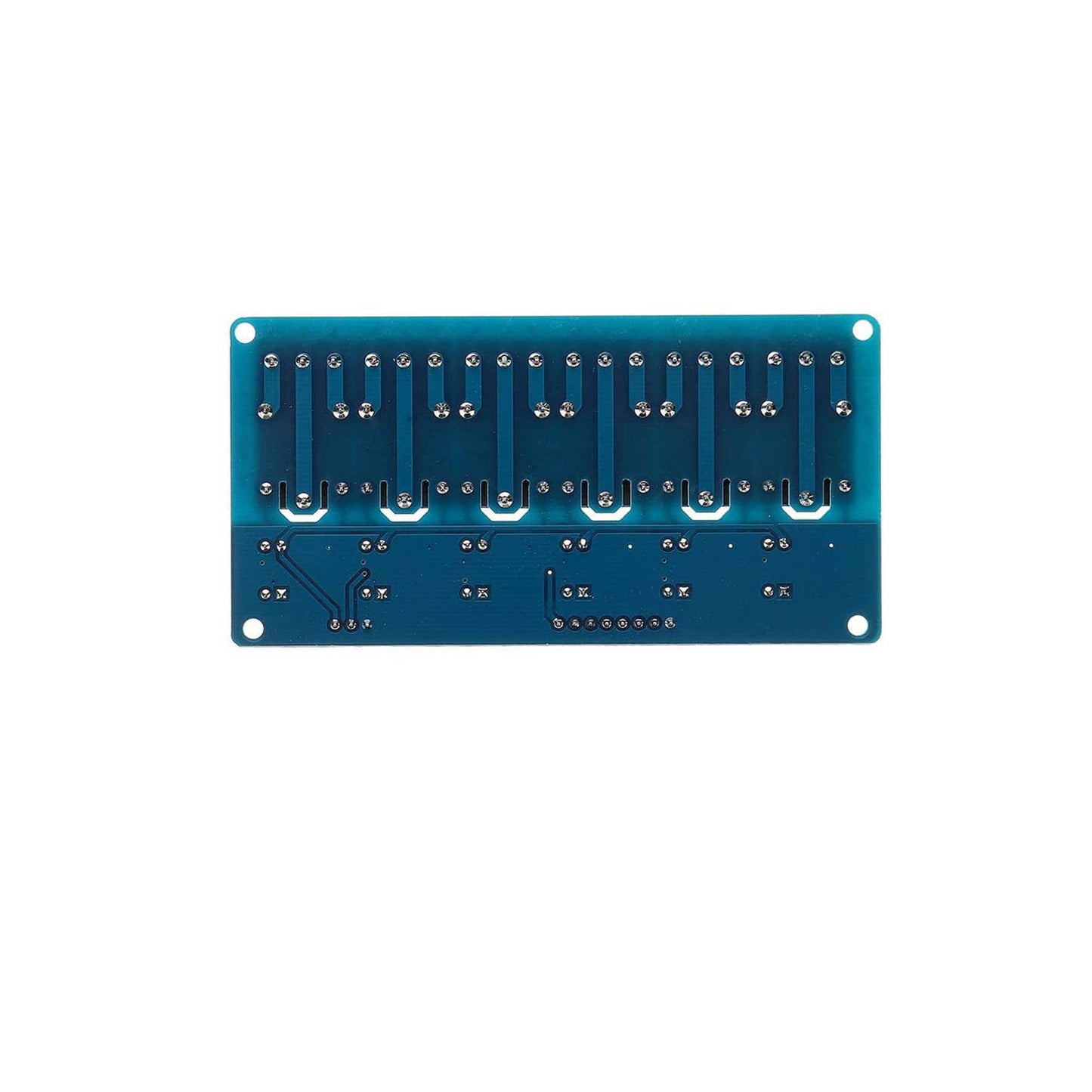

12V 6 Channel Relay Module 12V 6 Channel with Light Coupling Relay Module - NA193

12V 6 Channel Relay Module 12V 6 Channel with Light Coupling Relay Module - NA193

SKU:NA193

97 in stock

Regular price Rs. 299.00
Regular price Sale price Rs. 299.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

This 12V 6 Channel Relay Module (with light coupling) meets the safety standard as control areas and load areas have the isolation groove. Optical coupling isolation module. The triggering of the 12V 6 Channel Relay Module is reliable and more stable. The double FR–4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.

The inputs of the 12V 6 Channel Relay Module are isolated to protect any delicate control circuitry. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it. The use of such a high-voltage relay eliminates the risk of heating the relay as electromechanical relays limit the current consumption by a voltage rating.

Specifications:

  • Trigger Voltage: 12V DC
  • Trigger Current: 20mA
  • Switching Voltage(VAC): 250@10A
  • Switching Voltage (VDC): 30@10A
  • Operating Temperature: -40 to 85°C
  • Opt. Relative Humidity: 20% ~ 85%RH

Features:

  • 12V 6 Channel Relay Module is equipped with high-current relay 10A@250VAC / 10A@30VDC
  • It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
  • High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
  • 12V 6 Channel Relay Module has a freewheeling diode to protect your microcontroller
  • Input Signal Pin connected to Burg stick for easy accessibility
  • LED status indicators to indicate the relay ON/OFF status
  • 12V 6 Channel Relay Module has mounting holes
  • Signal input with a high-level signal, the common and often start conduction
  • The Relay Module can directly control all kinds of equipment and loads

Package Included:

1 x 12V 6 Channel Relay Module 12V 6 Channel with Light Coupling Relay Module
