Description:

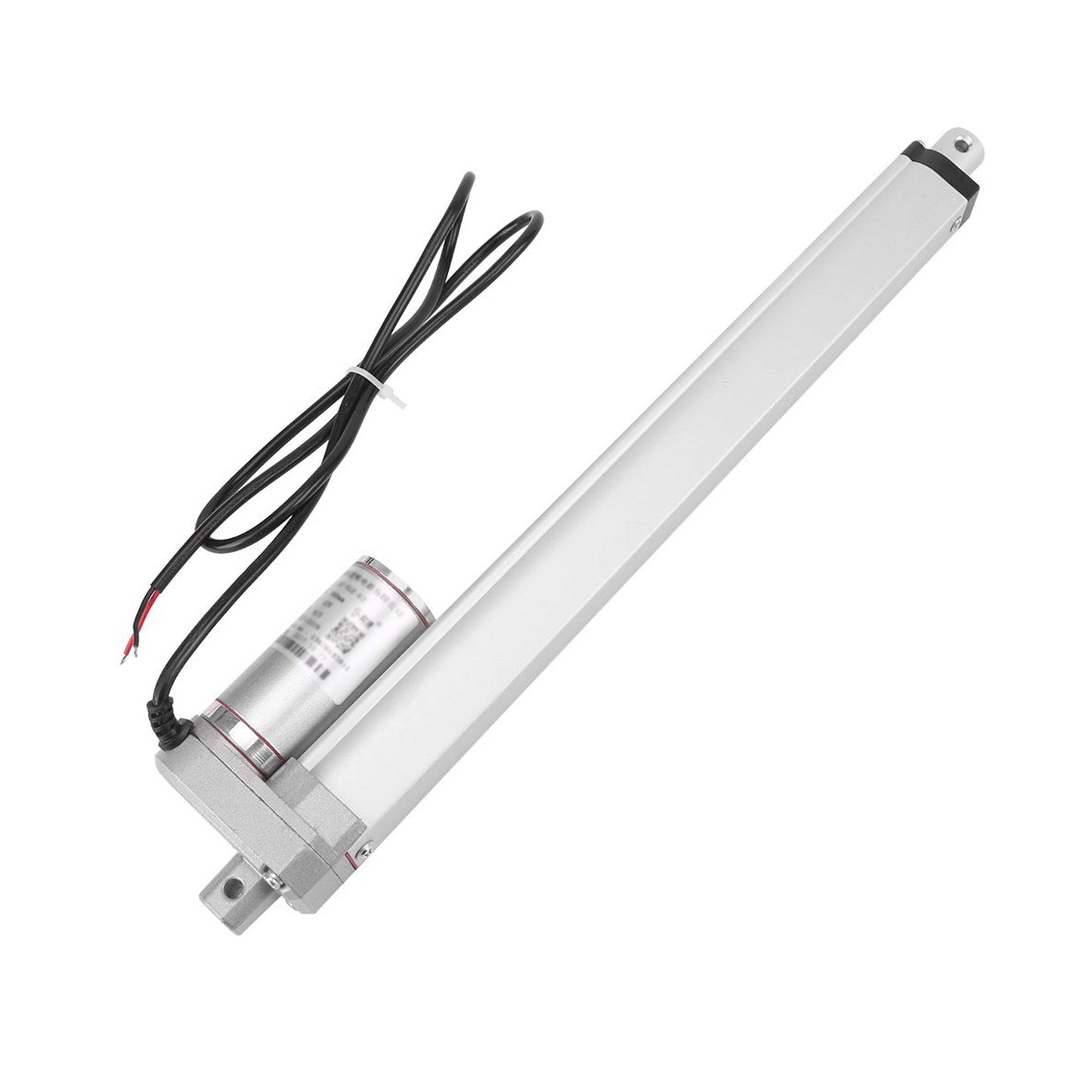

This 12V 500MM Linear Actuator 7mm/s 1500N is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This 12V 500MM Linear Actuator 7mm/s 1500N is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push rod.
12V 500MM Linear Actuator 7mm/s 1500N can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.
Specifications:
- Stroke Length: 500 mm
- Permanent Magnet DC Motor Drive: Voltage 12VDC
- Working Temperature: -20C to +63C
- Motor Diameter: 36mm
- Mounting Hole Diameter (both ends): 1/4 (6.4 mm)
- Protection Level: IP55
- Noise Level: 45dB
- Speed at No Load: 0.28in/sec (7 mm/sec)
- Speed at Full Load: 0.22in/sec (5.5 mm/sec)
- Maximum Static Load: 337.2 lbs. (1500 Newtons)
- Maximum Current Draw: 2A
Features:

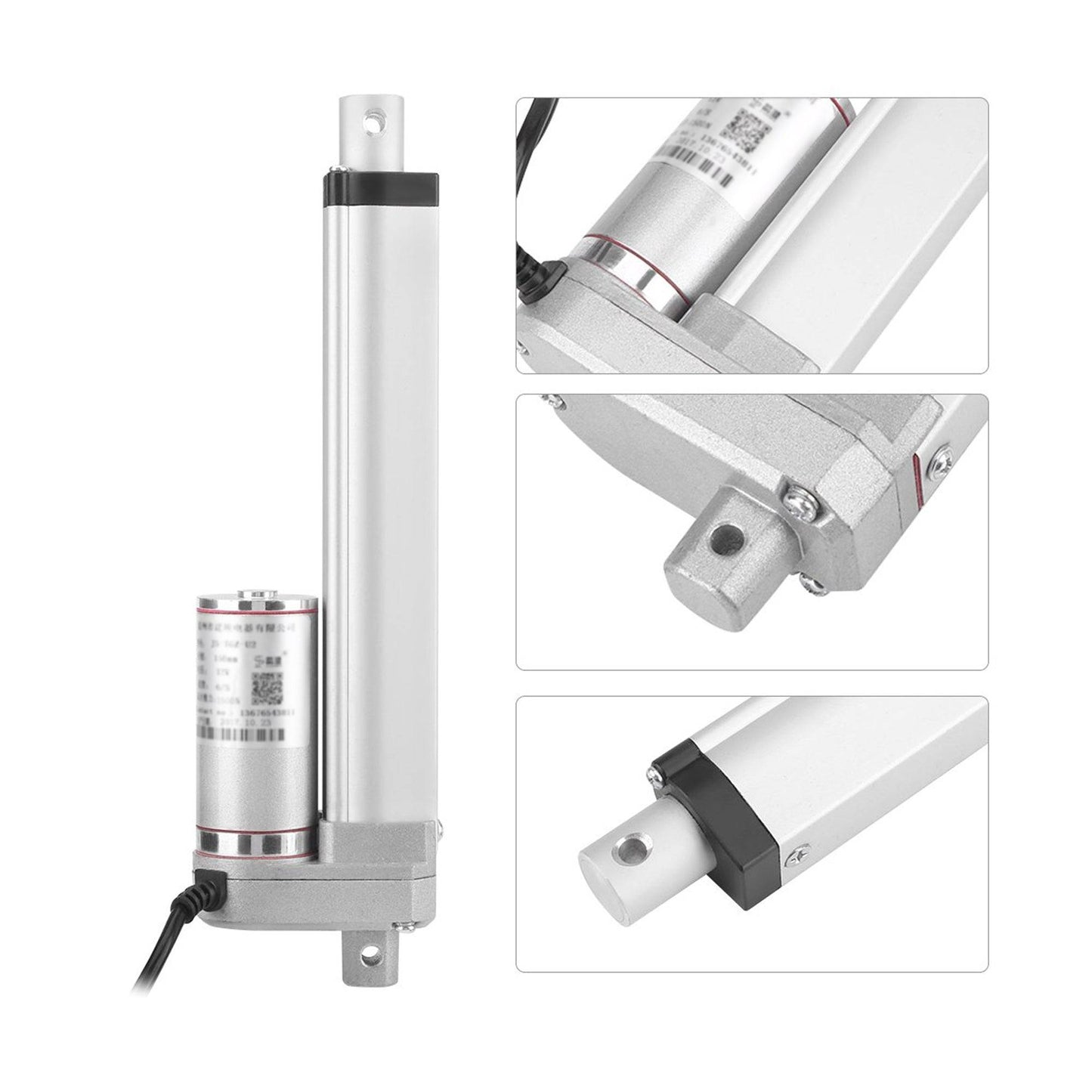

- 12V 500MM Linear Actuator 7mm/s 1500N has an aluminium frame and extension tube.
- Compact Design, built-in limit switch and low noise.
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
Package Included:
1 x 12V 500MM Linear Actuator 7mm/s 1500N 12V 500MM Stroke Length Linear Actuator 7mm/s 1500N
