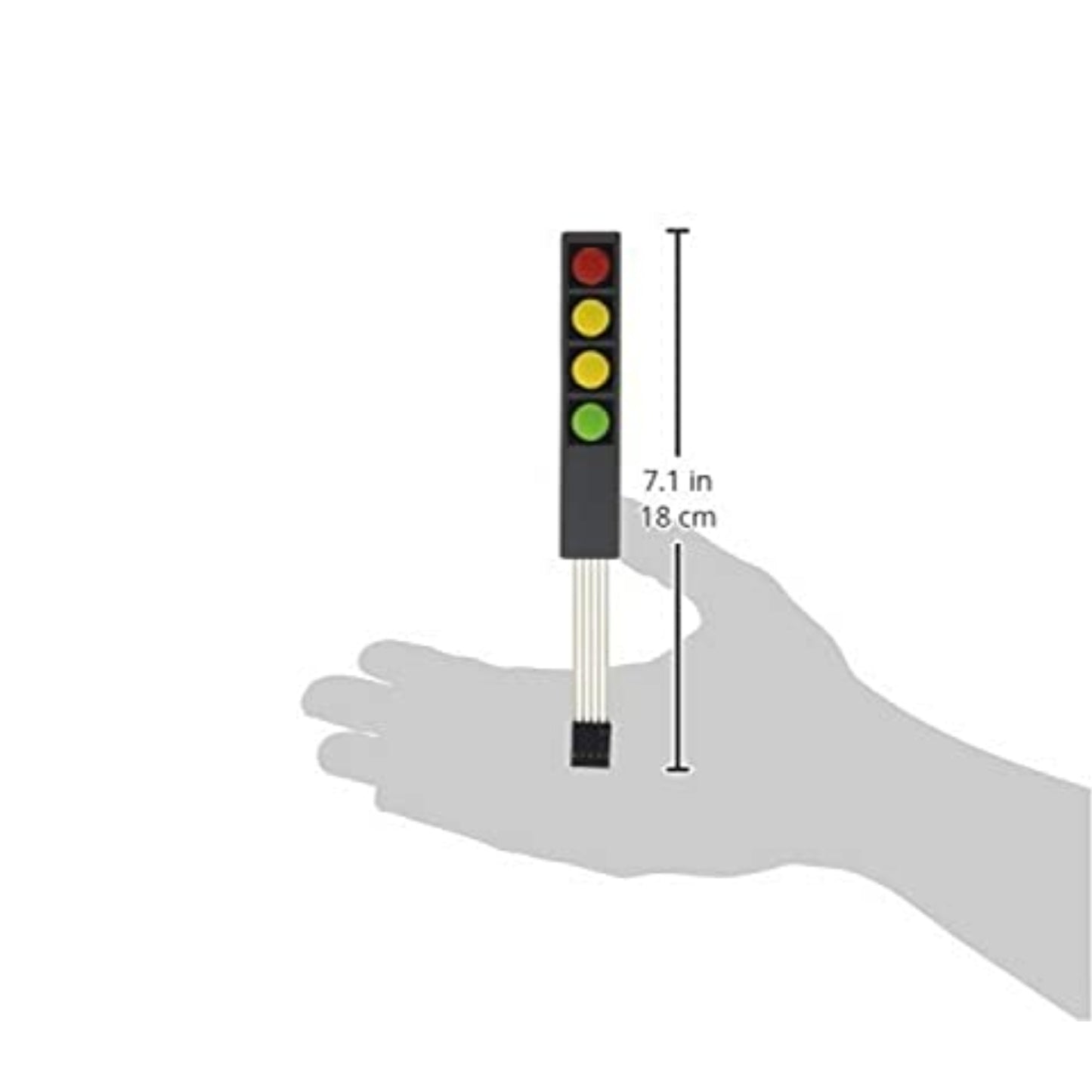

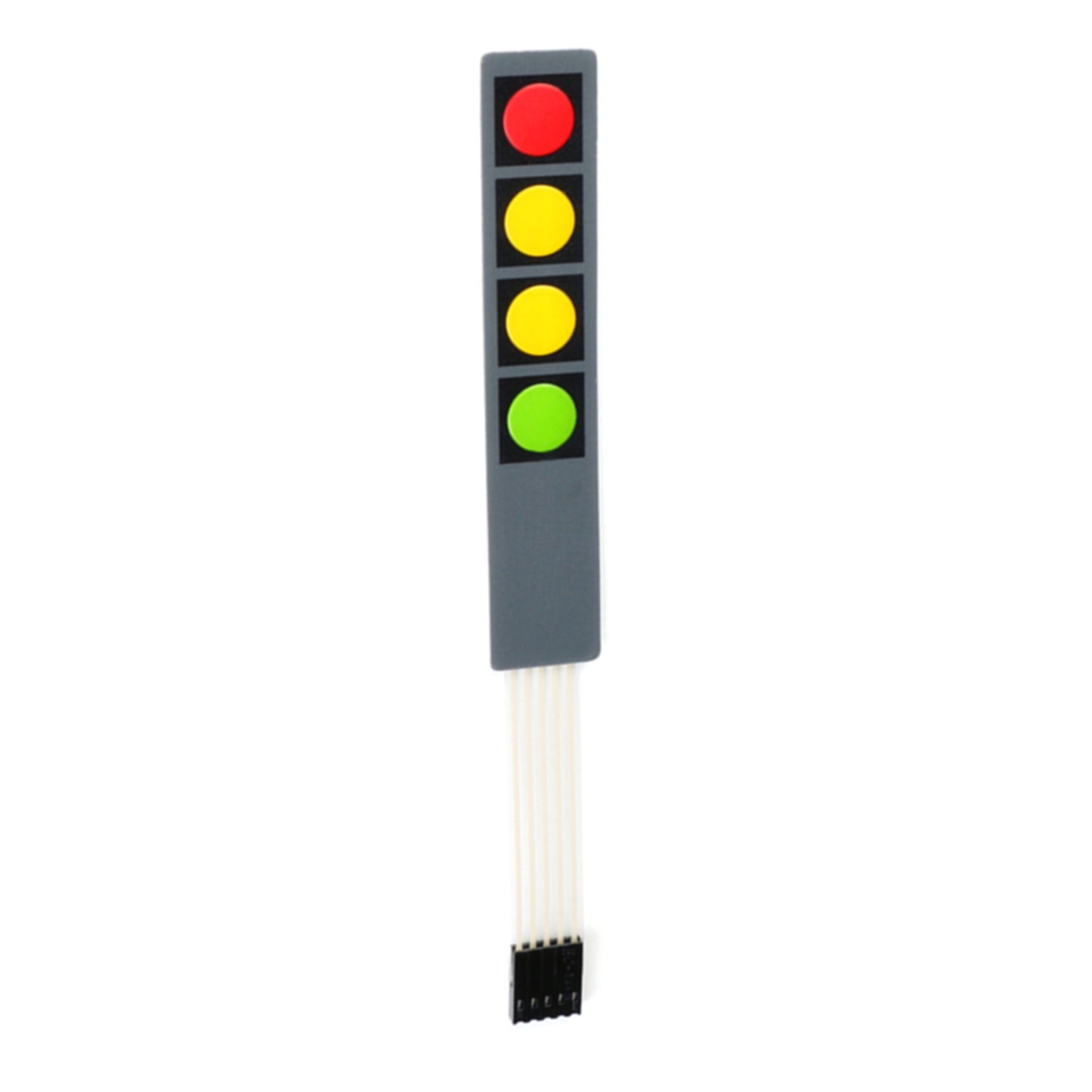

12V 4-Key Matrix Membrane Switch 107x20x0.8mm Membrane Switch 12V 4x1 Matrix Keypad For Industrial Use - AA189

12V 4-Key Matrix Membrane Switch 107x20x0.8mm Membrane Switch 12V 4x1 Matrix Keypad For Industrial Use - AA189

SKU:AA189

23 in stock

Regular price Rs. 69.00
Regular price Sale price Rs. 69.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Introducing a cost-effective and high-quality DC 12V 4×1 Key Matrix Membrane Switch Keypad, designed to meet the needs of your diverse application requirements.

This compact 4-button keypad serves as a valuable human-machine interface component for a wide range of microcontroller projects. Featuring a convenient adhesive backing, this keypad offers effortless installation in various applications.

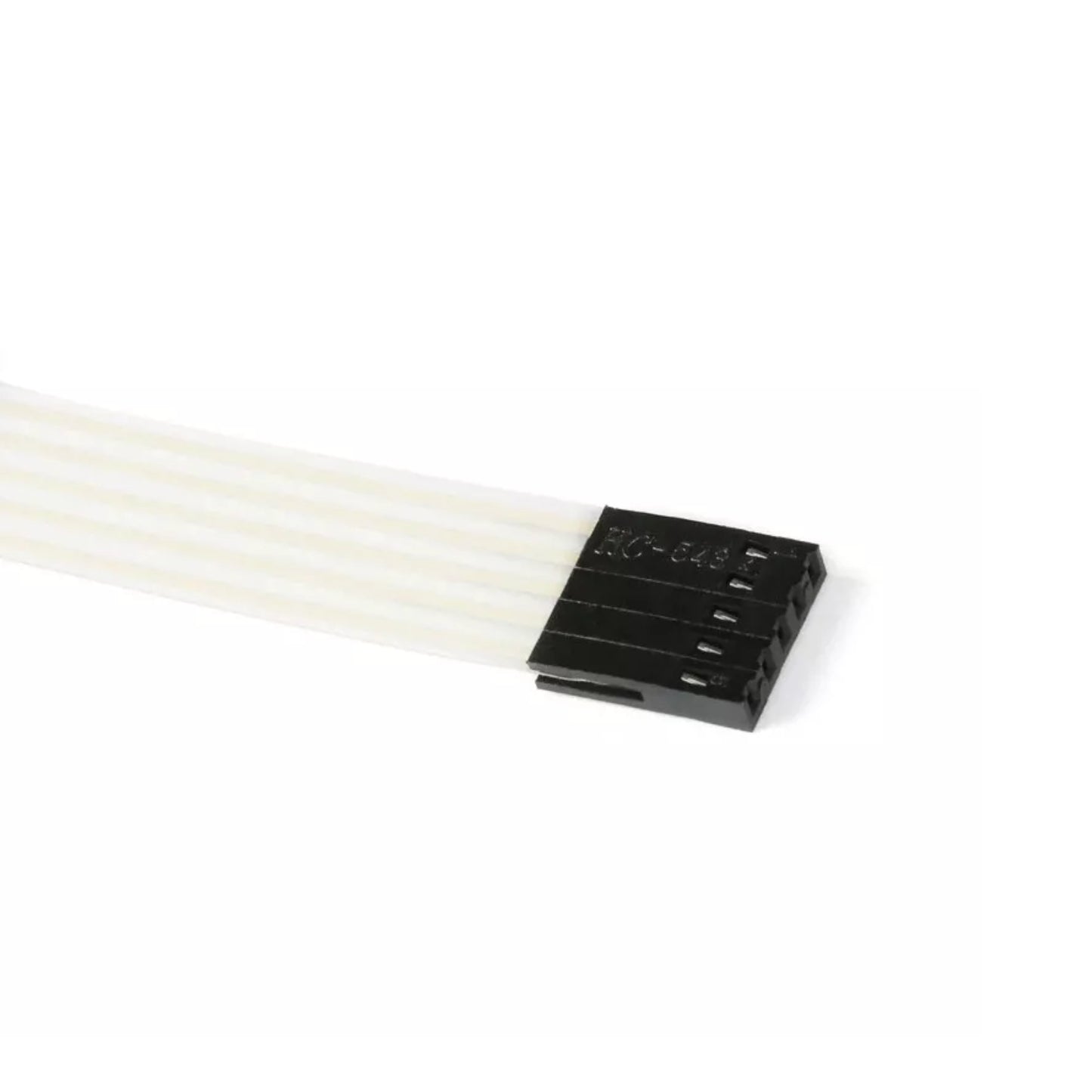

The 1×4 matrix configuration provides a total of 4 tactile buttons, ensuring user-friendly interaction. Constructed with a durable membrane design, this keypad eliminates the concerns associated with moving parts, enhancing its reliability and longevity.  For seamless integration with your microcontroller circuits, the keypad is equipped with a female 5-pin berg connector, facilitating straightforward connectivity

Specifications:

Model Type

Switch Keypad

Operating Voltage (VDC)

12

Operating Current (mA)

30

Contact Resistance

>100Ω

Operating Temperature (°C)

-40 to 85

Storage Temperature (°C)

-40 to 80

Cable Length (cm):

5

Features:

  • Easy communication with any microcontroller
  • 5 pins 2.54mm pitch connector,41 type 4 keys.
  • The sticker can peel off for adhesive mounting.
  • Used widely in industrial and home electronic equipment, instruments, etc.
  • Ultra-thin design & adhesive backing provides easy integration to any project
  • Excellent price-performance ratio
  • This allows a microcontroller to scan the 5 output pins to see which of the 4 buttons is being pressed.

Package Included:

1 x 12V 4x1 4-Key Matrix Membrane Switch
