Description:

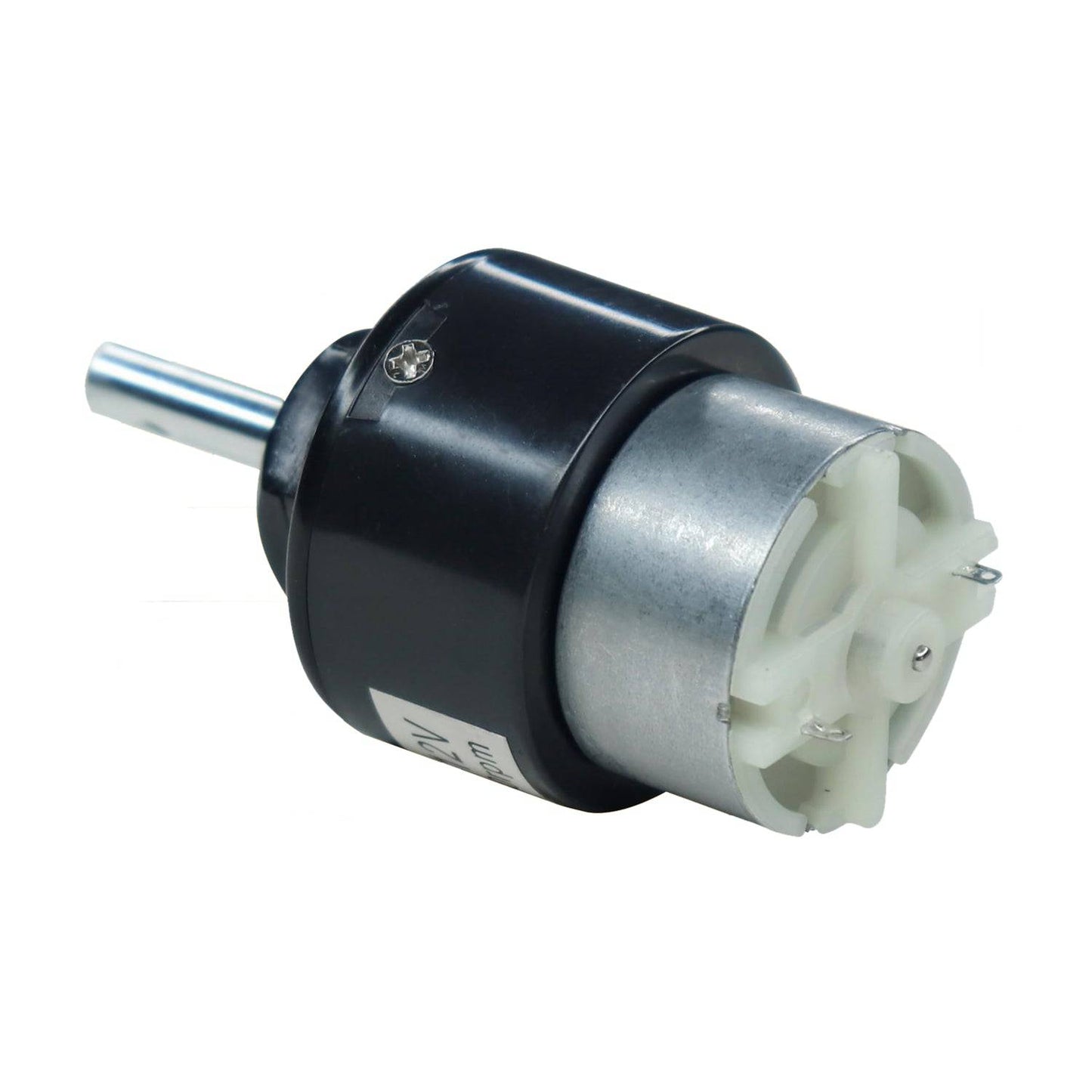

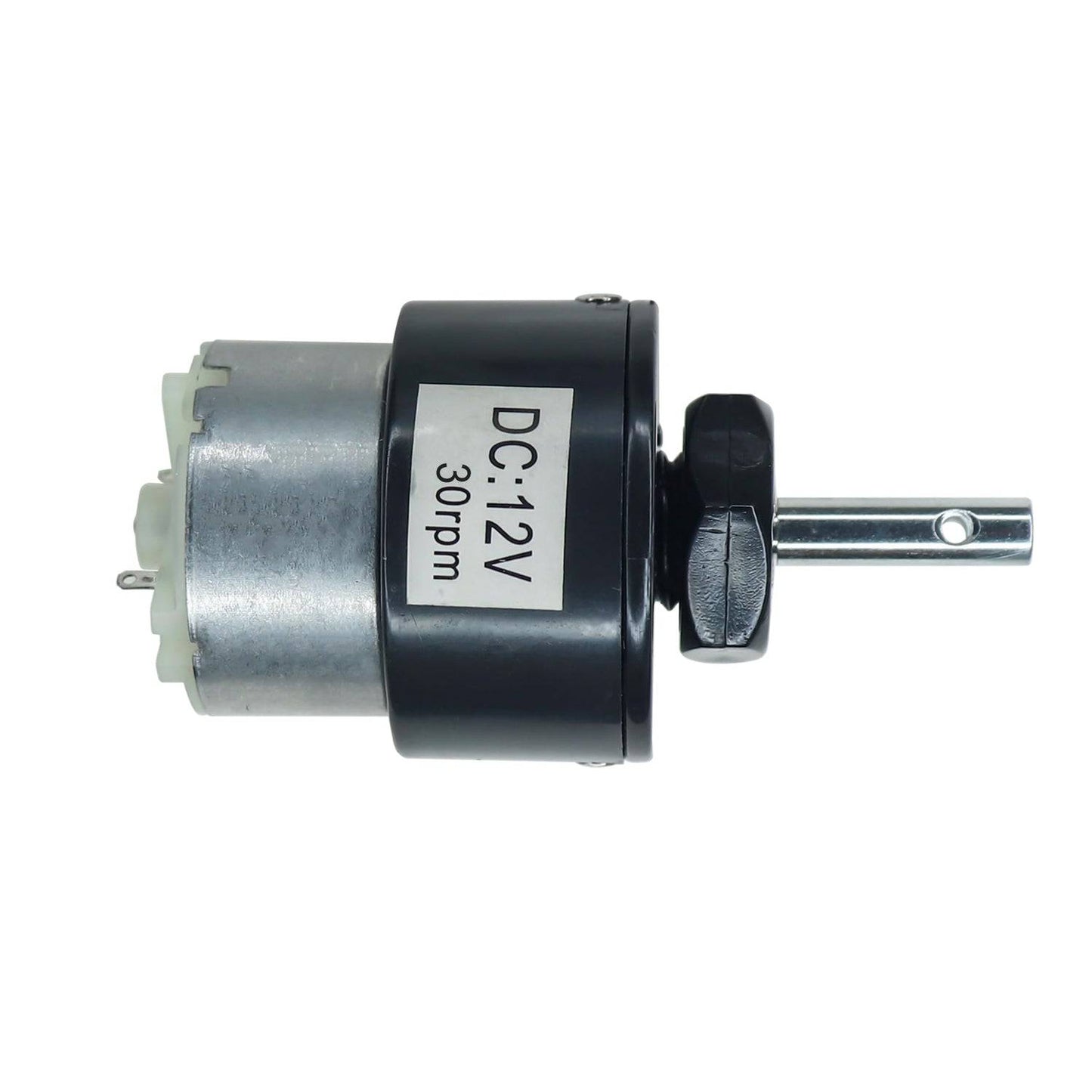

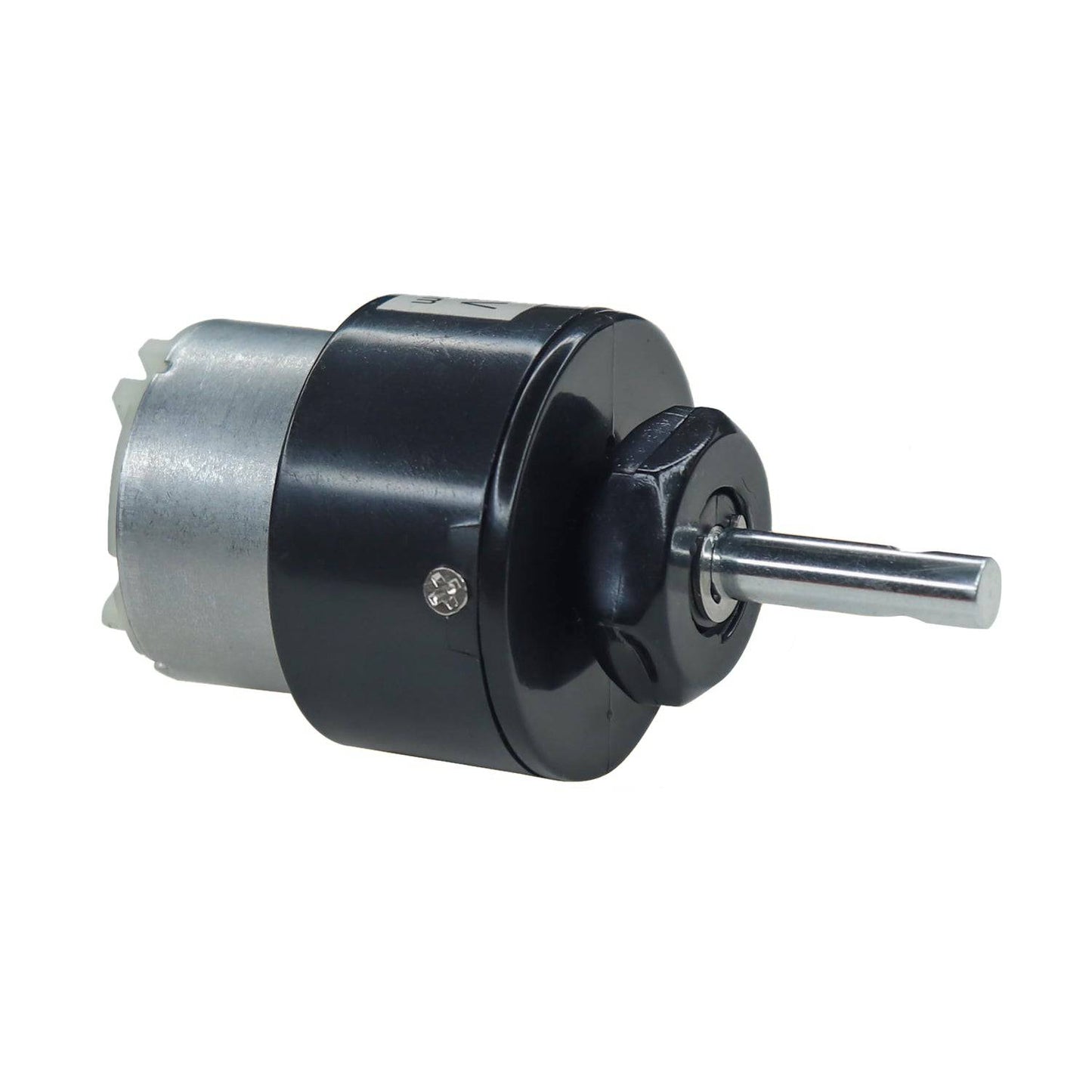

12V 30RPM Gear Motor is simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gearbox assembly.
12V 30RPM Gear Motor is very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with onboard voltage regulator motor driver can be used with this 12V 30RPM Gear Motor that has a voltage of between 5 and 35V DC.
This 12V 30RPM Gear Motor can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.
Specifications:
- Working Voltage: 12V DC
- Rated RPM: 30RPM
- Load Current Max: 300mA
- No-Load Current: 60mA
- Torque Range: 5kg-cm (Approx)
- Stall torque: 28kg-cm (Approx)
Features :
- It comes with Good Quality Gears.
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 30 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
Package Included:
1 x 12V 30RPM Gear Motor Centre Shaft DC Geared Motor Heavy Duty Motor for Robotics
