- Input Voltage:DC 4.5-24V
- Output Voltage: integration adjustable and fixed output, backside can choose fixed output voltage
- Adjustable Range: 0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
- Output Current: 3A (max),actual testing input 12V output 1.5A
Description:

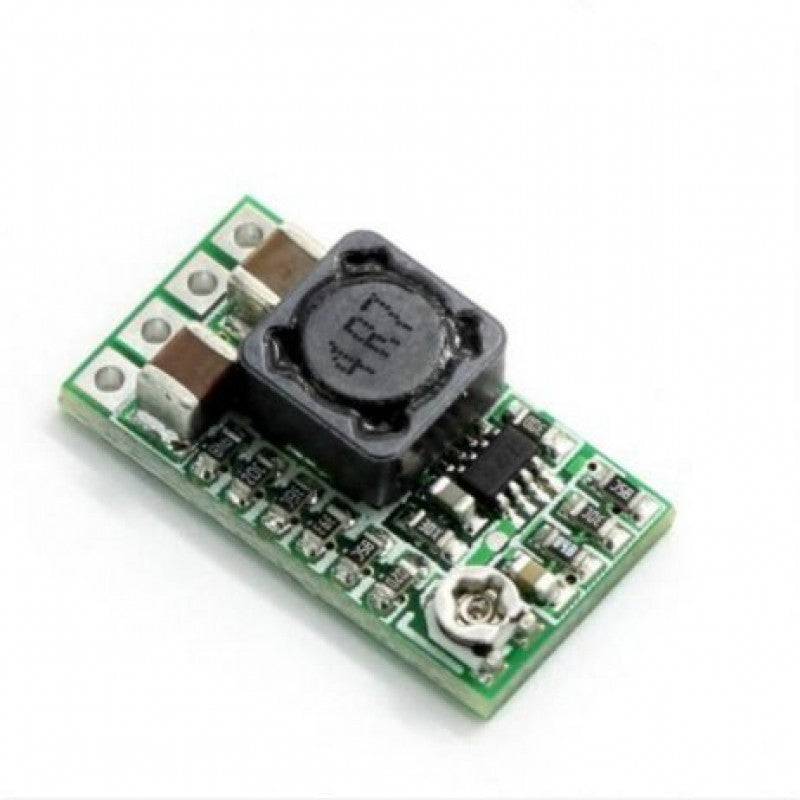

DC Step-Down Converter Power Module uses an integrally moulded power inductor and synchronous rectifier control chip, smaller and more efficient. This Module can be used as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.)
Specification:
- Input Voltage:DC 4.5-24V
- Output Voltage: integration adjustable and fixed output, the backside can choose fixed output voltage
- Adjustable Range: 0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
- Output Current: 3A (max),actual testing input 12V output 1.5A
- Transform Efficiency: 97.5%(max) (6.5 to 5V 0.7A)
- Switch Frequency: 500KHz
- Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width
- Operating Temp.: -40 Celsius-85 Celsius
- Output Overvoltage Protection: no
- Static Current: 0.85MA
- Load Adjust Rate: +-1%
- Voltage Adjust Rate: +-0.5%
- Dynamic Response Speed: 5% 200uS
- Output Short Circuit Protection: yes
- Input Transposition Protection: no
- Enable Control: yes
Package Included:
1 x 12V-24V to 5V 3A Super Mini Super Size DC Step-Down Module With 97.5 percent Efficiency
