- Frequency: 12000HZ
- Control Motor Power: 0.01-2000W
- Rated Current: 40A(Maximum output current)
- Regulation Range: 5-100 %
Description:

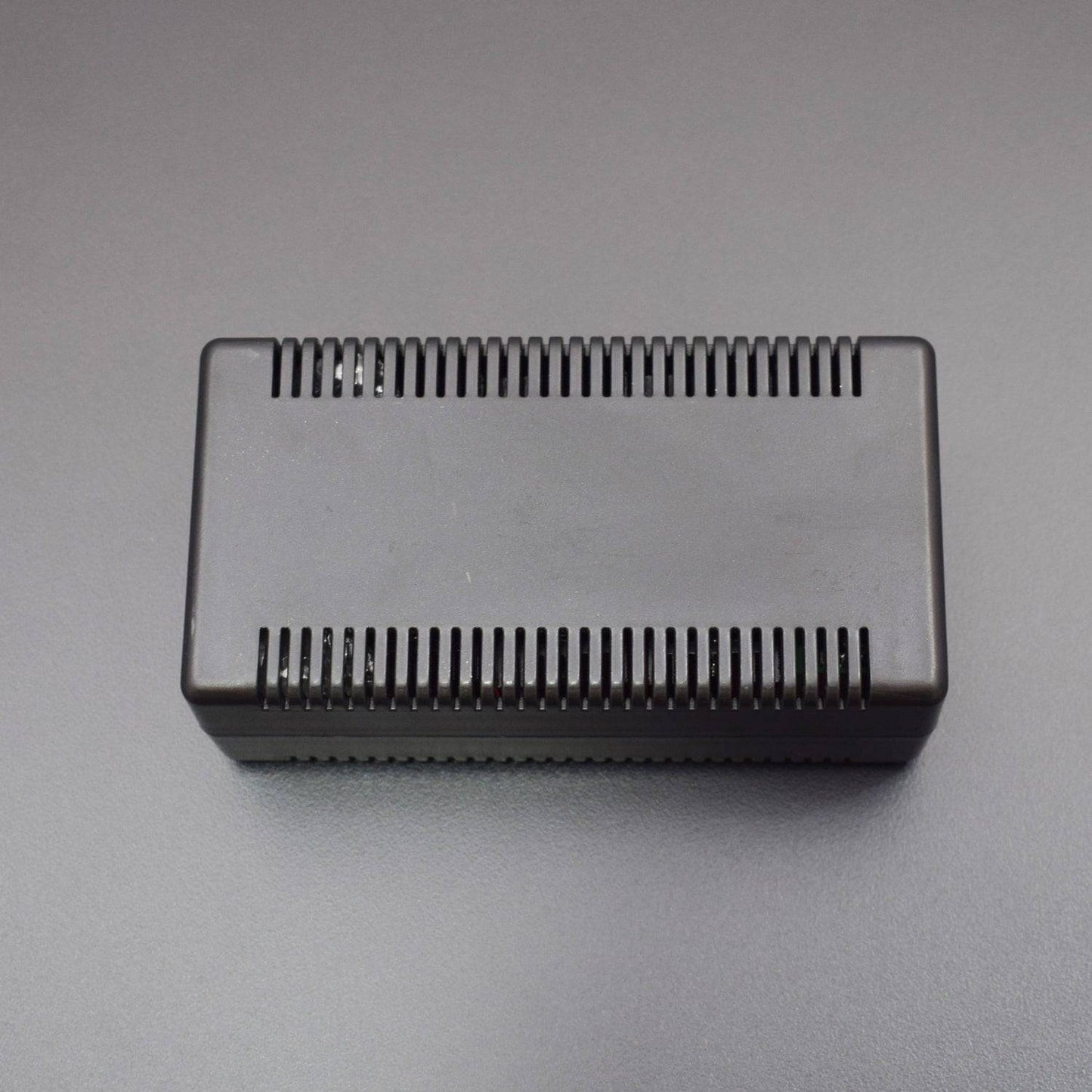

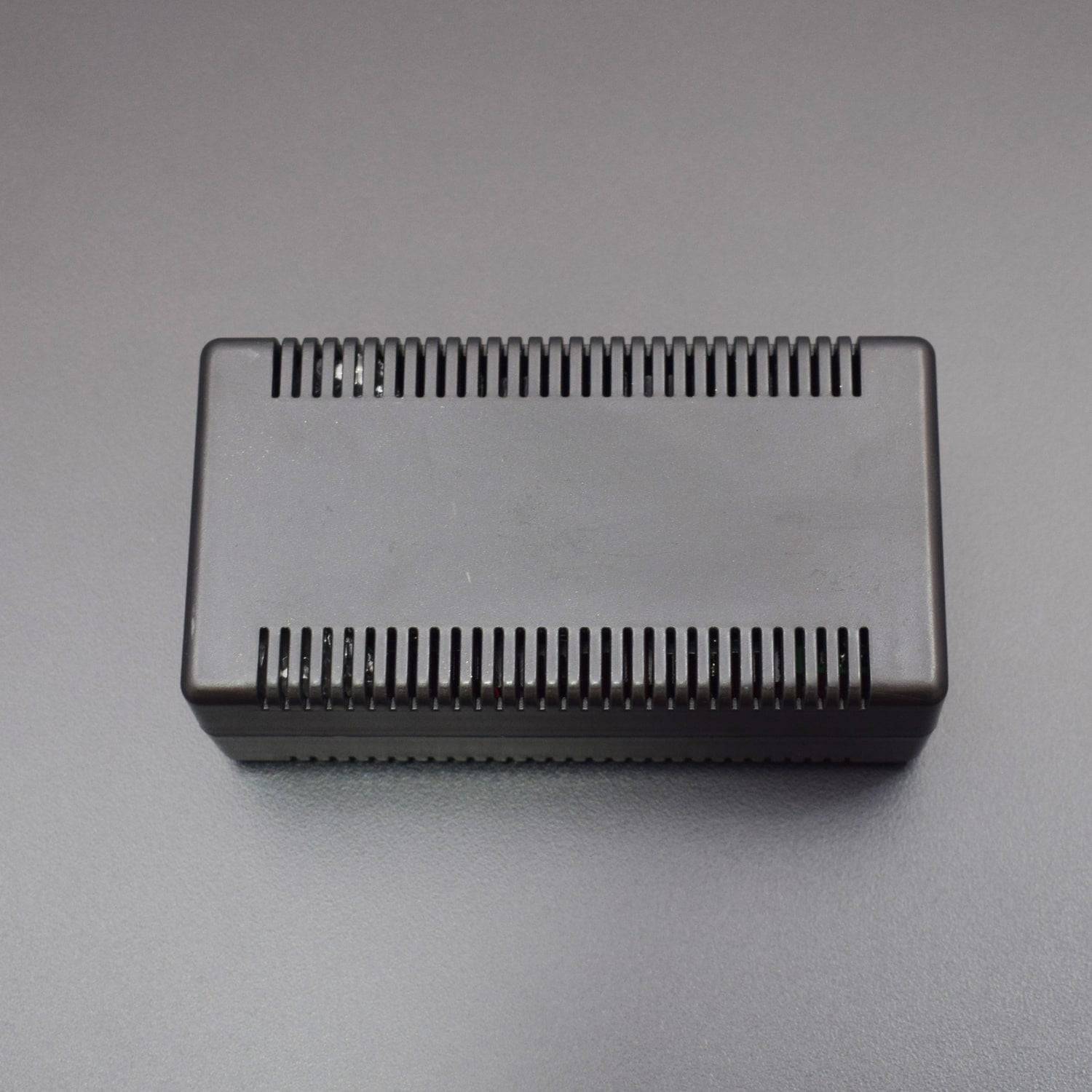

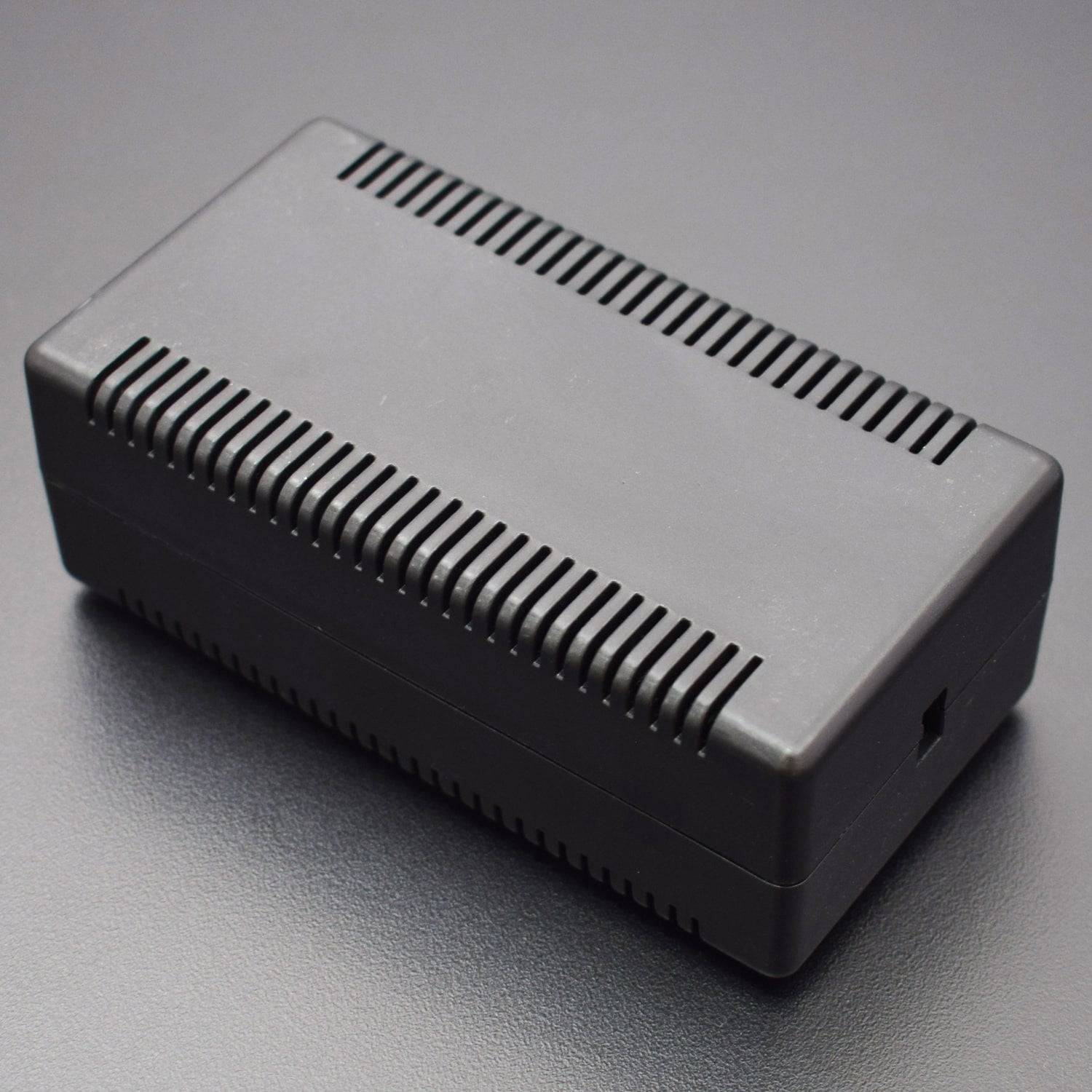

This 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V is used to control the speed of DC motors from 9V to 50V with a maximum power of 2000W this controller can provide up to 40A of current depending on the power supply. The board comes with a protective housing made from ABS plastic. The controller has 6 high-quality NCE7190A MOSFET’s which are connected to the individual heatsinks.
Specification:
- Frequency: 12000HZ
- Control Motor Power: 0.01-2000W
- Rated Current: 40A(Maximum output current)
- Regulation Range: 5-100 %
- Output Power : 0.01-2000W(max)
- 12V:480W(max); 24V:960W(max) ; 36V:1440W(max); 50V:2000W(max)
- Operating Temperature: -20℃(-4℉) to 40℃(104℉)
Features:
- It is fit all kinds of general-purpose and have a DC motor speed with brush
- All kinds of automobile motor car, (car wiper, car fan control cooling fan control, automobile air-conditioning fan speed control motor speed)
- Conveyor belt of the production line , pipe exhaust fan speed control and running machine control of motor speed, multiple computers parallel speed control, electronic fan speed control
- All kinds of dc lamp was dimming, all kinds of dc heater adjust the temperature
- This speed controller is the grade quality for the industrial , can work in below freezing environment
Operating Instruction:
- Before you attempting to wire the controller, make sure power is off.
- WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
- TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
- Connect wires .
- (It is recommended to add an appropriately rated fuse inline with the positive supply.)
- Turn on the power. The LED lights, the power is OK.
- Adjust the potentiometer.
Package Included:
1 x 12V 24V 36V 48V 40A 2000W PWM DC Motor Speed Controller Adjustable Variable speed Switch HHO Driver
